Product Description:

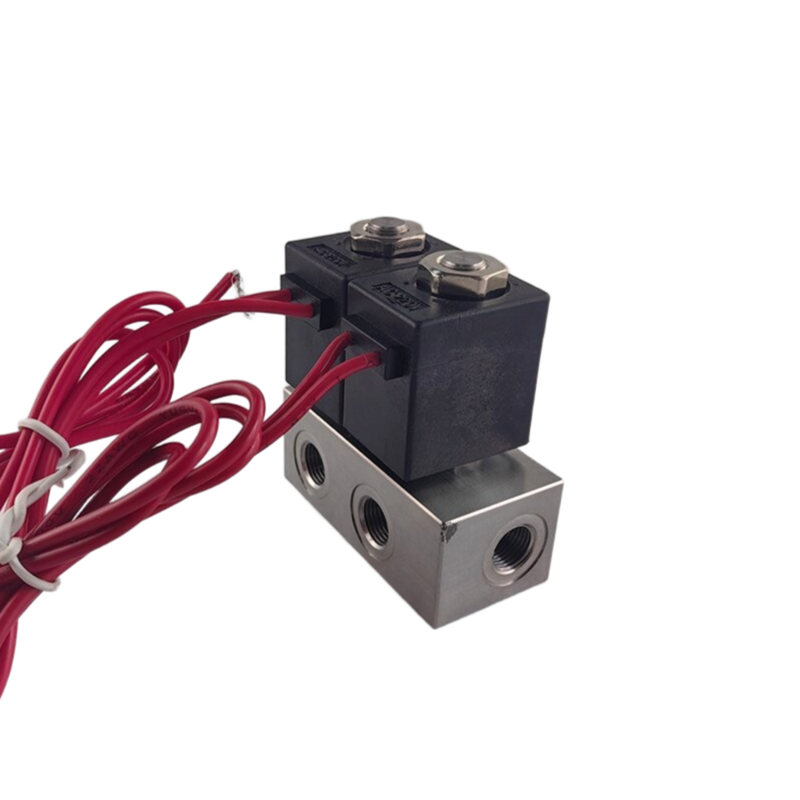

The Product Series features a 2/2-way normally closed direct-acting solenoid valve, specifically designed for manifold mount integration within fluid control systems. It is engineered to provide dependable ON/OFF control for a variety of fluids including air, water, steam, oil, and other neutral liquids.
Constructed primarily from stainless steel, this solenoid valve is built to withstand demanding industrial environments thanks to its exceptional durability and corrosion resistance. The direct-acting mechanism ensures consistent performance even at zero differential pressure, making it especially suitable for low-pressure and compact system applications.
The valve body is made from stainless steel, with optional materials such as brass and aluminum alloy available to suit different requirements. Additionally, it offers multiple seal material options—NBR, EPDM, and FKM—providing excellent compatibility with various media across a temperature range of -30°C to +150°C.
Available in 1/8″ and 1/4″ port sizes, and with orifice sizes ranging from 1.6mm to 3.0mm, the 1913BA series delivers precise flow control, featuring Cv values up to 0.30. Manufactured in Ningbo, China, and CE certified, this valve manifold is recognized for its high quality and reliability in a wide range of industrial applications.
Features:
The device features a direct acting operation with a spring-return mechanism that enables functionality starting from zero pressure differential (0 MPa). This design guarantees consistent and reliable performance throughout the entire pressure range.
It is equipped with a 2/2 way normally closed function, where the spring-return mechanism ensures the valve stays closed when de-energized. This provides a fail-safe operation, enhancing system safety and reliability.
Constructed with a stainless steel body, the valve boasts outstanding corrosion resistance and robust structural integrity. This durable construction supports long-term use in demanding environments. Additionally, brass and aluminum alloy variants are also available to meet different application needs.
Multiple seal options are offered to accommodate various media types and temperature conditions. Customers can select from NBR seals (-10 to +80°C), EPDM seals (-30 to +120°C), or FKM seals (-30 to +150°C) to achieve optimal compatibility and performance.

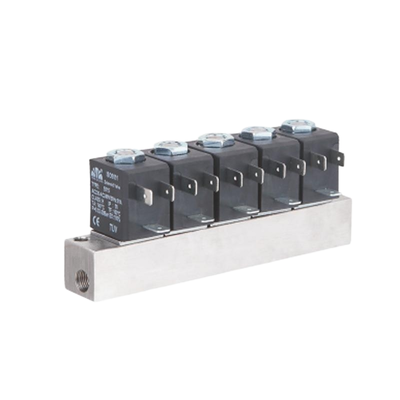

The compact manifold design includes 1/8″ and 1/4″ port sizes, which allow for space-efficient multi-station integration, making it ideal for systems with limited installation space.
This valve supports a wide operating pressure range up to 1.6 MPa (16 Bar) for both AC and DC models, catering to a variety of system requirements.
To facilitate precise flow control, multiple orifice sizes are available, including 1.6mm, 2.5mm, and 3.0mm. These options offer Cv values ranging from 0.11 to 0.30, enabling fine-tuned adjustment within the system.
The product is compatible with a broad spectrum of voltage options, such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), making it suitable for diverse control system setups.
It is CE certified, ensuring compliance with international safety and quality standards.
Supported by a high production capacity—200,000 pieces per month and 40,000 pieces per week—this valve guarantees a reliable supply for bulk orders, meeting large-scale demand efficiently.
Technical Parameters:
| Working Pressure |
0–16 Bar |
| Operation |
Direct Acting |
| Diaphragm Material |
NBR, EPDM, FKM |
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Port Size |
1/8'', 1/4'' |
| Function |
2 Way Normally Closed |
| Media Compatibility |
Air, Water, Steam, Oil |
Applications:
Industrial Automation
Fluid control plays a crucial role in industrial automation, particularly in the management of pneumatic and hydraulic systems with multiple stations. Efficient multi-station fluid control ensures seamless operation and coordination across various automated processes.
Water Treatment
In water treatment facilities, ON/OFF control mechanisms are essential for regulating water distribution and treatment processes. These systems help maintain the appropriate flow and ensure the quality of water delivered.
Compressed Air Systems
The control of airflow is vital in compressed air systems, especially when powering pneumatic tools and automation lines. Accurate fluid management enhances the performance and reliability of these systems.
Steam Systems
Steam control is important in small-scale heating applications as well as sterilization equipment. Precise management of steam ensures optimal temperature regulation and energy efficiency.
Oil Systems
Light oil control is utilized within industrial lubrication and fuel systems to maintain proper functioning and reduce wear and tear on machinery through consistent fluid delivery.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems rely on the control of heating and cooling fluids to regulate building climate. Effective fluid control contributes to energy savings and occupant comfort.
Packaging Machinery
Automated packaging equipment demands precise fluid control to manage various functions such as sealing, filling, and labeling, ensuring high efficiency and product consistency.
Medical Equipment
In medical devices, sterile fluid and gas control is critical for both diagnostic and treatment purposes. Maintaining sterility and accurate fluid management supports patient safety and effective healthcare delivery.
Laboratory Instruments
Precision fluid handling is fundamental in analytical and testing instruments. Accurate control of fluids enables reliable experimental results and enhances the capability of laboratory equipment.

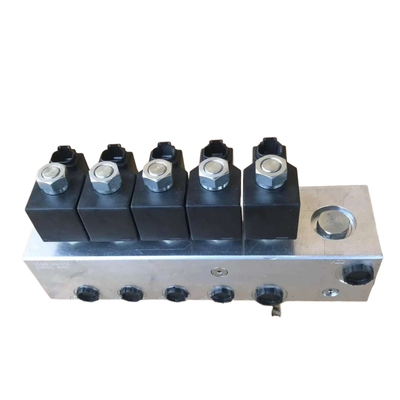

Manifold Assemblies
Manifold assemblies facilitate the integration of multiple valves into a single block, providing centralized control of fluid systems. This integration simplifies system design and improves operational efficiency.
Customization:
Our DKE 1913BA-5-S pneumatic solenoid valve offers comprehensive product customization services to meet your specific needs. Manufactured in China and CE certified, this versatile solenoid valve is designed for reliable operation with media compatibility including air, water, steam, and oil, making it an ideal water valve or air valve solution.
We provide customization options for standard voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC to ensure seamless integration into your system. The valve features a 2-way normally closed function with port sizes of 1/8'' and 1/4'', and orifice sizes available in 1.6mm, 2.5mm, and 3.0mm, allowing precise control tailored to your application requirements.
With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, we offer flexible pricing through negotiation. Packaging is handled securely in cartons to ensure safe delivery, with a typical delivery time of 1-7 work days after payment.
Payment terms include T/T, Western Union, and PayPal to accommodate your preferences. Whether you need a customized solenoid valve for air or water valve applications, our DKE 1913BA-5-S model can be tailored to deliver optimal performance and reliability.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure safety and protection during transit. Each valve is individually sealed in an anti-static bag to prevent moisture and dust damage. It is then placed in a custom-fitted foam insert within a sturdy cardboard box to minimize movement and absorb shocks. The outer packaging is labeled with product details, handling instructions, and barcodes for easy identification.
Shipping:
We offer worldwide shipping options with reliable carriers to ensure timely delivery. The packaged Pneumatic Solenoid Valve is shipped with tracking information provided to the customer. For international shipments, all necessary customs documentation and certifications are included to facilitate smooth customs clearance. Special handling instructions are followed for expedited or fragile shipments as requested.
