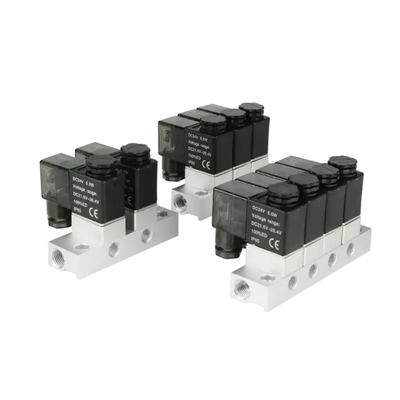

Product Description:
The Product Series under discussion is a 2/2-way normally closed direct-acting solenoid valve, specifically designed for manifold mount integration within fluid control systems. This valve is engineered to provide dependable ON/OFF control for various fluids such as air, water, steam, oil, and other neutral media.
Constructed primarily from stainless steel, the solenoid valve ensures exceptional durability and resistance to corrosion, making it highly suitable for demanding industrial environments. Its direct-acting mechanism guarantees consistent performance even at zero differential pressure, which makes it especially ideal for applications involving low pressure or compact system designs.
The valve body is available not only in stainless steel but also offers options in brass and aluminum alloys, allowing for greater flexibility based on specific use cases. Additionally, it supports multiple seal materials including NBR, EPDM, and FKM, enhancing its compatibility with a wide range of media and operating temperatures spanning from -30°C to +150°C.
Featuring port sizes of 1/8″ and 1/4″ and orifice diameters ranging between 1.6mm and 3.0mm, this 1913BA series solenoid valve delivers precise flow control with Cv values up to 0.30. Produced in Ningbo, China, this valve manifold holds CE certification, signifying its adherence to stringent quality and safety standards. It is widely trusted for reliable performance across diverse industrial applications.
Features:
The valve features a direct acting operation with a spring-return mechanism, enabling it to function efficiently starting from zero pressure differential (0 MPa). This design ensures consistent and reliable performance throughout the entire pressure range.
Designed as a 2/2 way normally closed valve, the spring-return mechanism guarantees the valve remains closed when de-energized. This provides a fail-safe operation, enhancing system safety and reliability.
Constructed with a durable stainless steel body, the valve offers excellent corrosion resistance and maintains structural integrity even in demanding environments. Additionally, options for brass and aluminum alloy bodies are available to suit different application needs.
Users can select from multiple seal materials to achieve optimal media compatibility and temperature tolerance. Available options include NBR (-10 to +80°C), EPDM (-30 to +120°C), and FKM (-30 to +150°C), allowing adaptation to a wide range of operating conditions.

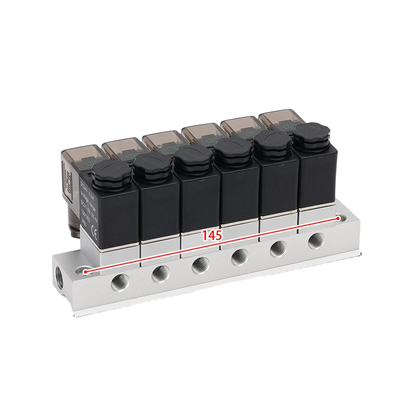

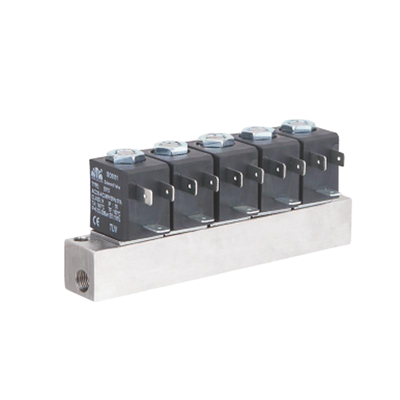

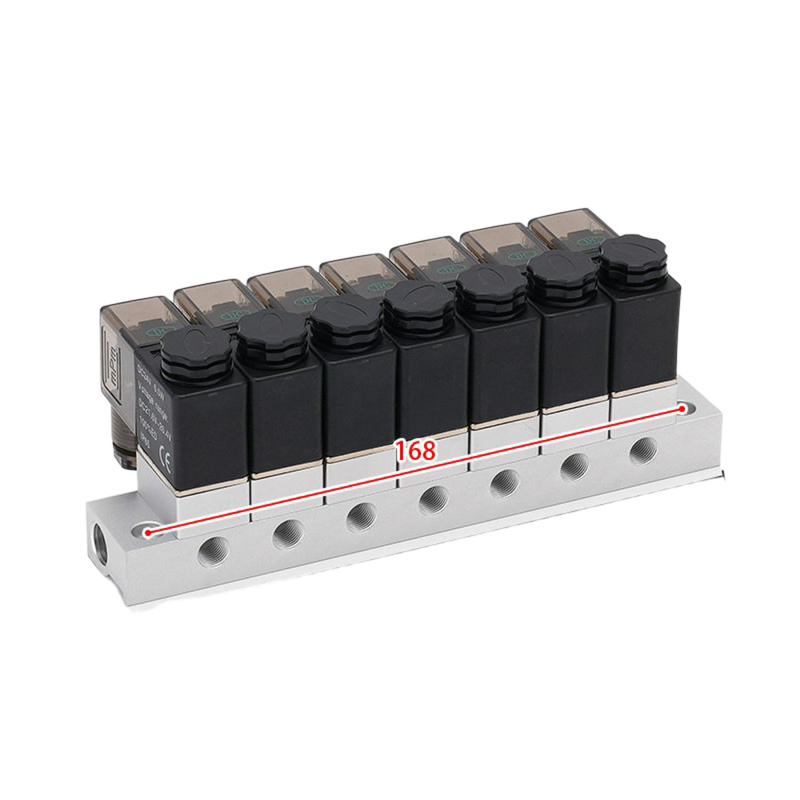

The compact manifold design incorporates 1/8″ and 1/4″ port sizes, facilitating space-efficient integration for multi-station configurations. This design helps save valuable installation space without compromising performance.
With an operating pressure capacity of up to 1.6 MPa (16 Bar) for both AC and DC models, the valve supports diverse system requirements. This wide pressure range ensures versatility in multiple applications.
Multiple orifice sizes are available, including 1.6mm, 2.5mm, and 3.0mm, enabling precise flow control. Corresponding Cv values range from 0.11 to 0.30, providing effective regulation of medium flow.
The valve supports various voltage options to accommodate different control systems, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This flexibility allows seamless integration into a wide array of electrical setups.
Certified with CE approval, the valve meets international safety and quality standards, assuring users of its compliance and reliability.
Backed by a high production capacity, the manufacturer can supply up to 200,000 pieces per month and 40,000 pieces per week, ensuring a dependable supply for both large and small orders.
Technical Parameters:
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Operation |
Direct Acting |
| Function |
2 Way Normally Closed |
| Diaphragm Material |
NBR, EPDM, FKM |
| Port Size |
1/8'', 1/4'' |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Working Pressure |
0–16 Bar |
| Media Compatibility |
Air, Water, Steam, Oil (suitable for light oil valve and water valve applications) |
Applications:
Industrial Automation
Fluid control systems are essential in industrial automation, particularly for managing multi-station pneumatic and hydraulic setups. These systems ensure precise and reliable operation across various automated processes.
Water Treatment
In water treatment facilities, ON/OFF control mechanisms are employed to manage water distribution and the various stages of treatment processes. This ensures efficient and safe handling of water resources.
Compressed Air Systems
Controlling airflow is critical in compressed air systems, which are commonly used with pneumatic tools and automation production lines. Proper regulation enhances performance and extends the lifespan of the equipment.
Steam Systems
Steam control plays a vital role in small-scale heating and sterilization applications, where accurate management of steam flow is necessary to maintain operational safety and effectiveness.
Oil Systems
In industrial settings, light oil control is imperative for lubrication and fuel supply systems. Efficient fluid regulation helps ensure machinery runs smoothly and reduces the risk of equipment failure.
HVAC Systems
Heating, ventilation, and air conditioning (HVAC) systems rely on precise heating and cooling fluid control to maintain comfortable and energy-efficient building environments.
Packaging Machinery
Automated packaging equipment requires exact fluid control to manage various packaging processes, improving accuracy and speed while minimizing waste.
Medical Equipment
Fluid and gas control in medical devices must adhere to stringent sterile conditions. These controls are fundamental in diagnostic tools and treatment apparatus to ensure patient safety and device reliability.
Laboratory Instruments
Analytical and testing equipment in laboratories depend on precision fluid handling to achieve accurate measurements and consistent results across various scientific applications.
Manifold Assemblies
Multi-valve manifold blocks integrated with fluid control systems allow centralized management of multiple fluid channels, simplifying installation and improving system organization.
Customization:
Introducing the DKE 1913BA-5-S pneumatic solenoid valve, a high-quality pilot diaphragm solenoid valve designed for versatile applications involving air, water, steam, and oil. Manufactured in China, this CE-certified valve offers reliable direct acting operation with a working pressure range of 0–16 Bar.
The valve features multiple orifice sizes—1.6mm, 2.5mm, and 3.0mm—and port sizes of 1/8'' and 1/4'', making it adaptable as an efficient air valve or water valve depending on your system requirements. With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, DKE ensures prompt delivery within 1-7 work days after payment.
Packaging is securely done in cartons to maintain product integrity during shipment. We offer flexible payment terms including T/T, Western Union, and Paypal, with the price open for negotiation to meet your budgetary needs. Customize your pneumatic solenoid valve order today and experience superior performance tailored to your specific industrial applications.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is securely packaged using high-quality materials to ensure protection during transit. Each valve is individually wrapped with anti-static foam and placed in a sturdy cardboard box. The box is then sealed with tamper-evident tape and labeled with product information, handling instructions, and barcode for easy identification.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely and promptly. Packages are handled with care and shipped via trusted carriers. Tracking information is provided upon dispatch to allow customers to monitor their shipment. For bulk orders, pallets are used with additional cushioning to prevent damage during transportation.
