Product Description:
The Product Series features a 2/2-way normally closed solenoid valve designed for direct-acting operation. It is specifically engineered to integrate seamlessly with manifold mounting systems in various fluid control applications.
This stainless steel solenoid valve provides dependable ON/OFF control for a range of fluids including air, water, steam, oil, and other neutral media. Its robust construction ensures excellent durability and corrosion resistance, making it well-suited for demanding industrial environments.
Thanks to its direct-acting mechanism, the valve performs reliably even at zero differential pressure. This characteristic makes it an ideal choice for low-pressure setups and compact system configurations where space and efficiency are critical.
The valve body is made from stainless steel, with optional brass and aluminum alloy variants available. Customers can select from multiple seal materials such as NBR, EPDM, and FKM to achieve optimal compatibility with different media types. It operates efficiently across a broad temperature range, from -30°C to +150°C.
Available in port sizes of 1/8″ and 1/4″, and featuring orifice diameters between 1.6mm and 3.0mm, the 1913BA series provides precise flow control with Cv values reaching up to 0.30. This series is manufactured in Ningbo, China, and holds CE certification, underscoring its high quality and reliability across various industrial applications.
Features:
Direct Acting Operation
The spring-return mechanism enables the valve to operate starting from zero pressure differential (0 MPa). This design ensures dependable performance throughout the entire pressure range.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, the valve remains closed when de-energized, providing a fail-safe operation that enhances system safety and reliability.
Stainless Steel Body Construction
The valve features a robust stainless steel body, which offers outstanding corrosion resistance and structural strength. This makes it suitable for long-term usage in demanding environments. Additionally, brass and aluminum alloy variants are available to meet different application needs.
Multiple Seal Options
To ensure optimal compatibility with various media and temperature conditions, customers can select from several seal materials: NBR (-10 to +80°C), EPDM (-30 to +120°C), or FKM (-30 to +150°C).

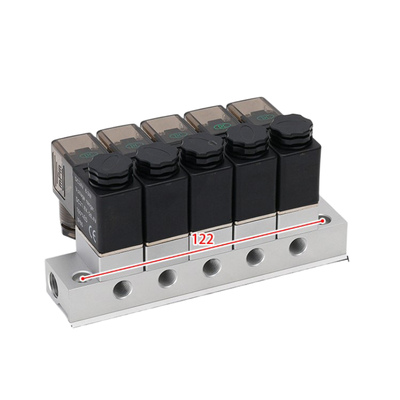

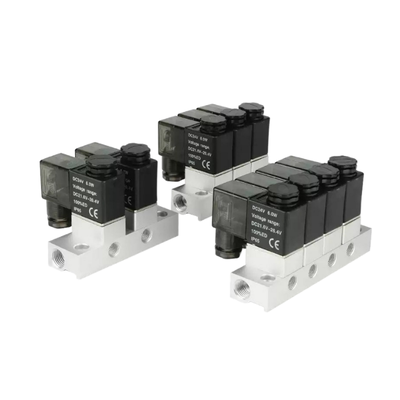

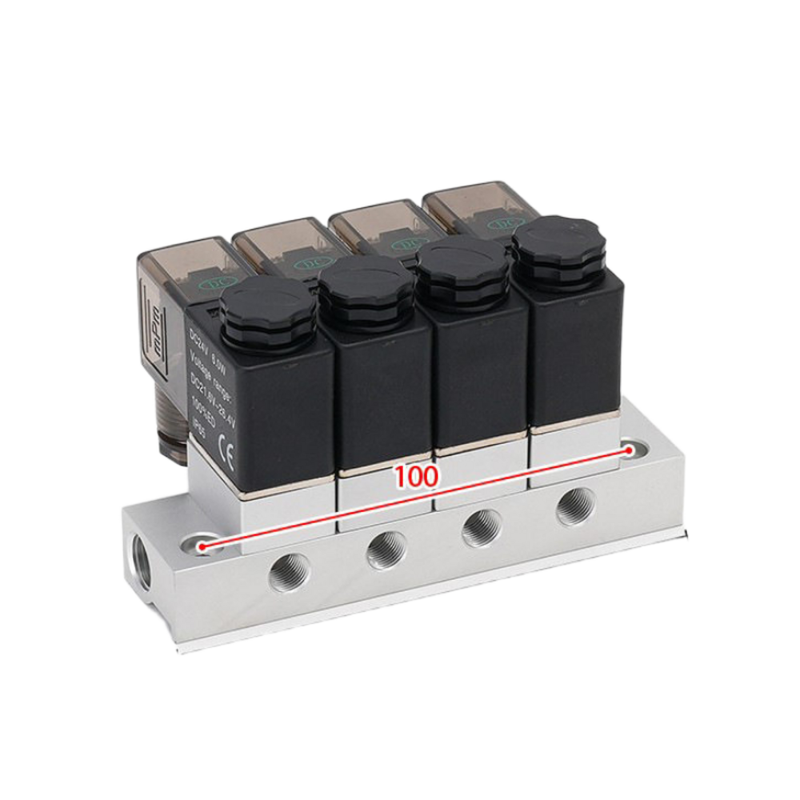

Compact Manifold Design
The valve comes with port sizes of 1/8″ and 1/4″, facilitating space-saving integration into multi-station manifold systems.
Wide Pressure Range
This valve supports an operating pressure of up to 1.6 MPa (16 Bar) for both AC and DC models, making it adaptable to a wide variety of system requirements.
Multiple Orifice Sizes
Available orifice sizes include 1.6mm, 2.5mm, and 3.0mm. These options allow for precise flow control with Cv values ranging from 0.11 to 0.30.
Wide Voltage Options
The valve is compatible with a broad selection of voltages, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), accommodating various control system requirements.
CE Certified
It complies with international safety and quality standards, as evidenced by its CE certification.
High Production Capacity
The manufacturing capability reaches up to 200,000 units per month and 40,000 units per week, guaranteeing a reliable supply for large volume orders.
Technical Parameters:
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Working Pressure |
0–16 Bar |
| Diaphragm Material |
NBR, EPDM, FKM |
| Media Compatibility |
Air, Water, Steam, Oil |
| Function |
2 Way Normally Closed |
| Operation |
Direct Acting |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Port Size |
1/8'', 1/4'' |
Applications:
Applications of Fluid Control Systems
Industrial automation relies heavily on multi-station fluid control, particularly within pneumatic and hydraulic systems. These systems enable efficient and precise control of fluids across multiple operational stations, enhancing productivity and reliability.
In the field of water treatment, ON/OFF control mechanisms are essential for managing water distribution and treatment processes. Such control ensures effective regulation of water flow, contributing to resource conservation and quality management.
Compressed air systems utilize fluid control to regulate air flow within pneumatic tools and automated production lines. This control is crucial for maintaining consistent operational performance and reducing energy consumption.
Steam systems, especially those used in small-scale heating and sterilization equipment, depend on accurate steam control to guarantee safety and process efficiency. Proper fluid control in these systems ensures consistent temperature and pressure conditions.
Industrial oil systems require precise fluid control to manage light oil used in lubrication and fuel applications. Effective control supports machinery longevity and optimizes fuel usage.
Heating, ventilation, and air conditioning (HVAC) systems benefit from fluid control to regulate heating and cooling fluids within building services. This control facilitates comfortable indoor environments and energy efficiency.
Packaging machinery integrates precise fluid control to automate the handling of liquids during the packaging process. This precision is vital for maintaining product quality and operational speed.
In the medical field, sterile fluid and gas control is critical within diagnostic and treatment devices. Ensuring sterility and precise flow control contributes to patient safety and accurate medical procedures.
Laboratory instruments rely on precision fluid handling to perform accurate analytical and testing operations. Controlled fluid management enhances the reliability of experimental results and quality control.

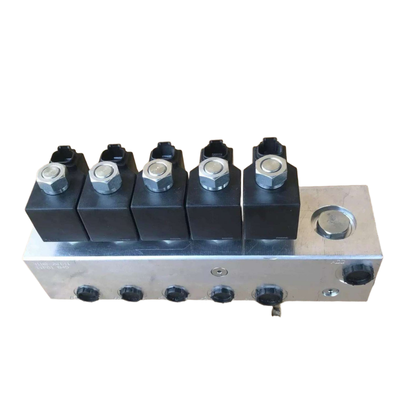

Manifold assemblies serve as centralized units where multiple valves are integrated for coordinated fluid control. These assemblies streamline system design and improve overall fluid management efficiency.
Customization:
The DKE 1913BA-5-S Pneumatic Solenoid Valve offers comprehensive product customization services tailored to meet your specific needs. Manufactured in China and certified with CE, this valve is designed for reliable performance as a 2 Way Normally Closed valve suitable for various applications including light oil valve and water valve systems.
We provide customization options for standard voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, ensuring compatibility with your electrical requirements. The valve port sizes are available in 1/8'' and 1/4'', allowing flexibility for different piping configurations.
The diaphragm material can be selected from NBR, EPDM, or FKM depending on the medium and operating conditions, making it ideal for use as a light oil valve or water valve. The working pressure range of 0–16 Bar further supports its adaptability to various industrial environments.
With a minimum order quantity of 1 piece and a supply ability of 5000 pieces per month, DKE ensures prompt delivery within 1-7 work days after payment. Pricing is negotiable, and payment terms include T/T, Western Union, and PayPal for your convenience.
Packaging is handled securely in cartons to protect the product during shipment. Trust DKE for customized pneumatic solenoid valves that meet your exact specifications for light oil valve and water valve applications.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually wrapped in anti-static bubble wrap and placed inside a custom-fitted foam insert to prevent movement and damage. The wrapped product is then placed inside a sturdy, corrugated cardboard box. The box is labeled with product details, handling instructions, and barcodes for easy identification.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve promptly and securely. Shipping is available via standard ground, expedited, or express courier services depending on your location and urgency. All packages are tracked with a unique tracking number provided upon dispatch. We ensure compliance with all applicable regulations for pneumatic and electronic components during transit. Insurance options are available for added protection.
