Product Description:
The Product Series features a 2/2-way normally closed direct-acting solenoid valve, specifically designed for integration into manifold mounts within fluid control systems. This valve is engineered to provide reliable ON/OFF control for various media, including air, water, steam, oil, and other neutral fluids.
Constructed from stainless steel, the solenoid valve offers excellent durability and resistance to corrosion, making it well-suited for harsh industrial environments. Its direct-acting mechanism ensures dependable operation even at zero differential pressure, which makes it ideal for applications involving low pressure and compact system layouts.
The valve body is available in stainless steel, with optional materials such as brass and aluminum alloy. It also provides a variety of seal materials, including NBR, EPDM, and FKM, to ensure broad media compatibility. The valve can operate efficiently across a wide temperature range, from -30°C to +150°C.
Available port sizes include 1/8″ and 1/4″, with orifice sizes ranging from 1.6mm to 3.0mm. The 1913BA series is capable of delivering precise flow control, offering Cv values of up to 0.30. Manufactured in Ningbo, China, and backed by CE certification, this solenoid valve manifold is recognized for its high quality and reliability across diverse industrial applications.
Features:
The direct acting operation features a spring-return mechanism that enables the valve to function starting from zero pressure differential (0 MPa). This design guarantees reliable performance throughout the entire pressure range, ensuring consistent and efficient operation.
This valve is designed as a 2/2 way normally closed unit. When de-energized, the spring-return mechanism keeps the valve securely closed, providing a fail-safe operation that enhances system safety and prevents unintended flow.
Constructed with a stainless steel body, the valve exhibits superior durability and excellent resistance to corrosion. This robust construction maintains structural integrity even in demanding environments. Additionally, brass and aluminum alloy variants are also available to meet different application needs.
To ensure optimal compatibility with various media and temperature conditions, multiple seal options are offered. Customers can select from NBR seals suitable for temperatures between -10°C and +80°C, EPDM seals for -30°C to +120°C, or FKM seals that handle a range from -30°C to +150°C.
The compact manifold design supports port sizes of 1/8″ and 1/4″, facilitating space-saving integration in multi-station setups. This feature allows for more efficient system layouts without compromising functionality.
With a wide operating pressure capacity of up to 1.6 MPa (16 Bar) for both AC and DC models, the valve accommodates a diverse array of system requirements, making it versatile across different applications.
Multiple orifice sizes are available, including 1.6mm, 2.5mm, and 3.0mm, which provide precise flow control with Cv values ranging from 0.11 to 0.30. This variety allows for customization based on specific flow demands.
The valve supports a broad range of voltage options, being compatible with 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This flexibility makes it suitable for numerous control systems across different regions.
CE certification confirms that the product complies with international safety and quality standards, ensuring reliability and trustworthiness in operation.
Backed by a high production capacity of 200,000 pieces per month and 40,000 pieces per week, the supplier can reliably fulfill bulk orders, supporting large-scale project demands without delays.
Technical Parameters:
| Standard Voltages |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Diaphragm Material |
NBR, EPDM, FKM |
| Port Size |
1/8'', 1/4'' |
| Orifice Size |
1.6mm, 2.5mm, 3.0mm |
| Operation |
Direct Acting |
| Working Pressure |
0–16 Bar |
| Media Compatibility |
Air, Water, Steam, Oil (including light oil valve applications) |
| Function |
2 Way Normally Closed (normally closed solenoid valve) |
Applications:
Applications of Fluid Control Systems
In the field of industrial automation, multi-station fluid control plays a critical role in managing pneumatic and hydraulic systems. These systems rely on precise regulation of fluids to ensure efficient and reliable operation across various manufacturing processes.
Water treatment processes utilize ON/OFF control mechanisms to manage the distribution and purification of water. This control ensures that water is treated effectively and delivered safely for various uses.
Compressed air systems depend on accurate control of airflow within pneumatic tools and automated production lines. This control is essential for maintaining the performance and safety of equipment operating under compressed air pressure.
Steam systems, commonly used in small-scale heating and sterilization equipment, require careful steam control. Proper management of steam flow ensures consistent temperature regulation and effective sterilization.
In oil systems, the control of light oil is vital for industrial lubrication and fuel delivery. These systems help maintain equipment functionality by ensuring the appropriate flow and pressure of oil.
Heating, ventilation, and air conditioning (HVAC) systems rely on precise heating and cooling fluid control within building services. This fluid regulation contributes to energy efficiency and occupant comfort.
Automated packaging machinery benefits from precise fluid control to handle various packaging tasks effectively. Accurate fluid management enhances the reliability and speed of packaging operations.
Medical equipment requires sterile fluid and gas control to ensure safe and accurate diagnostic and treatment procedures. Maintaining sterility and precise control is crucial in healthcare applications.
Laboratory instruments utilize precision fluid handling to perform analytical and testing tasks with high accuracy. This level of control is essential for obtaining reliable and reproducible results in scientific research.

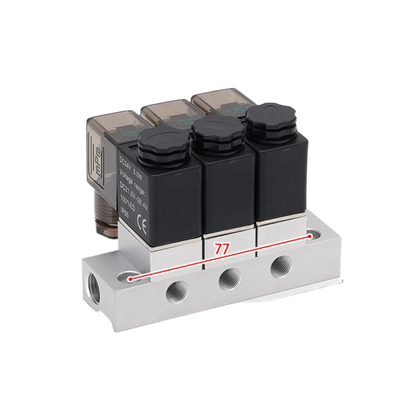

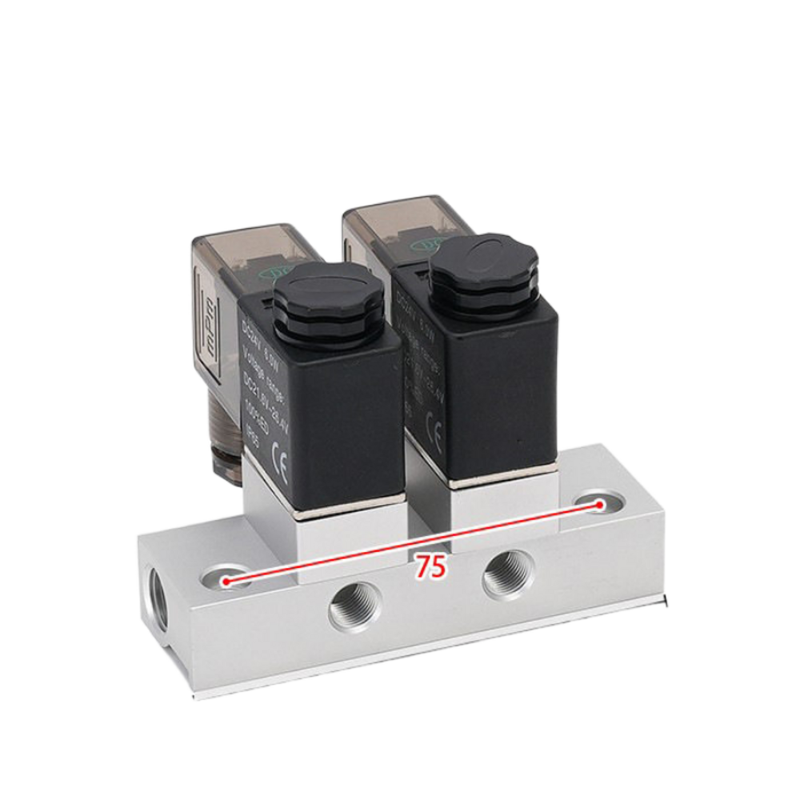

Manifold assemblies are designed to integrate multiple valves into a single block, allowing for centralized control of fluid systems. This integration simplifies system design and improves maintenance efficiency.
Customization:
Our DKE 1913BA-5-S pneumatic solenoid valve offers exceptional customization services to meet your specific requirements. As a normally closed solenoid valve, it is designed for reliable operation in various applications involving air, water, steam, and oil media compatibility. This pilot diaphragm solenoid valve operates as a 2-way normally closed air valve, ensuring precise control and efficient performance.
Manufactured in China and CE certified, the DKE 1913BA-5-S model supports multiple standard voltages including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC, allowing seamless integration into your existing systems. With a working pressure range of 0–16 Bar and direct acting operation, it guarantees robust functionality under demanding conditions.
We accommodate a minimum order quantity of just 1 piece, with pricing available upon negotiation. Packaging is carefully handled in cartons to ensure safe delivery. Our supply ability is up to 5000 pieces per month, with a delivery time of 1 to 7 working days after payment confirmation.
Flexible payment terms are offered, including T/T, Western Union, and Paypal, to facilitate a smooth transaction process. Trust DKE for tailored pneumatic solenoid valve solutions that perfectly match your operational needs.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is carefully packaged to ensure safety during transportation and handling. Each valve is individually wrapped in anti-static foam or bubble wrap to prevent damage from shocks and vibrations. The wrapped valve is then placed in a sturdy, custom-fitted cardboard box. The box includes protective inserts to keep the valve secure and prevent movement inside the package. All packaging materials are chosen to be environmentally friendly and recyclable where possible.
Shipping:
We offer reliable shipping options to deliver the Pneumatic Solenoid Valve safely and promptly to your location. Orders are processed within 1-2 business days after payment confirmation. The product is shipped via trusted courier services with tracking information provided. For international shipments, all necessary customs documentation and regulations compliance are handled to ensure smooth delivery. Expedited shipping options are available upon request. Please ensure the shipping address is accurate to avoid delays.
