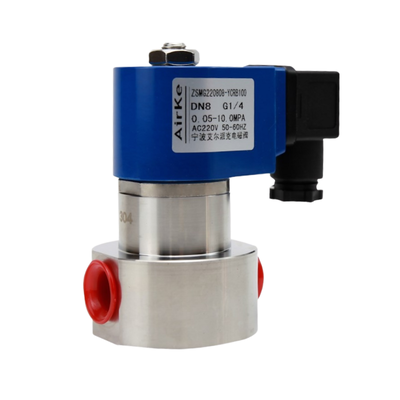

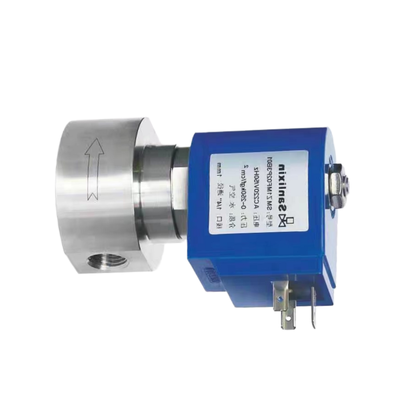

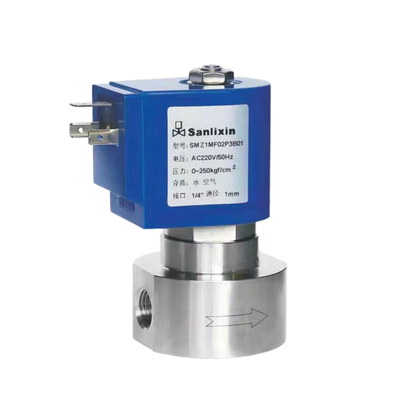

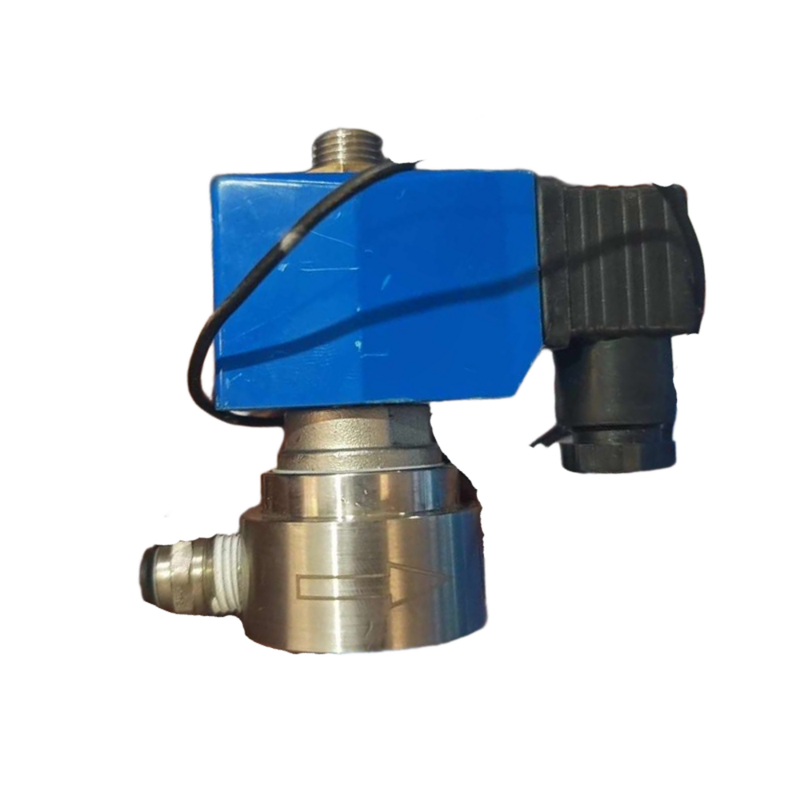

H4S005B02-AC-220 Direct Operated Light Oil Valve PCTFE Seal Material 1/4''Port Size 220VAC Orifice Size 0.5mm

Product Description:

The H4S Series is a 2/2-way normally closed direct-acting solenoid valve, specifically designed for ultra-high pressure fluid control applications reaching up to 700 bar (10,000 PSI). This valve is engineered to provide dependable ON/OFF control for various media including air, water, gas, and other neutral liquids.

Its direct-acting mechanism guarantees consistent performance even at zero differential pressure, making it highly suitable for applications that demand precise control throughout the entire pressure spectrum. This feature ensures the valve operates efficiently in the most challenging high-pressure scenarios.

Constructed with a Stainless Steel 316 body, the H4S Series incorporates advanced seal materials such as PEEK and PCTFE. These components contribute to excellent durability, superior corrosion resistance, and leak-tight operation under extreme pressure conditions.

Available in port sizes of 1/8″ and 1/4″ along with a 0.5mm orifice, the valve offers accurate flow control with a Cv value of 0.02. Manufactured in Ningbo, China, the H4S Series has earned a reputation for high quality and reliability in ultra-high pressure systems around the globe.

Features:

This valve demonstrates an ultra-high pressure capability, with a maximum working pressure reaching up to 700 bar (10,000 PSI). It is specifically designed to meet the demands of high-pressure applications, ensuring reliable performance even under extreme conditions.

Equipped with a direct acting, spring-return mechanism, the valve operates efficiently from zero differential pressure (0 bar). This feature guarantees dependable functionality across the entire pressure range, making it suitable for a variety of operational environments.

Featuring a 2/2 way normally closed configuration, the valve remains securely closed when de-energized, thanks to its spring-return system. This fail-safe design enhances safety by preventing unintended flow during power loss or system shutdown.

Constructed with a premium Stainless Steel 316 body, the valve offers outstanding corrosion resistance and structural robustness. This ensures durable, long-term service even in harsh or chemically aggressive environments.

The use of advanced seal materials such as PEEK and PCTFE provides excellent leak-tight performance and exceptional chemical resistance. These seals maintain their integrity under extreme pressure and temperature conditions, contributing to the valve’s reliability.

For precise flow regulation, the valve includes a 0.5mm orifice size with a Cv value of 0.02. This allows for accurate and repeatable control of fluid flow, which is critical in applications requiring meticulous flow management.

Its compact design is available in 1/8″ and 1/4″ port sizes, making it ideal for installations where space is limited. This versatility allows it to fit seamlessly into various system layouts.

The valve supports a wide range of voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This compatibility ensures easy integration with different control systems across diverse applications.

Backed by a high production capacity of 500,000 pieces annually and 20,000 pieces monthly, the manufacturer can reliably supply bulk orders. This makes the valve a dependable choice for large-scale industrial and commercial projects.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and reliability. We provide detailed installation guides, operation manuals, and maintenance instructions to assist you in the proper use and care of the valve.

Our technical support team is available to help troubleshoot any issues, offer advice on system integration, and provide recommendations for selecting the right valve configuration for your specific application. We also offer training sessions and webinars to help your team understand the features and benefits of our pneumatic solenoid valves.

For maintenance and repair, we supply genuine replacement parts and offer refurbishment services to extend the lifespan of your valves. Our service packages include regular inspections, performance assessments, and on-site support to minimize downtime and maximize efficiency.

We are committed to delivering high-quality products and exceptional customer service to meet the evolving needs of our clients in various industries, ensuring that your pneumatic systems operate smoothly and effectively.

Packing and Shipping:

Product Packaging:

The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is individually wrapped in anti-static bubble wrap and placed inside a sturdy, custom-designed cardboard box to prevent any damage during transit. The packaging includes protective foam inserts to absorb shocks and vibrations. Additionally, all necessary documentation, including the user manual and warranty card, is enclosed within the package.

Shipping:

We offer reliable and efficient shipping services worldwide. Orders are processed within 1-2 business days after payment confirmation. The Pneumatic Solenoid Valve is shipped via trusted carriers with tracking information provided for your convenience. Depending on your location, shipping options include standard, expedited, and express delivery. We ensure that all packages are securely sealed and labeled to comply with shipping regulations and to guarantee safe arrival at your doorstep.
