Product Description:
The RA/802100/M Series represents a high-performance pneumatic cylinder designed according to the ISO 15552 standard. Part of the acclaimed ISOLine™ product family, this double-acting cylinder boasts a bore diameter of 100mm. It is available in a wide range of stroke lengths, from 25mm up to 1000mm, making it a versatile choice for delivering consistent and efficient linear motion across numerous industrial automation tasks.
Central to this cylinder's advanced design is the Adaptive Cushioning System (ACS). This smart technology automatically fine-tunes the cushioning based on varying load conditions, removing the necessity for manual adjustments or specialized knowledge. This leads to enhanced operational smoothness and safety, alongside lowered maintenance requirements and a prolonged service life.

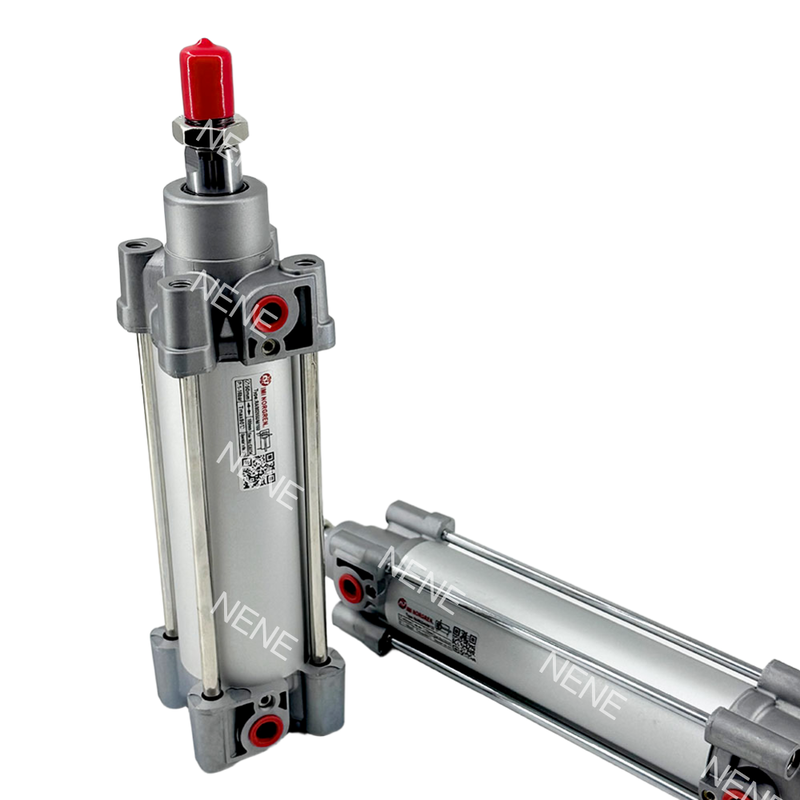

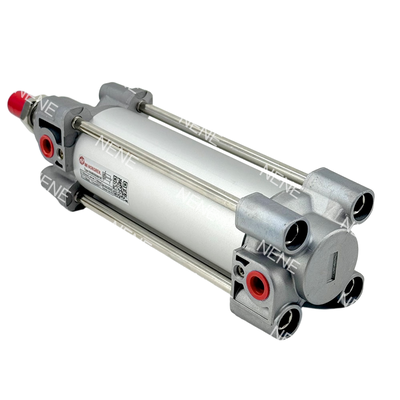

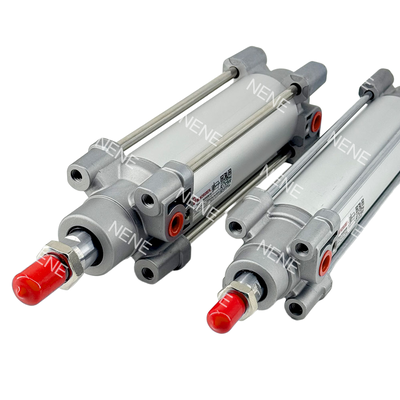

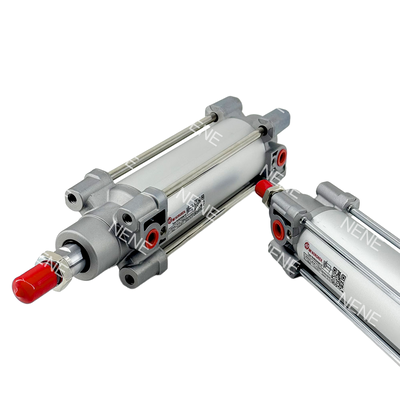

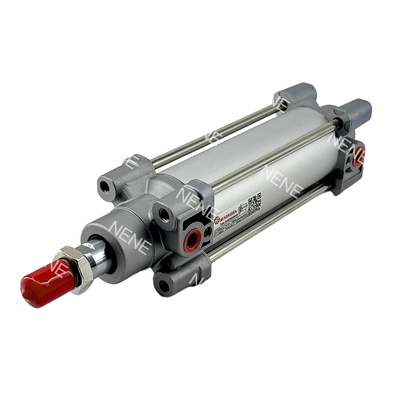

Constructed with a sturdy round barrel and external tie rods, the RA/802100/M Series ensures exceptional durability and is well-suited for harsh industrial environments. It is equipped with a magnetic piston as a standard feature, allowing seamless position detection when paired with compatible reed or solid-state sensors. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and adherence to international quality benchmarks.
This cylinder can operate under a maximum pressure of 16 bar and within a temperature range between -10°C and +80°C, providing the flexibility needed for demanding industrial applications. With its 100mm bore, it delivers a significant force output, generating a theoretical thrust of 4710N at 6 bar. These specifications make the RA/802100/M Series ideal for heavy-duty applications that require robust force and extended operational life.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts cushioning according to varying loads. This eliminates the need for manual adjustments and guarantees smooth and safe operation. Additionally, it helps reduce noise and vibration, enhancing overall performance.
ISO 15552 Compliance
This product complies with the ISO 15552 standard, as well as VDMA 24562 and NFE 49-003-1 standards. Such conformity ensures global interchangeability and allows for easy integration into existing systems without compatibility issues.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers exceptional durability. This robust build makes it well-suited for demanding and aggressive industrial environments.
Magnetic Piston
Equipped with a standard magnetic piston, the device facilitates straightforward position sensing using reed or solid-state switches, such as those from the M/50 series. This enhances monitoring and control capabilities.
Wide Operating Pressure Range
The system operates effectively within a wide pressure range from 1 to 16 bar. This versatility makes it appropriate for a broad spectrum of applications, from light-duty to heavy-duty tasks.
Versatile Stroke Selection
Available in numerous standard and non-standard stroke lengths, the product can accommodate strokes of up to 1000mm. This flexibility allows customization to meet specific application requirements.
Low Maintenance
Using PUR seals, the system ensures efficient low-friction operation and a long service life. It is compatible with both lubricated and non-lubricated air, reducing maintenance demands and operational costs.
Shock and Vibration Tested
The product has undergone rigorous testing according to EN 61373 Category 1, Class A + B standards. This certification makes it suitable for rail and transportation applications where shock and vibration resistance are critical.
High Force Output
With a theoretical thrust of 4710 N on the outstroke and 4416 N on the instroke at 6 bar pressure, the device delivers exceptional power. This makes it ideal for applications demanding high force outputs.
Multiple Variants Available
There are multiple variants available to suit different needs, including options for various piston rod materials, special wipers, low friction seals, and extended piston rods. This ensures the product can be tailored for a wide range of industrial uses.
Technical Parameters:
| Operation |
Double Acting |
| Type |
Standard Cylinder (Round Barrel) |
| Standard |
ISO 15552 |
| Series |
RA/802000 |
| Brand |
IMI Norgren |
| Port Size |
G1/2 |
Applications:
Industrial automation encompasses a wide range of applications including general factory automation, assembly line processes, and material handling equipment. These systems help streamline production and improve operational efficiency.
In the field of packaging machinery, various operations such as product sorting, pushing, positioning, and conveying are essential. These tasks ensure that packaging processes are both accurate and efficient.
The automotive industry relies heavily on advanced automation for component assembly, welding fixtures, production line automation, and testing equipment. These technologies contribute to higher quality and faster production cycles.
Railway applications require equipment to withstand harsh conditions. Products used in this sector are shock and vibration tested according to EN 61373 Category 1, Class A + B standards, making them suitable for rail vehicle equipment.
In the food and beverage industry, machinery must be compatible with various types of compressed air, whether filtered, lubricated, or non-lubricated. This ensures hygienic operation and compliance with industry standards.
Mechanical engineering involves machine building, the creation of special-purpose machinery, and general linear actuation. These components are crucial for a variety of industrial functions and custom applications.
Material handling focuses on lifting, pushing, stopping, and transferring operations within logistics systems. Efficient material handling solutions are key to optimizing warehouse and distribution center workflows.
Electronics manufacturing demands precision in positioning and component handling, particularly in clean environments. Automation in this sector supports the production of high-quality electronic devices.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a variety of industrial applications. For technical support, our team of experts is available to assist with installation guidance, troubleshooting, and maintenance tips to ensure optimal operation.
We provide comprehensive services including system integration advice, custom configuration support, and replacement part recommendations. Regular maintenance services and performance assessments can be arranged to extend the lifespan and maintain the efficiency of your pneumatic cylinders.
For any technical inquiries, our support staff can help diagnose issues related to air pressure, cylinder alignment, sealing, and wear. We also offer detailed product documentation, including user manuals, installation guides, and safety instructions to facilitate proper use.
Our commitment is to support your operations with timely and effective solutions, ensuring minimal downtime and maximum productivity from your Piston Pneumatic Cylinder systems.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure it arrives in perfect condition. The cylinder is first wrapped with protective foam or bubble wrap to prevent any damage during transit. It is then placed in a sturdy, custom-sized cardboard box designed to minimize movement and absorb shocks.
For added protection, the box is sealed securely with industrial-grade tape and labeled with handling instructions such as “Fragile” and “Handle with Care.” Multiple layers of packaging may be used depending on the cylinder size and shipping method.
We offer various shipping options including standard, expedited, and freight services to accommodate different delivery timeframes and destinations. All shipments are tracked and insured for your peace of mind.
Upon receiving your piston pneumatic cylinder, please inspect the package for any visible damage and report any issues immediately to our customer service team.
