Product Description:
The RA/802100/M Series is a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the esteemed ISOLine™ collection, this double-acting cylinder features a bore diameter of 100mm. It is available in a wide range of stroke lengths, from 25mm up to 1000mm, making it suitable for delivering reliable and efficient linear motion in various industrial automation settings.
A key innovation within this cylinder is the Adaptive Cushioning System (ACS). This smart technology automatically adjusts the cushioning to suit different load conditions, eliminating the need for manual screw adjustments and specialized expertise. Consequently, the ACS contributes to smoother and safer operation, lowers maintenance costs, and extends the overall lifespan of the cylinder.

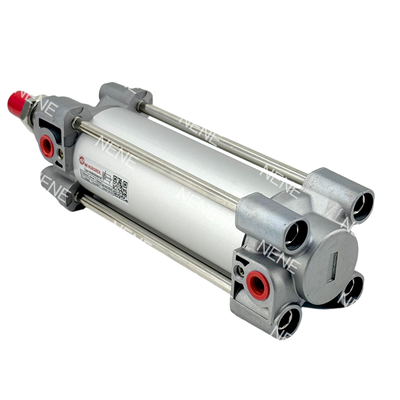

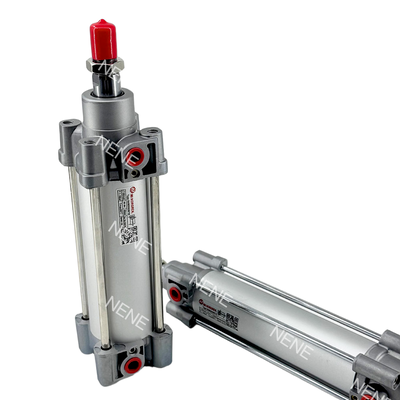

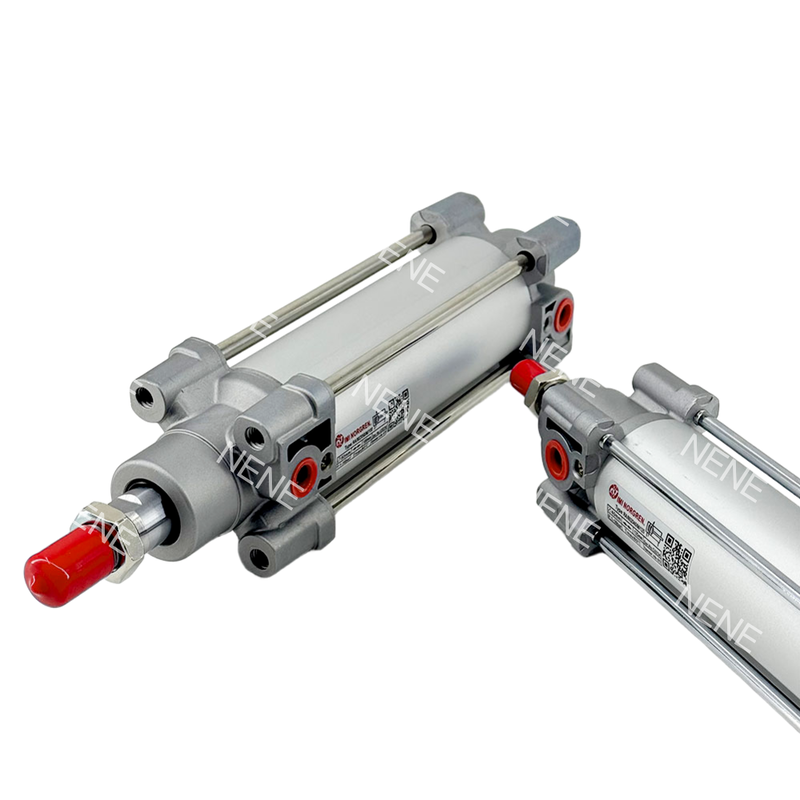

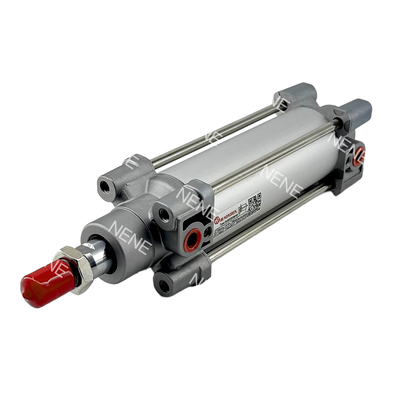

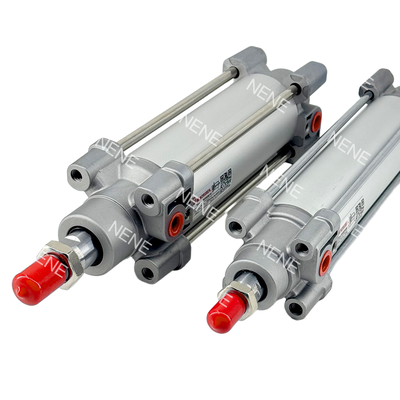

Constructed with a sturdy round barrel and supported by external tie rods, the RA/802100/M Series is engineered for enhanced durability and is capable of withstanding harsh environments. The cylinder is equipped with a magnetic piston as a standard feature, which facilitates easy position detection when used with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and global acceptance.
Operating at a maximum pressure of 16 bar and capable of functioning within a temperature range from -10°C to +80°C, this cylinder is built for versatility in demanding industrial roles. The 100mm bore size delivers a significant force output, with a theoretical thrust of 4710N at 6 bar, making it particularly well-suited for heavy-duty applications that require substantial force and long-lasting performance.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System (ACS) automatically adjusts cushioning to accommodate varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation while significantly reducing noise and vibration.
ISO 15552 Compliance
This product complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such adherence guarantees global interchangeability and simplifies integration into existing systems across various industries.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers exceptional durability. This makes the product particularly suitable for aggressive industrial environments where toughness is essential.
Magnetic Piston
Equipped with a standard magnetic piston, the system enables easy position sensing using reed or solid-state switches, such as those in the M/50 series. This facilitates precise and reliable control in automation processes.
Wide Operating Pressure Range
The device operates efficiently within a pressure range from 1 to 16 bar. This flexibility makes it suitable for a wide variety of applications, ranging from light-duty to heavy-duty tasks.
Versatile Stroke Selection
A broad selection of stroke lengths is available, including both standard and non-standard options, extending up to 1000mm. This versatility allows users to select the ideal configuration for their specific application requirements.
Low Maintenance
Utilizing PUR seals, the system ensures low-friction operation and a long service life. It is compatible with both lubricated and non-lubricated air, minimizing maintenance needs and operational costs.
Shock and Vibration Tested
The product has been rigorously tested according to EN 61373 Category 1, Class A + B standards. This certification confirms its suitability for demanding rail and transportation applications where shock and vibration resistance are critical.
High Force Output
Delivering a theoretical thrust of 4710 N during outstroke and 4416 N during instroke at 6 bar, the system provides exceptional power. This high force output meets the needs of demanding industrial applications.
Multiple Variants Available
A variety of configurations are available, including options for different piston rod materials, special wipers, low-friction seals, and extended piston rods. This allows customization to fit diverse application requirements.
Technical Parameters:
| Brand |
IMI Norgren |
| Series |
RA/802000 |
| Type |
Standard Cylinder (Round Barrel) |
| Port Size |
G1/2 |
| Standard |
ISO 15552 |
| Operation |
Double Acting |
Applications:
Industrial Automation
This sector encompasses general factory automation including assembly lines and material handling equipment. The focus is on enhancing efficiency and streamlining production processes through automation technology.
Packaging Machinery
In packaging, machinery is utilized for various operations such as product sorting, pushing, positioning, and conveying. These systems ensure products are handled accurately and efficiently throughout the packaging stages.
Automotive Industry
The automotive sector benefits from advanced automation in component assembly, welding fixtures, production line automation, and testing equipment, enabling high precision and productivity in vehicle manufacturing.
Railway Applications
Rail vehicle equipment is designed to meet stringent standards, having undergone shock and vibration tests according to EN 61373 Category 1, Class A and B. This ensures reliability and safety in demanding railway environments.
Food & Beverage
Equipment in the food and beverage industry is compatible with compressed air that is filtered, lubricated, or non-lubricated, maintaining hygiene and operational effectiveness in processing applications.
Mechanical Engineering
This area covers machine building, special-purpose machinery, and general linear actuation tasks, offering tailored solutions for diverse mechanical engineering needs.
Material Handling
Material handling focuses on operations such as lifting, pushing, stopping, and transferring within logistics systems, facilitating smooth and efficient movement of goods.
Electronics Manufacturing
Precision positioning and careful component handling are critical in electronics manufacturing, especially within clean environments to maintain product integrity and quality.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, maintenance tips, troubleshooting advice, and performance optimization. Our team of experts is dedicated to ensuring your pneumatic cylinders operate smoothly and meet your operational requirements.
We offer a range of services such as custom cylinder design, repair and refurbishment, and routine maintenance programs to extend the lifespan of your equipment. Detailed product manuals and technical documentation are available to help you understand the specifications and correct usage of the piston pneumatic cylinders.
Whether you need help selecting the right cylinder for your application or require after-sales support, our technical support team is equipped to provide timely and effective solutions. We strive to minimize your downtime and maximize productivity through our professional support services.
Packing and Shipping:
Product Packaging and Shipping for Piston Pneumatic Cylinder
Each piston pneumatic cylinder is carefully packaged to ensure safe delivery and maintain product integrity. The cylinder is first wrapped in a protective layer of anti-corrosion paper or plastic to prevent moisture and dust damage during transit. It is then placed in a custom-fitted foam or molded plastic insert to secure the cylinder and prevent movement inside the box.
The packaged cylinder is boxed in a sturdy, double-walled corrugated cardboard carton, clearly labeled with product details, handling instructions, and shipping information. For bulk orders, multiple cartons are securely packed into a reinforced wooden crate or palletized and wrapped with shrink film to provide additional protection.
Shipping options include air freight, sea freight, and express courier services, depending on customer requirements and destination. All shipments are tracked and handled with care to ensure timely and damage-free delivery. We also provide insurance options for added security during transit.
Upon receipt, customers are advised to inspect the packaging for any visible damage before opening. In case of any issues, please contact our customer service immediately for assistance.
