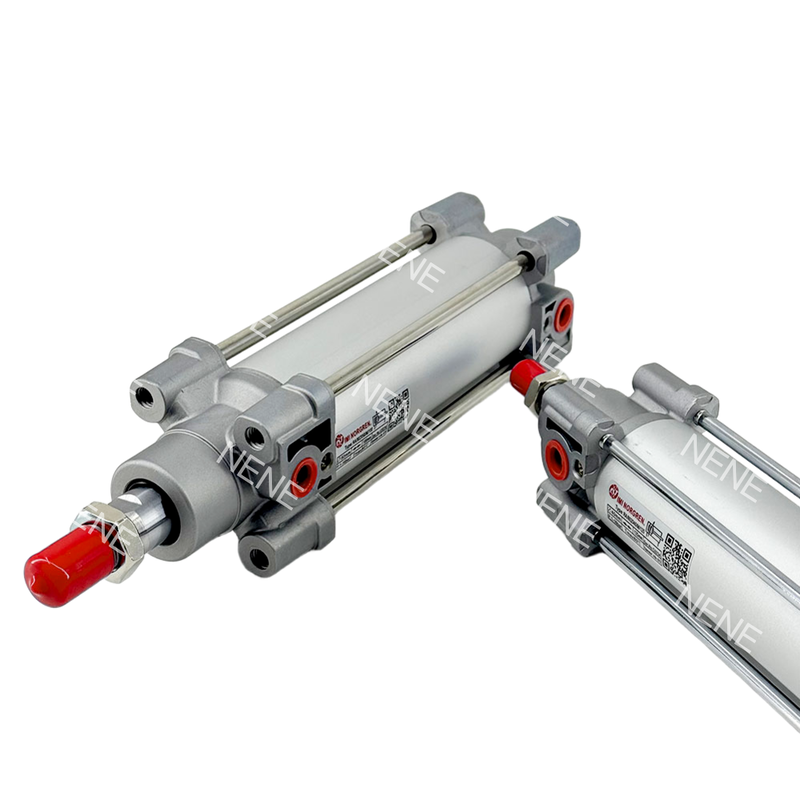

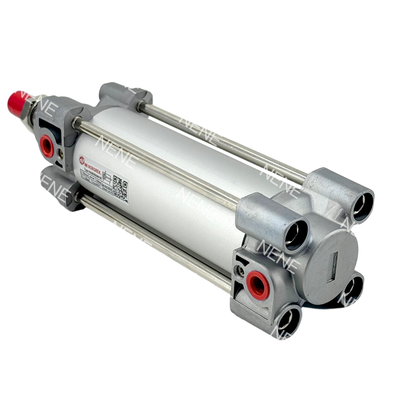

Norgren RA/802100/M/175 Medium Stroke Pneumatic Actuator 100mm Bore for General Automation

Product Description:

The RA/802100/M Series is a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. As part of the esteemed ISOLine™ range, this cylinder features a 100mm bore diameter and is available in a wide selection of stroke lengths ranging from 25mm to 1000mm. It is engineered to provide reliable and efficient linear motion, making it suitable for a diverse range of industrial automation applications.

At the core of this pneumatic cylinder lies the innovative Adaptive Cushioning System (ACS). This smart system automatically adapts the cushioning performance in response to varying loads, eliminating the need for manual adjustments of cushion screws or specialized technical knowledge. This leads to smoother and safer operation, lowers maintenance costs, and significantly extends the service life of the cylinder.

Constructed with a sturdy round barrel and external tie rods, the RA/802100/M Series is designed for superior durability and can withstand more demanding and aggressive environments. The cylinder is equipped with a magnetic piston as standard, which allows for straightforward position sensing using compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards ensures its interchangeability and global regulatory adherence.

With a maximum operating pressure of 16 bar and an operating temperature range from -10°C to +80°C, this cylinder is versatile enough to meet challenging industrial requirements. The 100mm bore provides a significant force output, offering a theoretical thrust of 4710N at 6 bar, making it an excellent choice for heavy-duty industrial applications that demand high force and long-lasting performance.

Features:

The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation while minimizing noise and vibration for a quieter work environment.

This product meets the stringent requirements of ISO 15552, as well as VDMA 24562 and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and simplifies integration into existing systems worldwide.

Featuring a round barrel design with external tie rods, the construction offers exceptional durability. It is specifically built to withstand harsh and aggressive industrial conditions.

Equipped with a standard magnetic piston, it facilitates easy position sensing using reed or solid-state switches, such as the M/50 series, enhancing accuracy and control.

The system operates efficiently within a pressure range from 1 to 16 bar. This versatility makes it suitable for a broad spectrum of applications, ranging from light-duty to heavy-duty tasks.

Available in a wide variety of both standard and custom stroke lengths, this product can accommodate strokes up to 1000mm, meeting diverse operational requirements.

Thanks to PUR seals, the system provides efficient low-friction operation and enjoys a long service life. It is compatible with both lubricated and non-lubricated air, reducing maintenance demands.

The product has been rigorously tested according to EN 61373 Category 1, Class A + B standards, making it well-suited for rail and transportation applications that demand high reliability under shock and vibration.

Delivering a theoretical thrust of 4710 N on outstroke and 4416 N on instroke at 6 bar, it offers substantial power to meet demanding operational needs.

A range of variants is available to suit specific requirements, including different piston rod materials, special wiper options, low friction seals, and extended piston rods, providing flexibility for customized applications.
