Product Description:
The RA/802100/M Series represents a high-performance pneumatic cylinder adhering to the ISO 15552 standard, belonging to the well-known ISOLine™ product range. It features a bore diameter of 100mm and is offered in an extensive range of stroke lengths, spanning from 25mm up to 1000mm. This design ensures dependable and efficient linear motion, tailored for a broad spectrum of industrial automation applications.
Central to this cylinder's functionality is the cutting-edge Adaptive Cushioning System (ACS). This advanced technology automatically fine-tunes the cushioning effect to suit varying load conditions, removing the necessity for manual adjustments of cushion screws or specialized expertise. Consequently, it enables smoother and safer operation, decreases maintenance requirements, and significantly prolongs the cylinder’s operational life.

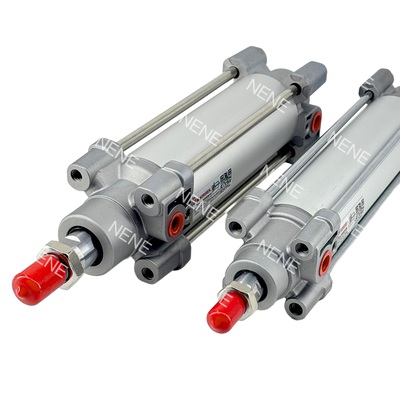

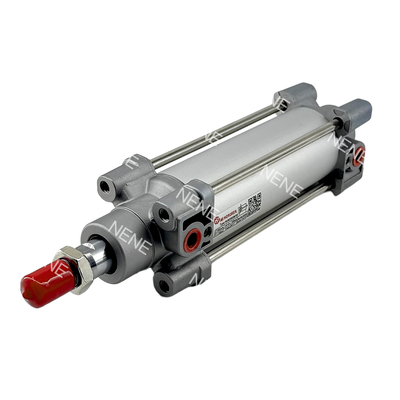

Constructed with a sturdy round barrel and external tie rods, the RA/802100/M Series delivers exceptional durability, making it well-suited for more demanding and aggressive industrial environments. It includes a magnetic piston as a standard feature, facilitating effortless position detection when used with compatible reed or solid-state switches. Furthermore, this cylinder complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing interchangeability and adherence to global quality benchmarks.
Designed to operate under a maximum pressure of 16 bar and within a temperature range from -10°C to +80°C, this cylinder is versatile enough to meet the challenges of rigorous industrial tasks. The 100mm bore size provides considerable force output, delivering a theoretical thrust of 4710N at 6 bar pressure. These attributes make the RA/802100/M Series an excellent choice for heavy-duty industrial applications that demand high force and reliable long-term performance.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments, ensuring a smooth and safe operation while minimizing noise and vibration.
ISO 15552 Compliance
This product meets the requirements of ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and facilitates seamless integration into existing systems.
Robust Construction
Featuring a round barrel with external tie rods, the design offers enhanced durability, making it well-suited for demanding industrial environments.
Magnetic Piston
The standard magnetic piston simplifies position sensing by enabling the use of reed or solid-state switches, such as the M/50 series.
Wide Operating Pressure Range
Capable of operating within a pressure range of 1 to 16 bar, it is adaptable for a variety of tasks ranging from light-duty to heavy-duty applications.
Versatile Stroke Selection
This product is available in an extensive range of both standard and custom stroke lengths, accommodating up to 1000mm to meet diverse operational needs.
Low Maintenance
Equipped with PUR seals, it ensures efficient, low-friction operation and an extended service life. It is compatible with both lubricated and non-lubricated air systems.
Shock and Vibration Tested
Tested according to EN 61373 Category 1, Class A + B standards, this product is suitable for rail and transportation applications requiring high resistance to shock and vibration.
High Force Output
At 6 bar pressure, the theoretical thrust reaches up to 4710 N during outstroke and 4416 N during instroke, delivering outstanding power for demanding industrial tasks.
Multiple Variants Available
Multiple options are available, including different piston rod materials, special wipers, low-friction seals, and extended piston rods, allowing customization to specific application requirements.
Technical Parameters:
| Standard |
ISO 15552 |
| Port Size |
G1/2 |
| Operation |
Double Acting |
| Series |
RA/802000 |
| Brand |
IMI Norgren |
| Type |
Standard Cylinder (Round Barrel) |
Applications:
Industrial Automation
This sector encompasses general factory automation, including assembly lines and equipment for material handling. It focuses on streamlining production processes to improve efficiency and reduce human intervention.
Packaging Machinery
In packaging processes, machinery is designed for product sorting, pushing, precise positioning, and conveying operations. These systems ensure that packaging is executed smoothly and accurately.
Automotive Industry
The automotive sector benefits from advanced component assembly techniques, welding fixtures, as well as comprehensive production line automation and testing equipment to maintain high quality standards.
Railway Applications
Equipment used in railway applications undergoes rigorous shock and vibration testing according to EN 61373 standards, specifically Category 1, Classes A and B. This ensures durability and reliability in rail vehicle environments.
Food & Beverage
Machinery suited for the food and beverage industry can operate with compressed air that is filtered, lubricated, or non-lubricated, meeting hygiene and safety requirements.
Mechanical Engineering
This area covers machine building, the development of special-purpose machinery, and general linear actuation systems that enable precise movements within mechanical assemblies.
Material Handling
Material handling operations in logistics involve lifting, pushing, stopping, and transferring tasks, all of which are critical for efficient workflow and safety in distribution centers.
Electronics Manufacturing
Precision positioning and careful component handling are essential in electronics manufacturing, especially within cleanroom environments to maintain product integrity and quality.
Support and Services:
Our Piston Pneumatic Cylinder product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. Our team of experienced engineers and technicians is available to assist with installation, maintenance, troubleshooting, and customization to meet your specific application requirements.
We provide detailed product documentation, including user manuals, installation guides, and maintenance instructions to help you get the most out of your pneumatic cylinder. Additionally, we offer training sessions and webinars to educate your staff on proper usage and safety procedures.
In case of any operational issues, our technical support team is ready to diagnose and resolve problems promptly, minimizing downtime and enhancing productivity. We also offer repair and replacement services to extend the lifespan of your pneumatic cylinder.
For customers requiring tailored solutions, we provide customization services to modify cylinder dimensions, materials, and mounting options according to your unique needs. Our commitment is to deliver reliable, high-quality pneumatic cylinder products supported by exceptional customer service.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in a protective film to prevent scratches and dust accumulation. It is then placed in a custom-fitted foam insert within a sturdy cardboard box to minimize movement and absorb shocks.
For bulk orders, multiple units are securely arranged in larger cartons with additional padding to ensure stability. All packages are clearly labeled with product details, handling instructions, and shipping information.
Shipping is carried out through reliable logistics partners, with options for expedited delivery and tracking services to ensure timely and safe arrival at your destination. We take every precaution to deliver your Piston Pneumatic Cylinder in perfect condition, ready for immediate use.
