Product Description:
The RA/802100/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. It is part of the well-regarded ISOLine™ product range, featuring a bore diameter of 100mm. This series offers a wide variety of stroke lengths, ranging from 25mm up to 1000mm, making it suitable for delivering reliable and efficient linear motion across numerous industrial automation applications.
Central to this cylinder's design is the innovative Adaptive Cushioning System (ACS). This smart system automatically fine-tunes the cushioning effect in response to varying load conditions, eliminating the necessity for manual adjustments of cushion screws or specialized expertise. Consequently, users benefit from smoother and safer operations, lower maintenance expenses, and an extended operational lifespan.

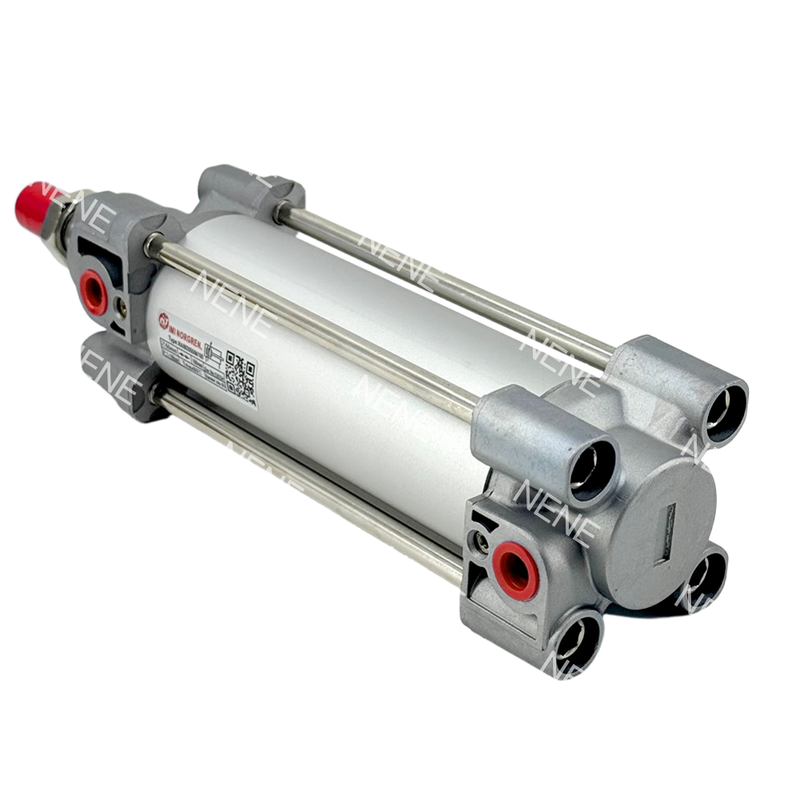

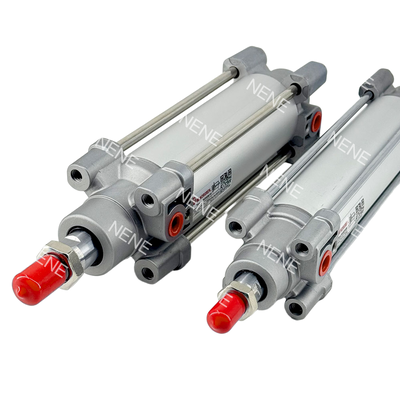

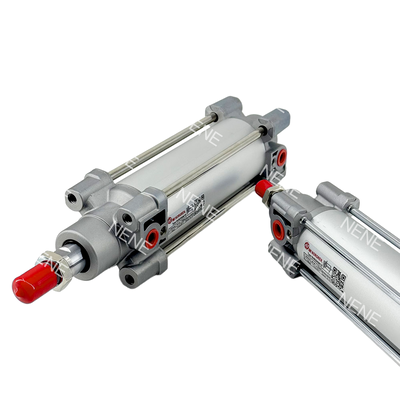

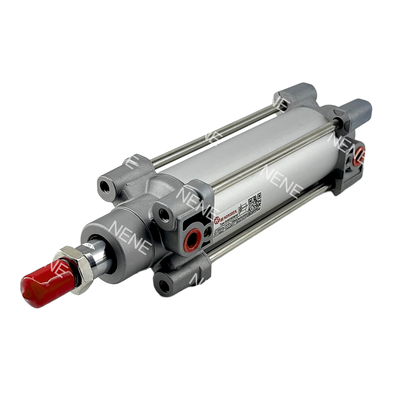

Constructed with a sturdy round barrel and reinforced with external tie rods, the RA/802100/M Series is engineered for exceptional durability and is well-suited to withstand harsh and demanding environments. The cylinder includes a magnetic piston as a standard feature, which facilitates straightforward position sensing when paired with compatible reed switches or solid-state sensors. Compliance with international standards such as ISO 15552, VDMA 24562, and NFE 49-003-1 ensures ease of interchangeability and global applicability.
Designed to operate at a maximum pressure of 16 bar, and capable of functioning within an operating temperature range of -10°C to +80°C, this cylinder offers considerable versatility for challenging industrial tasks. The 100mm bore dimension enables it to produce a significant thrust force, with a theoretical output of 4710 Newtons at 6 bar pressure. This makes it an excellent choice for heavy-duty applications that demand high force and long-lasting performance.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation while significantly reducing noise and vibration levels.
ISO 15552 Compliance
This product conforms to the ISO 15552, VDMA 24562, and NFE 49-003-1 standards, guaranteeing global interchangeability. It allows for easy integration into existing systems, making it a versatile choice for various industrial applications.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers exceptional durability. It is engineered to withstand the demands of harsh and aggressive industrial environments.
Magnetic Piston
Equipped with a standard magnetic piston, this product supports easy position sensing by utilizing reed or solid-state switches, such as the M/50 series.
Wide Operating Pressure Range
Capable of operating within a pressure range from 1 to 16 bar, it is suitable for a broad spectrum of applications, ranging from light-duty to heavy-duty tasks.
Versatile Stroke Selection
The device is available in a variety of standard and non-standard stroke lengths, offering options up to 1000 mm to cater to diverse operational requirements.
Low Maintenance
With PUR seals that provide efficient low-friction operation, this system ensures a long service life. It is compatible with both lubricated and non-lubricated air, reducing maintenance needs.
Shock and Vibration Tested
The product has been rigorously tested according to EN 61373 standards, Category 1, Class A + B, making it suitable for rail and transportation applications that demand high resilience.
High Force Output
At an operating pressure of 6 bar, the theoretical thrust reaches 4710 N on the outstroke and 4416 N on the instroke, providing exceptional power for demanding industrial uses.
Multiple Variants Available
A wide range of variants is available, including options for different piston rod materials, special wipers, low-friction seals, and extended piston rods, enabling customization to specific application needs.
Technical Parameters:
| Type |
Standard Cylinder (Round Barrel) |
| Standard |
ISO 15552 |
| Series |
RA/802000 |
| Port Size |
G1/2 |
| Brand |
IMI Norgren |
| Operation |
Double Acting |
Applications:
Industrial Automation: This sector encompasses general factory automation, including assembly lines and material handling equipment, designed to enhance productivity and efficiency in manufacturing processes.
Packaging Machinery: In packaging applications, equipment is utilized for product sorting, pushing, precise positioning, and conveying operations to streamline the packaging workflow.
Automotive Industry: The automotive sector benefits from advanced solutions such as component assembly, welding fixtures, automation of production lines, and specialized testing equipment to ensure quality and precision.
Railway Applications: Railway components are rigorously tested for shock and vibration according to EN 61373 Category 1, Class A + B standards to ensure reliability and safety in rail vehicle equipment.
Food & Beverage: Equipment used in the food and beverage industry is compatible with filtered, lubricated, or non-lubricated compressed air, meeting the standards required for hygienic and efficient operation.
Mechanical Engineering: This field includes machine building, the development of special-purpose machinery, and general linear actuation systems tailored to various engineering needs.
Material Handling: Material handling systems perform essential tasks such as lifting, pushing, stopping, and transferring within logistics operations to facilitate smooth workflow and safety.
Electronics Manufacturing: Precision positioning and component handling are critical in electronics manufacturing, which often occurs within clean environments to maintain product quality and integrity.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation and longevity of your pneumatic cylinder, please follow the recommended maintenance and support guidelines provided.
Technical support is available to assist with installation, troubleshooting, and operation inquiries. Our team of experts can provide detailed information on cylinder specifications, compatibility, and customization options to meet your specific needs.
Regular maintenance of the piston pneumatic cylinder includes checking for air leaks, inspecting seals and piston rods for wear, and ensuring proper lubrication of moving parts. Adhering to these practices will help prevent downtime and extend the service life of the product.
In case of any performance issues or defects, please refer to the product manual for troubleshooting steps. If further assistance is required, our technical support team is ready to provide guidance to resolve any problems efficiently.
We also offer a range of services including repair, replacement parts, and upgrade options to enhance the functionality of your pneumatic cylinders. Our commitment is to deliver high-quality support and services to maximize your equipment’s productivity and reliability.
Packing and Shipping:
Our Piston Pneumatic Cylinders are carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in anti-static and moisture-resistant materials to prevent damage and corrosion. The products are then placed in custom-fitted foam inserts within sturdy, double-walled cardboard boxes to minimize movement and absorb shocks.
For shipping, we use reliable carriers with tracking options to guarantee timely and safe delivery. All packages are labeled clearly with handling instructions and product information. Bulk orders are palletized and shrink-wrapped to further enhance stability and protection during transportation.
We prioritize customer satisfaction by ensuring that every Piston Pneumatic Cylinder arrives in perfect condition, ready for immediate use in your applications.
