Product Description:

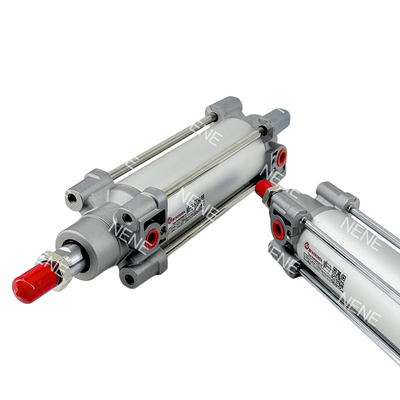

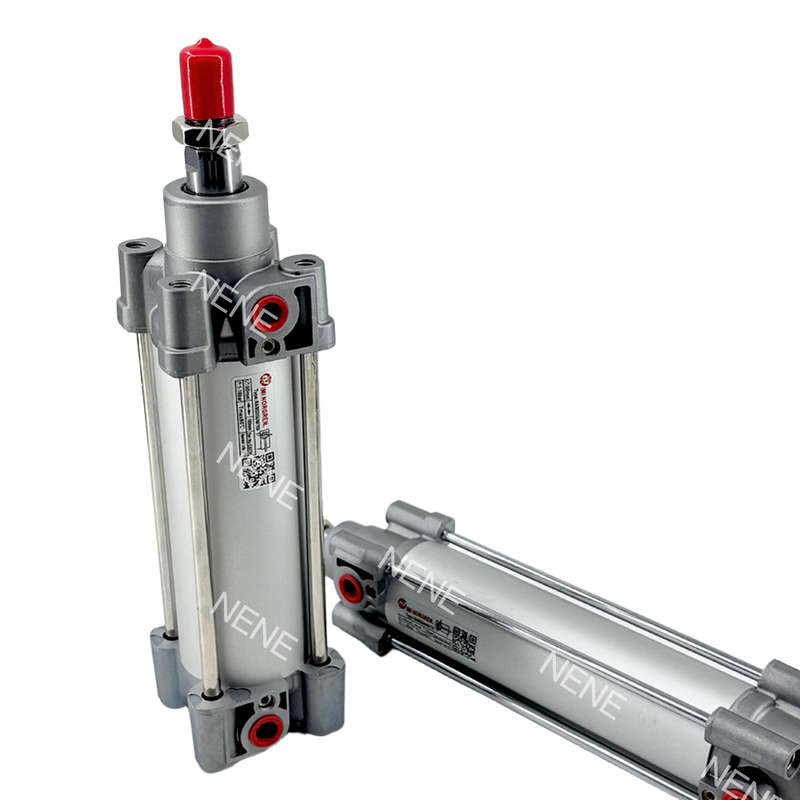

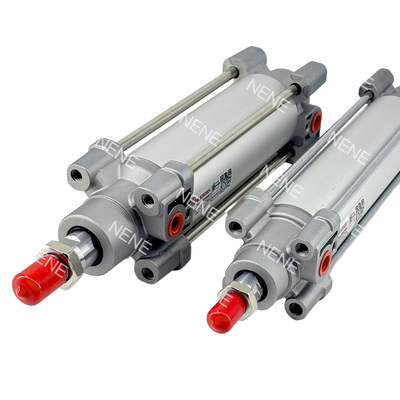

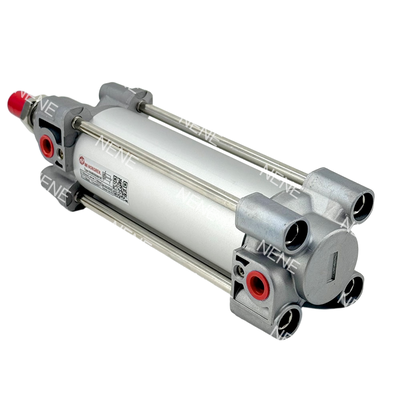

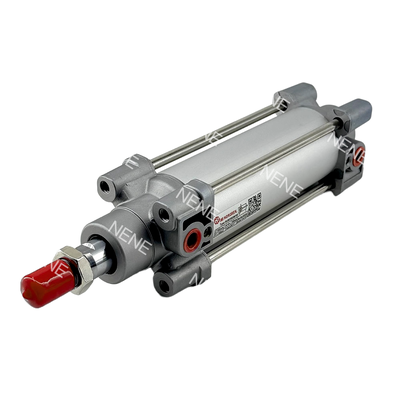

The RA/802100/M Series is a high-performance double-acting pneumatic cylinder that adheres to the ISO 15552 standard. It belongs to the well-known ISOLine™ product range and features a bore diameter of 100mm. Available in a wide array of stroke lengths ranging from 25mm to 1000mm, this cylinder is engineered to provide dependable and efficient linear motion, making it suitable for numerous industrial automation applications.
Central to the cylinder's advanced design is the Adaptive Cushioning System (ACS), an innovative technology that automatically adjusts cushioning performance based on varying load conditions. This eliminates the requirement for manual adjustments of cushion screws or specialized technical knowledge, resulting in smoother and safer operation, lower maintenance expenses, and an extended operational lifespan.
Constructed with a sturdy round barrel and equipped with external tie rods, the RA/802100/M Series is built to withstand demanding and harsh environments. The cylinder is standardly fitted with a magnetic piston, which facilitates easy position sensing when used with compatible reed or solid-state switches. It complies with multiple standards including ISO 15552, VDMA 24562, and NFE 49-003-1, ensuring interchangeability and adherence to international regulations.
Designed for versatility, this cylinder can operate at a maximum pressure of 16 bar and within a temperature range from -10°C to +80°C. Its 100mm bore diameter generates a substantial theoretical thrust of 4710N at 6 bar pressure, making the RA/802100/M Series ideal for heavy-duty industrial applications that demand high force output and long-lasting performance.
Features:
Adaptive Cushioning System (ACS)
The Adaptive Cushioning System automatically adjusts the cushioning based on varying loads. This eliminates the need for manual adjustments and ensures smooth and safe operation. Additionally, it helps in reducing noise and vibration during use.
ISO 15552 Compliance
This product conforms to the ISO 15552, VDMA 24562, and NFE 49-003-1 standards. Such compliance guarantees global interchangeability and allows easy integration into existing systems without compatibility issues.
Robust Construction
Featuring a round barrel design with external tie rods, the construction offers superior durability, making it ideal for demanding and aggressive industrial environments.
Magnetic Piston
The standard magnetic piston facilitates simple position sensing using reed or solid-state switches, such as the M/50 series, enhancing the accuracy and control of operations.
Wide Operating Pressure Range
Capable of operating within a pressure range from 1 to 16 bar, this product is versatile enough to handle a broad spectrum of applications, from light-duty to heavy-duty tasks.
Versatile Stroke Selection
A wide selection of both standard and non-standard stroke lengths is available, extending up to 1000mm, to accommodate various operational requirements.
Low Maintenance
Equipped with PUR seals, the system ensures efficient low-friction operation and a long service life. It is compatible with both lubricated and non-lubricated air, minimizing maintenance efforts.
Shock and Vibration Tested
This product has been rigorously tested according to EN 61373 Category 1, Class A + B standards, making it suitable for rail and transportation applications that demand high reliability.
High Force Output
At a pressure of 6 bar, the theoretical thrust values are 4710 N on the outstroke and 4416 N on the instroke, delivering exceptional power for challenging tasks.
Multiple Variants Available
Various options are compatible with this product, including different piston rod materials, special wipers, low friction seals, and extended piston rods, allowing customization to specific needs.
Technical Parameters:
| Type |
Standard Cylinder (Round Barrel) |
| Operation |
Double Acting |
| Brand |
IMI Norgren |
| Standard |
ISO 15552 |
| Port Size |
G1/2 |
| Series |
RA/802000 |
Applications:
Industrial Automation
This sector encompasses general factory automation, including the operation of assembly lines and various material handling equipment. It focuses on streamlining production processes to enhance efficiency and reduce manual labor.
Packaging Machinery
Packaging machinery involves tasks such as product sorting, pushing, positioning, and conveying. These automated operations help maintain consistent packaging standards and speed up the processing of goods.
Automotive Industry
The automotive sector utilizes automation in component assembly, welding fixtures, and production line management. Additionally, sophisticated testing equipment ensures quality and reliability of automotive parts.
Railway Applications
Equipment designed for railway applications undergoes rigorous shock and vibration testing in accordance with EN 61373 Category 1, Class A + B standards. This ensures durability and performance for rail vehicle components.
Food & Beverage
Automation solutions in the food and beverage industry are compatible with compressed air systems that may be filtered, lubricated, or non-lubricated, supporting hygienic and efficient production environments.
Mechanical Engineering
Mechanical engineering applies automation in machine building, development of special-purpose machinery, and general linear actuation technologies, promoting precision and versatility in manufacturing.
Material Handling
This field focuses on operations such as lifting, pushing, stopping, and transferring materials within logistics systems, optimizing the flow and management of goods.
Electronics Manufacturing
In electronics manufacturing, automation is essential for precision positioning and careful handling of components, especially in cleanroom or controlled environments to ensure high product quality.
