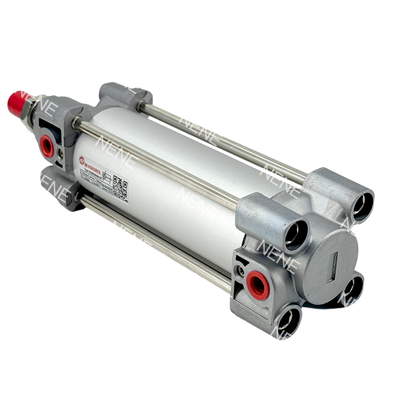

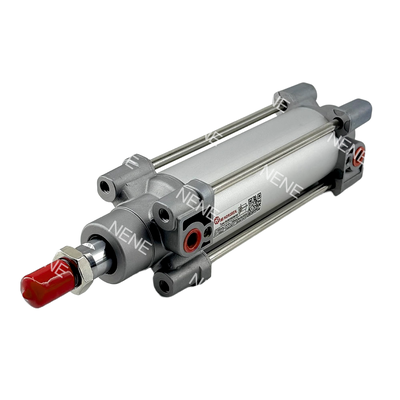

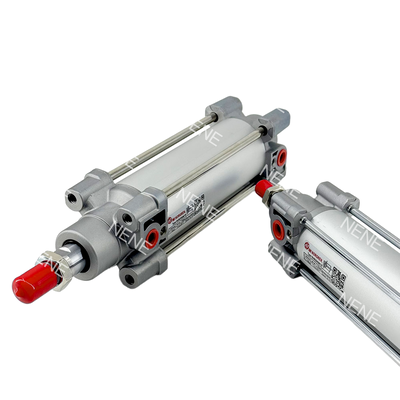

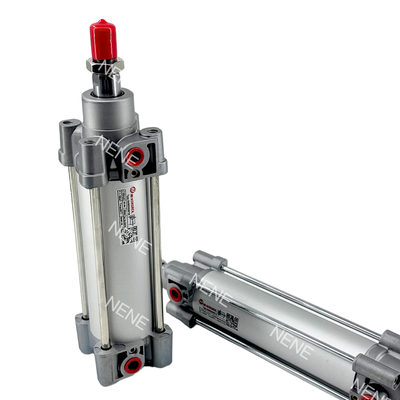

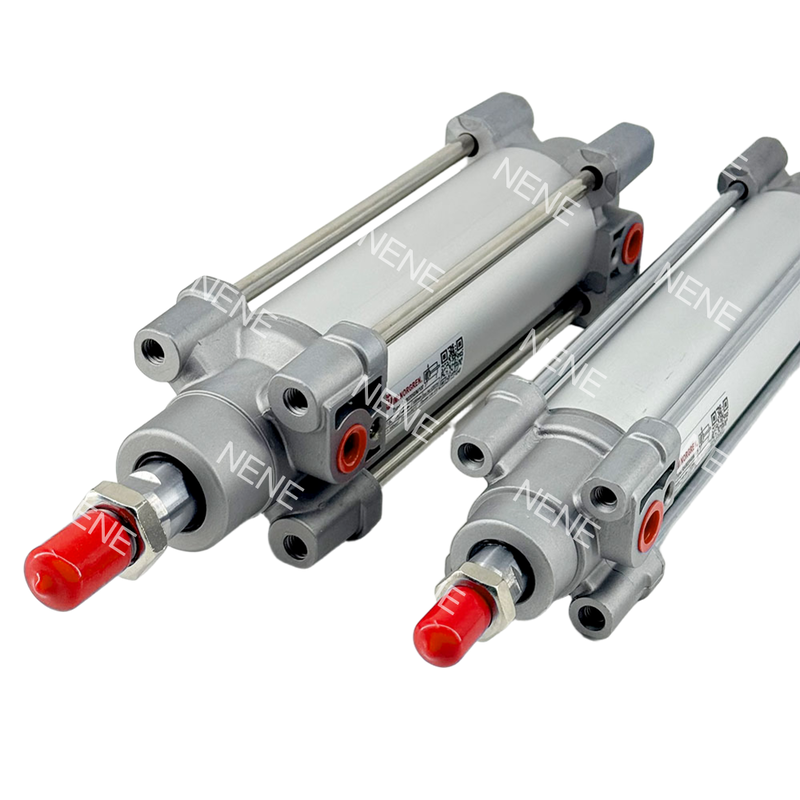

Norgren RA/802100/M/75 Pneumatic Actuator 100mm Bore Short Stroke for Stopping and Positioning

The RA/802100/M Series is a high-performance, double-acting pneumatic cylinder that adheres to the ISO 15552 standard. It is part of the well-known ISOLine™ range and features a bore diameter of 100mm. This series offers a wide selection of stroke lengths, ranging from 25mm to 1000mm, making it suitable for delivering reliable and efficient linear motion across a variety of industrial automation applications.

A key feature of this cylinder is the innovative Adaptive Cushioning System (ACS). This smart system automatically adjusts the cushioning based on changing load conditions, eliminating the need for manual adjustments or specialized expertise. As a result, the cylinder operates more smoothly and safely, reduces maintenance requirements, and enjoys an extended service life.

Constructed with a durable round barrel and external tie rods, the RA/802100/M Series is designed to withstand harsh environments. It comes equipped with a magnetic piston that facilitates easy position sensing when used with compatible reed or solid-state switches. The cylinder complies with ISO 15552, VDMA 24562, and NFE 49-003-1 standards, ensuring both interchangeability and global regulatory compliance.

Operating at a maximum pressure of 16 bar and within a temperature range of -10°C to +80°C, this cylinder is highly versatile and capable of tackling demanding industrial tasks. The 100mm bore size provides a significant force output, delivering a theoretical thrust of 4710N at 6 bar. This makes the RA/802100/M Series an excellent choice for heavy-duty industrial applications that require high force and long-lasting performance.

The Adaptive Cushioning System (ACS) is designed to automatically adjust cushioning according to varying loads. This feature eliminates the need for manual adjustments, ensuring smooth and safe operation while significantly reducing noise and vibration.

Compliance with ISO 15552, along with adherence to VDMA 24562 and NFE 49-003-1 standards, guarantees global interchangeability. This makes integration into existing systems straightforward and hassle-free.

The robust construction features a round barrel equipped with external tie rods, enhancing durability to withstand aggressive industrial environments. This solid design ensures long-lasting performance even under rigorous conditions.

Equipped with a standard magnetic piston, the system facilitates easy position sensing through reed or solid-state switches, such as the M/50 series. This adds precision and convenience to operation monitoring.

The device supports a wide operating pressure range from 1 to 16 bar, making it adaptable for a variety of applications, from light-duty tasks to heavy-duty industrial requirements.

Stroke lengths are highly versatile, available in a broad spectrum of standard and non-standard options, extending up to 1000mm. This flexibility accommodates diverse application needs.

Maintenance is minimal thanks to PUR seals that provide efficient low-friction operation and extend the service life. These seals are compatible with both lubricated and non-lubricated air systems.

For reliability in transportation and rail industries, the system has been shock and vibration tested in accordance with EN 61373 Category 1, Class A + B standards.

Delivering high force output, the theoretical thrust at 6 bar pressure reaches 4710 N on the outstroke and 4416 N on the instroke, offering exceptional power for demanding applications.

Multiple variants are available to meet specific requirements, including different piston rod materials, special wipers, low friction seals, and extended piston rods, ensuring customization and enhanced performance.
