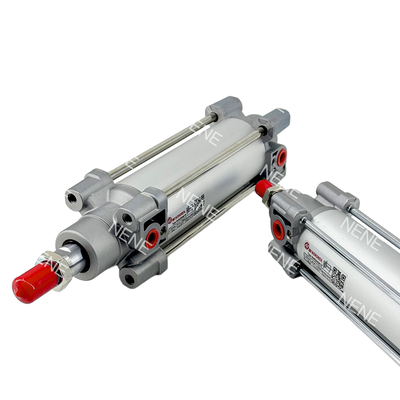

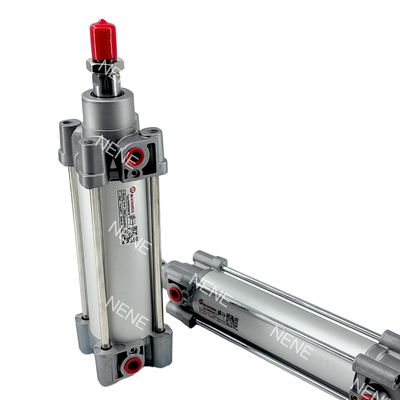

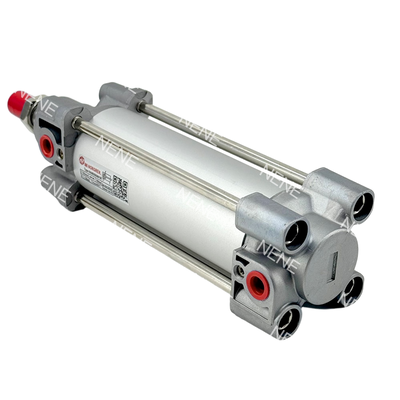

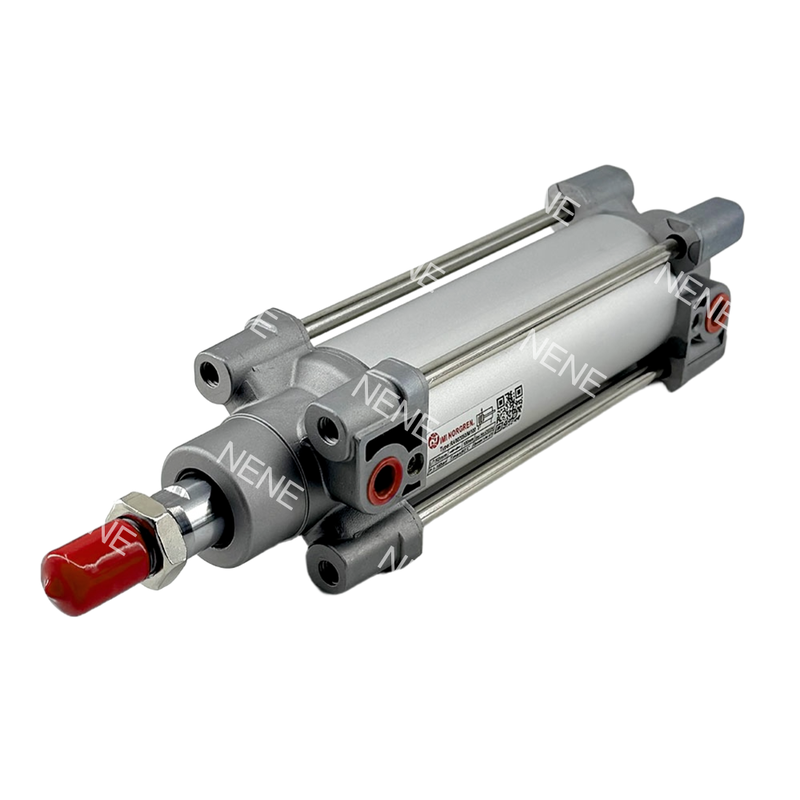

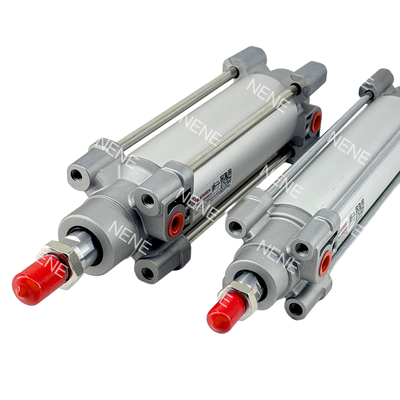

G1/2 Port Size Double Acting ISO Cylinder RA/802100/M/50 by Norgren 100mm Bore Adaptive Cushioning for Assembly Lines

Product Description:

The RA/802100/M Series represents a high-performance pneumatic cylinder that adheres to the ISO 15552 standard. Part of the distinguished ISOLine™ family, this double-acting cylinder features a bore diameter of 100mm. It is available in a wide range of stroke lengths, spanning from 25mm up to 1000mm, making it adaptable to diverse industrial automation requirements where reliable and efficient linear motion is essential.

Central to the design of this cylinder is the innovative Adaptive Cushioning System (ACS). This smart technology automatically adjusts the cushioning based on changing loads, which eliminates the necessity for manual adjustments of cushion screws or specialized technical expertise. Consequently, the cylinder operates more smoothly and safely, while also helping to reduce maintenance expenses and extend the overall lifespan of the product.

Constructed with a sturdy round barrel and reinforced external tie rods, the RA/802100/M Series ensures excellent durability, making it suitable for use in even more demanding industrial environments. The cylinder is equipped with a magnetic piston as a standard feature, allowing for straightforward position detection when paired with compatible reed or solid-state switches. Compliance with ISO 15552, VDMA 24562, and NFE 49-003-1 standards guarantees interchangeability and global certification.

Operating at a maximum pressure of 16 bar and within a temperature range from -10°C to +80°C, this cylinder demonstrates versatility for rigorous industrial applications. With its 100mm bore diameter, it is capable of generating a significant force output, delivering a theoretical thrust of 4710N at 6 bar. This makes the RA/802100/M Series an excellent choice for heavy-duty operations that demand high force and prolonged service life.

Features:

The Adaptive Cushioning System automatically adjusts the cushioning according to varying loads. This eliminates the need for manual adjustments, ensuring smooth and safe operation while reducing noise and vibration.

Our product conforms to the ISO 15552, VDMA 24562, and NFE 49-003-1 standards. This compliance guarantees global interchangeability and facilitates seamless integration into existing systems.

Featuring a round barrel design with external tie rods, the construction offers exceptional durability. This makes it well-suited for demanding and aggressive industrial environments.

The standard magnetic piston allows for easy position sensing using reed or solid-state switches, such as those from the M/50 series.

Designed to operate within a pressure range from 1 to 16 bar, this product is versatile enough for various applications, spanning from light-duty to heavy-duty tasks.

It is available in a broad selection of both standard and non-standard stroke lengths, reaching up to 1000mm, accommodating diverse operational requirements.

Equipped with PUR seals, the product ensures efficient low-friction performance and an extended service life. It is compatible with both lubricated and non-lubricated air.

Tested according to EN 61373 Category 1, Class A + B standards, the product meets rigorous requirements for rail and transportation applications.

Offering a theoretical thrust of 4710 N on the outstroke and 4416 N on the instroke at 6 bar, this product delivers exceptional power suited for demanding applications.

The design supports various options such as different piston rod materials, special wipers, low friction seals, and extended piston rods to meet specific needs.
