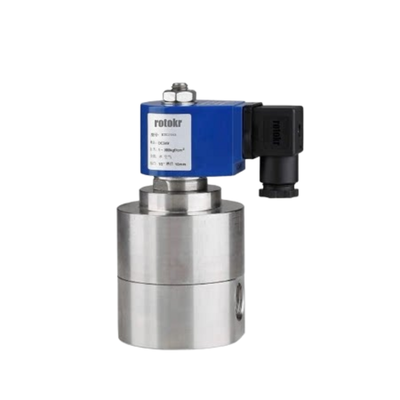

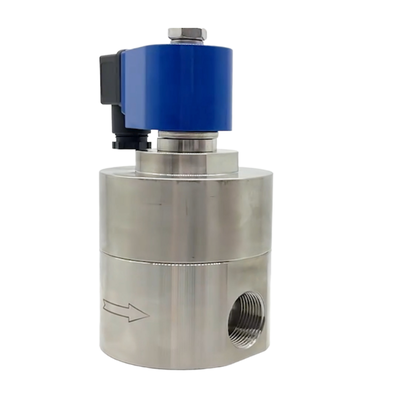

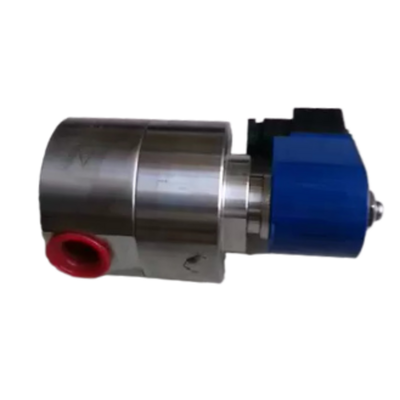

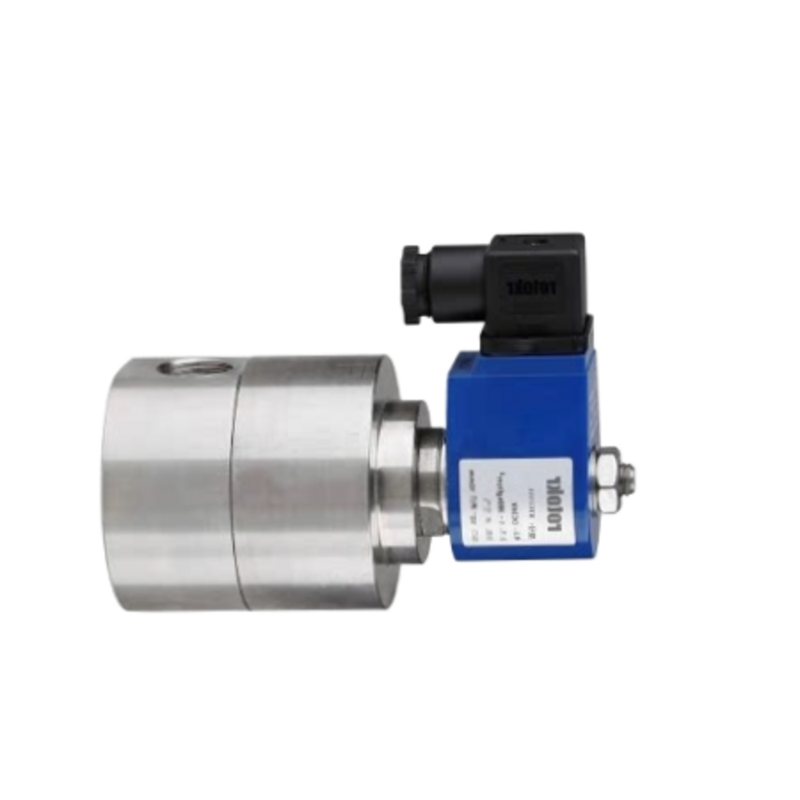

H3S25B25 Piston Pilot Operated Solenoid Valve Stainless Steel Body 1'' Port Size 10mm Orifice Size 2 Way NC

Product Description:

The H3S Series is a 2/2-way normally closed solenoid valve that operates using a piston pilot mechanism. It is specifically designed to manage high-pressure fluids with capabilities reaching up to 360 bar (5,200 PSI). This makes it an excellent choice for applications requiring robust fluid control under intense pressure conditions.

Engineered to provide dependable ON/OFF control, the valve is suitable for various media including water, air, gas, oil, and other neutral liquids. Its piston pilot operation demands a minimum differential pressure of 1 bar, which allows it to perform efficiently in medium to large diameter piping systems with high flow requirements.

Built with a stainless steel body and equipped with advanced seal materials such as PTFE and PEEK, the H3S Series guarantees exceptional durability and resistance against corrosion. These features ensure leak-tight performance even when exposed to extreme pressure environments.

The valve is available in multiple port sizes ranging from 1/4″ to 1″, and orifice sizes between 10mm and 25mm. With a maximum flow coefficient (Cv) of up to 10.0, it delivers impressive flow capacity, making it suitable for a wide range of demanding industrial applications.

Produced in Ningbo, China, the H3S Series solenoid valve is recognized globally for its quality and reliability, trusted by professionals managing high-pressure systems around the world.

Features:

The valve boasts a high-pressure capability, with a maximum working pressure reaching up to 360 bar (5,200 PSI), making it suitable for demanding high-pressure applications. For larger sizes operating with AC, the maximum pressure is rated at 300 bar.

Featuring a piston pilot operated design, the valve uses pressure-assisted operation to guarantee reliable switching performance. This design requires only a minimum differential pressure of 1 bar to function effectively.

The device operates as a 2/2 way normally closed valve, utilizing a spring-return mechanism. This ensures that the valve remains closed when de-energized, providing a fail-safe operation to enhance system safety.

Constructed from premium stainless steel, the valve body offers excellent corrosion resistance and maintains structural integrity. This robust build allows for long-term service even in harsh environmental conditions.

Advanced seal materials such as PTFE and PEEK are employed to achieve superior leak-tight performance. These seals also provide outstanding chemical resistance, even under extreme pressure and temperature conditions.

With large orifice sizes ranging from 10mm to 25mm, the valve delivers high flow capacity. This translates to exceptional Cv values between 1.8 and 10.0, ensuring maximum throughput for various applications.

The valve is available in a wide range of port sizes, from 1/4″ up to 1″, allowing for flexible integration within different system configurations.

A variety of voltage options are supported, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This ensures compatibility with multiple control systems and voltage requirements.

Backed by a high production capacity, the manufacturer can supply up to 500,000 pieces annually and 10,000 pieces monthly. This scale supports reliable availability for bulk orders and large-scale projects.

Technical Parameters:

Applications:

Customization:

Our DKE Pneumatic Solenoid Valve, model H3S, offers extensive product customization services to meet your specific requirements. Manufactured in China and CE certified, this normally closed solenoid valve is designed to operate reliably under a working pressure of up to 360 Bar. We provide customization options for orifice sizes including 10mm, 15mm, 20mm, and 25mm to suit various applications involving water, air, gas, oil, liquid, and more.

The valve body is made of durable stainless steel, ensuring longevity and resistance to corrosion, while the seal materials can be customized between PTFE and PEEK depending on your needs. As a versatile water valve, the H3S model is ideal for controlling fluid flow in diverse industrial environments.

We accept minimum order quantities starting at just 1 piece, with pricing available through negotiation to accommodate different budget requirements. Packaging is securely done using cartons to ensure safe delivery. Our supply ability reaches up to 5000 pieces per month, guaranteeing timely fulfillment.

Delivery time is efficient, typically ranging from 1 to 7 work days after payment confirmation. We support multiple payment terms, including T/T, Western Union, and PayPal, to facilitate smooth transactions. Choose DKE for a customizable, high-quality normally closed solenoid valve tailored to your application needs.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.

If you encounter any issues or require assistance with troubleshooting, our technical support team is available to help diagnose and resolve problems to minimize downtime. We recommend providing the model number, serial number, and a detailed description of the issue to facilitate prompt and accurate support.

We also offer a range of services including product customization, system integration advice, and preventive maintenance programs to ensure optimal performance of your pneumatic solenoid valves. Replacement parts and accessories are available to extend the life of your product.

For warranty information, please refer to the warranty terms provided with the product. Our commitment is to ensure customer satisfaction through responsive support and high-quality service.
