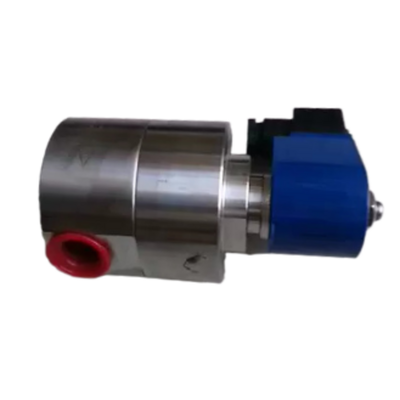

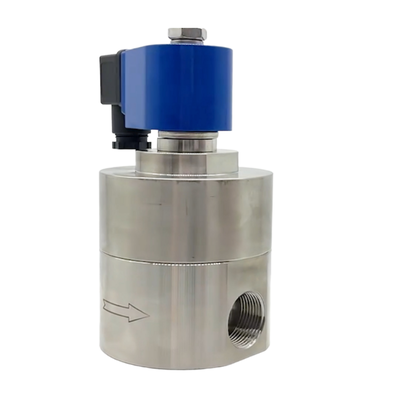

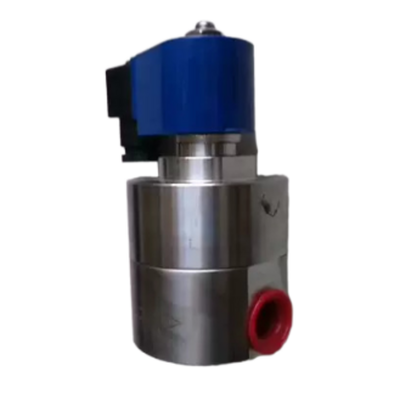

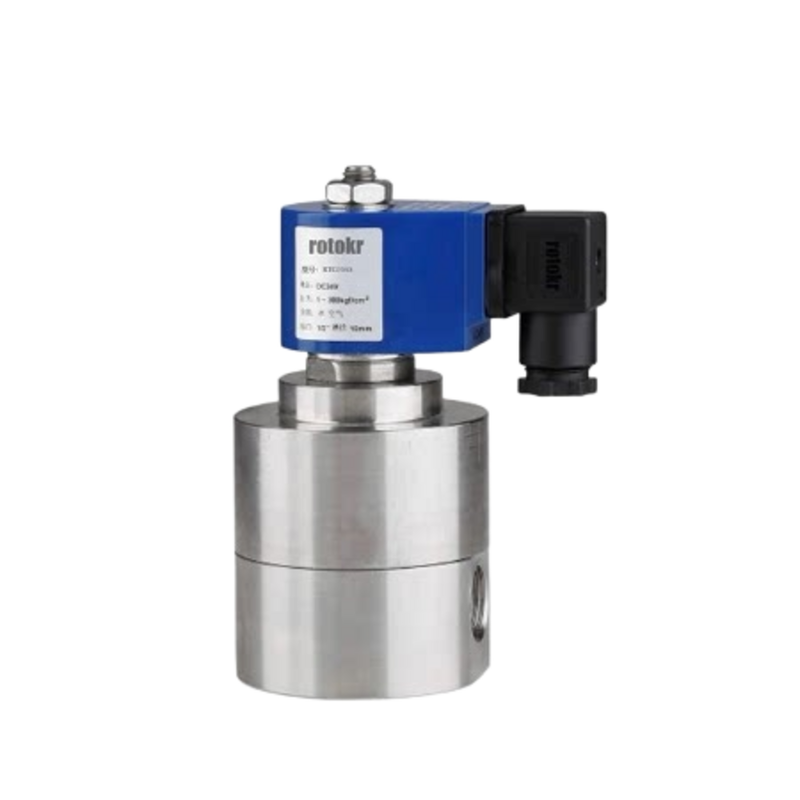

Port Size 3/4″ Pneumatic Solenoid Valve 60 Bar Orifice Size 2 Way Normally Closed 20mm Stainless Steel Body H3S20B06

Product Description:

The H3S Series is a high-performance 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed for fluid control applications involving pressures up to 360 bar (5,200 PSI). This valve ensures reliable ON/OFF operation for various media including water, air, gas, oil, and other neutral fluids.

Built to excel in demanding high-pressure settings, the piston pilot-operated mechanism requires a minimum differential pressure of 1 bar to function effectively. This makes the H3S Series particularly well-suited for medium to large diameter piping systems where a high flow capacity is essential.

Constructed with a robust Stainless Steel body, the valve incorporates advanced sealing materials such as PTFE and PEEK. These features contribute to its exceptional durability, resistance to corrosion, and leak-tight performance even under extreme pressure conditions.

With port sizes available from 1/4″ to 1″ and orifice sizes ranging between 10mm and 25mm, the H3S Series offers excellent flow capacity, achieving Cv values as high as 10.0. Manufactured in Ningbo, China, this solenoid valve is recognized worldwide for its quality and dependable performance in high-pressure systems.

Features:

This valve is designed to handle demanding high-pressure conditions, with a maximum working pressure reaching up to 360 bar (5,200 PSI). For alternating current (AC) applications on larger sizes, it supports pressures up to 300 bar, making it suitable for a variety of intense operational environments.

Featuring a pressure-assisted piston pilot mechanism, this design ensures reliable and consistent switching performance. It operates effectively with a minimum differential pressure of just 1 bar, enhancing overall system responsiveness and efficiency.

Equipped with a spring-return mechanism, the valve remains closed when de-energized, providing fail-safe operation. This normally closed 2/2 way design offers safety and control by preventing unintended flow during power loss.

The valve body is constructed from premium stainless steel, offering outstanding corrosion resistance and structural strength. This robust construction ensures reliable, long-term performance even under harsh environmental conditions.

Incorporating seals made from PTFE and PEEK, the valve achieves superior leak-tightness and excellent chemical resistance. These materials maintain their integrity and functionality under extreme pressure and temperature, guaranteeing durability and operational reliability.

With large orifice sizes ranging from 10mm to 25mm, the valve provides exceptional flow capacity. Cv values vary between 1.8 and 10.0, offering maximum throughput to meet the demands of high-volume fluid control systems.

The valve is available in port sizes from 1/4″ to 1″, allowing flexible integration into various system configurations. This range ensures compatibility with numerous piping standards and application requirements.

To accommodate diverse control systems, the valve supports multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This versatility simplifies installation and expands usability across different electrical environments.

Backed by a robust manufacturing capability, this valve is produced at a capacity of 500,000 pieces per year, with monthly outputs reaching 10,000 units. Such capacity ensures a steady and reliable supply to fulfill large-scale orders efficiently.

Technical Parameters:

Applications:

Customization:

Introducing the DKE H3S Pneumatic Solenoid Valve, a high-quality pilot diaphragm solenoid valve designed for reliable and efficient operation. Manufactured in China and certified with CE standards, this valve ensures superior performance and safety.

The H3S model features a 2 way normally closed solenoid valve function, making it ideal for applications requiring secure shut-off. Its piston pilot operated mechanism guarantees precise control and durability under a working pressure of up to 360 Bar.

Available with multiple orifice sizes including 10mm, 15mm, 20mm, and 25mm, and port sizes of 1/4'', 3/8'', 1/2'', 3/4'', and 1'', the valve can be customized to suit various system requirements. It is especially suitable as a light oil valve, providing excellent resistance and performance in light oil applications.

We offer flexible ordering with a minimum order quantity of just 1 piece. Pricing is negotiable to meet your budget needs. Each valve is carefully packaged in cartons to ensure safe delivery.

Delivery time ranges from 1 to 7 work days after payment confirmation. Payment terms include T/T, Western Union, and Paypal for your convenience.

With a supply ability of 5000 pieces per month, DKE ensures timely availability and consistent quality for your pneumatic control systems.

Customize your pneumatic solenoid valve with DKE H3S today and experience reliable operation tailored to your needs.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of pneumatic systems. For technical support, we offer comprehensive assistance including installation guidance, troubleshooting tips, and maintenance procedures to ensure optimal performance.

We recommend regular inspection and cleaning to prevent contamination and ensure the longevity of the valve. In case of any operational issues, please refer to the product manual for detailed instructions on diagnosing and resolving common problems.

Our technical support team is available to assist with complex queries related to system integration, compatibility, and customization options. We also provide training services to help users understand the functionalities and best practices for using the pneumatic solenoid valves effectively.

For service and repairs, we offer authorized maintenance centers equipped with genuine replacement parts to maintain product integrity and warranty compliance. Preventive maintenance programs are also available to minimize downtime and extend the service life of your pneumatic solenoid valves.

We are committed to delivering exceptional support and services to ensure your pneumatic control systems operate smoothly and efficiently.
