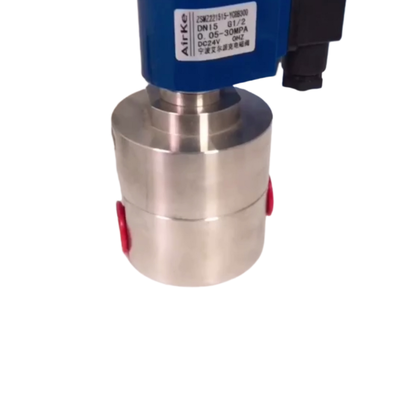

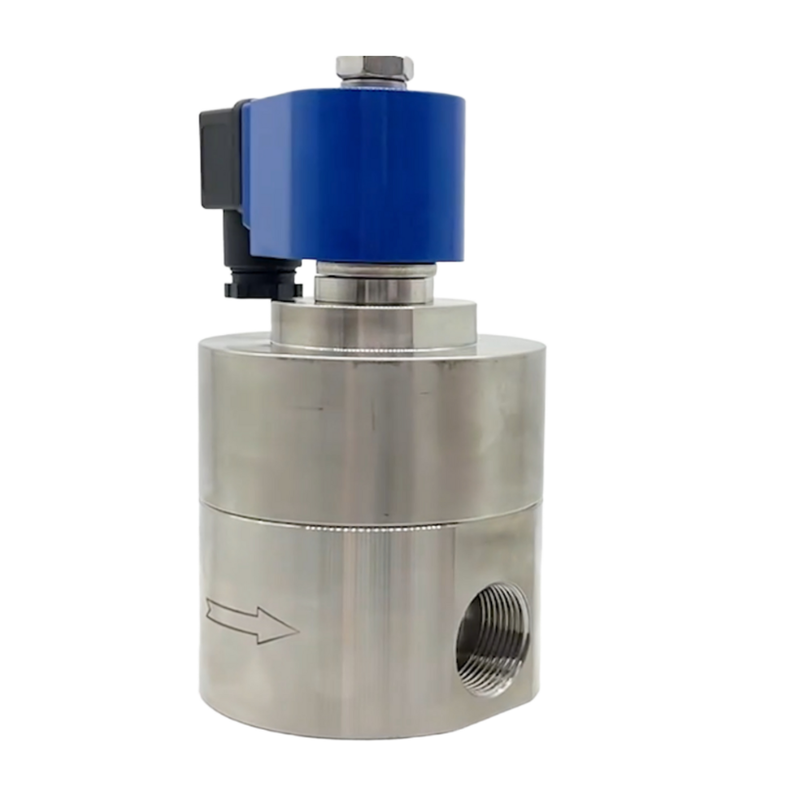

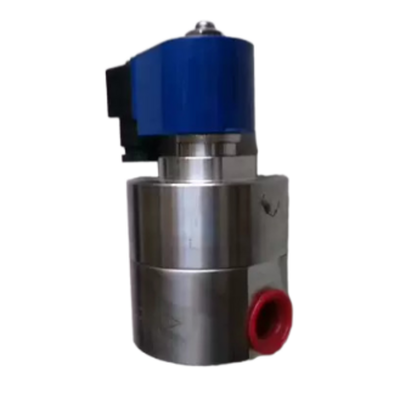

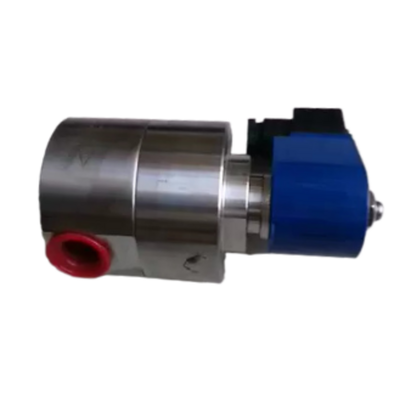

H3S15B04 15mm Orifice Size Water Valve 1/2'' Port Size 15mm Orifice Size Stainless Steel Port Size 2 Way NC

Product Description:

The H3S Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed for high-pressure fluid control applications. It can handle pressures up to 360 bar (5,200 PSI), making it an ideal choice for demanding environments where reliable and robust operation is required.

Engineered for precise ON/OFF control, this valve is compatible with various media such as water, air, gas, oil, and other neutral fluids. Its piston pilot-operated mechanism necessitates a minimum differential pressure of 1 bar to function, which suits medium to large diameter piping systems that demand high flow capacities.

Constructed from durable stainless steel, the H3S Series valve incorporates advanced sealing materials like PTFE and PEEK. These materials ensure exceptional corrosion resistance, durability, and leak-tight performance, even under extreme pressure conditions. This design guarantees longevity and dependable service in challenging applications.

The valve is available with port sizes ranging from 1/4″ to 1″, and orifice sizes between 10mm and 25mm, providing impressive flow capacity with Cv values reaching up to 10.0. Manufactured in Ningbo, China, the H3S Series has earned a reputation worldwide for its quality and reliability in high-pressure systems.

Features:

The valve boasts a high-pressure capability, with a maximum working pressure of up to 360 bar (5,200 PSI), making it suitable for demanding high-pressure applications. For larger sizes, the working pressure is rated at 300 bar for alternating current (AC) operation.

Featuring a piston pilot operated design, the valve ensures reliable switching performance by utilizing pressure-assisted operation. This design requires only a minimum differential pressure of 1 bar to activate, enhancing its responsiveness and reliability.

This valve functions as a 2/2 way normally closed type, equipped with a spring-return mechanism that keeps the valve closed when de-energized. This fail-safe design guarantees safety and prevents unintended flow in the absence of power.

Constructed from premium stainless steel, the valve body delivers exceptional corrosion resistance and maintains structural integrity over long-term service. This makes it ideal for use in harsh and corrosive environments.

Advanced sealing materials, including PTFE and PEEK, are employed to provide superior leak-tight performance. These seals also offer excellent chemical resistance and can withstand extreme pressure and temperature conditions, ensuring durability and reliability.

With large orifice sizes ranging from 10mm to 25mm, the valve achieves high flow capacity, delivering Cv values between 1.8 and 10.0. This feature allows for maximum throughput and efficient system performance.

The valve is available in a broad range of port sizes, from 1/4″ to 1″, allowing flexible integration into various system configurations. This versatility makes it adaptable to different application requirements.

It supports multiple voltage options, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at 50/60Hz, ensuring compatibility with a wide variety of control systems.

Additionally, the production capacity is notably high, with the ability to manufacture up to 500,000 pieces annually and 10,000 pieces monthly. This ensures a reliable supply chain for bulk orders and large-scale projects.

Technical Parameters:

Applications:

Customization:

Our DKE H3S Pneumatic Solenoid Valve offers comprehensive product customization services to meet your specific needs. This normally closed solenoid valve is designed with a piston pilot operated mechanism, ensuring reliable performance across various applications.

We provide multiple orifice sizes including 10mm, 15mm, 20mm, and 25mm, allowing you to select the best fit for your system. The valve supports a wide range of working mediums such as water, air, gas, oil, and other liquids, with a robust working pressure rating of up to 360 Bar.

Port sizes are customizable, available in 1/4'', 3/8'', 1/2'', 3/4'', and 1'' to suit your piping requirements. Our pilot diaphragm solenoid valve is CE certified and manufactured in China under strict quality controls to ensure durability and safety.

We accept minimum order quantities starting from just 1 piece, with pricing available upon negotiation to provide you with the best value. Packaging is handled carefully in cartons to protect the product during shipping.

Delivery times range from 1 to 7 work days after payment confirmation, supporting efficient project timelines. Payment terms are flexible, accepting T/T, Western Union, and PayPal for your convenience.

With a supply ability of 5000 pieces per month, we are equipped to support both small and large orders. Trust our DKE H3S solenoid valve customization services to deliver a reliable, high-quality pilot diaphragm solenoid valve tailored to your exact specifications.

Support and Services:

Our Pneumatic Solenoid Valve product comes with comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guidelines, troubleshooting assistance, and maintenance tips to help you maximize the efficiency and lifespan of your valve.

Our expert technical support team is available to assist with product selection, system integration, and customization options to meet your specific application requirements. We also offer training sessions and detailed documentation to help your team understand the operation and best practices for using the pneumatic solenoid valves.

In addition, we provide warranty services and prompt repair or replacement options in case of any product defects or malfunctions. Our commitment is to deliver reliable and efficient support to keep your pneumatic systems running smoothly and effectively.
