Product Description:

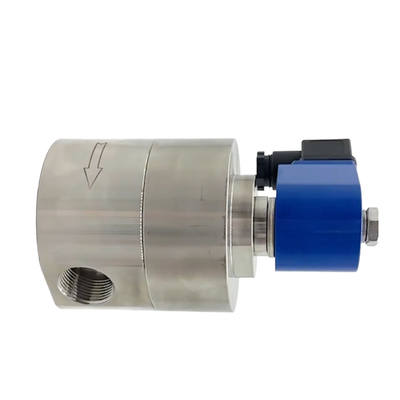

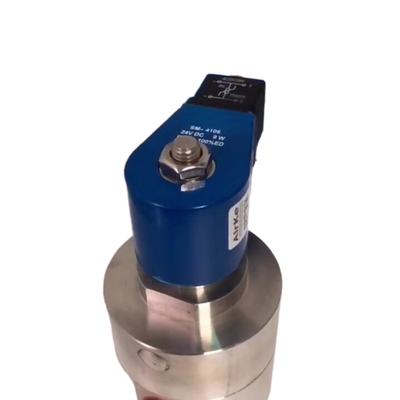

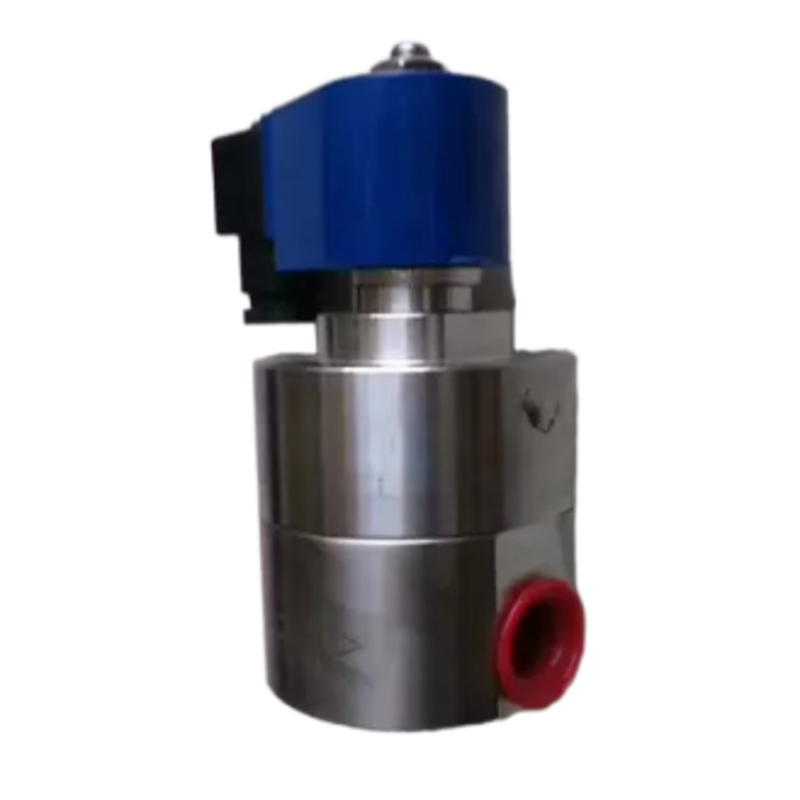

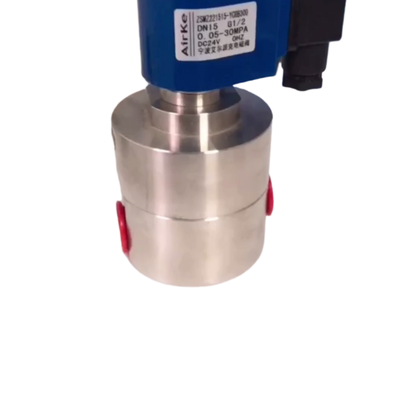

The H3S Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed for high-pressure fluid control applications reaching up to 360 bar (5,200 PSI). This valve is engineered to provide dependable ON/OFF control for various media, including water, air, gas, oil, and other neutral fluids, ensuring outstanding performance even in challenging high-pressure settings.
Featuring a piston pilot-operated mechanism, the H3S Series requires a minimum differential pressure of 1 bar to function effectively. This characteristic makes it an ideal choice for medium to large diameter piping systems that demand high flow capacities. The robust construction includes a stainless steel body combined with advanced sealing materials such as PTFE and PEEK, which contribute to the valve's exceptional durability, corrosion resistance, and leak-tight operation under severe pressure conditions.
Available in port sizes from 1/4″ up to 1″ and with orifice diameters ranging between 10mm and 25mm, the H3S Series offers superior flow capabilities, featuring Cv values as high as 10.0. Produced in Ningbo, China, this valve is recognized globally for its quality and reliability in managing high-pressure systems across various industries.
Features:
High-Pressure Capability
This product is designed to withstand demanding high-pressure applications with a maximum working pressure reaching up to 360 bar (5,200 PSI). For larger sizes featuring AC operation, the maximum pressure is rated at 300 bar, ensuring robust performance in intense environments.
Piston Pilot Operated Design
Utilizing a pressure-assisted piston pilot design, the valve guarantees reliable switching with a minimum differential pressure requirement of just 1 bar. This feature ensures consistent and efficient operation under varying pressure conditions.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, the valve remains closed when de-energized. This fail-safe design provides enhanced safety by preventing unintended flow in the event of power loss.
Stainless Steel Body
Constructed from premium stainless steel, the valve body offers exceptional resistance to corrosion and maintains structural integrity. This makes it ideal for long-term use in harsh and challenging environments.
Advanced Seal Materials
The use of advanced seal materials such as PTFE and PEEK ensures superior leak-tight performance. These seals provide excellent chemical resistance and maintain durability under extreme pressures and temperature conditions.
High Flow Capacity
Featuring large orifice sizes ranging from 10mm to 25mm, the valve achieves outstanding flow coefficients (Cv) between 1.8 and 10.0. This high flow capacity allows for maximum throughput in demanding applications.
Wide Port Size Range
The valve is available with port sizes from 1/4″ up to 1″, providing flexible options for seamless integration into various system configurations.
Wide Voltage Options
Compatible with multiple voltage inputs including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), this valve can easily meet the requirements of diverse control systems.
High Production Capacity
With an annual production capacity of 500,000 units and a monthly output of 10,000 pieces, this product ensures a reliable supply, efficiently fulfilling large-scale orders without delay.
Technical Parameters:
| Operation |
Piston Pilot Operated |
| Working Medium |
Water, Air, Gas, Oil, Liquid, Etc |
| Port Size |
1/4'', 3/8'', 1/2'', 3/4'', 1'' |
| Function |
2 Way Normally Closed |
| Seal Material |
PTFE, PEEK |
| Working Pressure |
360 Bar |
| Orifice Size |
10mm, 15mm, 20mm, 25mm |
| Body Material |
Stainless Steel |
| Model No |
Port (inch) |
Orifice (mm) |
CV |
Min Pressure |
Max Pressure |
Body |
Seal |
Function |
| |
|
|
|
|
AC |
DC |
|
|
|
| H3S10B02 |
1/4" |
10 |
1.8 |
1 |
360 |
300 |
Stainless Steel |
PTFE
PEEK |
2 Way NC |
| H3S10B03 |
3/8" |
10 |
2.1 |
360 |
300 |
| H3S15B03 |
3/8" |
15 |
3.5 |
360 |
300 |
| H3S10B04 |
1/2" |
10 |
2.1 |
360 |
300 |
| H3S15B04 |
1/2" |
15 |
3.5 |
360 |
300 |
| H3S20B06 |
3/4" |
20 |
6.5 |
300 |
240 |
| H3S25B25 |
1" |
25 |
10 |
300 |
240 |
Applications:
Hydraulic Systems
High-pressure hydraulic control plays a vital role in industrial machinery and equipment. It ensures efficient and reliable operation in various mechanical processes, providing the necessary force and precision for heavy-duty tasks.
Pneumatic Systems
In automation and processing lines, the management of high-pressure air and gases is crucial. Pneumatic systems handle this requirement, facilitating smooth operation and control in diverse industrial applications.
Water Jet Cutting
The ON/OFF regulation of high-pressure water is essential for cutting and cleaning processes. Water jet cutting technology relies on this precise control to achieve accurate and efficient results in various materials.
Oil & Gas Industry
Extraction, processing, and distribution activities in the oil and gas sector depend heavily on controlling high-pressure fluids and gases. Robust and safe handling ensures operational stability and environmental compliance.
Chemical Processing
Chemical plants require specialized control over corrosive and high-pressure fluids to maintain safety and process integrity. Advanced control systems are implemented to handle these challenging conditions effectively.
Test & Measurement
Pressure testing rigs and calibration equipment utilize high-pressure control to ensure accurate measurement and verification of instruments. This is fundamental for maintaining quality standards across industries.
Industrial Equipment
Manufacturing and processing machinery often involve the regulation of high-pressure fluids. Effective control mechanisms enhance performance and prolong the lifespan of industrial equipment.
Research Laboratories
In experimental setups, precise fluid control at high pressures is necessary for accurate research outcomes. Laboratories depend on advanced systems to manage these conditions with utmost precision.
Customization:
Introducing the DKE H3S Pneumatic Solenoid Valve, a high-quality pilot diaphragm solenoid valve designed for versatile applications. Manufactured in China and CE certified, this normally closed solenoid valve ensures reliable performance in controlling the flow of water, air, gas, oil, and other liquids.
With a range of port sizes including 1/4'', 3/8'', 1/2'', 3/4'', and 1'', and orifice sizes of 10mm, 15mm, 20mm, and 25mm, the H3S model can be customized to meet your specific requirements. The valve features a 2-way normally closed function, making it ideal for applications where the valve needs to remain closed when not energized.
The seal materials available for customization include PTFE and PEEK, providing excellent durability and compatibility with various working mediums. We offer flexible payment terms including T/T, Western Union, and PayPal, with a minimum order quantity of just 1 piece.
Packaging is securely done in cartons to ensure safe delivery, with a supply ability of 5000 pieces per month. Delivery time ranges from 1 to 7 work days after payment, allowing for prompt fulfillment of your orders. Pricing is negotiable to suit your business needs.
Choose the DKE H3S pilot diaphragm solenoid valve for your industrial automation needs and experience the quality and reliability of a premium normally closed solenoid valve backed by excellent customization services.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, operation manuals, and maintenance instructions to help you get the most out of your valve system.
For troubleshooting, our expert technical team is available to assist with diagnosing issues, providing solutions, and recommending best practices for system integration and usage. We also offer customized training sessions tailored to your specific application needs.
Additionally, we provide repair and replacement services to maintain the longevity and reliability of your pneumatic solenoid valves. Our quality assurance team ensures that every product meets stringent standards before delivery.
To support your ongoing needs, we regularly update our product documentation and offer software tools for system monitoring and control. We are committed to delivering prompt and effective support to maximize your operational efficiency.
