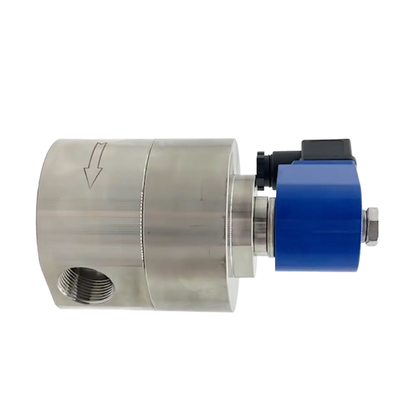

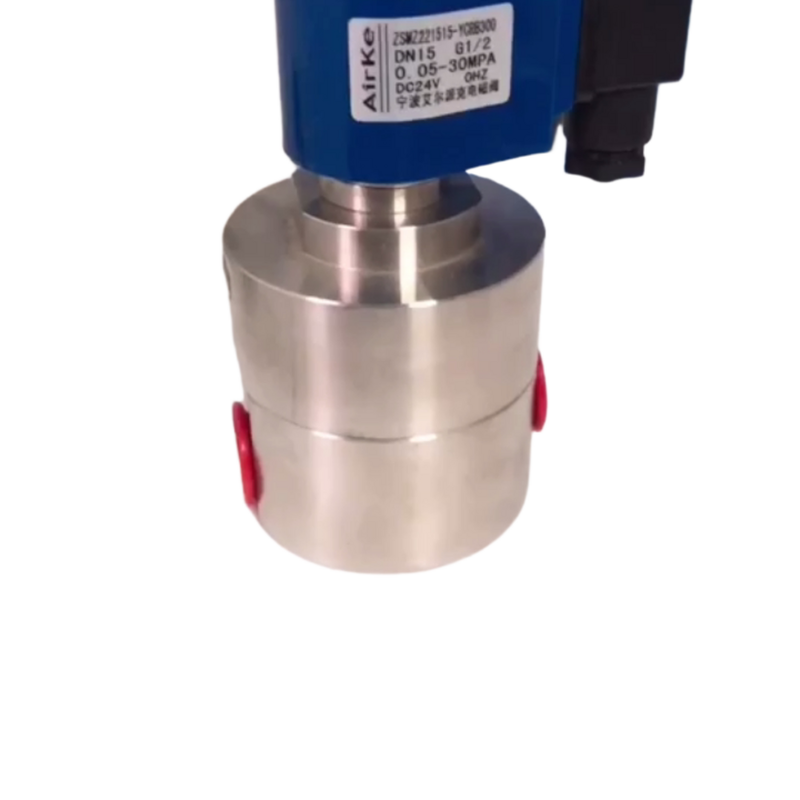

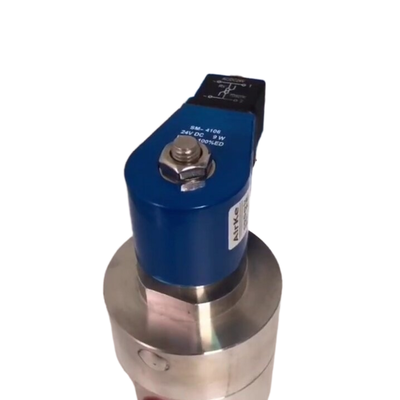

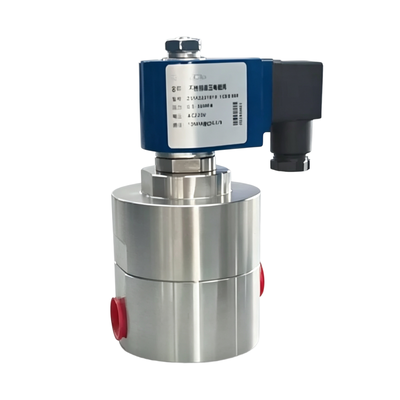

PTFE Seal Material Air Valve 3/8 Port Size H3S15B03 15mm Orifice Size Featuring Stainless Steel Body

Product Description:

The H3S Series solenoid valve is a 2/2-way normally closed piston pilot-operated valve specifically designed for high-pressure fluid control. It can handle pressures up to 360 bar (5,200 PSI), making it ideal for demanding industrial applications. This valve ensures reliable ON/OFF operation for a variety of media including water, air, gas, oil, and other neutral liquids.

Featuring a piston pilot-operated mechanism, the valve requires a minimum differential pressure of 1 bar to function efficiently. This characteristic makes it well-suited for medium to large diameter piping systems that demand high flow capacity. Its robust design supports consistent performance even in challenging high-pressure environments.

Constructed with a stainless steel body, the H3S Series incorporates advanced seal materials such as PTFE and PEEK. These materials contribute to exceptional durability, corrosion resistance, and leak-tight sealing under extreme pressure conditions. This ensures long-lasting operation and minimal maintenance requirements.

Available with port sizes ranging from 1/4″ to 1″ and orifice diameters between 10mm and 25mm, the valve offers superior flow capacity with Cv values reaching up to 10.0. Manufactured in Ningbo, China, the H3S Series solenoid valve is recognized globally for its quality and dependable performance in high-pressure fluid control systems.

Features:

This product is engineered to handle demanding high-pressure applications with a maximum operating pressure of up to 360 bar (5,200 PSI). For larger sizes equipped with AC, the maximum working pressure is rated at 300 bar, ensuring robust performance under intense conditions.

Featuring a piston pilot operated mechanism, this valve utilizes pressure-assisted operation to guarantee reliable switching. It requires only a minimum differential pressure of 1 bar to function effectively, enhancing operational efficiency.

The valve incorporates a spring-return mechanism that keeps it closed when not energized. This design provides fail-safe operation, ensuring safety and preventing unintended flow during power loss.

Constructed from premium stainless steel, the valve offers exceptional corrosion resistance and structural integrity. This makes it highly durable for long-term service, even in harsh and demanding environmental conditions.

Equipped with PTFE and PEEK seals, the valve delivers superior leak-tight performance combined with excellent chemical resistance. These materials enable reliable operation under extreme pressure and temperature scenarios.

The valve is designed with large orifice sizes ranging from 10mm to 25mm, which provide impressive Cv values between 1.8 and 10.0. This ensures maximum throughput and efficient flow management.

Available in port sizes from 1/4″ to 1″, the valve offers flexible integration options suitable for various system requirements.

Compatibility with multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz) makes this valve adaptable to a broad spectrum of control systems.

With an annual production capacity of 500,000 units and a monthly output of 10,000 pieces, this product ensures a reliable supply for bulk orders and large-scale deployments.

Technical Parameters:

Applications:

Customization:

Our DKE H3S Pneumatic Solenoid Valve offers comprehensive product customization services to meet your specific needs. Manufactured in China and certified with CE, this solenoid valve is designed for reliability and efficiency. We provide flexible options for seal material, including PTFE and PEEK, ensuring optimal performance under a working pressure of up to 360 Bar.

Customers can choose from various orifice sizes of 10mm, 15mm, 20mm, and 25mm to suit different applications. The valve functions as a 2 Way Normally Closed type, ideal for controlling the flow of water, air, gas, oil, liquid, and more. This makes it an excellent choice as a light oil valve or a pilot diaphragm solenoid valve in various industrial setups.

We support a minimum order quantity of just 1 piece with pricing available upon negotiation, allowing flexibility for both small and large scale orders. Packaging is done securely in cartons to ensure safe delivery. Our supply ability is 5000 pieces per month, and delivery time ranges from 1 to 7 work days after payment confirmation.

Payment terms include T/T, Western Union, and Paypal, providing convenient options for international clients. Whether you need a customized solenoid valve for specific media or pressure requirements, DKE’s H3S model is engineered to accommodate your unique demands efficiently and reliably.

Support and Services:

Our Pneumatic Solenoid Valve product is designed for reliable and efficient control of air flow in various industrial applications. To ensure optimal performance, please follow the installation and maintenance guidelines provided in the product manual.

For technical support, our team of experts is available to assist with troubleshooting, installation advice, and product customization to meet your specific requirements. We recommend regular inspection and cleaning of the valve components to prevent any operational issues.

Replacement parts and accessories are available to maintain the longevity of your pneumatic solenoid valve. Please refer to the parts list in the documentation for compatible components.

We are committed to providing high-quality service and support to ensure your complete satisfaction with our product. For any technical inquiries, please have your product model number and serial number ready to facilitate prompt assistance.
