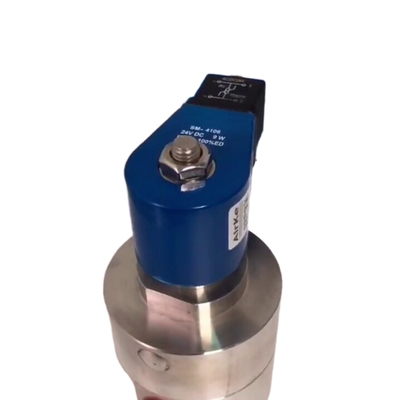

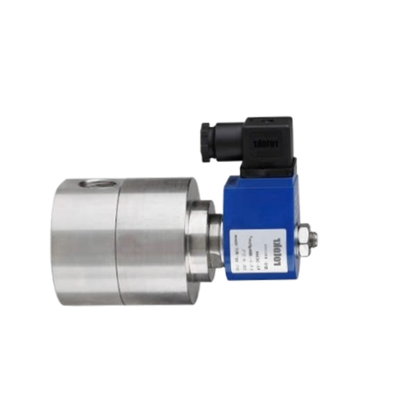

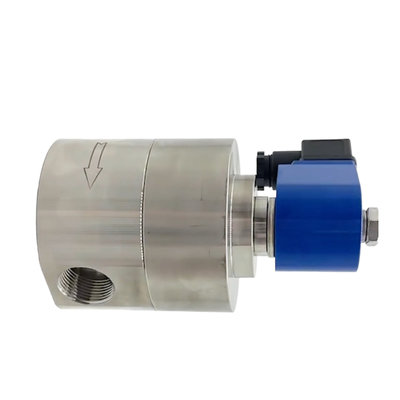

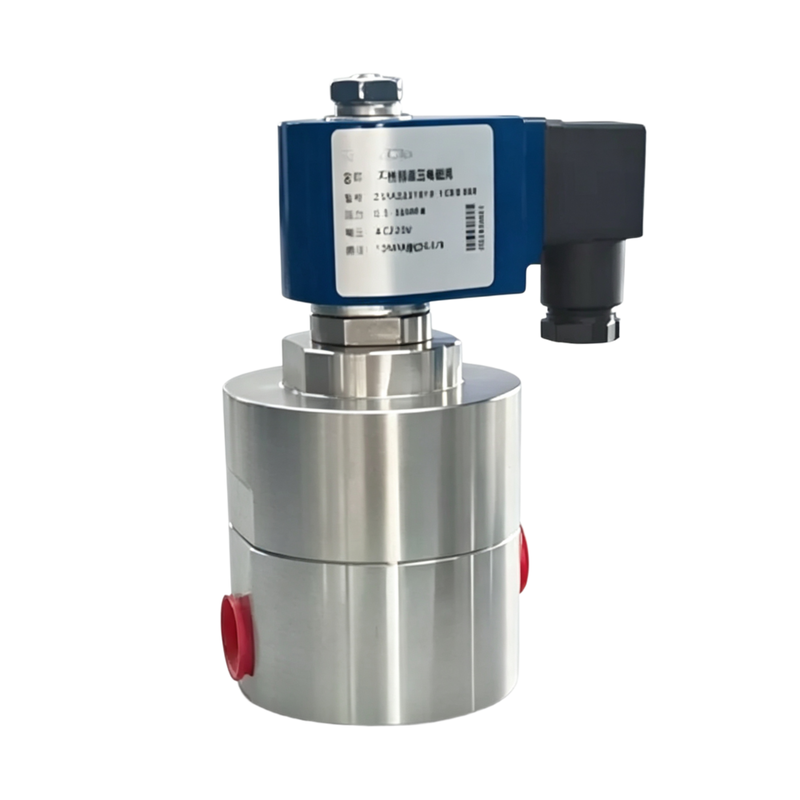

H3S10B03 PEEK Seal Material Pneumatic Solenoid Valve 10mm Orifice Size 2 Way Normally Closed Stainless Steel Body 3/8 Port Size

Product Description:

The H3S Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed for high-pressure fluid control applications reaching up to 360 bar (5,200 PSI). This valve is engineered to provide reliable ON/OFF control for a variety of media including water, air, gas, oil, and other neutral liquids, ensuring exceptional performance even in the most demanding high-pressure environments.

Featuring a piston pilot-operated mechanism, the valve requires a minimum differential pressure of 1 bar to function effectively. This makes it particularly well-suited for medium to large diameter piping systems where a high flow capacity is essential. Its robust design supports efficient operation in a broad range of industrial fluid control scenarios.

Constructed with a stainless steel body, the H3S Series utilizes advanced sealing materials such as PTFE and PEEK. These materials contribute to the valve’s outstanding durability and corrosion resistance, as well as ensuring leak-tight performance under extreme pressure conditions. This combination of materials guarantees long-lasting and reliable service in tough environments.

The valve is available in various port sizes ranging from 1/4″ to 1″, with orifice sizes between 10mm and 25mm. This range allows the H3S Series to deliver superior flow capacity, boasting Cv values of up to 10.0. Manufactured in Ningbo, China, this valve is recognized globally for its quality, reliability, and high performance in demanding high-pressure fluid control systems.

Features:

The valve boasts an impressive high-pressure capability, with a maximum working pressure reaching up to 360 bar (5,200 PSI). This makes it suitable for demanding, high-pressure applications, although for AC operation on larger sizes, the maximum pressure is 300 bar.

Featuring a piston pilot operated design, the valve’s pressure-assisted mechanism guarantees dependable switching performance. It requires only a minimal differential pressure of 1 bar to operate effectively, ensuring reliability in various conditions.

It operates as a 2/2 way normally closed valve, utilizing a spring-return mechanism. This design keeps the valve securely closed when de-energized, providing a fail-safe operation to protect the system.

Constructed from premium stainless steel, the valve body offers outstanding corrosion resistance and robust structural integrity. This ensures long-lasting service even in the most challenging and harsh environments.

Advanced sealing materials such as PTFE and PEEK are used to enhance leak-tight performance. These seals also provide excellent chemical resistance, even under extreme pressure and temperature conditions, maintaining the valve’s reliability.

The valve supports high flow capacity through its large orifice sizes, ranging from 10mm to 25mm. This allows exceptional Cv values between 1.8 and 10.0, facilitating maximum throughput for various fluid control needs.

With a wide range of port sizes available from 1/4″ to 1″, the valve offers flexibility for easy integration into diverse system configurations.

It is compatible with multiple voltage options, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), making it adaptable to a variety of control systems.

Supporting high production capacity, the manufacturing facilities can produce up to 500,000 pieces annually and 10,000 pieces monthly. This ensures a reliable supply chain capable of fulfilling large bulk orders efficiently.

Technical Parameters:

Applications:

Hydraulic systems play a crucial role in industrial machinery and equipment by providing high-pressure hydraulic control. These systems ensure efficient operation and precise movement within various types of heavy-duty machines.

Pneumatic systems are essential for controlling high-pressure air and gases, especially in automation and processing lines. Their reliable performance supports smooth and continuous production processes.

Water jet cutting technology utilizes ON/OFF control of high-pressure water to achieve precise cutting and effective cleaning in a variety of applications. This method is widely adopted due to its accuracy and environmental benefits.

In the oil and gas industry, managing high-pressure fluids and gases is critical during extraction, processing, and distribution stages. Advanced control systems ensure safety, efficiency, and regulatory compliance in these operations.

Chemical processing plants require specialized control solutions for handling corrosive and high-pressure fluids. These systems are designed to withstand harsh environments while maintaining consistent performance and safety.

Test and measurement sectors depend on pressure testing rigs and calibration equipment to validate and maintain the accuracy of high-pressure control systems. This ensures reliability and quality in various industrial applications.

Industrial equipment used in manufacturing and processing relies on high-pressure fluid control to optimize performance and productivity. These control mechanisms contribute to the overall efficiency of industrial workflows.

Research laboratories benefit from precision fluid control in high-pressure experimental setups, allowing scientists to conduct accurate and controlled experiments under varying pressure conditions.

Customization:

Introducing the DKE H3S Pneumatic Solenoid Valve, a high-quality air valve designed to meet diverse industrial needs. Manufactured in China and CE certified, this normally closed solenoid valve ensures reliable performance with a 2-way function, making it ideal for controlling the flow of air, water, gas, oil, and other liquids.

Constructed with a durable stainless steel body and equipped with premium seal materials such as PTFE and PEEK, the DKE H3S valve withstands working pressures up to 360 Bar, delivering exceptional durability and safety in demanding environments.

With a minimum order quantity of just 1 piece and a supply ability of 5000 pieces per month, we offer flexible pricing through negotiation to suit your project requirements. The product is carefully packaged in cartons to ensure safe delivery within 1-7 work days after payment.

We accept various payment terms including T/T, Western Union, and PayPal, providing convenience and security for your transactions. Customize your air valve solutions with DKE’s H3S model to achieve optimal control and efficiency in your pneumatic systems.

Support and Services:

Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to assist users in proper handling and usage.

Technical support is available to address any inquiries related to product selection, installation, troubleshooting, and performance optimization. Our team of experts is equipped to provide timely and effective solutions to minimize downtime and enhance system efficiency.

We also offer customized training sessions to help customers understand the functionalities and applications of the pneumatic solenoid valves, enabling better integration into their systems.

For maintenance and repair services, we supply genuine replacement parts and recommend best practices to prolong the valve’s operational life. Additionally, our quality assurance process ensures that each valve meets stringent industry standards before delivery.

Continuous product updates and improvements are communicated to customers to keep them informed about the latest technological advancements and enhancements.
