Product Description:

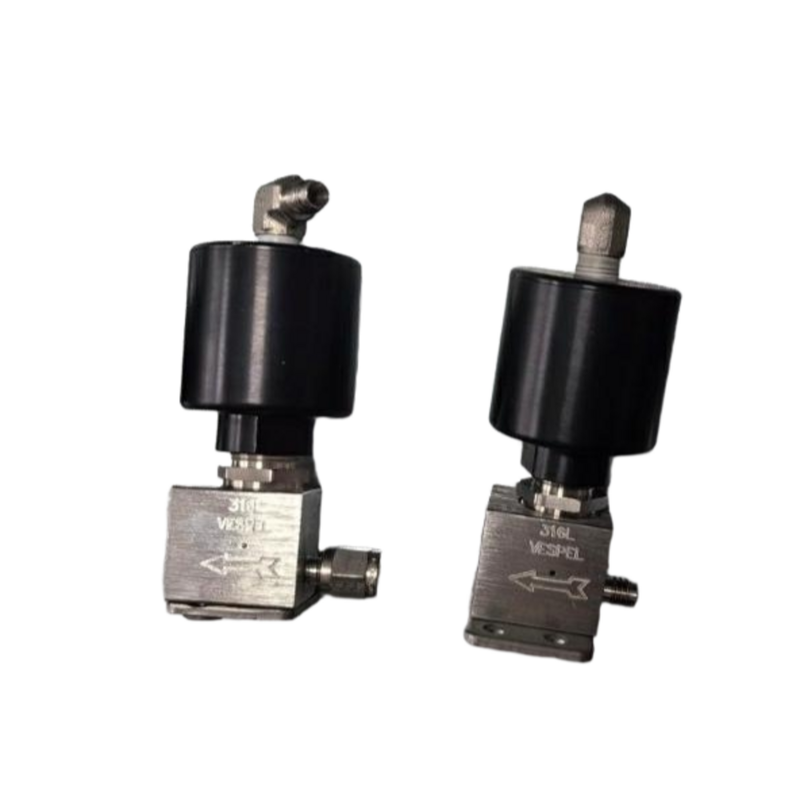

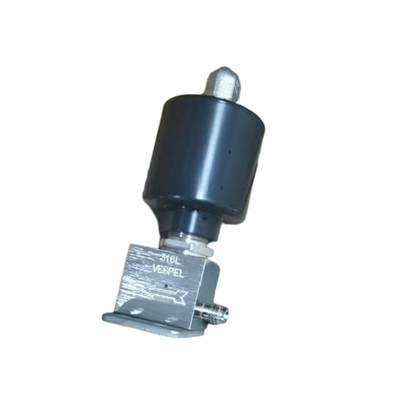

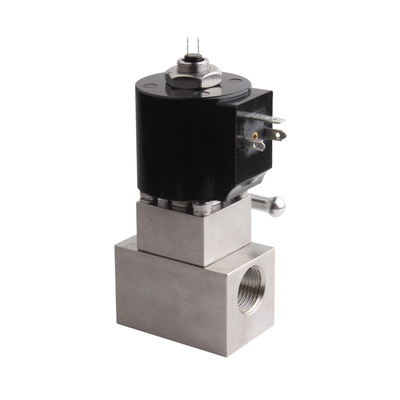

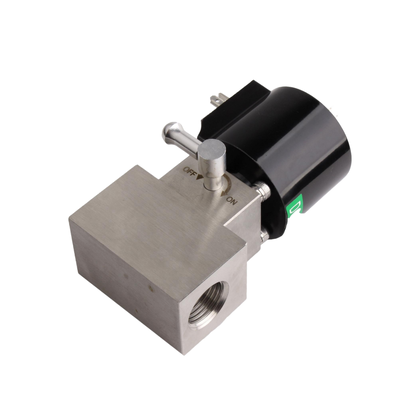

The 8.7BA Series is a 2/2-way normally closed piston pilot-operated solenoid valve specifically designed for high-pressure fluid control tasks. It can operate efficiently under pressures up to 350 bar (5,000 PSI), making it ideal for demanding applications requiring robust and dependable valve performance.
This valve is engineered to provide reliable ON/OFF control for a variety of media, including water, air, gas, liquids, and other neutral substances. Its piston pilot-operated mechanism needs a minimum differential pressure of 5 bar to function, which makes it particularly suitable for medium to large diameter pipeline systems that demand high flow capacity.
Constructed with a Stainless Steel 304 body, the valve boasts excellent strength and corrosion resistance. It also incorporates advanced PEEK seal material, enhancing its durability and ensuring leak-tight operation even under extreme pressure and temperature conditions.
The 8.7BA Series comes with port sizes ranging from 1/8″ to 1/2″ and features a standard 8mm orifice. This flexibility allows it to deliver reliable flow control across a broad spectrum of industrial applications. Manufactured in Ningbo, China, this valve is recognized worldwide for its quality and dependability in high-pressure system solutions.
Features:
High-Pressure Capability: This valve can handle a maximum working pressure of up to 350 bar (5,000 PSI), making it ideal for applications that demand high-pressure performance.
Wide Temperature Range: It is designed to operate effectively with media temperatures ranging from -60°C to +300°C, perfectly suited for both extremely low cryogenic and very high temperature environments.
Piston Pilot Operated Design: Featuring a pressure-assisted mechanism, this design guarantees reliable switching action even with a minimum differential pressure of 5 bar, ensuring consistent operation.
2/2 Way Normally Closed Function: Equipped with a spring-return mechanism, the valve remains closed when it is de-energized, providing a fail-safe feature for enhanced safety.
Stainless Steel 304 Body: Constructed from premium SS304 stainless steel, the valve offers excellent corrosion resistance and maintains structural integrity for long-term durability in harsh conditions.
PEEK Seal Material: The advanced PEEK seals ensure superior leak-tight performance, high chemical resistance, and thermal stability even under extreme operating conditions.
Wide Port Size Range: Available in multiple port sizes including 1/8″, 1/4″, 3/8″, and 1/2″, allowing flexible integration into various system configurations.
Standard 8mm Orifice: The 8mm orifice size provides reliable and consistent flow control performance across all valve models.
Multiple Voltage Options: Compatible with a wide range of voltages—12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz)—to accommodate different control system requirements.
High Production Capacity: With an annual production capability of 500,000 units and a weekly output of 5,000 pieces, this valve ensures a steady and reliable supply for large volume orders.
Technical Parameters:
| Operation |
Piston Pilot Operated |
| Orifice Size |
8mm |
| Valve Type |
2/2 Way, Normally Closed |
| Working Media |
Water, Air, Gas, Liquid |
| Working Pressure |
5 To 350 Bar |
| Seal Material |
PEEK |
| Port Size |
1/8″, 1/4″, 3/8″, 1/2″ |
| Body Material |
Stainless Steel 304 |
Applications:
Applications of High-Pressure Control Systems
In the field of industrial machinery and equipment, hydraulic systems are widely used for high-pressure hydraulic control. These systems play a crucial role in ensuring the efficient and precise operation of various machines.
Pneumatic systems are essential for managing high-pressure air and gas control, particularly within automation and processing lines. Their ability to regulate pressure accurately enhances productivity and safety in numerous industrial environments.
Water jet cutting technology utilizes ON/OFF control of high-pressure water to perform cutting and cleaning tasks. This method is highly effective for applications requiring precision and minimal material distortion.
The oil and gas industry relies heavily on high-pressure fluid and gas control throughout extraction, processing, and distribution stages. Effective pressure management is vital for operational safety and efficiency in this sector.
Chemical processing plants handle corrosive and high-pressure fluids, necessitating specialized control systems. These systems are designed to withstand harsh conditions while maintaining reliable operation.
In the realm of test and measurement, pressure testing rigs and calibration equipment utilize high-pressure control to ensure accurate and consistent results in various testing scenarios.
Manufacturing and processing machinery depend on high-pressure fluid control to maintain optimal performance. Industrial equipment incorporates these systems to enhance functionality and durability.
Research laboratories employ precision fluid control methods in high-pressure and high-temperature experimental setups. Such control is critical for achieving accurate experimental conditions and reliable data.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial automation applications. To ensure optimal operation, we provide comprehensive technical support and services tailored to meet your needs.
Technical support includes assistance with product selection, installation guidance, troubleshooting, and maintenance recommendations. Our team of experts is available to help you understand the specifications and capabilities of the valve to ensure it fits your system requirements perfectly.
We also offer detailed documentation, including user manuals, wiring diagrams, and performance data sheets to assist you in the proper setup and use of the pneumatic solenoid valve. For any technical inquiries, our support resources are structured to provide timely and accurate solutions.
In addition to support, we provide maintenance services to prolong the life and efficiency of your solenoid valves. This includes inspection, cleaning, and repair services carried out by certified technicians using genuine replacement parts.
Our goal is to ensure your pneumatic solenoid valve operates smoothly and reliably, minimizing downtime and maximizing productivity in your operations. Please refer to the provided documentation for troubleshooting tips and maintenance schedules to keep your system running at its best.
Packing and Shipping:
Product Packaging and Shipping
The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually wrapped in anti-static foam and placed inside a sturdy, corrugated cardboard box. The packaging includes protective inserts to prevent movement and damage.
For bulk orders, valves are securely packed in multiple layers within a larger shipping carton, with cushioning materials to absorb shocks and vibrations.
We offer various shipping options including standard ground, expedited air freight, and express courier services to meet your delivery requirements. All shipments are tracked and insured to guarantee safe and timely arrival.
Upon receipt, please inspect the package for any visible damage and verify the contents against the packing list. In case of any issues, contact our customer service immediately for assistance.
