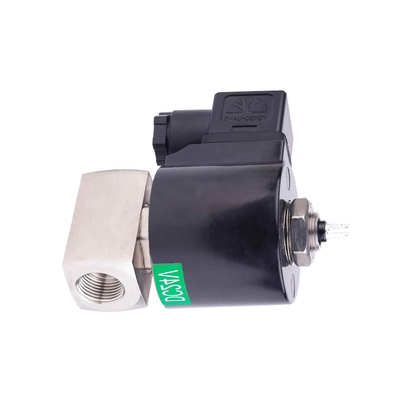

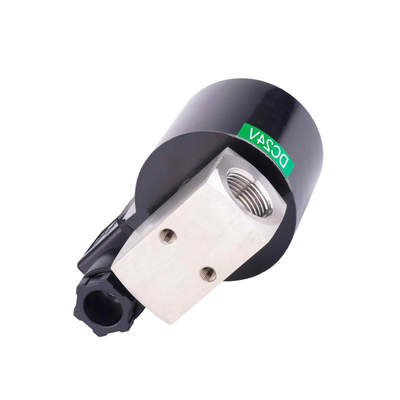

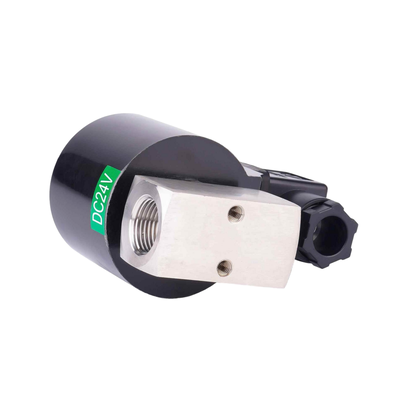

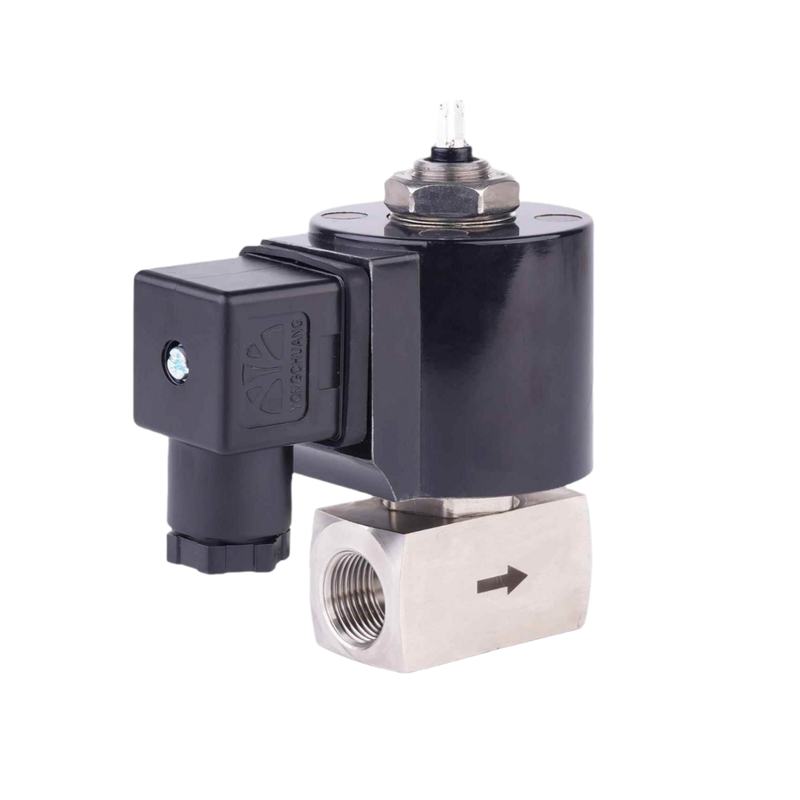

Spring Return Solenoid Valve 8.16AAS030B PTFE Seal Material 3/8 Inch Port Size Orifice Size 3mm

Product Description:

The 8.16AA Series is a 2/2-way normally closed direct-acting solenoid valve, specifically designed to handle high-pressure fluid control tasks up to 300 bar (4,300 PSI). This valve ensures dependable ON/OFF operation for various media such as water, air, gas, and other neutral liquids, providing excellent performance even in challenging environments involving high pressure and temperature.

Featuring direct-acting operation, the valve guarantees reliable functionality right from zero differential pressure. This characteristic makes it particularly suitable for applications that demand precise control throughout the entire pressure range. Its robust construction includes a Stainless Steel 304 body paired with PTFE seal material, which together deliver remarkable durability, resistance to corrosion, and leak-tight sealing under extreme conditions.

The 8.16AA Series offers versatility with port sizes between 1/8″ and 3/8″, and orifice sizes ranging from 1mm to 3mm. This variety allows for flexible flow control options, with Cv values spanning from 0.03 to 0.25. Manufactured in Ningbo, China, this valve is recognized globally for its quality and dependability in demanding high-pressure systems.

Features:

This valve is designed to handle demanding high-pressure applications with a maximum working pressure of up to 300 bar (4,300 PSI). This makes it suitable for environments requiring robust pressure resistance.

It is compatible with media temperatures ranging from -60°C to +200°C, making it ideal for both cryogenic conditions and high-temperature applications.

Featuring a spring-return mechanism, the valve operates effectively from zero differential pressure (0 bar). This ensures reliable performance throughout the entire pressure range.

The spring-return design keeps the valve closed when de-energized, offering a fail-safe operation to enhance safety and system integrity.

Constructed from premium stainless steel 304, the valve body provides exceptional corrosion resistance and strong structural integrity, ensuring long-term durability even in harsh environments.

High-performance PTFE seals are used to deliver superior leak-tightness, excellent chemical resistance, and thermal stability, improving the valve’s reliability and lifespan.

The valve is available with orifice sizes of 1mm, 1.5mm, 2mm, 2.5mm, and 3mm. These options offer precise flow control with Cv values ranging from 0.03 to 0.25, allowing customization based on system requirements.

It supports port sizes of 1/8″, 1/4″, and 3/8″, providing flexible integration capabilities to fit various piping and system configurations.

Compatible with a variety of voltage inputs, including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), the valve can be easily adapted to different control systems and power sources.

The manufacturing facility supports a production capacity of 500,000 units per year and 5,000 units per week, ensuring a dependable supply to meet large-scale order demands.

Technical Parameters:

Applications:

Customization:

At DKE, we offer comprehensive product customization services for our Pneumatic Solenoid Valve, model 8.16AA. As a certified CE manufacturer based in China, we ensure high-quality standards and reliable performance for every order.

Our normally closed solenoid valve is designed with a stainless steel 304 body material, providing durability and corrosion resistance. The valve functions as a 2/2 way NC air valve, suitable for various pneumatic applications with working pressure up to 300 Bar.

Customers can choose from multiple port sizes including 1/8'', 1/4'', and 3/8'' to fit their specific system requirements. The solenoid valve operates via direct acting, spring return mechanism, ensuring precise and efficient control.

We accommodate flexible order quantities with a minimum order quantity of just 1 piece, and a supply ability of 5000 pieces per month. Pricing is negotiable to meet different budget needs.

Packaging is securely done in cartons to ensure safe delivery, with a delivery time frame of 1-7 work days after payment. Payment terms supported include T/T, Western Union, and Paypal for your convenience.

Choose DKE for your customized air valve and solenoid valve needs, combining quality, flexibility, and prompt service to optimize your pneumatic systems.

Support and Services:

Our Pneumatic Solenoid Valve product is supported by a dedicated technical support team committed to ensuring optimal performance and reliability. We provide comprehensive installation guidance, troubleshooting assistance, and maintenance recommendations to help you maximize the efficiency of your pneumatic systems.

Our services include detailed product documentation, application advice, and customized solutions tailored to meet specific operational requirements. We also offer training sessions to help your staff understand the correct usage and handling of the solenoid valves, ensuring safe and effective operation.

For any technical issues, our experts are available to diagnose problems and provide timely solutions, minimizing downtime and enhancing productivity. Additionally, we offer repair and replacement services to maintain the longevity of your pneumatic solenoid valves.

We continuously update our product support materials and services to align with the latest technological advancements and industry standards, guaranteeing you the best possible assistance throughout the lifecycle of the product.
