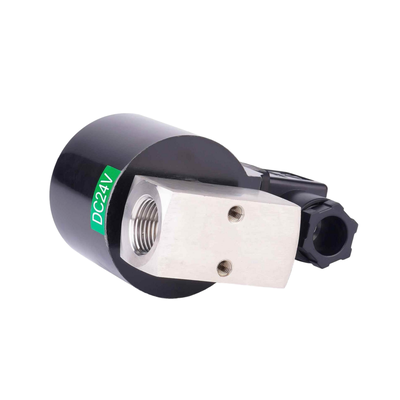

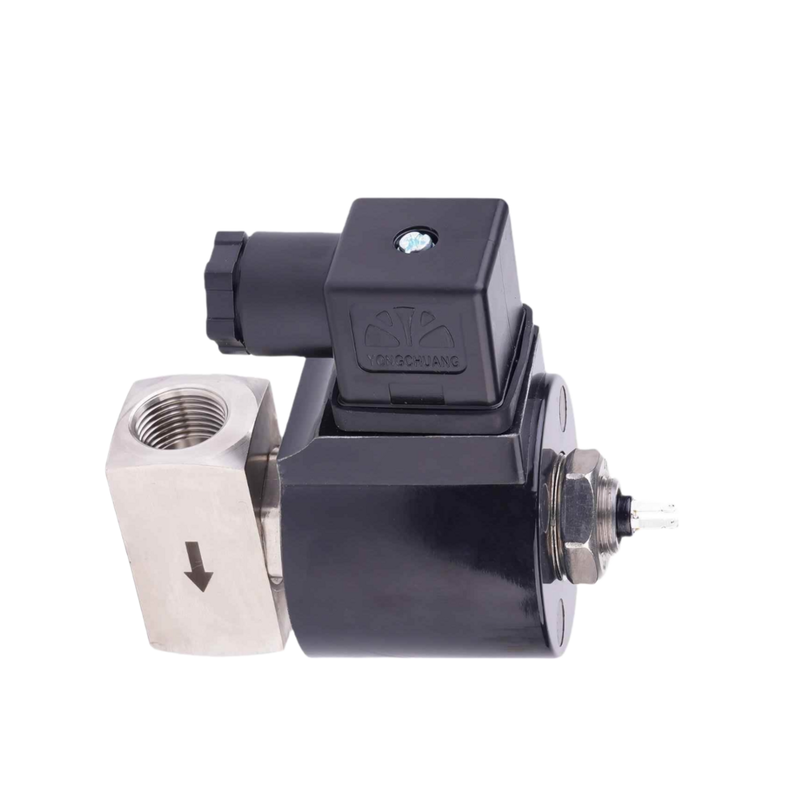

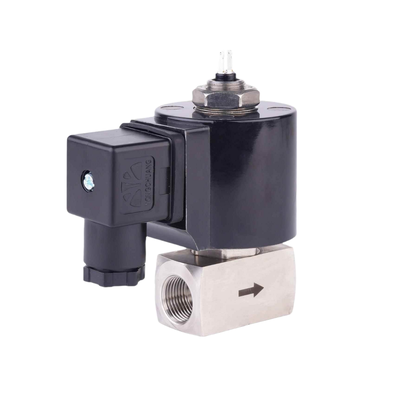

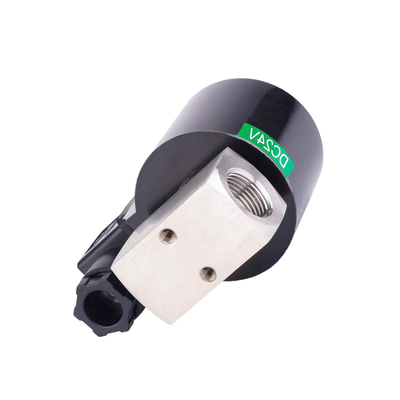

300 Bar Pneumatic Solenoid Valve 8.16AAS025B Including Orifice Size 2.5mm and PTFE Seal Material

Product Description:

The 8.16AA Series is a 2/2-way normally closed direct-acting solenoid valve specifically designed for high-pressure fluid control applications, capable of handling pressures up to 300 bar (4,300 PSI). It is engineered to provide dependable ON/OFF control for a variety of mediums including water, air, gas, and other neutral liquids.

This valve excels in demanding environments featuring high pressure and elevated temperatures. Its direct-acting mechanism ensures consistent and reliable operation even at zero differential pressure, making it an excellent choice for applications that require precise and stable control across the entire pressure range.

Constructed with a robust Stainless Steel 304 body and equipped with PTFE sealing material, the 8.16AA Series guarantees exceptional durability, corrosion resistance, and leak-tight performance under extreme conditions. This combination of materials makes it well-suited for harsh industrial settings where reliability is critical.

Offering flexibility in installation and flow management, the valve is available in port sizes from 1/8″ to 3/8″ and orifice sizes ranging from 1mm to 3mm. It supports Cv values between 0.03 and 0.25, allowing for adaptable flow control to match various system requirements.

Manufactured in Ningbo, China, the 8.16AA Series solenoid valve is recognized globally for its high quality and reliability in high-pressure systems, making it a trusted component in many industrial applications worldwide.

Features:

The valve is designed to handle demanding high-pressure environments with a maximum working pressure of up to 300 bar (4,300 PSI). This makes it suitable for applications that require robust pressure handling.

It is compatible with media temperatures ranging from -60°C to +200°C, allowing it to perform reliably in both cryogenic and high-temperature conditions.

Featuring a spring-return mechanism, the valve operates directly from zero differential pressure (0 bar). This ensures consistent and dependable performance throughout the entire pressure range.

The spring-return design keeps the valve closed when it is de-energized, offering fail-safe operation that enhances safety and reliability in critical systems.

Constructed from premium SS304 stainless steel, the valve body provides excellent corrosion resistance and structural strength, ensuring long-term durability even in harsh environments.

Equipped with high-performance PTFE seals, the valve guarantees superior leak-tight performance, along with outstanding chemical resistance and thermal stability.

Available orifice sizes include 1mm, 1.5mm, 2mm, 2.5mm, and 3mm, allowing for precise flow control. The corresponding Cv values range from 0.03 to 0.25 to meet various application requirements.

Port sizes are offered in 1/8″, 1/4″, and 3/8″ options, providing flexibility for seamless integration into different system configurations.

The valve supports multiple voltage inputs including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), making it adaptable to a variety of control system setups.

With a production capability of 500,000 units annually and 5,000 units weekly, the manufacturer ensures a reliable supply chain to fulfill bulk orders efficiently.

Technical Parameters:

Applications:

Customization:

At DKE, we offer comprehensive product customization services for our Pneumatic Solenoid Valve model 8.16AA, ensuring it meets your specific needs. Manufactured in China and CE certified, this solenoid valve is designed for reliable performance with a direct acting, spring return operation suitable for various applications.

Our customization options include selectable port sizes of 1/8'', 1/4'', and 3/8'' to fit your piping requirements. The valve can handle working pressures up to 300 Bar and is compatible with diverse working media such as water, air, gas, liquid, and light oil, making it an ideal choice for light oil valve applications.

We use high-quality PTFE seal material to ensure durability and resistance to wear, suitable for both solenoid valve and light oil valve uses. With a minimum order quantity of 1 piece and a supply ability of 5000 pieces per month, we accommodate both small and large orders with flexible pricing through negotiation.

Packaging is done carefully in cartons to protect the product during transit, and delivery time ranges from 1 to 7 work days after payment. Payment terms are convenient and include T/T, Western Union, and Paypal options to facilitate smooth transactions.

Choose DKE’s Pneumatic Solenoid Valve for a customizable, high-quality light oil valve solution that delivers efficiency and reliability in your operations.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in a wide range of industrial automation applications. To ensure optimal operation and longevity, we provide comprehensive technical support and services.

Technical Support:

Our experienced technical support team is available to assist you with installation guidance, troubleshooting, and maintenance tips for the Pneumatic Solenoid Valve. We offer detailed product documentation, including user manuals, wiring diagrams, and specification sheets to help you integrate the valve seamlessly into your systems.

Services:

We provide calibration and testing services to verify the performance of your Pneumatic Solenoid Valve. Additionally, repair and replacement services are available to minimize downtime and extend the lifecycle of your equipment. Customization options are also offered to meet specific application requirements.

For optimal results, we recommend regular inspection and cleaning of the valve components, as well as adherence to the specified operating conditions outlined in the product manual.

Our commitment is to support your operational needs with prompt, professional service to ensure your Pneumatic Solenoid Valve operates at peak efficiency.
