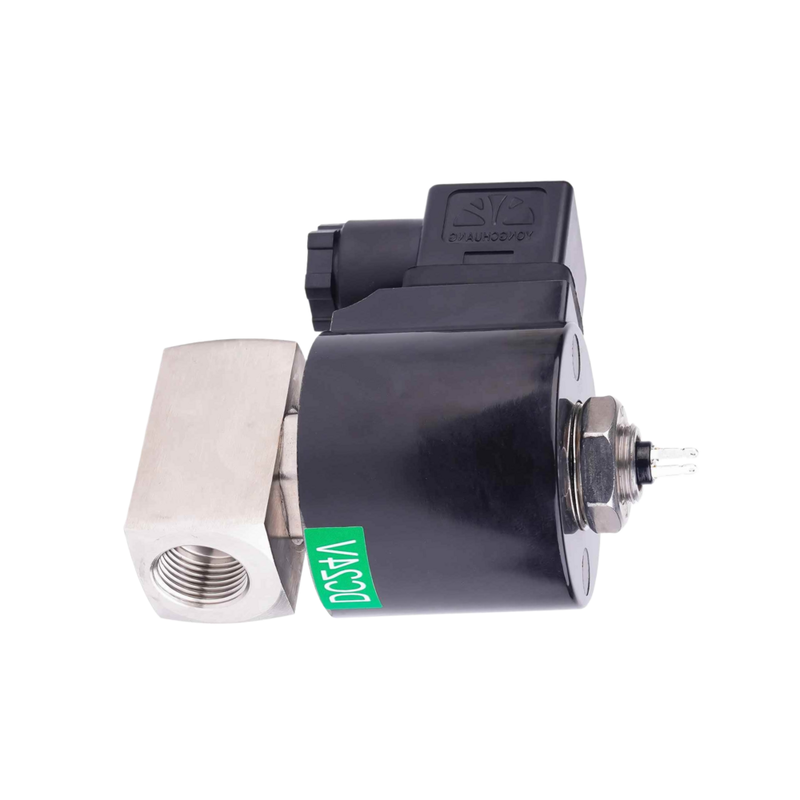

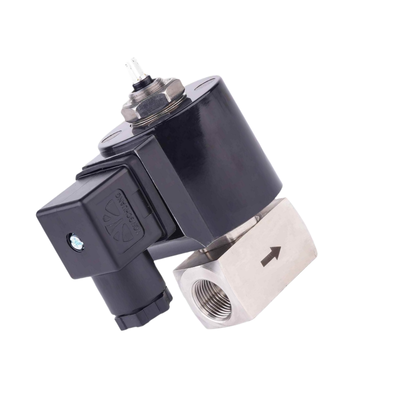

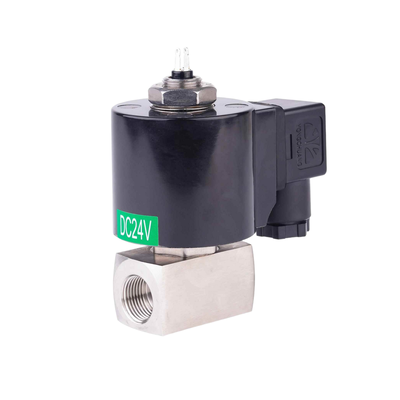

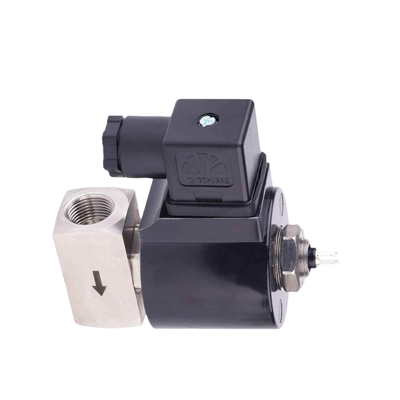

8.16AAS010B Spring Return 2/2 Way NC 1mm Orifice Size Air Valve Stainless Steel 304 Port Size G1/8 G1/4 G3/8

Product Description:

The 8.16AA Series is a 2/2-way normally closed direct-acting solenoid valve, specifically designed for high-pressure fluid control applications with pressures reaching up to 300 bar (4,300 PSI). This valve is engineered to provide dependable ON/OFF control for a variety of media, including water, air, gas, and other neutral liquids.

Its direct-acting mechanism guarantees consistent and reliable operation even at zero differential pressure, making it an excellent choice for applications that demand precise control across the entire pressure spectrum. This feature ensures optimal performance in challenging environments characterized by high pressure and elevated temperatures.

Constructed from Stainless Steel 304, the valve body offers remarkable durability and robust corrosion resistance. In addition, the PTFE seal enhances leak-tight performance, ensuring the valve maintains integrity under extreme pressure and temperature conditions.

The 8.16AA Series is available with port sizes ranging from 1/8″ to 3/8″, and orifice sizes between 1mm and 3mm, allowing for versatile flow control options. Its flow capacity, represented by Cv values, spans from 0.03 to 0.25, accommodating various system requirements.

Manufactured in Ningbo, China, the valve is recognized globally for its superior quality and reliability, making it a trusted solution for high-pressure system applications worldwide.

Features:

This product is designed to handle demanding high-pressure applications with a maximum working pressure of up to 300 bar (4,300 PSI). It ensures reliable performance even under extreme pressure conditions.

Compatible with media temperatures ranging from -60°C to +200°C, the valve is suitable for a variety of environments, including both cryogenic and high-temperature applications.

The spring-return mechanism enables operation starting from zero differential pressure (0 bar). This design ensures dependable functionality throughout the entire pressure spectrum.

Equipped with a spring-return mechanism, the valve remains closed when de-energized, providing a fail-safe operation that enhances safety and system reliability.

Constructed from premium SS304 stainless steel, the valve body offers excellent corrosion resistance and maintains structural integrity for long-lasting use in harsh environments.

High-performance PTFE seals ensure superior leak-tightness, exceptional chemical resistance, and thermal stability, contributing to the overall durability of the valve.

Available in a range of orifice sizes including 1mm, 1.5mm, 2mm, 2.5mm, and 3mm, the valve allows for precise flow control with Cv values spanning from 0.03 to 0.25.

The valve supports flexible system integration by offering port sizes of 1/8″, 1/4″, and 3/8″, catering to various piping requirements.

To accommodate different control systems, the valve is compatible with multiple voltage inputs including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC operating at 50/60Hz frequencies.

With an annual production capacity of 500,000 units and a weekly output of 5,000 units, the manufacturer ensures a reliable supply chain capable of meeting bulk order demands efficiently.

Technical Parameters:

Applications:

Customization:

At DKE, we offer customized Pneumatic Solenoid Valve solutions tailored to your specific needs. Our model 8.16AA is a high-quality normally closed solenoid valve designed with stainless steel 304 body material, ensuring durability and reliability under a working pressure of up to 300 Bar. This 2/2 way NC air valve features direct acting, spring return operation and uses PTFE seal material for enhanced performance and longevity.

Manufactured in China and CE certified, our solenoid valve products meet international quality standards. We support flexible order quantities starting from a minimum of 1 piece and offer competitive pricing through negotiation. Packaging is securely done using cartons to protect the valves during shipping.

With a supply ability of 5000 pieces per month, we guarantee prompt delivery within 1-7 work days after payment. Payment terms are flexible and include T/T, Western Union, and Paypal to facilitate smooth transactions. Choose DKE for reliable, customizable pneumatic solenoid valves tailored to your application requirements.
