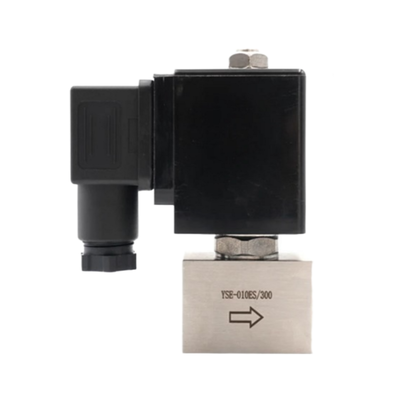

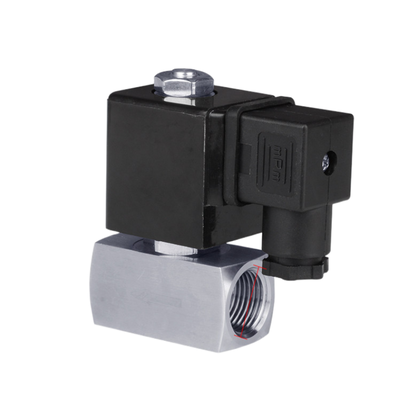

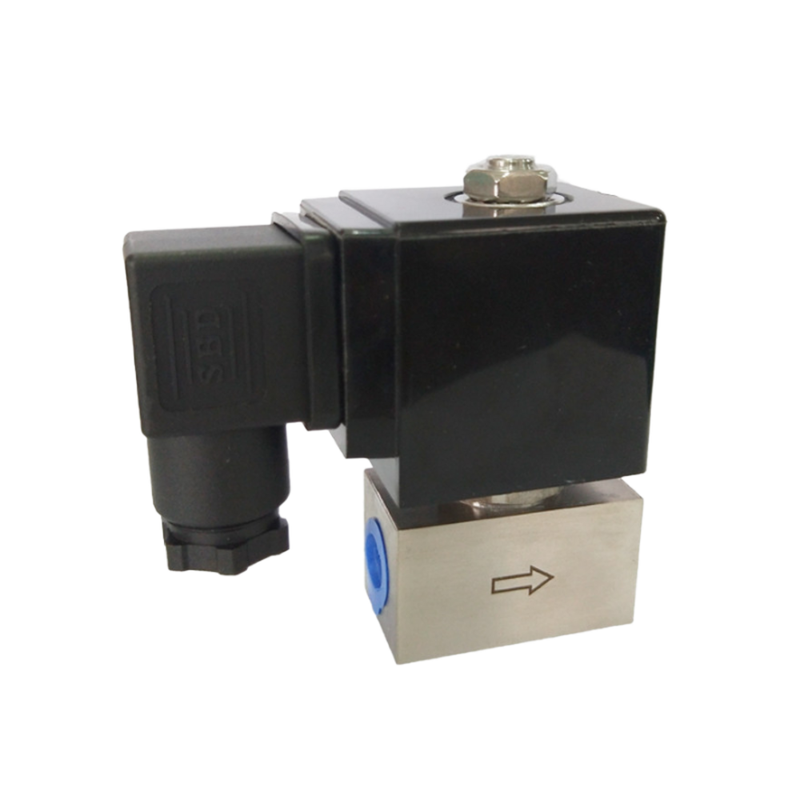

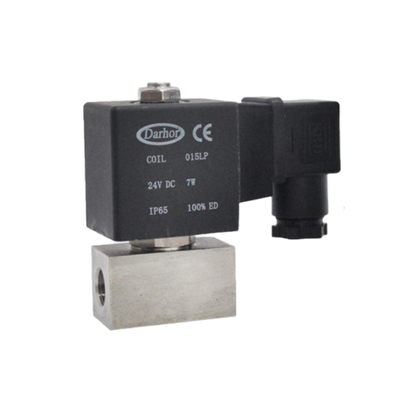

24VDC Pneumatic Solenoid Valve SH-015ES Stainless Steel 304 Body Material 1/4 3/8 Port Size 1.2mm Orifice Size

Product Description:

The SH Series is a 2/2-way normally closed high-pressure solenoid valve, specifically designed for dependable ON/OFF control of various neutral media such as air, water, gas, and liquids. It can operate efficiently under pressures reaching up to 300 bar (4,300 PSI), making it suitable for demanding high-pressure applications.

This versatile product range features two types of operation: direct acting for orifice sizes DN1 to DN5, and piston pilot operated for orifice sizes DN10 to DN25. This variety ensures optimal performance across a broad spectrum of flow requirements. Direct-acting models can function starting from zero differential pressure, while the piston pilot-operated versions need a minimum differential pressure to guarantee reliable switching.

Constructed using a Stainless Steel 304 body and equipped with PTFE seals, the SH Series valves provide exceptional durability, excellent corrosion resistance, and leak-tight performance even under extreme pressure conditions. The port sizes available range from 1/4″ to 1″, and the orifice sizes vary from 1mm to 25mm, allowing flexible flow control with Cv values spanning from 0.04 to 11.0.

Manufactured in Ningbo, China, with a production capacity of 20,000 units per week, the SH Series solenoid valves are recognized worldwide for their reliability and high quality in various high-pressure system applications.

Features:

This product boasts an impressive high-pressure capability, with a maximum working pressure reaching up to 300 bar (4,300 PSI). This makes it ideal for demanding applications that require reliable performance under intense pressure conditions.

Featuring dual operation modes, it supports direct acting control for smaller orifices ranging from DN1 to DN5 with zero differential pressure. For larger orifices, from DN10 to DN25, the valve operates using a piston pilot mechanism, ensuring versatile and efficient functionality.

The valve is designed as a 2/2 way normally closed unit, incorporating a spring-return mechanism. This feature ensures that the valve remains closed when de-energized, providing a fail-safe operation to enhance safety and reliability.

Constructed with a stainless steel 304 body, the valve offers exceptional corrosion resistance and robust structural integrity. This high-quality SS304 material ensures long-term durability, even in harsh environmental conditions.

Equipped with PTFE seal material, the valve guarantees superior leak-tight performance. These high-performance PTFE seals also provide excellent chemical resistance and thermal stability, making them suitable for a wide range of applications.

The product is available in a wide range of orifice sizes, from 1mm up to 25mm. With Cv values varying from 0.04 to 11.0, it allows for precise flow control tailored to diverse operational requirements.

Additionally, the valve comes with a wide variety of port size options, including 1/4″, 3/8″, 1/2″, 3/4″, and 1″. This flexibility enables seamless integration into various system configurations.

To accommodate different control systems, multiple voltage options are available. The valve supports 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), ensuring compatibility with a broad spectrum of electrical setups.

Finally, backed by a strong production capacity of 20,000 pieces per week and up to 100,000 pieces per month, this product ensures a reliable supply chain capable of meeting large-scale demands.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed installation guides, operation manuals, and troubleshooting documentation to assist users at every stage.

For technical inquiries, our team of experts is available to offer guidance on product selection, system integration, and maintenance procedures. We also provide training sessions and workshops to help customers understand the functionality and applications of the pneumatic solenoid valves.

In addition, we offer repair and replacement services to minimize downtime and extend the lifespan of your equipment. Regular maintenance support and upgrade options are available to keep your pneumatic systems running efficiently.

Our commitment is to deliver reliable and prompt support to meet the evolving needs of our customers, ensuring the highest standards of quality and service throughout the product lifecycle.

Packing and Shipping:

Product Packaging and Shipping for Pneumatic Solenoid Valve

Each pneumatic solenoid valve is carefully packaged to ensure it arrives in perfect working condition. The valve is first wrapped in anti-static bubble wrap to protect it from static electricity and physical damage during transit. It is then placed inside a sturdy cardboard box with custom foam inserts to prevent movement and absorb shocks.

The packaging box is clearly labeled with the product name, model number, handling instructions, and shipping details. For bulk orders, multiple units are securely packed in larger cartons with additional padding to avoid any damage.

We offer various shipping options including standard ground shipping, expedited air freight, and international courier services. All shipments are tracked and insured to provide our customers with peace of mind. Delivery times vary depending on the destination and shipping method selected.

Before dispatch, each solenoid valve undergoes a final quality check to ensure it meets all specifications. Our packaging and shipping process is designed to deliver your pneumatic solenoid valve safely and promptly, maintaining product integrity throughout the journey.
