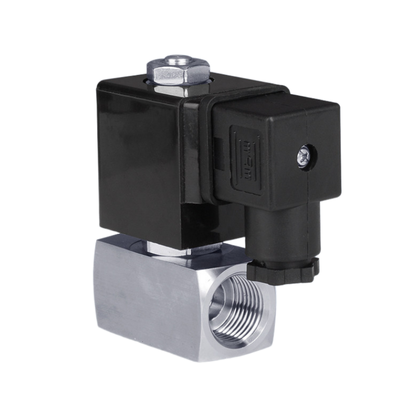

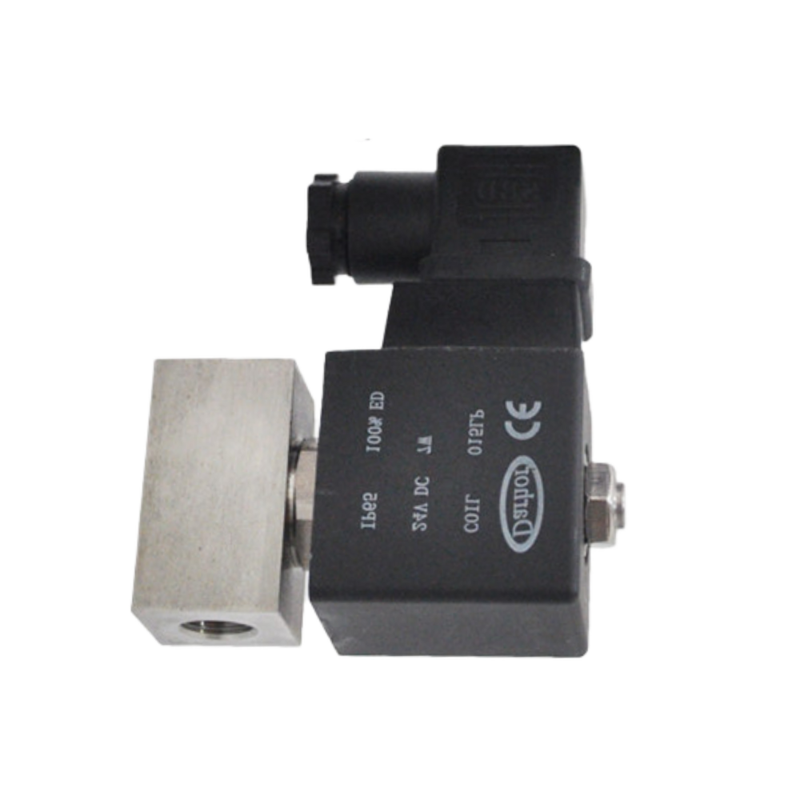

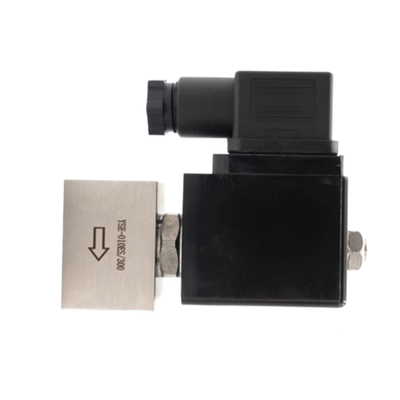

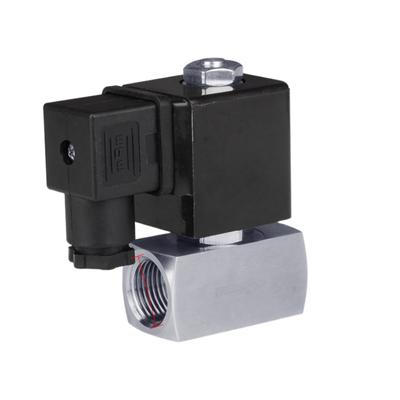

Product Description:
The SH Series consists of 2/2-way normally closed high-pressure solenoid valves, specifically designed for dependable ON/OFF control of various media such as air, water, gas, and other neutral liquids. These valves can handle pressures up to 300 bar (4,300 PSI), making them suitable for demanding industrial applications.
This versatile series includes two types of operation to cater to different flow requirements. For smaller orifice sizes ranging from DN1 to DN5, the valves feature direct-acting operation, which functions effectively from zero differential pressure. For larger orifices, from DN10 to DN25, piston pilot-operated models are available. These require a minimum differential pressure to ensure reliable switching, thus providing optimal performance across a wide spectrum of flow demands.
Constructed from high-quality Stainless Steel 304 and equipped with PTFE seal material, the SH Series valves offer exceptional durability and corrosion resistance. This robust configuration ensures leak-tight performance even under extreme pressure conditions, making them ideal for use in harsh environments.
The SH Series valves come with a variety of port sizes, ranging from 1/4″ to 1″, and orifice sizes between 1 mm and 25 mm. This range allows for flexible flow control with flow coefficient (Cv) values spanning from 0.04 to 11.0, accommodating diverse application needs.
Manufactured in Ningbo, China, the SH Series boasts a production capacity of 20,000 pieces per week. Its proven quality and reliability have established it as a trusted solution for high-pressure systems worldwide.
Features:
This valve is designed to handle demanding high-pressure environments, with a maximum working pressure rated up to 300 bar (4,300 PSI). This makes it suitable for applications that require robust pressure resistance and reliable operation under extreme conditions.
It offers dual modes of operation to accommodate different orifice sizes. For smaller orifices ranging from DN1 to DN5, it features a direct-acting mechanism capable of functioning starting from zero differential pressure. For larger orifices, specifically DN10 to DN25, it employs a piston pilot-operated system to ensure efficient and precise control.
The valve incorporates a 2/2 way normally closed function, utilizing a spring-return mechanism. This design keeps the valve securely closed whenever it is de-energized, thus providing a fail-safe feature critical for safety-sensitive applications.
Constructed with a stainless steel 304 body, the valve boasts excellent corrosion resistance and structural strength. This premium SS304 material guarantees durability and long service life, even when operating in harsh or corrosive environments.
High-performance PTFE seal materials are used to enhance the valve’s performance. These seals ensure superior leak-tightness, resist a wide range of chemicals, and maintain stability across varying thermal conditions, contributing to optimal reliability.
The valve is available with a wide range of orifice sizes, from 1mm up to 25mm. Corresponding Cv values range from 0.04 to 11.0, allowing precise flow control tailored to diverse application needs.
For flexible integration into different systems, the valve is offered in multiple port sizes including 1/4″, 3/8″, 1/2″, 3/4″, and 1″. This ensures compatibility with various piping configurations.
It supports multiple voltage options to suit various control circuits and power supplies. Compatible voltages include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC operating at 50 or 60 Hz frequencies.
Backed by a high production capacity, the manufacturer can supply up to 20,000 units per week and 100,000 units per month. This ensures a reliable and consistent source for bulk orders and large-scale projects.
Technical Parameters:
| Port Size |
1/4'' |
| Working Pressure |
0 To 300 Bar |
| Function |
2 Way Normally Closed |
| Operation |
Direct Acting |
| Seal Material |
PTFE |
| Body Material |
Stainless Steel 304 |
| Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Orifice Size |
1mm |
| Model No |
Orifice Size (mm) |
Port Size (inch) |
CV |
Working Pressure Range (bar) |
| Normally Closed |
Normally Open |
220VAC |
24VDC |
| SH-010ES |
1 |
1/4", 3/8" |
0.04 |
0-300 |
0-150 |
0-150 |
| SH-015ES |
1.2 |
0.08 |
0-250 |
0-120 |
0-60 |
| SH-020ES |
2 |
0.15 |
0-180 |
0-70 |
0-35 |
| SH-025ES |
2.5 |
0.2 |
0-110 |
0-45 |
0-20 |
| SH-030ES |
3 |
0.25 |
0-80 |
0-40 |
0-15 |
| SH-040ES |
4 |
0.6 |
0-40 |
0-15 |
0-5 |
| SH-050ES |
5 |
0.9 |
0-25 |
0-8 |
_ |
| SH-10ES |
10 |
3/8" |
3.5 |
6-160 |
6-120 |
6-50 |
| SH-15ES |
15 |
1/2" |
4.7 |
| SH-20ES |
20 |
3/4" |
7 |
| SH-25ES |
25 |
1" |
11 |
Applications:
Hydraulic Systems
Hydraulic systems involve the management of high-pressure hydraulic control mechanisms within various industrial machinery and equipment. These systems are essential for efficient and precise operation in heavy-duty applications.
Pneumatic Systems
Pneumatic systems are designed for controlling high-pressure air and gases, primarily utilized in automation processes and production lines. They play a crucial role in improving the speed and reliability of manufacturing.
Water Jet Cutting
This technology employs ON/OFF control of high-pressure water jets used in cutting and cleaning tasks. Water jet cutting is highly valued for its precision and ability to work on a variety of materials without causing thermal damage.
Oil & Gas Industry
In the oil and gas sector, high-pressure fluid and gas control is vital during extraction, processing, and distribution stages. Effective management ensures operational safety and optimizes resource efficiency.
Chemical Processing
Chemical plants require control of corrosive and high-pressure fluids to maintain process integrity and safety. Specialized systems are implemented to handle the demanding environments typical in chemical processing.
Test & Measurement
High-pressure control plays an important role in pressure testing rigs and calibration equipment, guaranteeing accuracy and reliability in measurement and quality assurance tasks.
Industrial Equipment
Industrial equipment relies on high-pressure fluid control for manufacturing and processing machinery. These controls are critical for maintaining performance and extending equipment longevity.
Research Laboratories
In research laboratories, precision fluid control at high pressures is necessary for experimental setups that demand exact conditions. This allows researchers to conduct advanced studies with high accuracy.
