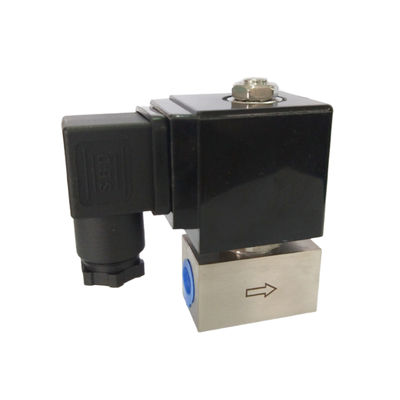

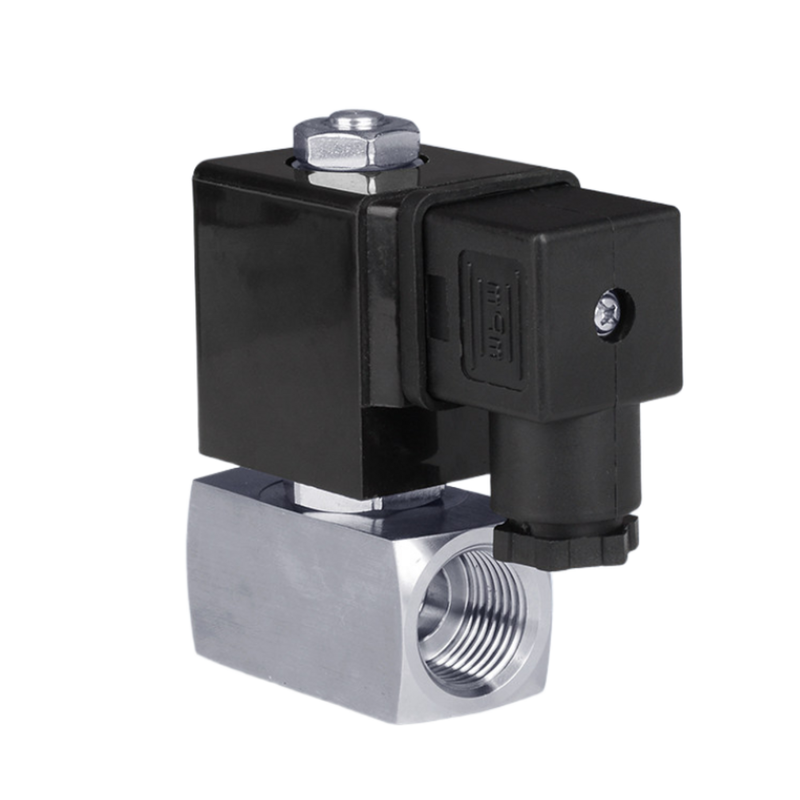

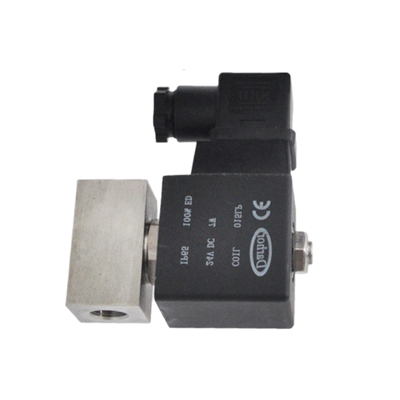

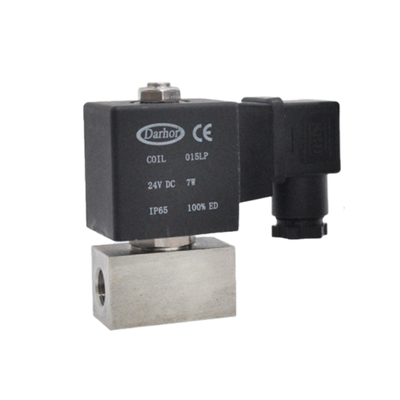

Product Description:
The SH Series is a 2/2-way normally closed high-pressure solenoid valve designed for dependable ON/OFF control of various media such as air, water, gas, and other neutral liquids. It can handle pressures up to 300 bar (4,300 PSI), making it suitable for demanding applications requiring robust performance.
This versatile range includes both direct-acting and piston pilot-operated valves. Direct-acting models cover orifice sizes from DN1 to DN5 and function effectively from zero differential pressure. In contrast, piston pilot-operated models cater to orifice sizes from DN10 to DN25 and require a minimum differential pressure to switch reliably, offering optimal control across different flow demands.
Constructed with a durable Stainless Steel 304 body and equipped with PTFE seals, the SH Series ensures excellent corrosion resistance, leak-tight integrity, and long-lasting durability even in extreme pressure environments. The valve is available with port sizes from 1/4″ to 1″ and orifice diameters ranging between 1mm and 25mm, providing adaptable flow control with Cv values spanning from 0.04 to 11.0.
Manufactured in Ningbo, China, the SH Series boasts a production capacity of 20,000 units per week, establishing itself as a reliable and high-quality choice for high-pressure systems around the globe.
Features:
High-Pressure Capability
This valve is designed to handle demanding high-pressure applications, featuring a maximum working pressure of up to 300 bar (4,300 PSI). This makes it suitable for environments where robust pressure resistance is essential.
Dual Operation Modes
It offers dual modes of operation to accommodate various orifice sizes. For smaller orifices ranging from DN1 to DN5, the valve operates in a direct acting mode starting from zero differential pressure. For larger orifices from DN10 to DN25, it utilizes a piston pilot-operated mechanism.
2/2 Way Normally Closed Function
Equipped with a spring-return mechanism, the valve remains closed when de-energized, ensuring fail-safe operation. This normally closed function provides safety and reliability in critical systems.
Stainless Steel 304 Body
The valve body is constructed from premium stainless steel 304, offering exceptional corrosion resistance and structural durability. This robust build guarantees long-term performance even in harsh environmental conditions.
PTFE Seal Material
High-quality PTFE seals are used to provide superior leak-tight performance. These seals also exhibit excellent chemical resistance and thermal stability, enhancing the valve’s effectiveness across a broad range of applications.
Wide Orifice Range
Available with orifice sizes ranging from 1mm to 25mm and Cv values between 0.04 and 11.0, the valve allows precise flow control and adaptability for diverse operational requirements.
Wide Port Size Range
For flexible system integration, the valve is offered in multiple port sizes including 1/4″, 3/8″, 1/2″, 3/4″, and 1″, enabling compatibility with various piping configurations.
Multiple Voltage Options
To suit different control systems, the valve supports a wide range of voltage options: 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at 50/60Hz, providing great versatility for electrical integration.
High Production Capacity
With a strong production capability of 20,000 pieces per week and up to 100,000 pieces monthly, reliable supply is assured for large-scale orders, making it a dependable choice for bulk purchasing.
Technical Parameters:
| Working Pressure |
0 To 300 Bar |
| Voltage |
12VDC, 24VDC, 24VAC, 110VAC, 220VAC |
| Function |
2 Way Normally Closed |
| Operation |
Direct Acting |
| Port Size |
1/4'' |
| Seal Material |
PTFE |
| Body Material |
Stainless Steel 304 |
| Orifice Size |
1mm |
Applications:
Hydraulic Systems
Hydraulic systems are essential for managing high-pressure hydraulic control within various industrial machinery and equipment. These systems ensure efficient power transmission and precise movement control in heavy-duty applications.
Pneumatic Systems
Pneumatic systems involve the regulation of high-pressure air and gases, playing a vital role in automation and processing lines. They enable fast and reliable operation in numerous industrial processes.
Water Jet Cutting
This technology utilizes ON/OFF control of high-pressure water streams for cutting and cleaning purposes. Water jet cutting is notable for its precision and versatility across different materials.
Oil & Gas Industry
In the oil and gas sector, controlling high-pressure fluids and gases is critical during extraction, processing, and distribution stages. Advanced systems ensure safe and efficient handling of these resources.
Chemical Processing
Chemical plants require specialized fluid control to handle corrosive and high-pressure substances. Robust control systems help maintain safety and optimize processing in these challenging environments.
Test & Measurement
Pressure testing rigs and calibration equipment rely on precise high-pressure control to ensure accuracy and reliability in various measurement applications.
Industrial Equipment
High-pressure fluid control is fundamental in manufacturing and processing machinery, contributing to enhanced productivity and operational stability.
Research Laboratories
Research laboratories often employ precision fluid control systems to facilitate high-pressure experimental setups, enabling accurate scientific investigations and innovations.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, and maintenance tips to ensure optimal operation of the valve.
We offer detailed product documentation, including datasheets, user manuals, and wiring diagrams to help you understand the specifications and correct usage of the valve. In case of any technical issues, our support team is equipped to assist with diagnosing problems related to electrical connections, air pressure compatibility, and valve actuation.
Additionally, we provide repair and replacement services for defective components covered under warranty. Regular maintenance services are recommended to prolong the valve's lifespan and maintain consistent performance. Our experts can also offer customization options to tailor the valve to your specific application requirements.
For ongoing support, we recommend registering your product to receive updates on software, firmware, and new product releases. We are committed to ensuring your complete satisfaction with our Pneumatic Solenoid Valve and support services.
Packing and Shipping:
Product Packaging and Shipping
Each Pneumatic Solenoid Valve is carefully packaged to ensure protection against damage during transit. The valve is first wrapped in anti-static bubble wrap to prevent any electrostatic discharge and physical impact. It is then placed inside a sturdy cardboard box with additional cushioning materials such as foam inserts or packing peanuts to secure the product firmly in place.
The outer packaging is clearly labeled with product details, handling instructions, and shipping information to facilitate smooth logistics and handling. For bulk orders, valves are packed in larger cartons with individual compartments or separators to avoid any collision between units.
We offer various shipping options including standard, expedited, and freight services to meet customer requirements. All shipments include tracking information, and we work with reliable carriers to ensure timely and safe delivery of Pneumatic Solenoid Valves to your specified destination.
Special packaging requests or international shipping arrangements can be accommodated upon request. Please contact our customer service team for customized packaging solutions or any shipping inquiries.
