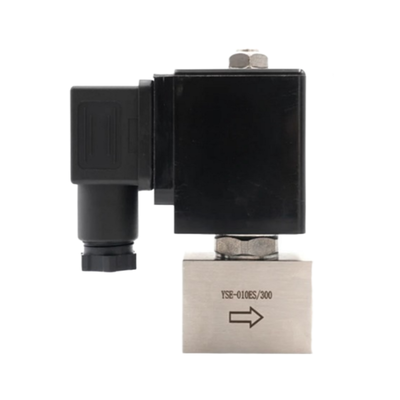

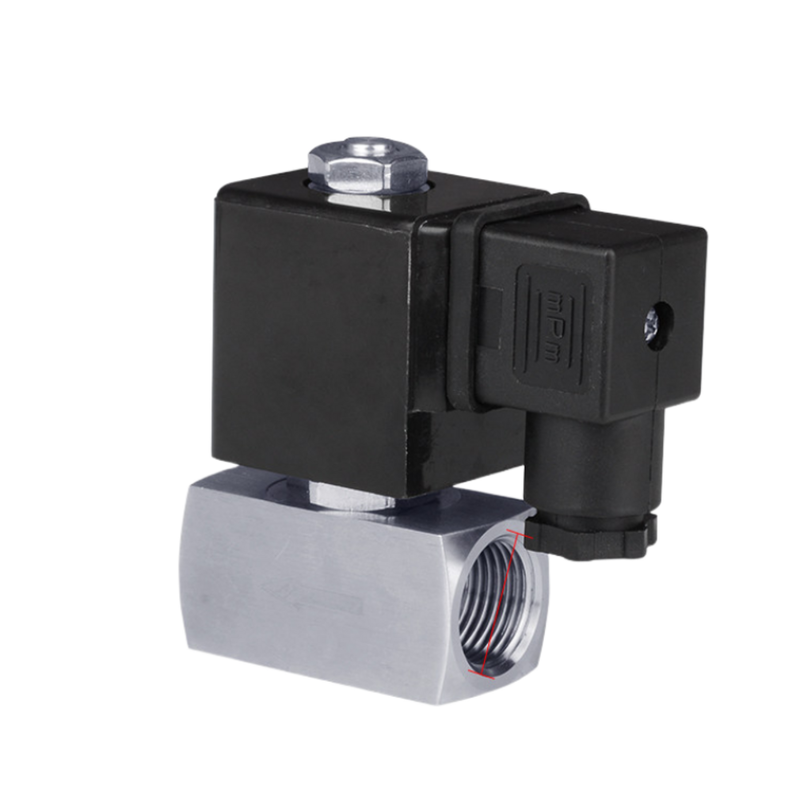

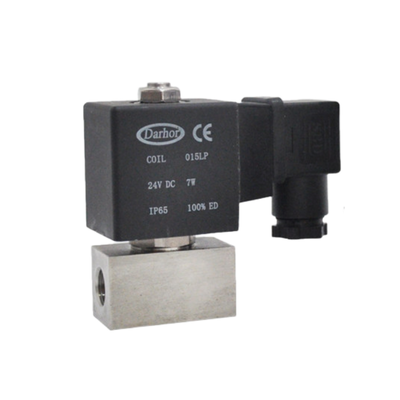

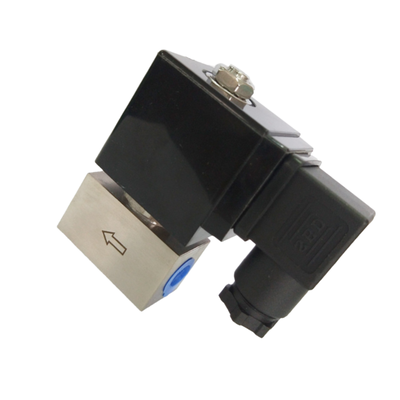

SH-15ES PTFE Seal Material 2 Way Normally Closed 15mm Orifice Size 1/2 Port Size Pneumatic Solenoid Valve 6 To 160 Bar 220VAC

Product Description:

The SH Series is a 2/2-way normally closed high-pressure solenoid valve designed to provide reliable ON/OFF control for various neutral media including air, water, gas, and liquids. It can handle pressures up to 300 bar (4,300 PSI), making it suitable for demanding industrial applications.

This versatile series is available in two operation types to meet diverse flow requirements. For orifice sizes ranging from DN1 to DN5, direct acting operation is employed, which performs effectively even at zero differential pressure. Meanwhile, piston pilot operated models are used for larger orifice sizes from DN10 to DN25, requiring a minimum differential pressure to ensure dependable switching.

Constructed with a stainless steel 304 body and equipped with PTFE seal material, the SH Series solenoid valve offers excellent durability, corrosion resistance, and leak-tight performance. These features enable it to operate reliably under extreme pressure conditions.

The valve is available in port sizes from 1/4″ to 1″ and orifice sizes between 1mm and 25mm, providing flexible flow control options with Cv values ranging from 0.04 to 11.0. Manufactured in Ningbo, China, with a robust production capacity of 20,000 units per week, the SH Series is recognized globally for its quality and reliability in high-pressure systems.

Features:

The valve boasts a high-pressure capability, with a maximum working pressure reaching up to 300 bar (4,300 PSI). This makes it ideal for applications requiring reliable performance under demanding high-pressure conditions.

It offers dual operation modes to suit different needs: a direct-acting mode designed for small orifices ranging from DN1 to DN5 that operates from zero differential pressure, and a piston pilot-operated mode suitable for larger orifices from DN10 to DN25.

Featuring a 2/2 way normally closed function, the valve incorporates a spring-return mechanism that ensures it remains closed when de-energized, providing fail-safe and dependable operation.

Constructed with a stainless steel 304 body, the valve provides excellent corrosion resistance and robust structural integrity. This premium SS304 material ensures long-term durability, even in harsh environmental conditions.

The use of high-performance PTFE seal material guarantees superior leak-tightness, outstanding chemical resistance, and thermal stability, enhancing the valve’s overall reliability and lifespan.

The valve accommodates a wide range of orifice sizes, from 1mm to 25mm, with Cv values spanning from 0.04 to 11.0. This range allows for precise flow control across a broad spectrum of applications.

It is available in various port sizes including 1/4″, 3/8″, 1/2″, 3/4″, and 1″, enabling flexible integration into different system configurations.

Multiple voltage options are supported, such as 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), making the valve compatible with a variety of control systems.

Backed by a high production capacity of 20,000 pieces per week and up to 100,000 pieces per month, the manufacturer ensures a reliable supply for bulk orders.

Technical Parameters:

Applications:

Hydraulic systems play a crucial role in industrial machinery and equipment by providing high-pressure hydraulic control. These systems enable precise and powerful operation essential for various heavy-duty applications.

Pneumatic systems are widely used in automation and processing lines to manage high-pressure air and gas control. Their efficiency and reliability make them indispensable in modern industrial environments.

Water jet cutting technology utilizes ON/OFF control of high-pressure water. This method is highly effective for cutting materials as well as cleaning applications, offering a versatile solution across multiple industries.

In the oil and gas industry, controlling high-pressure fluids and gases is vital during extraction, processing, and distribution phases. These control systems ensure safe and efficient operation within the sector.

Chemical processing plants depend on robust high-pressure and corrosive fluid control systems. These systems safeguard the handling of aggressive chemicals while maintaining operational stability.

Test and measurement setups often incorporate pressure testing rigs and calibration equipment. Such devices are essential for ensuring accuracy and reliability in various high-pressure applications.

Industrial equipment used in manufacturing and processing relies heavily on high-pressure fluid control. This control enhances machinery performance and supports complex production processes.

Research laboratories require precision fluid control in high-pressure experimental setups. Accurate regulation of fluid pressure is fundamental to achieving consistent and valid experimental results.

Support and Services:

Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.

If you encounter any issues during installation or operation, ensure that the valve is compatible with your system specifications, including voltage, pressure, and flow requirements. Regular maintenance such as cleaning and inspection of the valve components will help maintain optimal functionality.

We offer comprehensive services including troubleshooting guidance, replacement parts, and repair services to ensure minimal downtime for your operations. Our technical support team is equipped to assist with system integration advice and to answer any product-related queries to help you achieve the best results.

For detailed technical documentation, software updates, and FAQs, please visit our official website’s support section. We recommend registering your product online to receive timely updates and service notifications.

Our commitment is to provide you with the highest level of service and support to maximize the performance and longevity of your Pneumatic Solenoid Valve. Please ensure all safety guidelines are followed when handling and servicing the product.

Packing and Shipping:

Product Packaging and Shipping

The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is securely placed in a protective plastic bag and cushioned with foam inserts inside a sturdy cardboard box. The packaging is designed to prevent any damage from shocks, vibrations, or moisture during transit.

For bulk orders, the valves are packed in multiple layers within larger cartons, with additional padding between each layer to avoid movement and impact.

Shipping options include air freight, sea freight, and express courier services. All shipments are tracked, and delivery times depend on the selected shipping method and destination. We ensure timely dispatch and provide all necessary documentation for smooth customs clearance.

Please contact our customer service for special packaging requests or shipping instructions.
