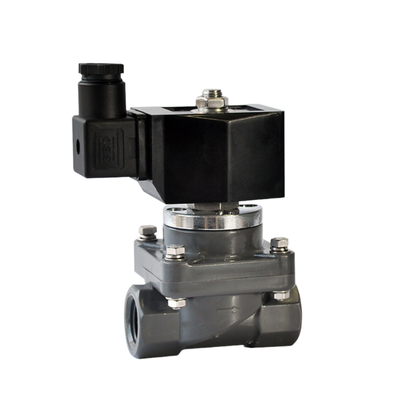

Product Description:
The FF1U Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed for dependable ON/OFF control of corrosive liquids, chemicals, acids, alkalis, and other aggressive media. Its robust construction ensures reliable operation in demanding environments where chemical resistance is crucial.

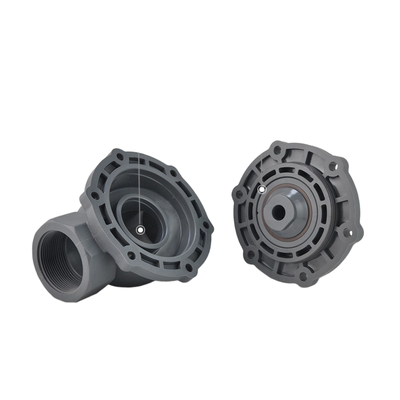

Constructed with a UPVC (Unplasticized Polyvinyl Chloride) body, this valve offers outstanding corrosion resistance and long-lasting durability. This makes it an excellent choice for chemical environments where metal valves tend to corrode and fail rapidly.
The piston pilot-operated mechanism guarantees consistent switching performance throughout the full range of operating pressures. To meet various chemical compatibility requirements, the valve is available with either EPDM or FKM seal materials.

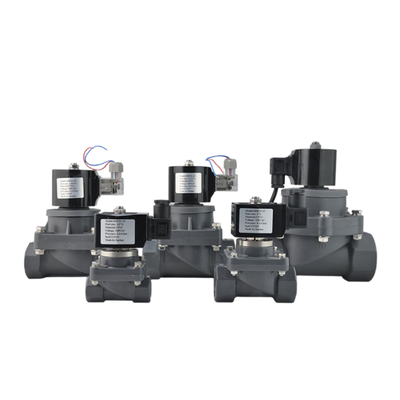

Additionally, the FF1U Series comes in port sizes from 1/2″ to 2″ and orifice sizes between 15mm and 50mm. This range delivers superior flow capacity, boasting Cv values up to 40.0, ensuring efficient fluid control performance.
Manufactured in Ningbo, China, the FF1U valve series benefits from a high production capacity of 500,000 units per year. It is recognized globally for its excellent quality and reliability in managing corrosive fluid applications.
Features:
The valve features a corrosion-resistant body made from unplasticized polyvinyl chloride (UPVC). This material provides excellent durability against chemicals, acids, alkalis, and other corrosive liquids, ensuring long-lasting performance in harsh environments.
Designed with a piston pilot operated mechanism, this valve utilizes pressure-assisted operation to guarantee reliable switching performance. It requires only a minimal differential pressure, making it highly efficient and responsive in various applications.
The valve operates as a 2/2 way normally closed device, employing a spring-return mechanism that keeps the valve shut when de-energized. This fail-safe design ensures system safety by preventing unwanted flow during power loss or shutdowns.
To accommodate different chemical exposures and temperature conditions, multiple seal options are available. Customers can choose between EPDM or FKM (Viton) seals to best match their specific media requirements.
With a wide operating pressure range from 0.1 to 6 bar, this valve is adaptable to a broad spectrum of system needs. This flexibility allows it to integrate smoothly into various industrial setups.
The valve supports high flow capacity thanks to large orifice sizes ranging from 15mm to 50mm. These dimensions provide impressive Cv values between 4.0 and 40.0, enabling maximum throughput in demanding applications.
Port sizes are available from 1/2 inch up to 2 inches, offering versatile options for system integration and installation requirements.
Multiple voltage configurations are offered to match different control system standards. Available options include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at both 50Hz and 60Hz frequencies.
Supported by a robust production capacity of 500,000 units annually, along with a monthly output of 20,000 to 50,000 pieces, the manufacturer ensures a reliable supply chain for large-scale bulk orders.
Technical Parameters:
| Body Material |
UPVC |
| Port Size |
3/4'' |
| Orifice Size |
20mm |
| Seal Material |
EPDM, FKM |
| Working Media |
Chemical, Acid, Alkali, Corrosive Liquids |
| Operation |
Piston Pilot Operated |
| Working Pressure |
0.1 To 6 Bar |
| Function |
2/2 Way Normally Closed |
Applications:
Chemical processing involves the ON/OFF regulation of acids, alkalis, and other aggressive chemicals within various processing plants. This precise control is essential to ensure safety and efficiency during chemical reactions and handling.
In water treatment systems, managing corrosive fluids is critical. This applies to wastewater as well as industrial water treatment processes, where controlling fluid corrosiveness helps maintain system integrity and operational reliability.
The electroplating industry relies on meticulous control of plating solutions and chemical baths. Proper regulation ensures the quality and consistency of the plating process while safeguarding equipment from damage caused by aggressive chemicals.
Semiconductor manufacturing requires the handling of ultra-pure and corrosive chemicals used in wafer fabrication. Precise fluid control is necessary to maintain product quality and prevent contamination during the manufacturing stages.
In the pharmaceutical sector, controlling corrosive and aggressive media is vital during Chemical Media manufacturing. This ensures both the safety of the production process and the purity of the pharmaceutical products.
Mining and metallurgy processes depend on chemical reagent control for effective mineral processing. Accurate fluid management enhances the efficiency of extraction and processing operations within this industry.
Laboratory equipment demands precision in fluid handling, especially in analytical and testing instruments. Controlled administration of fluids guarantees accurate measurements and reliable test results.
Industrial cleaning applications involve the management of caustic and acidic cleaning solutions. Proper control helps protect machinery and surfaces while ensuring thorough and effective cleaning.
Support and Services:
Our Pneumatic Solenoid Valve product is designed for reliable and efficient control of air flow in various industrial applications. To ensure optimal performance, please follow the installation guidelines provided in the user manual and operate the valve within the specified pressure and temperature ranges.
If you encounter any issues with the Pneumatic Solenoid Valve, please first verify that the electrical connections and air supply meet the recommended specifications. Regular maintenance, including cleaning and inspection of the valve components, will help extend the product’s lifespan and maintain its functionality.
In the event of a malfunction, consult the troubleshooting section of the manual for common problems and solutions. For advanced technical support, our team of qualified engineers is available to assist with diagnostics, repair advice, and replacement parts.
We also offer customized service plans and training programs to help you maximize the benefits of your Pneumatic Solenoid Valve system. Please refer to the warranty terms for details on product coverage and service conditions.
Packing and Shipping:
Product Packaging and Shipping
Each Pneumatic Solenoid Valve is carefully packaged to ensure it arrives in perfect condition. The valve is first sealed in an anti-static bag to protect it from moisture and dust. It is then placed in a sturdy, custom-designed cardboard box with foam inserts to prevent any movement during transit.
For bulk orders, products are packed in larger cartons with additional cushioning materials to avoid damage. All packages are clearly labeled with product information, handling instructions, and shipping details.
We offer multiple shipping options including standard, expedited, and express services to meet your delivery needs. All shipments are tracked and insured to provide you with peace of mind. International shipping is available with proper customs documentation included.
Upon receiving your Pneumatic Solenoid Valve, please inspect the packaging for any signs of damage before opening. If you notice any issues, contact our customer service team immediately for assistance.
