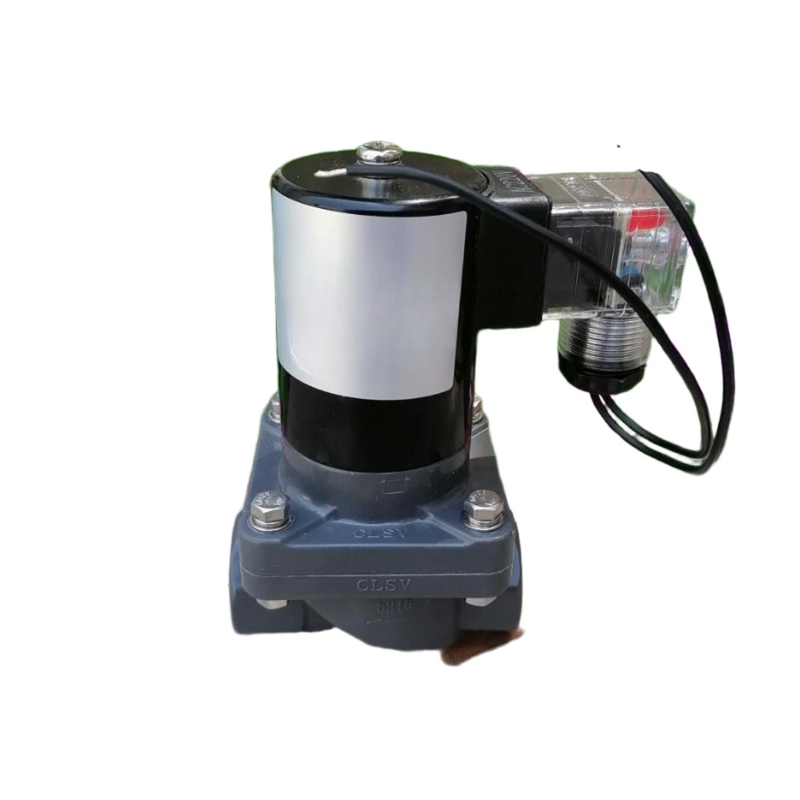

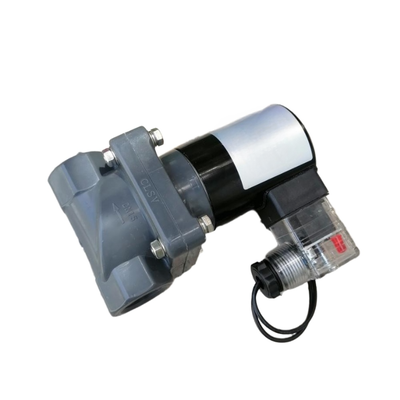

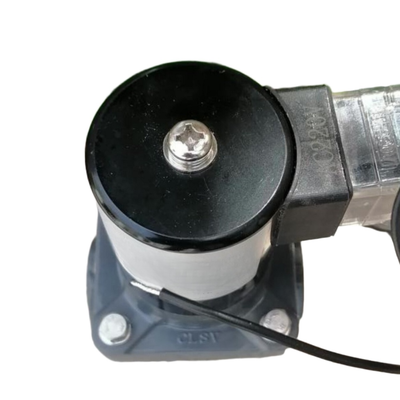

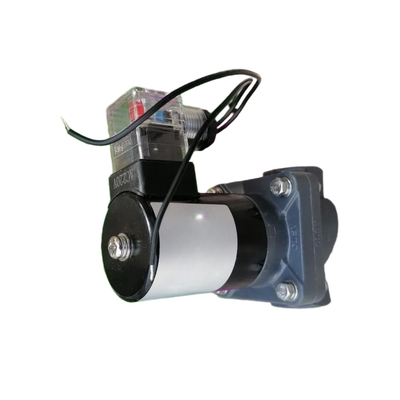

Product Description:
The FF1U Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed for dependable ON/OFF control of corrosive liquids, chemicals, acids, alkalis, and other harsh media. Its primary function is to ensure precise and reliable operation in environments where aggressive substances are present.
Constructed with a UPVC (Unplasticized Polyvinyl Chloride) body, this valve offers outstanding corrosion resistance and long-lasting durability. Such a design is ideal for challenging chemical environments where conventional metal valves would deteriorate rapidly, ensuring extended service life and reduced maintenance.
The piston pilot-operated mechanism guarantees consistent and reliable switching performance throughout the valve's entire operating pressure range. Additionally, the FF1U Series comes with seal options made from EPDM or FKM materials, allowing compatibility with a wide variety of chemical substances.
Available in port sizes from 1/2″ to 2″ and with orifice diameters ranging from 15mm to 50mm, the valve provides excellent flow capacity, featuring Cv values reaching up to 40.0. Manufactured in Ningbo, China, the production line can output up to 500,000 units annually, establishing the FF1U Series as a trusted choice for quality and reliability in corrosive fluid control systems worldwide.
Features:
The valve features a corrosion-resistant body made from unplasticized polyvinyl chloride (UPVC). This material provides outstanding durability against various chemicals, acids, alkalis, and other corrosive liquids, ensuring long-lasting performance in harsh environments.
Designed with a piston pilot operated mechanism, the valve benefits from pressure-assisted operation. This design guarantees reliable switching performance even at minimal differential pressures, enhancing its efficiency and responsiveness.
Equipped with a 2/2 way normally closed function, the valve incorporates a spring-return mechanism that keeps it securely closed when de-energized. This fail-safe feature is crucial for maintaining system safety and preventing unwanted flow.
To accommodate different applications, the valve is available with multiple seal options, including EPDM and FKM (Viton). These seals are selected based on the specific chemical media and temperature requirements, providing versatility and optimal sealing performance.
The product supports a wide operating pressure range, from 0.1 to 6 bar. This flexibility allows it to fit a broad spectrum of system pressures, making it suitable for varied industrial uses.
With large orifice sizes ranging between 15mm and 50mm, the valve offers high flow capacity. This results in exceptional Cv values, from 4.0 up to 40.0, enabling maximum throughput for demanding applications.
Additionally, the valve is offered in a wide range of port sizes, from 1/2 inch to 2 inches. This variety facilitates flexible integration into different piping systems and configurations.
To cater to diverse control systems, multiple voltage options are available. These include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), allowing easy compatibility with existing electrical setups.
Finally, the manufacturing process supports a high production capacity, with an annual output of up to 500,000 units. Monthly production ranges between 20,000 and 50,000 pieces, ensuring a reliable supply for bulk orders and large-scale projects.
Technical Parameters:
| Seal Material | EPDM, FKM |
| Working Media | Chemical, Acid, Alkali, Corrosive Liquids |
| Orifice Size | 20mm |
| Body Material | UPVC |
| Function | 2/2 Way Normally Closed |
| Port Size | 3/4'' |
| Operation | Piston Pilot Operated |
| Working Pressure | 0.1 To 6 Bar |
Applications:
Chemical processing industries rely heavily on ON/OFF control systems to manage the flow of acids, alkalis, and other aggressive chemicals within their processing plants. These control mechanisms ensure safe and efficient handling of hazardous substances during various manufacturing stages.
In water treatment facilities, the control of corrosive fluids plays a vital role, particularly in wastewater management and industrial water treatment processes. Proper regulation of these aggressive fluids helps maintain system integrity and effectiveness.
The electroplating industry demands precise control over plating solutions and chemical baths. Managing these corrosive liquids accurately is critical to achieving high-quality plating results and maintaining operational safety.
Semiconductor manufacturing involves the handling of ultra-pure and highly corrosive chemicals during wafer fabrication. Stringent fluid control is essential to prevent contamination and ensure the production of reliable semiconductor devices.
Within the pharmaceutical sector, the management of corrosive and aggressive media is crucial throughout chemical liquid manufacturing processes. Effective fluid control supports product quality and workplace safety.
The mining and metallurgy industries utilize chemical reagents extensively in mineral processing. Controlling these reagents accurately is important for optimizing extraction efficiency and reducing environmental impact.
Laboratory equipment often requires precision fluid handling for analytical and testing instruments. Managing minute quantities of reactive fluids with high accuracy enables reliable experimental results.
Industrial cleaning operations depend on the controlled use of caustic and acidic cleaning solutions. Proper control ensures thorough cleaning while protecting equipment and personnel from harmful exposure.
Support and Services:
Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to facilitate proper use and upkeep.
Our technical support team is available to assist with any troubleshooting, configuration, or operational inquiries. We offer expert advice on system integration, compatibility, and customization to meet specific application requirements.
Additionally, we provide training sessions and webinars to help customers understand the features and benefits of our pneumatic solenoid valves, ensuring efficient and safe operation. Maintenance services and spare parts are also available to extend the lifespan of the product and minimize downtime.
We are committed to delivering prompt and reliable support to enhance the overall user experience and help our customers achieve the best results with our pneumatic solenoid valves.
Packing and Shipping:
Product Packaging:
The Pneumatic Solenoid Valve is securely packaged to ensure protection during transit. Each valve is individually placed in a protective plastic bag to prevent moisture and dust exposure. The product is then cushioned with foam padding inside a sturdy cardboard box to avoid any impact damage. For bulk orders, multiple units are packed in a larger carton with additional padding materials to maintain stability and safety.
Shipping:
We offer reliable shipping options worldwide. The Pneumatic Solenoid Valve packages are shipped via trusted courier services to ensure timely and safe delivery. Tracking information is provided once the order is dispatched. Special handling instructions can be accommodated upon request to meet specific shipping requirements. Typical delivery times vary depending on the destination, with expedited shipping available for urgent orders.
