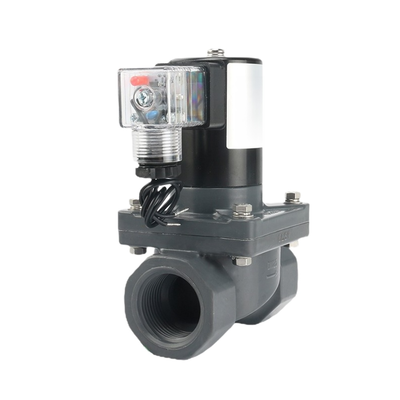

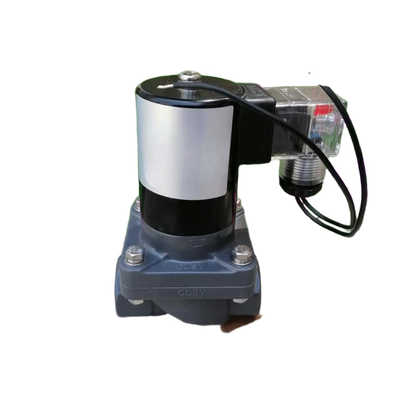

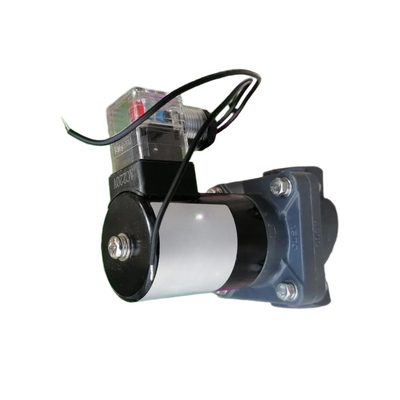

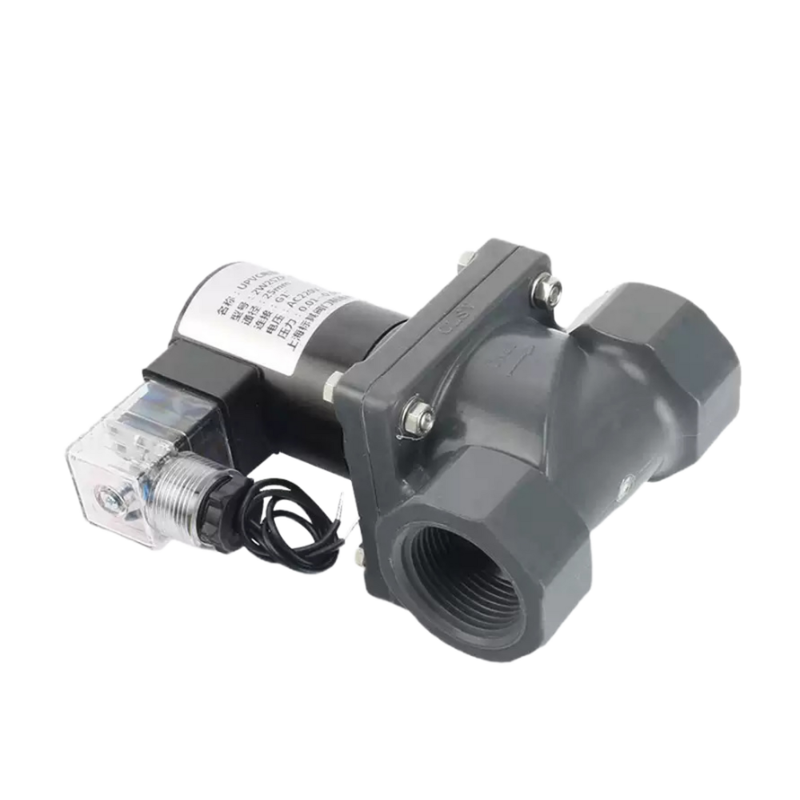

FF1U40B40 Piston Pilot Operated Light Oil Valve Ideal for Corrosive Liquids Orifice Size 40mm Port Size 1-1/2''

Product Description:

The FF1U Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed to provide reliable ON/OFF control for corrosive liquids, chemicals, acids, alkalis, and other aggressive media. Its construction focuses on durability and dependable performance in challenging environments.

Featuring a body made of UPVC (Unplasticized Polyvinyl Chloride), this valve offers outstanding resistance to corrosion, making it ideal for use in harsh chemical environments where traditional metal valves would fail quickly. The piston pilot-operated mechanism guarantees consistent and reliable switching across a wide range of operating pressures.

To accommodate various chemical compatibilities, the FF1U Series is available with either EPDM or FKM seals. It also comes in multiple port sizes ranging from 1/2″ to 2″ and orifice sizes between 15mm and 50mm. This versatility ensures excellent flow capacity, boasting Cv values up to 40.0, which makes it suitable for a broad spectrum of applications.

Manufactured in Ningbo, China, the FF1U Series benefits from a robust production capacity of 500,000 units per year. Its combination of high-quality manufacturing and thoughtful design has earned it a reputation for reliability and performance in corrosive fluid control systems worldwide.

Features:

The valve features a corrosion-resistant body made from Unplasticized Polyvinyl Chloride (UPVC). This material provides outstanding durability against various chemicals, acids, alkalis, and other corrosive liquids, ensuring long-lasting performance in harsh environments.

It employs a piston pilot operated design, which utilizes pressure-assisted operation to guarantee dependable switching functionality. This design requires only a minimal differential pressure, making the valve efficient and reliable under various operating conditions.

The valve operates as a 2/2 way normally closed mechanism with a spring-return feature. This means that when de-energized, the valve automatically remains closed, offering a fail-safe operation to protect the system from unwanted flow or leaks.

To accommodate different chemical media and temperature ranges, multiple seal options are available. Customers can choose between EPDM or FKM (Viton) seals, providing flexibility to meet specific application requirements.

Designed to handle a wide pressure range, the valve operates effectively from 0.1 up to 6 bar. This versatility allows it to fit into a broad spectrum of system needs without compromising performance.

With large orifice sizes ranging from 15mm to 50mm, the valve offers high flow capacity, delivering exceptional Cv values between 4.0 and 40.0. This ensures maximum throughput and efficiency in fluid control applications.

The product is available in a variety of port sizes, from ½ inch to 2 inches, enabling flexible integration into different piping systems and configurations.

A range of voltage options is offered to support diverse control setups. These include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC operating at 50 or 60 Hz, providing compatibility with numerous electrical systems.

Supporting large-scale production, the manufacturing facility can produce up to 500,000 units annually, with a monthly output between 20,000 and 50,000 pieces. This capacity ensures a reliable supply chain for bulk orders and continuous demand.

Technical Parameters:

Applications:

Support and Services:

Our Pneumatic Solenoid Valve product is designed to provide reliable and efficient control of air flow in pneumatic systems. For any technical support, troubleshooting, or service inquiries, our expert team is available to assist you.

We offer comprehensive technical guidance on installation, operation, and maintenance to ensure optimal performance of your pneumatic solenoid valve. Detailed manuals and documentation are provided with every product to facilitate easy setup and usage.

If you encounter any issues during operation, our support specialists can help diagnose problems and recommend appropriate solutions. We also provide repair services and replacement parts to minimize downtime and extend the lifespan of your equipment.

For customized requirements or special applications, our engineering team can offer tailored solutions to meet your specific needs. We are committed to delivering high-quality products and exceptional customer service to support your pneumatic system applications.

Please refer to the product warranty terms provided with your purchase for coverage details. Regular maintenance and adherence to the recommended operating conditions will help ensure consistent and safe performance of the pneumatic solenoid valve.

Packing and Shipping:

Product Packaging and Shipping for Pneumatic Solenoid Valve

Each pneumatic solenoid valve is carefully packaged to ensure it arrives in perfect condition. The valve is first wrapped in anti-static bubble wrap to protect against moisture and electrostatic discharge. It is then placed securely in a custom-fitted foam insert inside a sturdy corrugated cardboard box.

For bulk orders, multiple individually packaged valves are arranged in larger cartons with additional padding to prevent movement during transit. All packaging materials used are environmentally friendly and recyclable.

Shipping options include standard ground, expedited, and international shipping. Each package is labeled with handling instructions, product details, and tracking information. We work with reliable courier services to ensure timely and safe delivery to your specified address.

Before shipping, all pneumatic solenoid valves undergo a thorough quality inspection and functional testing to guarantee performance and reliability upon arrival.
