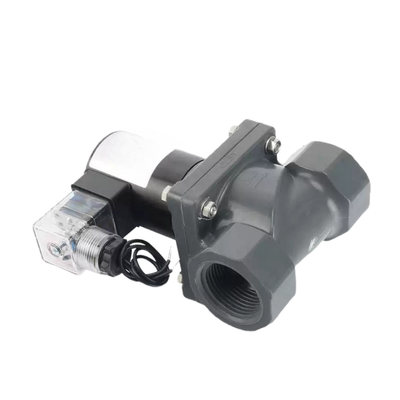

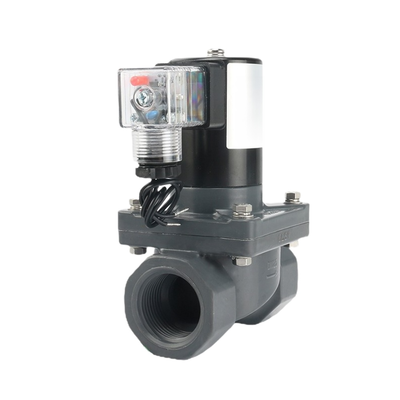

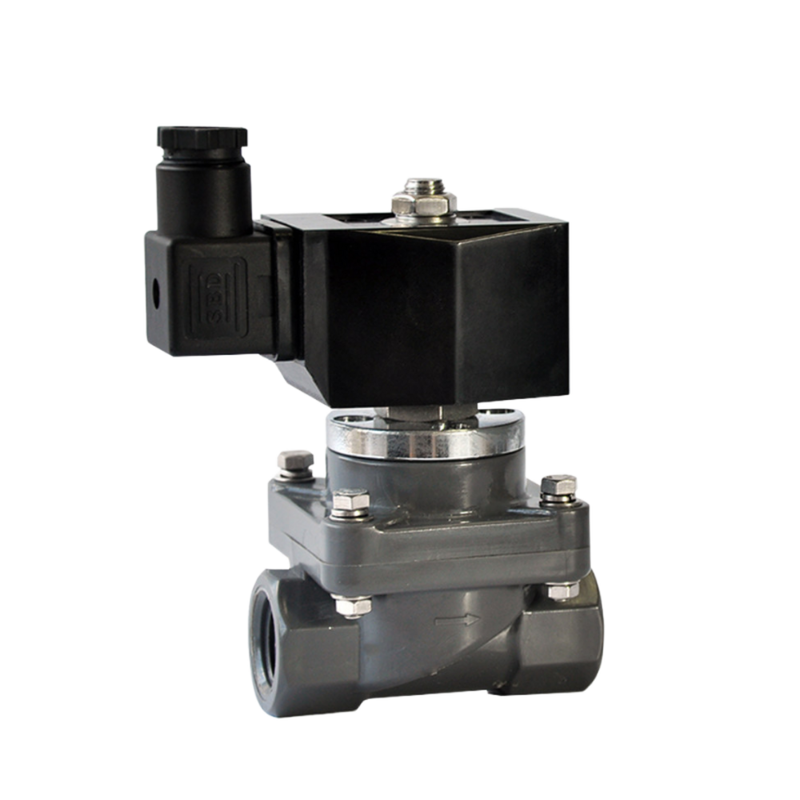

FF1U32B32 Piston Pilot Operated Pneumatic Solenoid Valve Incorporating EPDM Seal Material 6 Bar 32mm Orifice Size 1-1/4'' Port Size

Product Description:

The FF1U Series is a 2/2-way normally closed piston pilot-operated solenoid valve, specifically designed to provide reliable ON/OFF control for corrosive liquids, chemicals, acids, alkalis, and other aggressive media. Its robust construction ensures dependable performance in challenging environments where precision and durability are essential.

Constructed with a UPVC (Unplasticized Polyvinyl Chloride) body, the valve offers excellent resistance to corrosion and outstanding durability. This makes it an ideal choice for harsh chemical settings where metal valves often fail due to rapid degradation. The piston pilot-operated mechanism guarantees consistent switching function throughout the entire operating pressure range.

To accommodate various chemical compatibilities, the FF1U Series is available with seal materials such as EPDM and FKM. Additionally, the valve comes in multiple port sizes from 1/2″ to 2″, with orifice sizes ranging between 15mm and 50mm. This range allows the FF1U Series to deliver superior flow capacity, achieving Cv values of up to 40.0.

Manufactured in Ningbo, China, the production facility can produce up to 500,000 units annually. The FF1U Series solenoid valve is widely trusted across the globe for its high quality and reliable performance in controlling corrosive fluids in various industrial applications.

Features:

The body of this valve is constructed from unplasticized polyvinyl chloride (UPVC), known for its outstanding resistance to a wide variety of chemicals, including acids, alkalis, and other corrosive liquids. This corrosion-resistant material ensures a long service life even in harsh chemical environments.

Featuring a piston pilot operated design, the valve benefits from pressure-assisted operation which guarantees reliable switching performance. This design operates effectively even with a minimal differential pressure, improving the valve's responsiveness and efficiency.

This valve functions as a 2/2 way normally closed device, utilizing a spring-return mechanism. When de-energized, the spring automatically closes the valve, ensuring fail-safe operation and maintaining system safety at all times.

To accommodate different chemical media and temperature conditions, the valve is offered with multiple seal options. Customers can choose between EPDM or FKM (Viton) seals, allowing tailored compatibility with various applications.

With a wide operating pressure range from 0.1 to 6 bar, this valve is adaptable to a broad spectrum of system requirements. This versatility makes it suitable for various industrial and commercial uses.

The valve's high flow capacity is achieved through large orifice sizes ranging from 15mm to 50mm. These orifices deliver impressive Cv values between 4.0 and 40.0, providing maximum throughput for demanding applications.

Port size options are varied as well, available from 1/2" up to 2", facilitating flexible integration into different system configurations and piping standards.

To meet diverse control system needs, multiple voltage options are offered. These include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC at both 50 and 60 Hz frequencies, ensuring compatibility with a wide range of electrical infrastructures.

Lastly, the production capacity is noteworthy, with an annual output of 500,000 units and monthly production ranging from 20,000 to 50,000 pieces. This high manufacturing capability guarantees a reliable supply for both small and large bulk orders.

Technical Parameters:

Applications:

Chemical processing industries require reliable ON/OFF control systems for handling acids, alkalis, and other aggressive chemicals. These control mechanisms ensure safe and efficient operations within processing plants.

In water treatment facilities, managing corrosive fluids is crucial for both wastewater and industrial water treatment systems. Proper control helps maintain the integrity of equipment and ensures effective treatment processes.

The electroplating industry relies on precise control of plating solutions and chemical baths to achieve uniform coating quality and prevent damage to equipment caused by chemical exposure.

Semiconductor manufacturing involves the handling of ultra-pure and corrosive chemicals during wafer fabrication. Strict fluid control is essential to maintain product quality and protect sensitive manufacturing environments.

Within the pharmaceutical industry, the management of corrosive and aggressive media is vital during chemical liquid production. Effective control systems guarantee safety and compliance with regulatory standards.

Mining and metallurgy sectors utilize chemical reagent control to optimize mineral processing operations, enhancing extraction efficiency and preserving the longevity of processing equipment.

Laboratory equipment demands precise fluid handling for analytical and testing instruments, ensuring accurate results and reliable experimental conditions.

Industrial cleaning applications require the management of caustic and acidic cleaning solutions to maintain cleanliness standards while safeguarding machinery and operator safety.

Support and Services:

Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to help users effectively utilize the valve in various applications.

Technical support is available to assist with product selection, troubleshooting, and system integration. Our team of experts can provide advice on compatibility, wiring, and control options to ensure the valve meets your specific requirements.

We also offer repair and maintenance services to extend the life of your pneumatic solenoid valve. Regular servicing can help prevent downtime and maintain efficient operation. Replacement parts and accessories are readily available to support any necessary repairs or upgrades.

For customized solutions, we provide consultation services to modify valve specifications according to unique application needs. This includes adjustments in voltage, pressure ratings, and connection types.

Our commitment to quality and customer service ensures that you receive prompt and reliable support throughout the lifecycle of your pneumatic solenoid valve.

Packing and Shipping:

Product Packaging and Shipping

The Pneumatic Solenoid Valve is carefully packaged to ensure it reaches you in perfect condition. Each valve is individually wrapped with anti-static and moisture-resistant materials to protect the internal components from damage and corrosion during transit.

The product is then securely placed in a custom-fitted foam insert inside a sturdy, double-walled cardboard box. This packaging provides excellent cushioning and prevents any movement that could cause damage.

For bulk orders, multiple units are packed in larger cartons with adequate padding between each box to avoid impact and vibration.

We offer various shipping options to meet your needs, including standard ground shipping, expedited delivery, and international shipping services. All shipments are tracked and insured for your peace of mind.

Upon receiving your Pneumatic Solenoid Valve, please inspect the packaging and product for any signs of damage. If you encounter any issues, contact our customer service team immediately for assistance.
