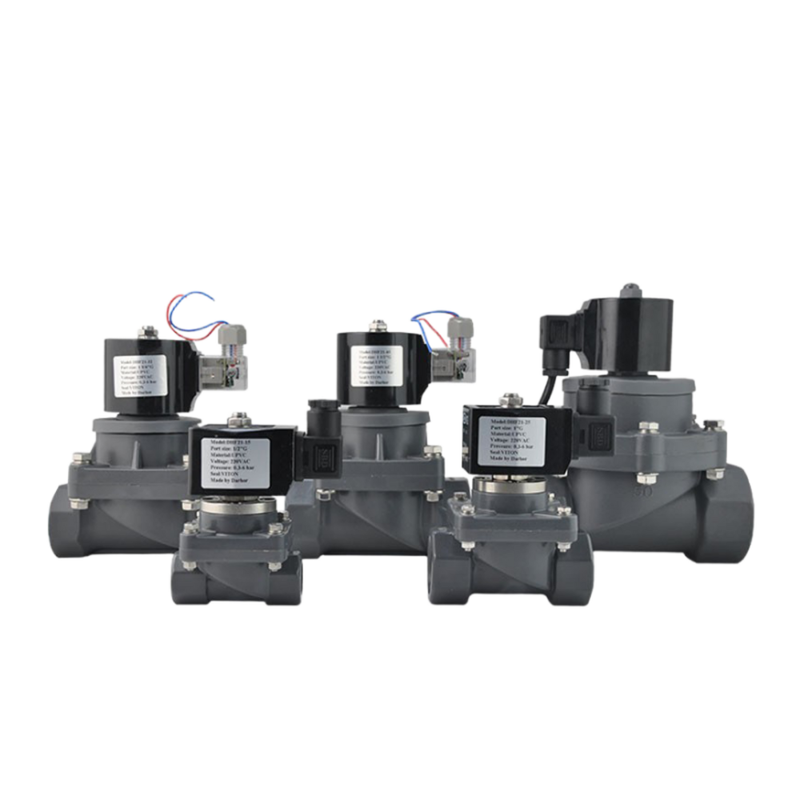

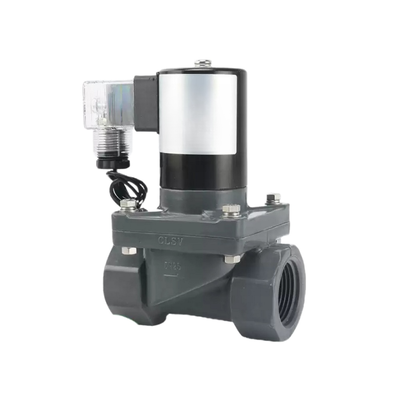

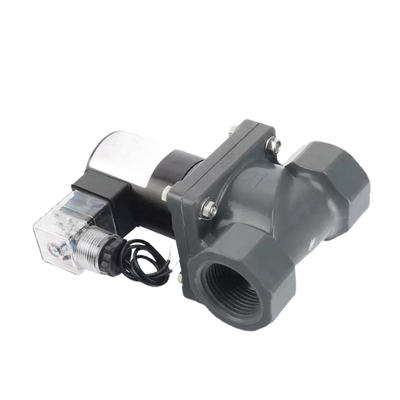

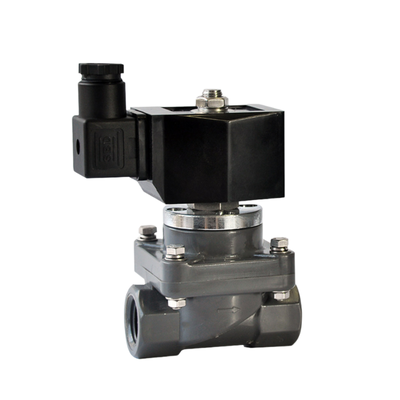

Product Description:
The FF1U Series is a 2/2-way normally closed piston pilot-operated solenoid valve specifically designed for dependable ON/OFF control of corrosive liquids, chemicals, acids, alkalis, and other aggressive substances. Its robust construction ensures effective operation even in harsh chemical environments.
Featuring a body made from UPVC (Unplasticized Polyvinyl Chloride), the valve offers outstanding resistance to corrosion and excellent durability. This makes it an ideal choice in situations where traditional metal valves would rapidly deteriorate or fail due to aggressive media exposure.
The piston pilot-operated mechanism guarantees consistent and reliable switching across the full range of operating pressures. Customers can select from EPDM or FKM seal materials to match specific chemical compatibility needs, ensuring enhanced performance and longevity.
With available port sizes ranging from 1/2″ to 2″ and orifice sizes between 15mm and 50mm, the FF1U Series delivers superior flow capacities, boasting Cv values up to 40.0. Manufactured in Ningbo, China, the production capacity is as high as 500,000 units annually.
Renowned worldwide for its quality and reliability, the FF1U Series solenoid valve is a trusted solution for controlling corrosive fluids in a variety of industrial applications.
Features:
Corrosion Resistant UPVC Body
The valve features a body constructed from Unplasticized Polyvinyl Chloride (UPVC), providing outstanding resistance against chemicals, acids, alkalis, and other corrosive liquids. This ensures durability and longevity even in harsh environments.
Piston Pilot Operated Design
Equipped with a piston pilot mechanism, the valve offers pressure-assisted operation that guarantees reliable switching performance. It functions effectively with minimal differential pressure, enhancing its operational efficiency.
2/2 Way Normally Closed Function
The valve utilizes a spring-return mechanism that keeps it closed when de-energized, providing a fail-safe feature to prevent unintended flow. This normally closed design ensures safety and control in various applications.
Multiple Seal Options
To accommodate different chemical media and temperature conditions, the valve is available with EPDM or FKM (Viton) seals. This flexibility allows for customization according to specific system requirements.
Wide Pressure Range
Designed to operate within a pressure range of 0.1 to 6 bar, the valve supports a wide variety of system demands. This broad range makes it suitable for numerous industrial applications.
High Flow Capacity
Featuring large orifice sizes ranging from 15mm to 50mm, the valve delivers excellent flow capacity with Cv values between 4.0 and 40.0. This ensures maximum throughput and efficient fluid control.
Wide Port Size Range
The valve is available in various port sizes from 1/2″ to 2″, allowing flexible integration into different system configurations and piping setups.
Multiple Voltage Options
To support diverse control systems, the valve offers multiple voltage options including 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz). This versatility simplifies installation in various environments.
High Production Capacity
Backed by a manufacturing capacity of 500,000 units annually, with a monthly output ranging from 20,000 to 50,000 pieces, the production process ensures a reliable supply to meet bulk order demands.
Technical Parameters:
| Operation |
Piston Pilot Operated |
| Orifice Size |
20mm |
| Body Material |
UPVC |
| Function |
2/2 Way Normally Closed |
| Port Size |
3/4'' |
| Seal Material |
EPDM, FKM |
| Working Media |
Chemical, Acid, Alkali, Corrosive Liquids |
| Working Pressure |
0.1 To 6 Bar |
Applications:
Chemical Processing
This involves the ON/OFF control of acids, alkalis, and other aggressive chemicals within processing plants. Ensuring precise handling of these substances is crucial for maintaining safety and operational efficiency.
Water Treatment
In wastewater and industrial water treatment systems, controlling corrosive fluids is essential. Proper management helps prevent damage to equipment and ensures compliance with environmental standards.
Electroplating Industry
The electroplating industry requires careful regulation of plating solutions and chemical baths. Accurate control techniques contribute to high-quality finishes and consistent production outcomes.
Semiconductor Manufacturing
Handling ultra-pure and corrosive chemicals is a critical aspect of wafer fabrication in semiconductor manufacturing. This demands stringent controls to maintain product integrity and prevent contamination.
Pharmaceutical Industry
Controlling corrosive and aggressive media during chemical liquid manufacturing is vital in the pharmaceutical industry. Such precision ensures the safety and efficacy of pharmaceutical products.
Mining & Metallurgy
Chemical reagent management plays a significant role in mineral processing within the mining and metallurgy sectors. Effective control methods optimize extraction processes and improve overall yield.
Laboratory Equipment
Precision fluid handling is important in analytical and testing instruments used in laboratories. This ensures reliable and accurate measurement results.
Industrial Cleaning
The control of caustic and acidic cleaning solutions is essential in industrial cleaning applications. Proper handling safeguards equipment and enhances cleaning efficiency.
Support and Services:
Our Pneumatic Solenoid Valve product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, please ensure that you have the model number, serial number, and details of the issue ready when seeking assistance. Our support team can help troubleshoot installation problems, operational queries, and maintenance guidelines.
We offer comprehensive services including product installation guidance, routine maintenance advice, and repair services to ensure optimal functionality and longevity of your pneumatic solenoid valve. Replacement parts and accessories are also available to keep your system running smoothly.
For best results, always operate the valve within the specified parameters outlined in the product manual. Regular inspection and cleaning are recommended to prevent contamination and wear. Our technical documentation and user manuals provide detailed information on wiring, pressure ratings, and installation procedures.
We are committed to providing ongoing support to maximize your equipment’s performance and minimize downtime. Please refer to the product documentation for warranty information and service terms.
Packing and Shipping:
Product Packaging and Shipping
Each Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. The product is first secured with anti-static foam or bubble wrap to prevent any damage from shocks or vibrations. It is then placed inside a sturdy, corrugated cardboard box that is appropriately sized to minimize movement.
For bulk orders, individual units are packed in separate compartments within a larger carton to avoid contact and potential damage. All packages are clearly labeled with product information, handling instructions, and shipping details.
We offer multiple shipping options including standard ground, express air freight, and international shipping. All shipments are tracked and insured to guarantee timely and secure delivery. Our logistics partners ensure that the Pneumatic Solenoid Valve reaches you in excellent condition and on schedule.
