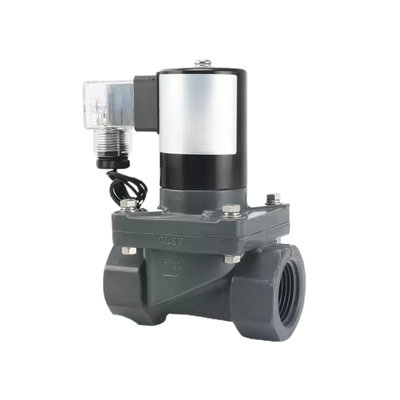

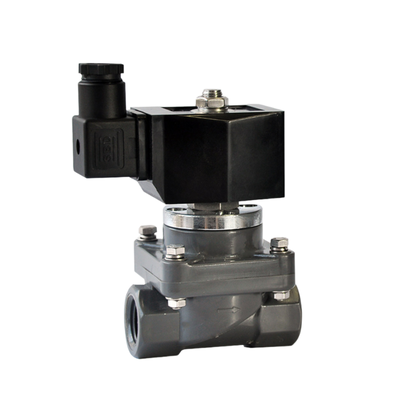

FF1U20B06 20mm Orifice Size 3/4'' Port Size Pneumatic Solenoid Valve Compatible with Alkali Working Media Operating 6 Bar

Product Description:

The FF1U Series is a 2/2-way normally closed solenoid valve that operates using a piston pilot mechanism. It is specifically designed to provide dependable ON/OFF control for corrosive liquids, chemicals, acids, alkalis, and other aggressive fluids. This makes it an ideal choice for handling challenging media where reliability is crucial.

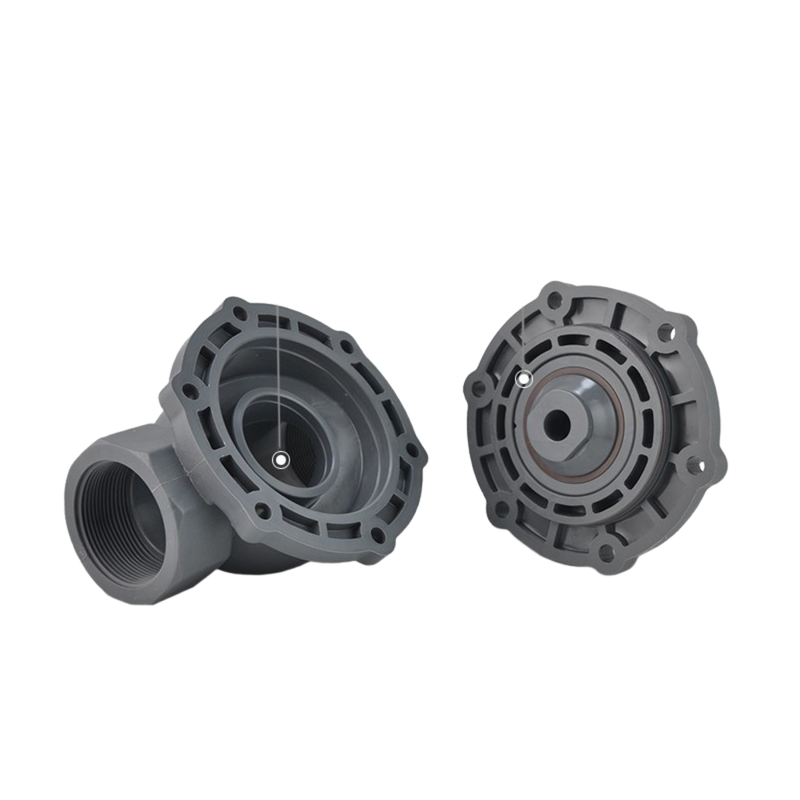

Constructed with a UPVC (Unplasticized Polyvinyl Chloride) body, the valve offers outstanding resistance to corrosion and excellent durability. This robust design ensures long-lasting performance in harsh chemical environments, where traditional metal valves would deteriorate rapidly.

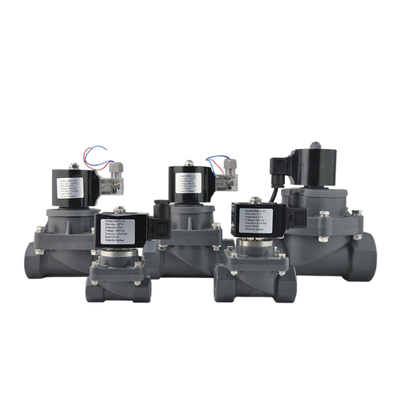

The piston pilot-operated mechanism guarantees consistent switching performance throughout the valve’s entire operating pressure range. Additionally, the FF1U Series is available with either EPDM or FKM seal materials, enabling compatibility with a wide variety of chemicals. It comes in port sizes from 1/2″ to 2″ and orifice diameters ranging between 15mm and 50mm, providing a high flow capacity with Cv values reaching up to 40.0.

Manufactured in Ningbo, China, the FF1U Series solenoid valve benefits from a substantial production capability of 500,000 units per year. Its proven quality and reliability have made it a trusted solution worldwide for controlling corrosive fluids in diverse industrial applications.

Features:

The valve body is constructed from unplasticized polyvinyl chloride (uPVC), which provides outstanding resistance against a wide range of chemicals, including acids, alkalis, and other corrosive liquids. This corrosion-resistant material ensures durability and long service life even in harsh environments.

Featuring a piston pilot operated design, the valve benefits from pressure-assisted operation that guarantees reliable switching performance. This design allows the valve to function effectively even with minimal differential pressure, ensuring consistent and dependable operation.

The valve operates as a 2/2 way normally closed device, utilizing a spring-return mechanism. This means the valve remains closed when de-energized, offering a fail-safe function that enhances system safety and reliability.

Multiple sealing options are available to cater to different chemical media and temperature conditions. Customers can choose between EPDM seals or FKM (Viton) seals, allowing for flexible compatibility based on specific application requirements.

Designed to support a wide pressure range, the valve can operate efficiently within pressures from 0.1 to 6 bar. This broad range makes it suitable for various system demands, accommodating different operational needs.

The valve’s high flow capacity is achieved through large orifice sizes ranging from 15mm to 50mm. These orifice sizes provide impressive Cv values between 4.0 and 40.0, enabling maximum throughput to optimize system performance.

To ensure flexible integration into different systems, the valve is available in a wide range of port sizes, from 1/2 inch up to 2 inches. This variety allows for easy installation across diverse piping configurations.

Multiple voltage options are offered to suit various control system requirements. Available choices include 12VDC, 24VDC, 24VAC, 110VAC, and 220VAC (50/60Hz), providing versatility and compatibility across numerous electrical setups.

Backed by a robust production capacity, the manufacturer can supply up to 500,000 units annually, with monthly outputs ranging from 20,000 to 50,000 pieces. This ensures a reliable supply chain and timely fulfillment for large-scale orders.

Technical Parameters:

This pneumatic solenoid valve is an ideal water valve solution, featuring a piston pilot operated design for reliable control. As a pilot diaphragm solenoid valve, it is well-suited for handling various fluids including water, making it a versatile water valve option for multiple industrial applications.

Applications:

In the realm of chemical processing, ON/OFF control systems are essential for managing acids, alkalis, and other aggressive chemicals commonly used in processing plants. These controls help ensure safe and efficient operation by precisely regulating chemical flow.

Water treatment facilities rely on specialized control methods to handle corrosive fluids in both wastewater and industrial water systems. Proper management of these aggressive substances is crucial to maintaining system integrity and environmental compliance.

The electroplating industry depends heavily on accurate control of plating solutions and chemical baths. Maintaining the correct chemical concentrations and flow rates is vital for achieving high-quality coatings and consistent plating results.

Semiconductor manufacturing involves the careful handling of ultra-pure and corrosive chemicals during wafer fabrication. Precise fluid control ensures product purity and process reliability in this highly demanding sector.

In the pharmaceutical industry, controlling corrosive and aggressive media is critical during chemical liquid manufacturing processes. Effective management safeguards product quality and protects sensitive equipment.

Mining and metallurgy operations utilize chemical reagent control to optimize mineral processing. Proper handling of these chemicals improves extraction efficiency and minimizes environmental impact.

Laboratory equipment requires precision fluid handling for analytical and testing instruments. Accurate control enables reliable results and supports scientific research and quality assurance activities.

Industrial cleaning applications involve the management of caustic and acidic cleaning solutions. Controlled fluid handling enhances cleaning effectiveness while protecting machinery and personnel.

Support and Services:

Our Pneumatic Solenoid Valve product is backed by comprehensive technical support and services to ensure optimal performance and customer satisfaction. We provide detailed product documentation, including installation guides, operation manuals, and maintenance instructions to assist users in proper handling and troubleshooting.

Our technical support team is available to offer expert advice on product selection, system integration, and customization to meet specific application requirements. We also provide diagnostic assistance and problem-solving services to quickly resolve any issues that may arise during the valve’s operation.

In addition, we offer repair and maintenance services to extend the lifespan of your pneumatic solenoid valves. Replacement parts and accessories are readily available to ensure minimal downtime. Training sessions and workshops can also be arranged to help your team better understand the product features and maintenance procedures.

We are committed to continuous improvement and customer satisfaction, and our support services are designed to help you maximize the efficiency and reliability of your pneumatic solenoid valve systems.

Packing and Shipping:

Product Packaging:

The Pneumatic Solenoid Valve is carefully packaged to ensure safe delivery and optimal protection during transit. Each valve is individually wrapped in anti-static foam and placed inside a sturdy cardboard box. The box is then sealed securely with tamper-evident tape. For added protection, multiple boxes are placed inside a reinforced outer carton with cushioning material to prevent movement and damage.

Shipping:

We offer reliable shipping options to deliver the Pneumatic Solenoid Valve promptly and safely to your location. Products are shipped via trusted carriers with tracking available for all orders. Shipping times may vary depending on the destination, but standard processing time is 1-2 business days. Expedited shipping options are available upon request. All shipments include proper documentation and labeling to comply with international shipping regulations.
