Product Description:
Norgren air preparation systems are designed to provide comprehensive conditioning of compressed air for various industrial pneumatic applications. This extensive range features filters, pressure regulators, lubricators, as well as combination units that come in multiple body sizes. The systems include modular product lines such as Olympian Plus, Excelon, and Excelon Plus, catering to diverse operational needs.
These components are essential for ensuring the quality and performance of compressed air by efficiently removing contaminants such as water, oil, and solid particles. Additionally, they help maintain a stable downstream pressure and supply precise lubrication to pneumatic tools, cylinders, and other air-driven devices, thereby enhancing the overall reliability and longevity of pneumatic systems.
The product lineup accommodates a wide range of port sizes, starting from G1/8 up to G1-1/2 and beyond. Filtration options are available with ratings of 5 μm, 25 μm, and 40 μm, allowing users to select the most appropriate solution based on their requirements. The bodies are constructed from materials like zinc alloy and aluminium, while bowl options include durable polycarbonate and aluminium variants.
A key feature of Norgren’s air preparation systems is their modular design, which facilitates rapid assembly of customized combination units. This is achieved through plug-in yoke systems and Quikclamp connections that simplify installation and maintenance. Operating pressures typically reach up to 10 bar when using transparent bowls, and up to 17 bar with metal bowls, supporting an ambient temperature range from -20°C to +80°C.
The product range also includes specialized units such as miniature models from the 07 series, standard modular units represented by the 72, 73, and 74 series, and large-port high-flow variants within the 17 and 18 series. This diversity ensures that Norgren air preparation solutions can meet the needs of a broad spectrum of industrial pneumatic applications.
Features:
Complete Air Preparation Solution
We offer a comprehensive range of air preparation products, including filters, regulators, lubricators, and combination units, all integrated into one modular system. This solution is designed to streamline your air management needs with high efficiency and ease of use.
Modular Plug-In Design
The system features a modular plug-in design that enables quick assembly and maintenance. Utilizing plug-in yoke systems along with Quikclamp connections, installation and servicing are made straightforward and fast.
Variety of Filtration Options
To meet different air quality requirements, filter elements are available in multiple ratings: 5 μm, 25 μm, and 40 μm. This variety ensures you can select the appropriate filtration level for your specific applications.
Wide Port Size Range
Our product range supports a wide selection of port sizes, from G1/8 up to G1-1/2 and beyond. This wide range accommodates various flow capacities to match your system’s demands.
Multiple Bowl Options
Choose between transparent polycarbonate bowls that provide clear visual level monitoring and metal bowls designed to withstand higher pressure applications. This flexibility enhances operational safety and reliability.
Stable Valve Regulation
The balanced valve design reduces the impact of inlet pressure fluctuations on the outlet pressure. This results in more stable and consistent pressure regulation for your air system.
Advanced Lubrication Solutions
Our micro-fog lubrication models are ideal for multi-point lubrication systems, while oil-fog models are suited for lubricating single tools or devices, ensuring optimal performance and longevity.
Optimized Air Flow
Featuring an optimized internal design, the units provide high flow rates with minimal pressure drop. This efficient air delivery supports better system performance.
Enhanced Safety Features
Safety is a priority, with detent actions that prevent bowl and unit removal while the system is under pressure. Additionally, tamper-resistant covers are available to protect the components from unauthorized access.
Wide Operating Temperature Range
Our bowls accommodate a broad temperature range, from -20°C to +50°C for transparent bowls, and from -20°C to +80°C for metal bowls, making them suitable for various environmental conditions.
Flexible Drain Options
Drainage can be managed through manual, semi-automatic, or fully automatic options, allowing you to tailor the system to your operational preferences.
Integrated Monitoring Accessories
Optional pressure gauges and switches can be integrated into the system, featuring gauge ports and porting block mounted pressure switches for enhanced system monitoring and control.
High Capacity Units
For demanding high-flow applications, F17 and F18 series units offer capacity up to 1620 SCFM, delivering reliable performance where it is needed most.
Pilot-Operated Regulators
The R18 series pilot-operated regulators provide high-precision pressure control with exceptionally high relief flow rates, ideal for applications requiring precise regulation.
Technical Parameters:
| Elastomers |
Nitrile Rubber, Neoprene |
| Bowl Materials |
Polycarbonate (transparent), Aluminium (metal) |
| Medium |
Compressed Air Only |
| Body Materials |
Zinc Alloy, Aluminium |
| Ambient Temperature |
-20°C To +50°C (transparent Bowl) / -20°C To +80°C (metal Bowl) |
| Maximum Inlet Pressure |
10 Bar (transparent Bowl) / 17 Bar (metal Bowl) |
| Drain Options |
Manual, Semi-automatic, Automatic |
| Filtration Ratings |
5 μm, 25 μm, 40 μm |
Applications:
In the realm of process control, maintaining a stable pressure along with a clean air supply is essential for the smooth operation of automated process equipment. This ensures high efficiency and reliability in production environments.
When it comes to material handling, dependable air preparation plays a vital role in supporting conveyors, pick-and-place units, and various handling systems. Reliable air enables these systems to function seamlessly, improving overall productivity.
The food and beverage industry demands clean compressed air for its packaging, filling, and processing equipment. This cleanliness is critical to meet hygiene standards and ensure product safety throughout the manufacturing process.
Agricultural machinery benefits greatly from effective air preparation, especially in powering pneumatic controls found on tractors and other implements. This helps in achieving precision and reliability in agricultural operations.
Within industrial automation, a consistent air supply is necessary to operate cylinders, valves, and actuators on manufacturing lines. Proper air preparation contributes to the smooth and efficient functioning of automated production systems.
Pneumatic tools such as air screwdrivers and impact wrenches rely on correct lubrication and pressure regulation. This not only enhances tool performance but also extends their service life, increasing overall operational efficiency.
Packaging machinery, including form-fill-seal and labeling equipment, requires a steady and consistent air supply. This ensures accuracy and speed in packaging processes, which is vital for meeting production targets.
Textile machinery used for weaving, knitting, and yarn processing depends on carefully prepared air to maintain high-quality output. Proper air treatment supports smooth operation and reduces equipment downtime.
In automotive assembly lines, air is essential for paint shops, assembly tools, and testing equipment. Ensuring clean and regulated air supply helps in achieving superior finish quality and precise assembly operations.
Overall, general pneumatic applications demand compressed air that is clean, regulated, and lubricated. Any system relying on pneumatic power benefits from properly prepared air to maintain performance and avoid malfunctions.
Customization:

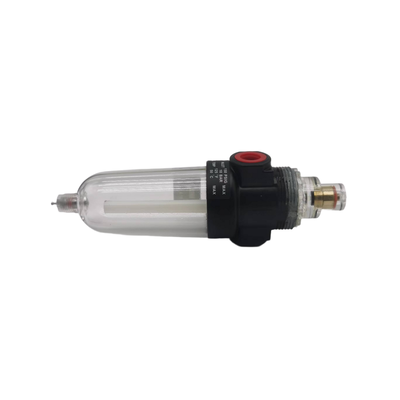

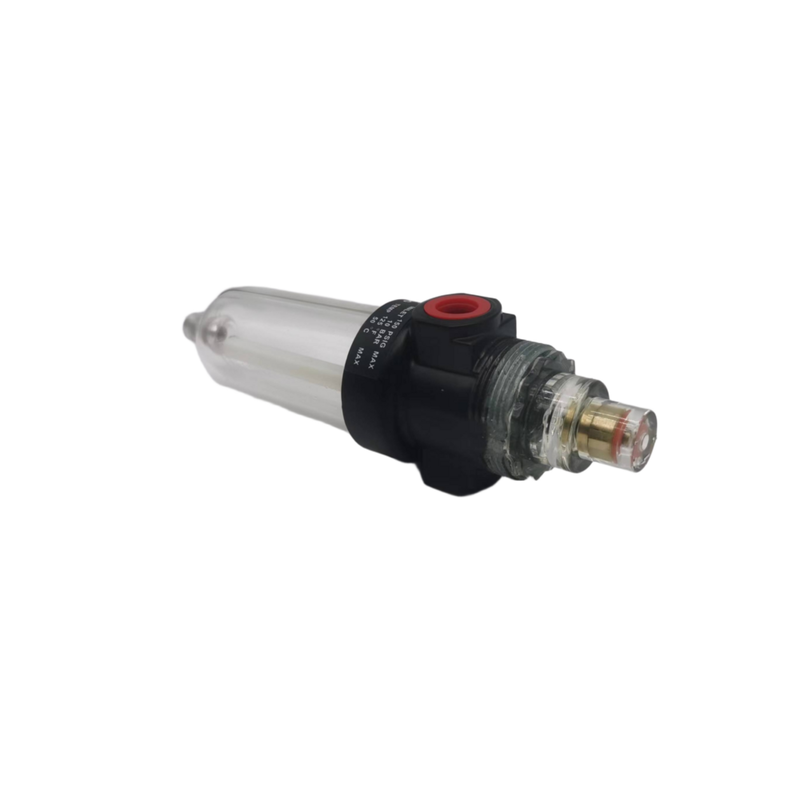

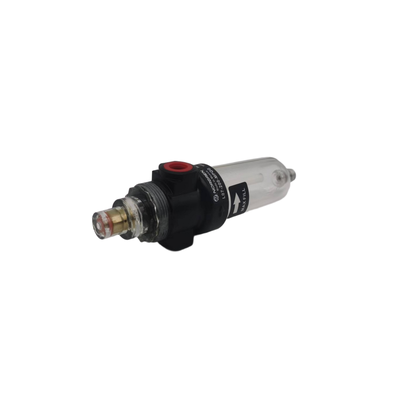

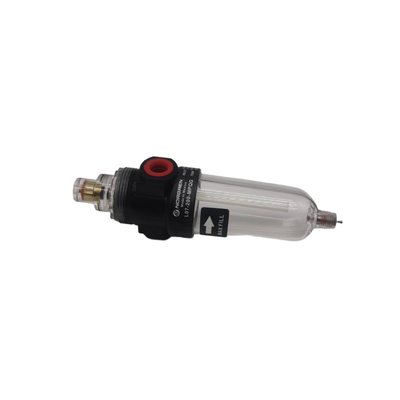

Norgren's Pneumatic Filter Regulator Lubricator, model L07-100-MPQG, is a high-quality pressure reducing air source processor designed to meet your pneumatic system needs. Manufactured in China and certified with CE, this product ensures reliable performance and compliance with international standards.
We offer product customization to suit your specific requirements, including options for bowl materials such as transparent polycarbonate or durable aluminium metal, and body materials available in zinc alloy or aluminium. The elastomers used are nitrile rubber and neoprene, providing excellent sealing and longevity.
This pneumatic air purifier supports a maximum inlet pressure of 10 Bar with the transparent bowl and up to 17 Bar with the metal bowl, making it versatile for various industrial applications. It is compatible with compressed air only, ensuring clean and efficient air preparation.
Our Pneumatic Filter Regulator Lubricator serves as an ideal FESTO oil mist filter alternative, combining filtering, regulating, and lubricating functions in one compact unit. We accommodate minimum order quantities starting from 1 piece, with pricing available upon negotiation.
Packaging is flexible and can be customized according to client requirements, typically shipped in cartons. Delivery time ranges between 1 to 7 work days after payment, with payment terms including T/T, Western Union, and Paypal. With a supply ability of 5000 pieces per month, we are equipped to handle large-scale orders efficiently.
Choose Norgren for your pneumatic air purification needs and benefit from a reliable, customizable solution that enhances the performance and longevity of your compressed air systems.
Packing and Shipping:
Our Pneumatic Filter Regulator Lubricator (FRL) units are carefully packaged to ensure maximum protection during transit. Each product is securely enclosed in a custom-fitted foam insert within a sturdy corrugated cardboard box to prevent damage from shocks and vibrations.
The packaging includes clear labeling with product information, handling instructions, and safety warnings to facilitate easy identification and proper care throughout the shipping process.
We partner with reliable shipping carriers to deliver your FRL units promptly and safely to your specified location. Tracking information is provided for all shipments to keep you informed every step of the way.
For bulk orders, products are palletized and shrink-wrapped to maintain stability and protection during extended transportation.
If you have any special packaging or shipping requirements, please contact our customer service team, and we will be happy to accommodate your needs.
