Product Description:
Norgren air preparation systems are designed to provide comprehensive conditioning of compressed air for various industrial pneumatic applications. This extensive range comprises filters, pressure regulators, lubricators, and combination units offered in multiple body sizes. The systems include modular series such as Olympian Plus, Excelon, and Excelon Plus, ensuring flexibility and adaptability for different needs.
These high-quality components are engineered to remove contaminants like water, oil, and solid particles from compressed air. They also maintain a stable downstream pressure and provide accurate lubrication to pneumatic tools, cylinders, and other air-powered devices, enhancing their performance and longevity.
The product line supports a wide array of port sizes, ranging from G1/8 up to G1-1/2 and beyond. Filtration ratings are available in 5 µm, 25 µm, and 40 µm options. Regarding materials, the bodies are constructed from zinc alloy or aluminium, while bowl options include polycarbonate and aluminium variations. The modular design facilitates rapid assembly of customized combination units through plug-in yoke systems and Quikclamp connections.
Operational pressures typically reach up to 10 bar for units with transparent bowls and can go up to 17 bar when equipped with metal bowls. These devices function reliably within an ambient temperature range of -20°C to +80°C. The product range also caters to different scales, featuring miniature units (07 series), standard modular units (72/73/74 series), and large-port high-flow units (17/18 series).
Features:
Complete Air Preparation Solution
Our system offers a comprehensive air preparation solution, integrating filters, regulators, lubricators, and combination units into a single modular setup. This all-in-one approach ensures efficient and reliable air treatment tailored to your specific needs.
Modular Plug-In Design
Featuring a modular plug-in design, the system allows for quick and easy assembly as well as straightforward maintenance. Utilizing plug-in yoke systems and Quikclamp connections, this design significantly reduces downtime and improves operational efficiency.
Versatile Filtration Options
To meet different air quality requirements, the system provides multiple filtration ratings. Filter elements are available in 5 μm, 25 μm, and 40 μm, ensuring optimal particle removal based on the specific application.
Wide Range of Port Sizes
The modular units accommodate a wide variety of port sizes, ranging from G1/8 to G1-1/2 and beyond. This flexibility allows the system to support diverse flow capacities, making it suitable for numerous industrial applications.
Variety of Bowl Options
Choose between transparent polycarbonate bowls, which allow for visual monitoring of fluid levels, and sturdy metal bowls designed to handle higher pressure conditions. This selection supports different operational environments and user preferences.
Stable Pressure Regulation
The system features balanced valve regulation technology that minimizes the influence of inlet pressure fluctuations on the outlet pressure, ensuring consistent and stable regulation during operation.
Lubrication Modes
Available in micro-fog and oil-fog lubrication options, the system caters to diverse lubrication needs. Micro-fog variants are ideal for multi-point lubrication setups, while oil-fog models suit single tool or device lubrication requirements.
Efficient Airflow
Designed with an optimized internal configuration, the units deliver high flow rates while maintaining a low pressure drop. This efficiency improves overall system performance and energy savings.
Enhanced Safety Features
Safety is a priority, with detent actions preventing the removal of bowls or units while under pressure. Additionally, tamper-resistant covers are available to safeguard against unauthorized adjustments or damage.
Wide Operating Temperature Range
The system is suitable for various environmental conditions, operating reliably from -20°C to +50°C with transparent bowls and from -20°C to +80°C when using metal bowls.
Flexible Drain Options
Users can select from manual, semi-automatic, or fully automatic drain configurations, providing convenience and adaptability to different maintenance schedules and operational demands.
Integrated Monitoring Accessories
Optional pressure gauges and switches can be integrated into the system, featuring built-in gauge ports and porting block-mounted pressure switches. These additions facilitate real-time system monitoring and control.
High Capacity and Precision
For applications requiring higher flow rates, the F17 and F18 series offer large capacity units capable of handling up to 1620 SCFM. Meanwhile, the R18 series pilot-operated regulators provide high-precision pressure control with exceptionally high relief flow capacities.
Technical Parameters:
| Drain Options |
Manual, Semi-automatic, Automatic |
| Bowl Materials |
Polycarbonate (transparent), Aluminium (metal) |
| Medium |
Compressed Air Only |
| Maximum Inlet Pressure |
10 Bar (transparent Bowl) / 17 Bar (metal Bowl) |
| Ambient Temperature |
-20°C To +50°C (transparent Bowl) / -20°C To +80°C (metal Bowl) |
| Body Materials |
Zinc Alloy, Aluminium |
| Filtration Ratings |
5 μm, 25 μm, 40 μm |
| Elastomers |
Nitrile Rubber, Neoprene |
This FESTO air source treatment unit includes a Pressure Reducer and Pressure Reducer components designed for optimal performance and reliability.
Applications:
Process Control: Ensuring stable pressure and delivering clean air to automated process equipment is critical for maintaining efficiency and precision in various manufacturing environments.
Material Handling: Reliable air preparation is essential for the smooth operation of conveyors, pick-and-place units, and other handling systems, enhancing productivity and reducing downtime.
Food and Beverage Industry: Providing clean compressed air plays a vital role in packaging, filling, and processing equipment, helping to comply with hygiene standards and ensuring product safety.
Agricultural Equipment: Proper air preparation supports pneumatic controls used in tractors and implements, contributing to the effectiveness and reliability of farm machinery.
Industrial Automation: Consistent air supply is necessary for the operation of cylinders, valves, and actuators within manufacturing lines, facilitating smooth and accurate automation processes.
Pneumatic Tools: Lubrication and pressure regulation are key for the optimal performance of air tools such as screwdrivers and impact wrenches, extending tool life and improving efficiency.
Packaging Machinery: Maintaining a consistent air supply is crucial for form-fill-seal machines and labeling equipment, ensuring seamless packaging operations.
Textile Machinery: Air preparation supports the functioning of weaving, knitting, and yarn processing machinery, which rely on compressed air for various mechanical actions.
Automotive Assembly: Supplying clean and regulated air is important in paint shops, assembly tools, and testing equipment, contributing to high-quality vehicle production.
General Pneumatics: Any application that requires clean, regulated, and lubricated compressed air benefits from dependable air preparation to ensure optimal performance and reliability.
Customization:

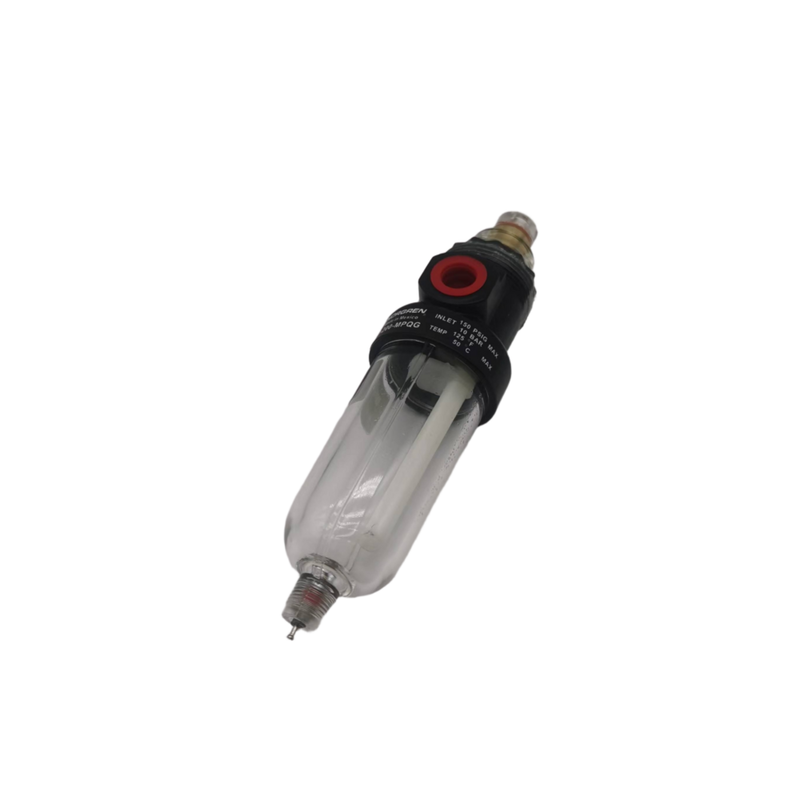

Introducing the Norgren Pneumatic Filter Regulator Lubricator, model number L07-100-MPQG, designed to provide superior pneumatic air purification for your industrial applications. Manufactured in China and certified with CE standards, this product ensures reliable performance and quality.
The filter regulator lubricator features a robust construction with body materials made from zinc alloy and aluminium, and bowl materials available in polycarbonate (transparent) or aluminium (metal), catering to diverse operational needs. The ambient temperature range is -20°C to +50°C for the transparent bowl and -20°C to +80°C for the metal bowl, making it suitable for various environments.
With a maximum inlet pressure of 10 Bar for the transparent bowl and 17 Bar for the metal bowl, this product handles demanding pneumatic systems efficiently. The drain options include manual, semi-automatic, and automatic modes, providing flexibility in maintenance and operation.
Our Pneumatic Filter Regulator Lubricator is an excellent alternative to the FESTO oil mist filter, offering comparable performance and reliability. It effectively functions as a pneumatic air purifier, ensuring clean air supply and prolonging equipment life.
We support a minimum order quantity of 1 unit, with pricing available upon negotiation. Packaging is customizable, either in carton or as per clients' specific requirements. Delivery time ranges from 1 to 7 working days after payment, with payment terms including T/T, Western Union, and Paypal. Our supply ability is 5000 pieces per month, ensuring timely availability for your projects.
Choose the Norgren L07-100-MPQG Pneumatic Filter Regulator Lubricator for a high-quality, customizable solution that meets your pneumatic air purification needs and serves as a reliable FESTO oil mist filter alternative.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged in a sturdy, corrugated cardboard box to prevent damage during transit. Inside the box, the unit is cushioned with foam inserts or bubble wrap to ensure protection from shocks and vibrations. The packaging includes a user manual, installation instructions, and necessary mounting hardware. Each box is clearly labeled with product details, model number, and handling instructions to facilitate easy identification and safe handling.
Shipping: The Pneumatic Filter Regulator Lubricator is shipped via reliable courier services with tracking capabilities to ensure timely and secure delivery. The package is handled with care to avoid exposure to moisture, extreme temperatures, or rough handling. For bulk orders, products are palletized and shrink-wrapped to maintain stability and protection during shipment. Shipping options include standard, expedited, and freight services to meet various customer requirements.
