Product Description:
Norgren air preparation systems are designed to provide comprehensive conditioning of compressed air for various industrial pneumatic applications. The extensive product range features filters, pressure regulators, lubricators, and combination units. These are available in multiple body sizes and through modular systems such as Olympian Plus, Excelon, and Excelon Plus.
These components effectively remove contaminants including water, oil, and solid particles from the compressed air supply. They also ensure stable downstream pressure and deliver precise lubrication to pneumatic tools, cylinders, and other air-powered devices, enhancing operational performance and reliability.
The product lineup supports port sizes ranging from G1/8 to G1-1/2 and beyond. Filtration options include ratings of 5 μm, 25 μm, and 40 μm. Constructed materials for the bodies include zinc alloy and aluminium, while bowls are available in polycarbonate and aluminium variants.
Thanks to its modular design, the system allows for quick and straightforward assembly of custom combination units using plug-in yoke mechanisms and Quikclamp connections. Typical operating pressures can reach up to 10 bar when using transparent bowls and up to 17 bar with metal bowls. The systems operate reliably within ambient temperatures ranging from -20°C to +80°C.
The product range further includes miniature units in the 07 series, standard modular units in the 72, 73, and 74 series, as well as large-port, high-flow units in the 17 and 18 series, catering to a wide spectrum of industrial pneumatic needs.
Features:
Complete Air Preparation Solution
Our air preparation system offers a comprehensive solution, integrating filters, regulators, lubricators, and combination units into a single modular platform. This unified design ensures efficient and effective air treatment tailored for various industrial needs.
Modular Plug-In Design
Featuring a modular plug-in design, the system allows for quick assembly and easy maintenance. The plug-in yoke systems combined with Quikclamp connections facilitate rapid installation and servicing, minimizing downtime.
Filtration Options to Meet Diverse Air Quality Standards
To accommodate different air quality requirements, multiple filtration ratings are available. These include filter elements rated at 5 μm, 25 μm, and 40 μm, ensuring that the right level of filtration is achieved for any application.
Flexible Port Sizes and Bowl Choices
The system supports a wide range of port sizes, from G1/8 to G1-1/2 and above, catering to varying flow capacity needs. Additionally, users can select from multiple bowl options — transparent polycarbonate bowls offer visual level monitoring, while durable metal bowls are designed for higher pressure conditions.
Advanced Regulation and Lubrication Features
Balanced valve regulation minimizes the impact of inlet pressure fluctuations, maintaining stable outlet pressure for consistent performance. The lubrication options include micro-fog models suited for multi-point lubrication setups, and oil-fog models ideal for lubricating single tools or devices.
Efficient Air Delivery and Safety Measures
With an optimized internal design, the system ensures high flow rates while keeping pressure drops low, promoting efficient air delivery. Safety is enhanced through features like detent action mechanisms that prevent bowl and unit removal when the system is pressurized, along with tamper-resistant covers as an added security measure.
Durability Across Temperature Extremes and Drainage Options
The equipment is built to perform reliably over a broad temperature range, from -20°C to +50°C for transparent bowls, and up to +80°C for metal bowls. Various drain options are offered, including manual, semi-automatic, and fully automatic modes, to suit different maintenance preferences and operational demands.
Integrated Monitoring and High Capacity Solutions
Optional pressure gauges and switches can be integrated seamlessly, with gauge ports and porting block-mounted pressure switches available to facilitate thorough system monitoring. For high-flow applications, large capacity units such as the F17 and F18 series support air flows up to 1620 SCFM.
Precision Regulation with Pilot-Operated Regulators
The R18 series of pilot-operated regulators offers precise control with exceptional relief flow capabilities, making them ideal for applications demanding accurate and reliable pressure regulation.
Technical Parameters:
| Drain Options |
Manual, Semi-automatic, Automatic |
| Maximum Inlet Pressure |
10 Bar (transparent Bowl) / 17 Bar (metal Bowl) |
| Medium |
Compressed Air Only |
| Body Materials |
Zinc Alloy, Aluminium |
| Filtration Ratings |
5 μm, 25 μm, 40 μm |
| Ambient Temperature |
-20°C To +50°C (transparent Bowl) / -20°C To +80°C (metal Bowl) |
| Elastomers |
Nitrile Rubber, Neoprene |
| Bowl Materials |
Polycarbonate (transparent), Aluminium (metal) |
Applications:
Process Control: Ensuring a stable pressure and a clean air supply is essential for the smooth operation of automated process equipment. Reliable air management helps maintain consistent performance and reduces downtime.
Material Handling: Proper air preparation guarantees dependable operation of conveyors, pick-and-place units, and various handling systems. This results in efficient material flow and minimized operational interruptions.
Food and Beverage Industry: The provision of clean compressed air is crucial for packaging, filling, and processing equipment in this sector. Maintaining air purity helps ensure product safety and quality standards.
Agricultural Equipment: Pneumatic controls on tractors and implements rely on well-prepared air. This support enhances the accuracy and reliability of agricultural machinery in the field.
Industrial Automation: Manufacturing lines require a steady air supply for cylinders, valves, and actuators. Proper air preparation enables seamless automation and improves overall production efficiency.
Pneumatic Tools: Air tools such as screwdrivers and impact wrenches benefit from regulated pressure and lubrication. This ensures extended tool life and consistent operational performance.
Packaging Machinery: A consistent and clean air supply is necessary for the effective running of form-fill-seal and labeling machines. This aids in maintaining high-speed and accurate packaging processes.
Textile Machinery: Air preparation plays a vital role in weaving, knitting, and yarn processing equipment. Supplying clean and regulated air improves machine reliability and product quality.
Automotive Assembly: Paint shops, assembly tools, and testing equipment all depend on reliable air supply. Proper air conditioning contributes to the precision and efficiency of automotive production lines.
General Pneumatics: Any application that demands clean, regulated, and lubricated compressed air benefits from proper air preparation. This universal necessity supports a wide range of industrial uses.
Customization:

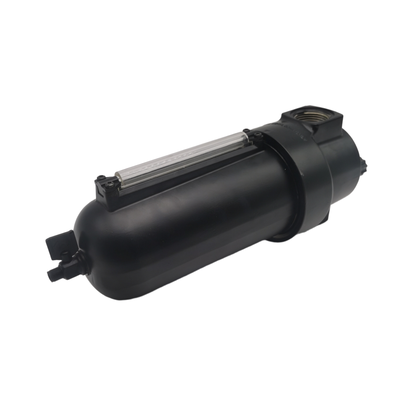

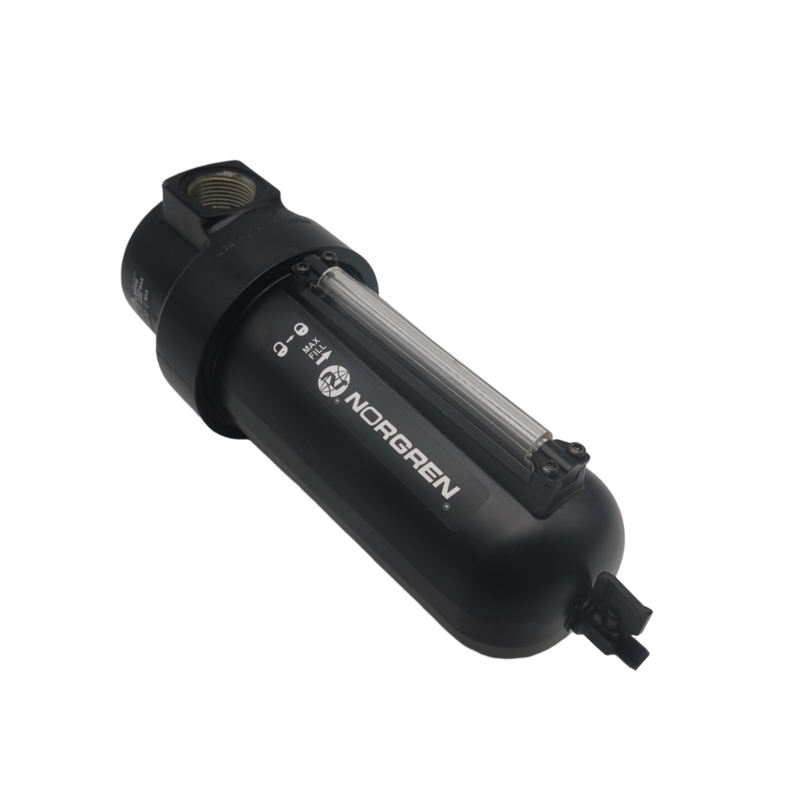

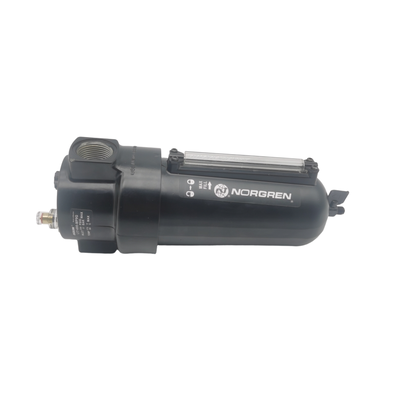

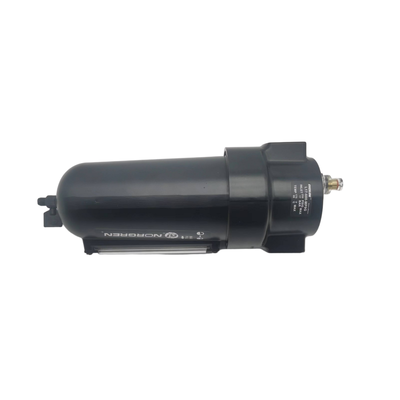

The Norgren Pneumatic Filter Regulator Lubricator, model number L07-100-MPQG, is a high-quality pressure reducer designed to optimize your pneumatic systems. Originating from China and certified with CE, this product ensures reliable performance and safety.
With a minimum order quantity of just 1 unit and a price available upon negotiation, it offers flexibility for both small and large scale needs. The packaging is customizable, shipped in cartons or as per client requirements, ensuring your order arrives securely. Delivery is prompt, within 1-7 work days after payment, with payment terms including T/T, Western Union, and PayPal.
Supply ability is strong at 5000 pieces per month, supporting consistent demand. The product operates efficiently within ambient temperatures ranging from -20°C to +50°C for the transparent polycarbonate bowl and up to +80°C for the metal aluminium bowl. It features filtration ratings of 5 μm, 25 μm, and 40 μm, providing versatile pneumatic air purifier options.
Choose from bowl materials including transparent polycarbonate or robust aluminium metal, with drain options available in manual, semi-automatic, or automatic modes to suit your maintenance preferences. The maximum inlet pressure is 10 Bar for the transparent bowl and 17 Bar for the metal bowl, ensuring durability under various operating conditions.
This Norgren pneumatic air purifier serves as an excellent pressure reducer and air treatment component, enhancing the efficiency and longevity of your pneumatic equipment.
Packing and Shipping:
Product Packaging: The Pneumatic Filter Regulator Lubricator is securely packaged using high-quality, durable materials to ensure protection during transit. Each unit is individually wrapped in protective foam and placed inside a sturdy corrugated cardboard box. The packaging includes clear labeling with product details, handling instructions, and safety information to facilitate easy identification and careful handling.
Shipping: Our Pneumatic Filter Regulator Lubricator products are shipped via reliable courier services with tracking options available. We offer various shipping methods to meet your delivery needs, including standard, expedited, and express shipping. Each shipment is carefully inspected before dispatch to guarantee product integrity and timely delivery. International shipping is also available with appropriate customs documentation provided.
