MGP50 PS O ring And Gasket Repair Set Eliminate Cylinder Shaking And Uneven Stroke Speed For SMC MGPL50 MGPM50 Guided Pneumatic Cylinder Prevent Unplanned Production Standstill

Product Description:

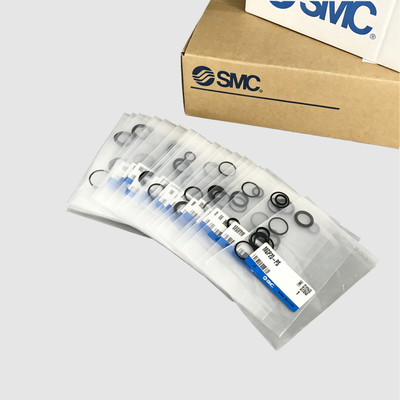

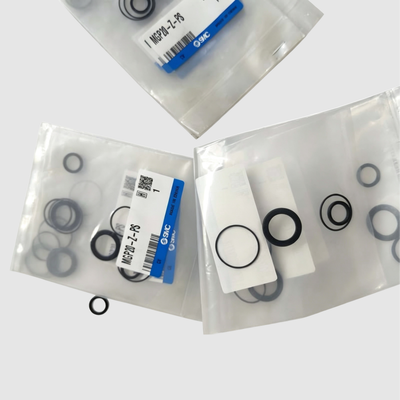

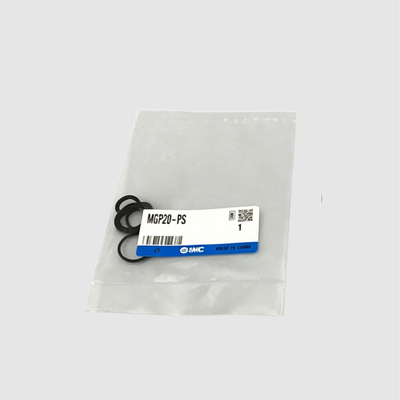

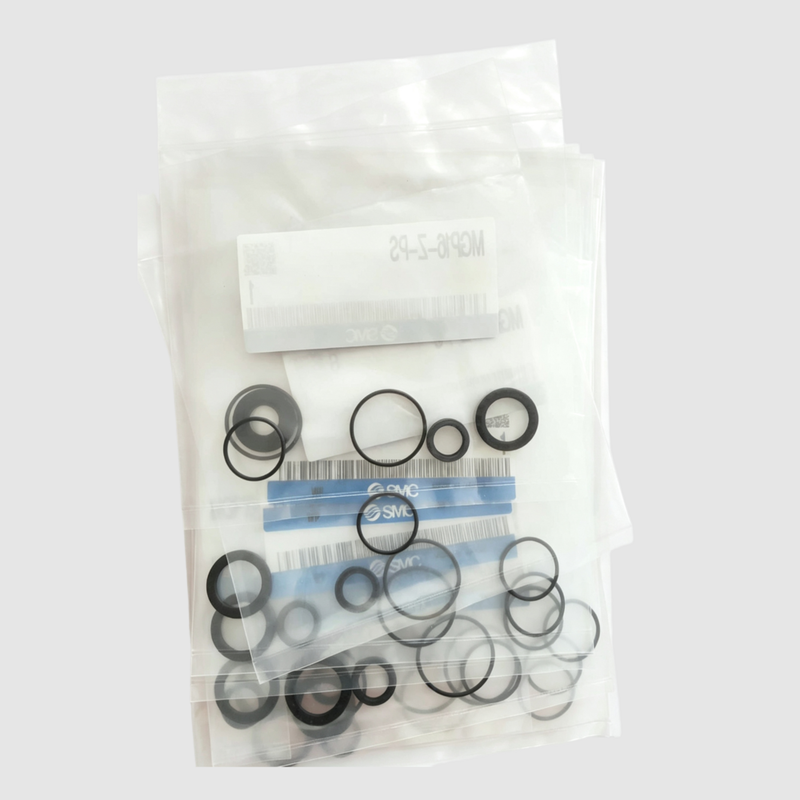

These compact guide cylinder seal kits are precision-engineered sets designed specifically for the maintenance and overhaul of MGP series guided pneumatic cylinders. They are available for a wide range of bore sizes, from 12mm up to 100mm. Each seal kit includes all the essential sealing components needed to perform a complete cylinder rebuild, comprising a piston seal, rod seal, gasket A, and gasket B.

The seals are crafted from high-quality materials such as NBR (nitrile rubber) and urethane. These materials provide excellent resistance to wear, oil, and abrasion, ensuring dependable and long-lasting performance in pneumatic systems. The MGP series compact guide cylinders themselves feature a slim, compact body that incorporates built-in guide rods. This design delivers exceptional non-rotating accuracy and strong lateral load resistance, making these cylinders highly suitable for applications requiring precision assembly, pick and place operations, and material handling.

Using these seal kits for regular replacement helps restore the cylinder’s original performance by preventing air leakage and substantially extending the service life of existing actuators. This maintenance approach offers a cost-effective alternative to full cylinder replacement. It is important to note that the seal kits do not come with a grease pack, which must be ordered separately (grease pack part number: GR-S-010, 10g). Additionally, for the MGP-Z series, the old and new seal kits are not interchangeable, so verifying the exact cylinder model prior to ordering is essential.

Features:

This comprehensive seal kit includes all the essential components needed for a complete cylinder rebuild. It comes with a piston seal, rod seal, as well as gasket A and gasket B, ensuring a thorough restoration of your pneumatic cylinder.

The seal kits are available in a variety of bore sizes including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, providing options to fit a wide range of cylinders.

Made from high-quality NBR and urethane materials, the seals offer excellent resistance to oil and wear, enhancing durability and performance under demanding conditions.

These kits are specifically designed to be compatible with MGP series compact guide pneumatic cylinders that feature built-in guide rods, ensuring a perfect fit and reliable operation.

By eliminating air leakage, the seal kit helps restore the cylinder’s original force, speed, and precision in non-rotating accuracy, improving overall actuator performance.

Serving as a cost-effective alternative to purchasing a new cylinder, this seal kit extends the lifespan of your actuator, providing significant savings in maintenance expenses.

Installation is quick and straightforward, requiring only standard tools, making it convenient for maintenance personnel to perform cylinder rebuilds with minimal downtime.

Ideal for applications such as precision assembly, pick and place operations, and material handling, the seal kit supports high-accuracy and reliable automation processes.

Each bore size is assigned a unique kit number, simplifying inventory management and enabling easy identification and ordering.

Additionally, a grease pack (model GR-S-010, 10g) is available separately to complement the seal kit, ensuring optimal lubrication during installation.

Technical Parameters:

Applications:

In the realm of pick and place operations, maintaining guided cylinders is crucial for achieving accurate positioning. These precision positioning systems rely heavily on the proper upkeep of guided cylinders to ensure smooth and precise movement.

Within factory automation, the repair of guided cylinders plays a vital role in maintaining the efficiency of automated production lines. Proper servicing helps minimize downtime and keeps production running at optimal levels.

When it comes to material handling, replacing seals in cylinders used in conveyors and handling systems is essential. This maintenance task guarantees the reliability and longevity of equipment that transports materials throughout various processes.

Packaging machinery also depends on well-maintained cylinders to function effectively. Regular maintenance of cylinders in packaging and filling equipment ensures consistent performance and reduces the risk of operational failures.

In the field of electronic component manufacturing, guided cylinder repairs are necessary for precision assembly equipment. Keeping these cylinders in top condition supports the high accuracy required in producing delicate electronic components.

More generally, in the broad sector of industrial pneumatics, any application that requires dependable guided cylinder sealing benefits from routine maintenance. Ensuring the integrity of seals is fundamental to the overall reliability of pneumatic systems.

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please ensure you have the model number and specifications of your pneumatic cylinder ready to facilitate a swift resolution to your inquiries.

We offer comprehensive services including installation guidance, maintenance tips, troubleshooting assistance, and repair services. Our technical team is equipped to help you optimize the performance and lifespan of your pneumatic cylinder.

Common issues such as air leaks, inconsistent motion, or reduced force can often be resolved by checking the cylinder seals, air supply quality, and alignment. Regular maintenance is recommended to prevent downtime and maintain operational efficiency.

For replacement parts and upgrades, refer to the product manual for part numbers and compatibility. Using genuine parts ensures the best performance and safety standards.

We also provide training and consultation services to help your team understand the best practices for handling and operating piston pneumatic cylinders effectively.
