MGP12‑PS Seal Repair Kit For SMC MGPM MGPL 12mm Bore Compact Guide Pneumatic Cylinder Replacement Seal Rings Prevent Air Leakage

Product Description:

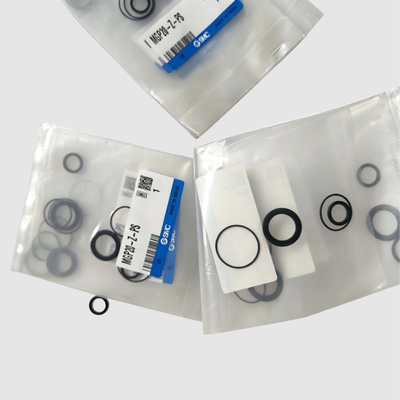

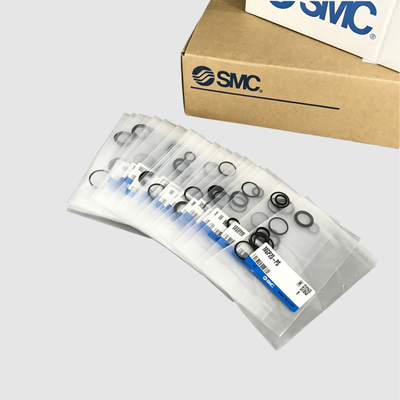

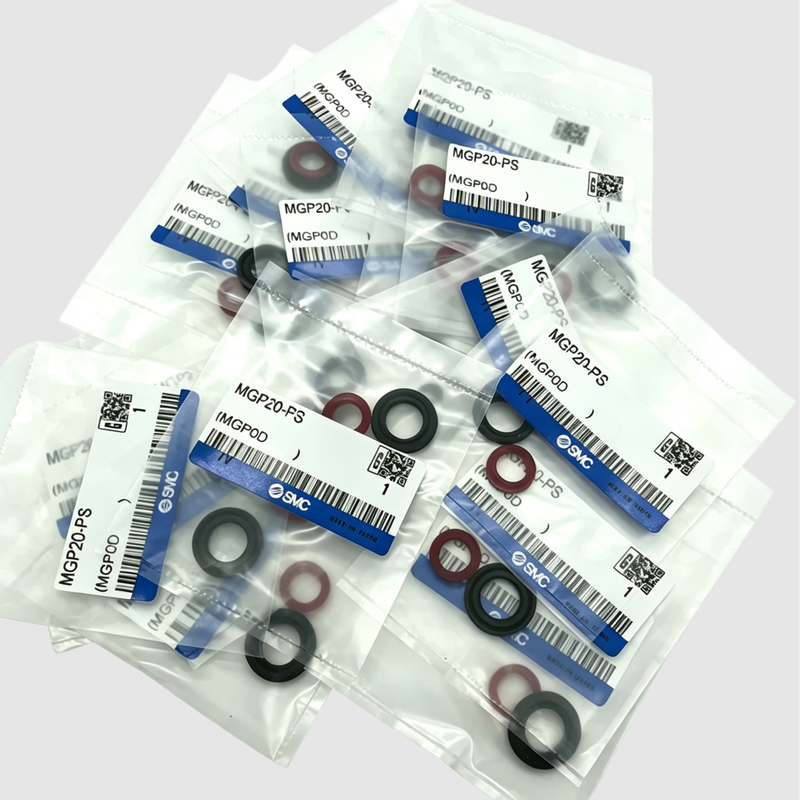

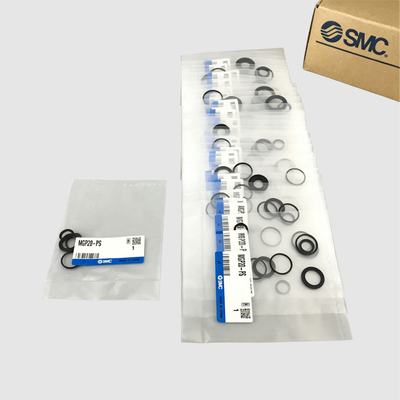

These compact guide cylinder seal kits are precisely engineered replacement sets intended for the maintenance and overhaul of MGP series guided pneumatic cylinders. They are available in a range of bore sizes, from 12mm up to 100mm. Each kit includes all the crucial sealing components needed for a complete cylinder rebuild: a piston seal, a rod seal, gasket A, and gasket B.

The seals are made from premium materials such as NBR (nitrile rubber) and urethane. These materials provide exceptional resistance to wear, oil, and abrasion, ensuring consistent and reliable performance in pneumatic applications. The MGP series compact guide cylinders themselves boast a slim, compact design with integrated guide rods. This design delivers high non-rotating accuracy and strong lateral load resistance, making them well suited for precision assembly, pick-and-place operations, and material handling tasks.

Regularly replacing seals with these kits helps to restore the cylinder's optimal performance, prevent air leakage, and significantly extend the service life of existing actuators — all at a fraction of the cost compared to purchasing a new cylinder. Please note that the seal kit does not include a grease pack, which must be ordered separately (grease pack part number: GR-S-010, 10g).

Additionally, for the MGP-Z series, it is important to be aware that old and new seal kits are not interchangeable. Therefore, always confirm the specific cylinder model before placing an order to ensure compatibility.

Features:

This complete seal kit contains all necessary components for a comprehensive cylinder rebuild, including a piston seal, rod seal, gasket A, and gasket B. It ensures a thorough refurbishment of your pneumatic cylinder.

The kit is available in a variety of bore sizes to fit your specific needs: 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm. This wide range allows compatibility with many standard cylinder dimensions.

Seals made from NBR and urethane materials provide exceptional oil resistance and durability, helping to extend the service life of the seals by resisting wear and harsh operating conditions.

Designed to work seamlessly with MGP series compact guide pneumatic cylinders equipped with built-in guide rods, this kit offers a perfect fit for these models. It helps restore the cylinder’s force, speed, and non-rotating accuracy by effectively preventing air leakage.

Using this seal kit is a cost-efficient solution compared to replacing the entire cylinder. It prolongs the actuator's operational life while maintaining optimal performance. Installation is straightforward and can be completed quickly with standard tools, minimizing downtime.

Ideal for applications requiring precision, such as assembly tasks, pick-and-place operations, and material handling processes, this seal kit ensures reliable and consistent performance.

Each bore size corresponds to a unique kit number, simplifying inventory management and ensuring you select the correct parts for each cylinder size.

Additionally, a separate grease pack (GR-S-010, 10g) is available to further aid in maintenance and lubrication during installation.

Technical Parameters:

Applications:

In the realm of pick and place units, the maintenance of guided cylinders is crucial for achieving high precision in positioning systems. Ensuring these cylinders function smoothly helps maintain the accuracy and efficiency of automated tasks.

Within factory automation, the repair and upkeep of guided cylinders play a vital role in sustaining the continuous operation of automated production lines. Timely maintenance prevents unexpected downtime and enhances overall productivity.

When it comes to material handling, replacing seals in cylinders used in conveyors and handling systems is essential. Proper seal maintenance ensures the reliability and durability of these components, which are key to smooth material transport.

Packaging machinery also depends heavily on well-maintained cylinders. Regular servicing and repairs in packaging and filling equipment help maintain consistent performance and reduce operational disruptions.

In the field of electronic component manufacturing, guided cylinder repair is important to support precision assembly equipment. Accurate and reliable cylinder function contributes directly to the quality and efficiency of the manufacturing process.

More broadly, in general industrial pneumatics, any application that requires dependable guided cylinder sealing benefits from diligent maintenance practices. This ensures long-lasting and dependable performance across various pneumatic systems.
