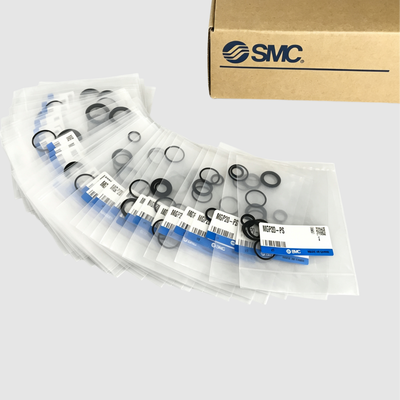

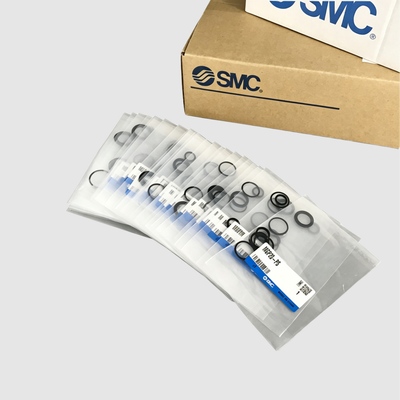

Replacement Seal Service Kit MGP16 PS For SMC MGP Series 16mm Bore Compact Guided Cylinder Fix Slow Movement And Air Leak Fault

Product Description:

These compact guide cylinder seal kits are carefully engineered replacement sets specifically designed for the maintenance and overhaul of MGP series guided pneumatic cylinders. They are available for bore sizes ranging from 12mm up to 100mm. Each kit includes all the essential sealing components necessary for a full cylinder rebuild, such as the piston seal, rod seal, gasket A, and gasket B.

The seals are made from premium quality NBR (nitrile rubber) and urethane materials. These offer excellent resistance to wear, oil, and abrasion, ensuring dependable performance in pneumatic systems. The MGP series compact guide cylinders feature a slim, compact design with integrated guide rods, delivering high non-rotating accuracy and strong lateral load resistance. This makes them highly suitable for precision assembly, pick and place operations, and material handling tasks.

By regularly replacing the seals using these kits, you can restore the cylinder’s performance, eliminate air leakage, and significantly extend the service life of your existing actuators at a much lower cost compared to full cylinder replacement.

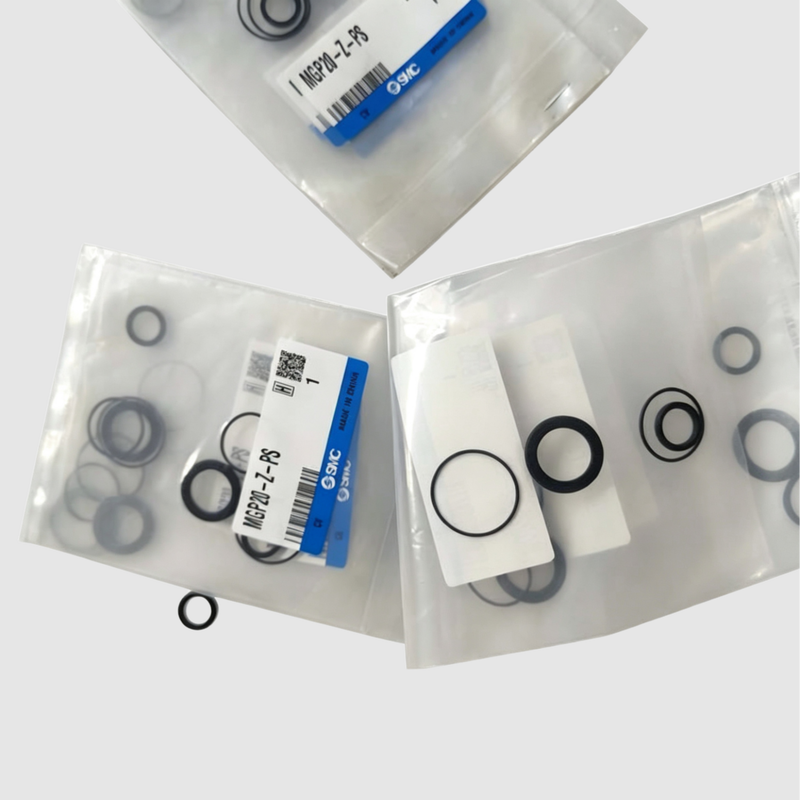

Please note that the seal kits do not include a grease pack, which must be purchased separately (grease pack part number: GR-S-010, 10g). Additionally, for the MGP-Z series, old and new seal kits are not interchangeable; therefore, it is important to verify the cylinder model prior to placing your order.

Features:

This comprehensive seal kit contains everything needed for a complete cylinder rebuild, including a piston seal, rod seal, gasket A, and gasket B. It ensures the full restoration of your pneumatic cylinder's performance.

The kit is available in a variety of bore sizes to fit your specific needs, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm options.

Made from high-quality NBR and urethane materials, the seals provide excellent resistance against oil and wear, guaranteeing long-lasting durability in demanding environments.

Designed to be compatible with the MGP series compact guide pneumatic cylinders that feature built-in guide rods, this seal kit ensures optimal fit and function.

By eliminating air leakage, the kit restores the cylinder's original force, speed, and non-rotating precision, improving overall actuator performance.

This seal kit is a cost-effective solution compared to replacing the entire cylinder, helping extend the service life of your actuator while reducing maintenance expenses.

Installation is quick and straightforward, requiring only standard tools, which minimizes downtime and simplifies maintenance procedures.

It is ideal for applications that demand precision, such as assembly, pick and place operations, and material handling tasks.

Each bore size corresponds to a unique kit number, making inventory management simple and efficient.

Additionally, a grease pack (GR-S-010, 10g) is available separately to complement the seal kit and ensure proper lubrication.

Technical Parameters:

Applications:

Pick and place units involve the maintenance of guided cylinders that play a crucial role in achieving precise positioning within automated systems. Proper upkeep ensures consistent accuracy and longevity of these components.

In the realm of factory automation, guided cylinders used in automated production lines require timely repairs and regular inspections to maintain optimal performance and minimize downtime.

Within material handling operations, replacing seals in cylinders installed on conveyors and handling equipment is essential to prevent leaks and ensure smooth and efficient movement of materials.

Packaging machinery depends on the proper maintenance of cylinders used in packaging and filling processes. Regular servicing helps sustain the reliability and effectiveness of these machines in demanding production environments.

Electronic component manufacturing facilities rely on precision assembly equipment where cylinder repairs are vital. Maintaining these cylinders contributes to the high accuracy needed in assembling delicate electronic parts.

More generally, in various industrial pneumatic applications, dependable sealing of guided cylinders is critical. Any system requiring robust and reliable cylinder sealing benefits from thorough maintenance and seal replacement strategies.
