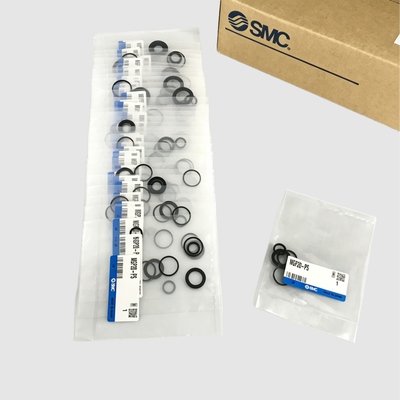

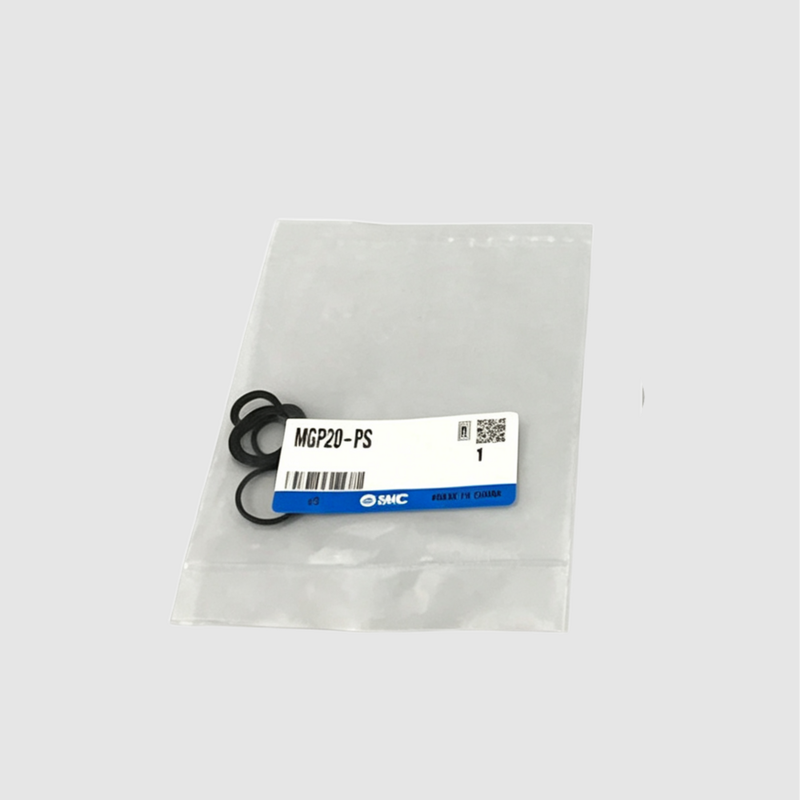

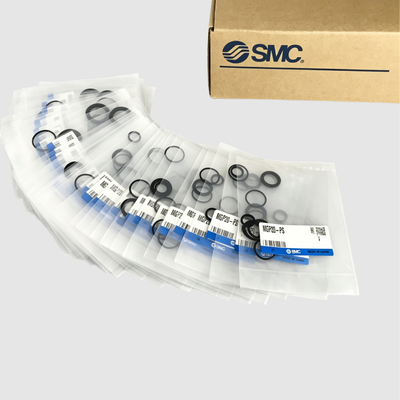

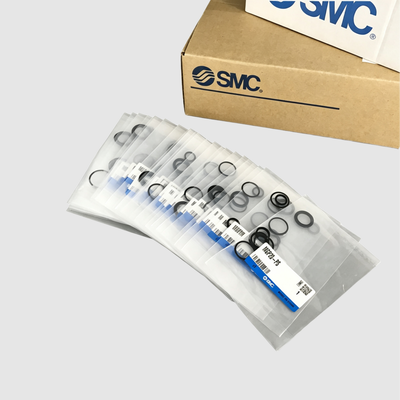

MGP25 PS Replacement Seal Assembly Minimize Machine Downtime Compatible With SMC MGP Series 25 Bore Three Rod Cylinder Swap Out Hardened And Worn Internal Seals

Product Description:

These compact guide cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and overhaul of MGP series guided pneumatic cylinders. Suitable for bore sizes ranging from 12mm to 100mm, each kit includes all essential sealing components needed for a complete cylinder rebuild: piston seal, rod seal, gasket A, and gasket B.

The seals are crafted from high-quality nitrile rubber (NBR) and urethane materials. These provide outstanding resistance to wear, oil, and abrasion, ensuring dependable performance in various pneumatic applications. The MGP series compact guide cylinders feature a slim, compact body integrated with guide rods that guarantee high non-rotating accuracy and lateral load resistance. This design makes them perfect for precision assembly tasks, pick-and-place operations, and material handling processes.

By regularly replacing seals using these kits, cylinder performance is restored, air leakage is eliminated, and the service life of existing actuators is significantly extended at a much lower cost compared to full replacement. Please note that the seal kit does not include a grease pack, which must be purchased separately (grease pack part number: GR-S-010, 10g). Additionally, for the MGP-Z series, old and new seal kits are not interchangeable, so it is important to verify the cylinder model before placing an order.

Features:

This complete seal kit comprises a piston seal, rod seal, gasket A, and gasket B, providing everything needed for a comprehensive cylinder rebuild.

The kit is available in a range of bore sizes, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm, ensuring compatibility with various cylinder dimensions.

Manufactured from NBR and urethane materials, the seals deliver outstanding resistance to oil and wear, enhancing the durability and reliability of the cylinder components.

Designed specifically for the MGP series compact guide pneumatic cylinders that feature built-in guide rods, these seals maintain optimal performance and functionality.

By effectively preventing air leakage, the seal kit restores the cylinder's original force, speed, and precise non-rotating accuracy, improving overall operation.

Offering a cost-effective solution compared to replacing the entire cylinder, this seal kit helps to extend the lifespan of your actuator and reduce maintenance expenses.

Installation is straightforward and can be completed quickly using standard tools, minimizing downtime and simplifying maintenance procedures.

This kit is ideal for applications that require high precision, such as assembly operations, pick and place tasks, and material handling processes.

Each bore size is assigned a unique kit number, which aids in inventory management by streamlining part identification and ordering.

Additionally, a separate grease pack (GR-S-010, 10g) is available to complement the seal kit and ensure proper lubrication during installation and operation.

Technical Parameters:

Applications:

In the realm of pick and place units, ensuring the proper maintenance of guided cylinders is crucial for achieving precise positioning within various systems. Regular upkeep helps maintain accuracy and prolong the lifespan of these components.

Factory automation heavily relies on the effective repair of guided cylinders used in automated production lines. Timely servicing prevents downtime and keeps production processes running smoothly and efficiently.

Material handling operations often involve conveyors and handling systems where seal replacement for cylinders is essential. Maintaining the integrity of these seals ensures optimal performance and prevents leaks or failures.

Packaging machinery requires consistent maintenance of cylinders utilized in packaging and filling equipment. Proper care ensures these machines operate reliably, maintaining high throughput and product quality.

In electronic component manufacturing, repairing cylinders within precision assembly equipment is a key aspect of sustaining accurate and repeatable assembly processes. This attention to detail supports the production of high-quality electronics.

More broadly, in general industrial pneumatics, any application that demands dependable guided cylinder sealing benefits from routine maintenance and repair. Reliable cylinder operation is fundamental to the efficiency and safety of pneumatic systems.

Support and Services:

Product Technical Support and Services for the Piston Pneumatic Cylinder include comprehensive assistance to ensure optimal performance and longevity of the product. Our support team provides detailed guidance on installation, operation, and maintenance procedures to help you achieve efficient and safe usage.

We offer troubleshooting services to quickly identify and resolve any issues that may arise during the cylinder's operation. This includes diagnostics for common problems such as air leaks, pressure inconsistencies, and mechanical wear.

Regular maintenance services are recommended to maintain the cylinder’s functionality and prevent unexpected downtime. Our experts provide advice on lubrication schedules, seal replacements, and inspection routines tailored to your specific application requirements.

Technical documentation, including user manuals, specification sheets, and CAD drawings, are available to assist with system integration and customization. Additionally, we provide training sessions and webinars to enhance your team’s knowledge and skills related to pneumatic cylinder technology.

For any product upgrades or compatibility inquiries, our support staff is ready to help you select the appropriate components and accessories to meet your operational needs.

Packing and Shipping:

Product Packaging and Shipping for Piston Pneumatic Cylinder

Each piston pneumatic cylinder is carefully packaged to ensure maximum protection during transportation. The cylinder is first wrapped in anti-static bubble wrap to prevent any damage from impact or scratches. It is then placed inside a sturdy, custom-fit cardboard box designed to minimize movement and absorb shocks.

The packaging also includes protective end caps on the cylinder’s rod and body to safeguard critical components from dust, moisture, and mechanical damage. For bulk orders, individual boxes are securely packed into larger cartons with additional cushioning materials such as foam inserts or air pillows to maintain stability.

All packages are clearly labeled with product information, handling instructions, and shipping details to ensure accurate delivery. We offer various shipping options including standard ground, expedited air freight, and international shipping to meet customer requirements.

Our logistics partners ensure timely and safe delivery from our warehouse to your facility. Tracking information is provided for all shipments to keep you informed throughout the delivery process.

Should you have any special packaging or shipping requests, please contact our customer service team for customized solutions.
