SMC Pneumatic System Repair Spare Parts MGP32 PS Seal Service Kit For SMC Compact Guided Cylinder MGP32 Suitable For High Frequency Cycle Working Condition

Product Description:

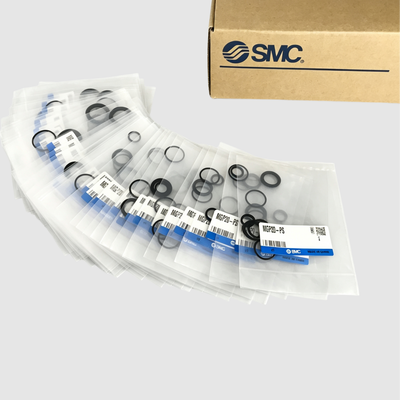

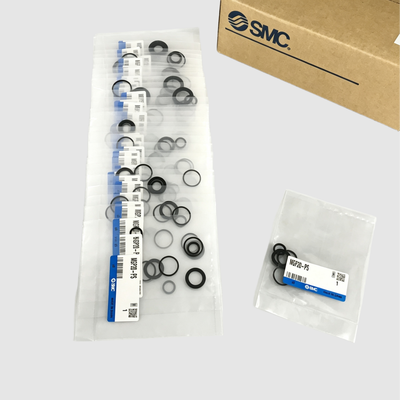

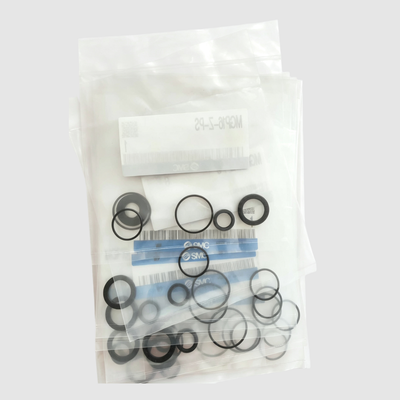

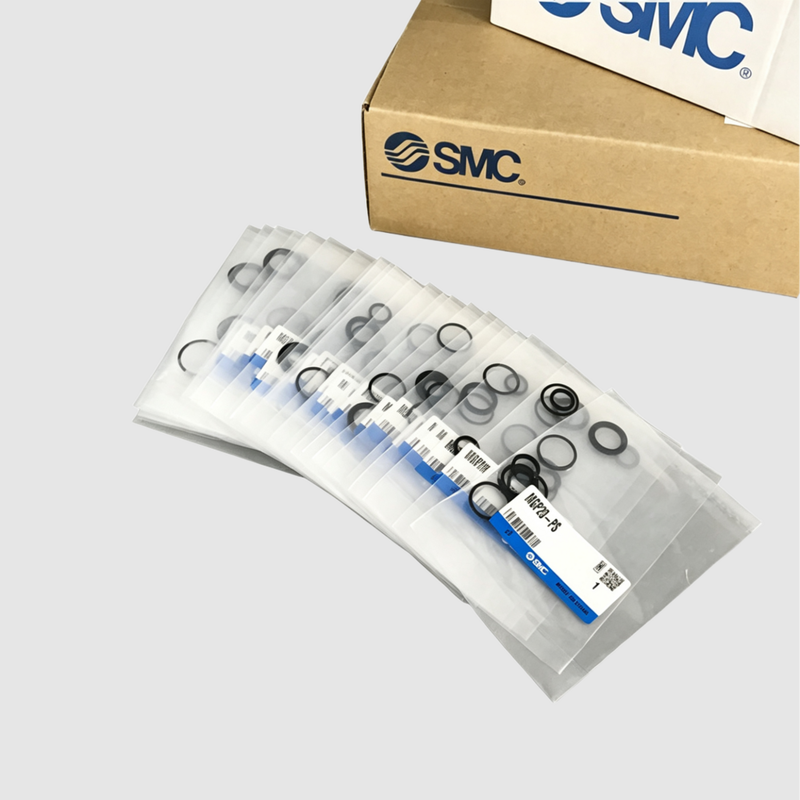

These compact guide cylinder seal kits are precision-engineered replacement sets specifically designed for the maintenance and overhaul of MGP series guided pneumatic cylinders. They are available for bore sizes ranging from 12mm to 100mm. Each kit includes all the essential sealing components needed for a thorough cylinder rebuild, such as the piston seal, rod seal, gasket A, and gasket B.

The seals are crafted from high-quality NBR (nitrile rubber) and urethane materials, which provide excellent resistance to wear, oil, and abrasion. This ensures reliable performance in various pneumatic applications. The MGP series compact guide cylinders feature a slim, compact design with integrated guide rods. This design offers high non-rotating accuracy and strong lateral load resistance, making these cylinders well-suited for precision assembly, pick and place operations, and material handling tasks.

Regularly replacing seals using these kits helps to restore the cylinder’s performance, prevent air leakage, and significantly extend the service life of existing actuators. This maintenance approach is cost-effective compared to complete cylinder replacement. Please note that the seal kit does not include a grease pack; this must be purchased separately (grease pack part number: GR-S-010, 10g). Additionally, for the MGP-Z series, the old and new seal kits are not interchangeable, so it is important to confirm the cylinder model before placing an order.

Features:

This complete seal kit provides everything needed for a full cylinder rebuild, including the piston seal, rod seal, gasket A, and gasket B. It ensures a thorough restoration of your pneumatic cylinder's performance.

The seal kits are available in various bore sizes to fit your specific requirements, including 12mm, 16mm, 20mm, 25mm, 32mm, 40mm, 50mm, 63mm, 80mm, and 100mm. This wide range accommodates many different cylinder dimensions.

Crafted from high-quality NBR and urethane materials, the seals exhibit excellent resistance to oil and wear. This durability helps maintain optimal function and longevity under demanding operating conditions.

These kits are designed to be fully compatible with MGP series compact guide pneumatic cylinders that feature built-in guide rods. By eliminating air leakage, the seal kit effectively restores the cylinder's force, speed, and non-rotating accuracy.

Using this seal kit provides a cost-effective solution compared to replacing the entire cylinder, significantly extending the life of your actuator. Installation is quick and straightforward, requiring only standard tools.

Ideal for applications such as precision assembly, pick and place operations, and material handling, the kit improves reliability and efficiency. Additionally, having one kit number per bore size simplifies inventory management.

For added convenience, a grease pack (GR-S-010, 10g) is available separately to aid in the installation and maintenance process.

Technical Parameters:

Applications:

In the field of pick and place operations, maintaining guided cylinders is essential for achieving precise positioning. Regular upkeep ensures smooth and accurate movement in these systems.

Within factory automation environments, repairing guided cylinders is a critical task to keep automated production lines running efficiently. Prompt attention to cylinder issues helps minimize downtime.

When it comes to material handling, replacing seals in cylinders used on conveyors and handling systems is a common maintenance activity. Proper sealing guarantees reliable performance and reduces the risk of leakage.

In packaging machinery, consistent maintenance of cylinders plays a vital role in the operation of packaging and filling equipment. Well-maintained cylinders contribute to the overall efficiency and precision of these machines.

The manufacturing of electronic components relies heavily on cylinders within precision assembly equipment. Repairing these cylinders ensures the continuous accuracy required in electronic component production.

Across general industrial pneumatics, any application that demands dependable guided cylinder sealing benefits from regular maintenance and repair. Ensuring reliable sealing is fundamental to maintaining optimal system performance.
