Product Description:

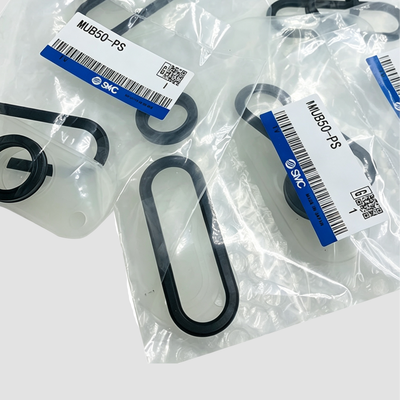

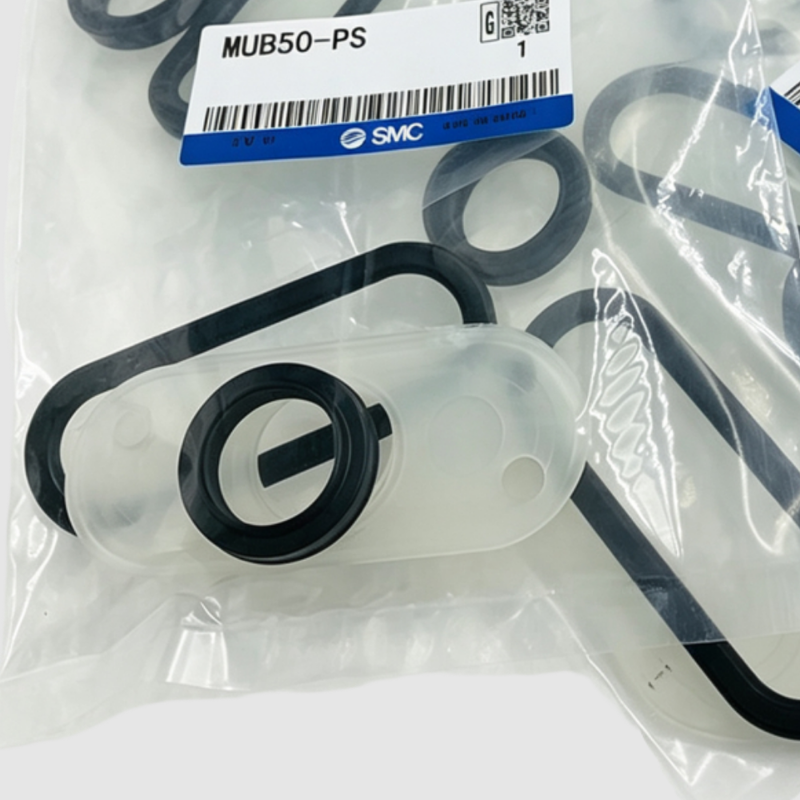

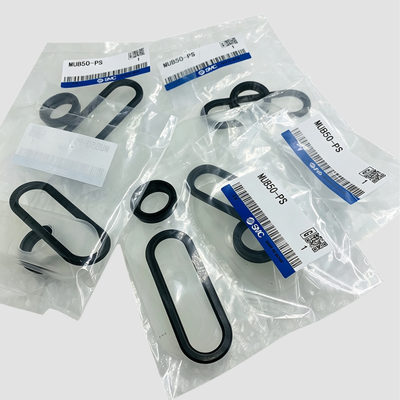

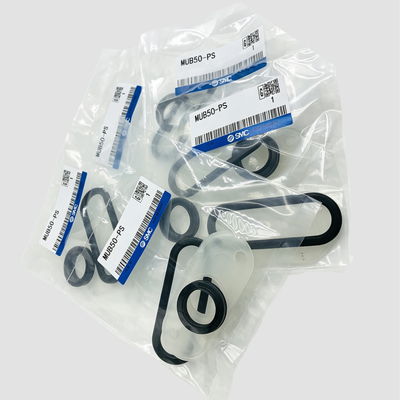

These plate cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and complete overhaul of MU series compact plate cylinders and pin clamp cylinders. They are available for bore sizes ranging from 25mm to 63mm. Each kit includes all the necessary sealing components required for a full cylinder rebuild, such as a piston seal, rod seal, and bumper.
The seals in these kits are made from premium quality NBR (nitrile rubber) for both the piston and rod seals, while the bumper is crafted from durable urethane. This material combination ensures exceptional resistance to wear, compression set, and the common pneumatic media they encounter during operation. The MU series plate cylinders feature a unique oval piston design, which inherently prevents rotation without the need for a rod with flats, thereby enhancing both bearing and seal longevity.
By regularly replacing seals using these kits, you can effectively restore the performance of your cylinders, prevent air leaks, and significantly prolong the service life of your existing actuators. This maintenance approach offers a cost-effective alternative compared to purchasing a complete replacement. Please note that the seal kit does not come with a grease pack; it needs to be ordered separately. The grease pack is available under part number GR-S-010 and contains 10 grams of grease.
Features:
This complete seal kit contains everything needed for a comprehensive cylinder rebuild, including a piston seal, rod seal, and bumper. It is designed to restore the functionality of the entire cylinder with ease.
The kit is available in multiple bore sizes: 25mm, 32mm, 40mm, 50mm, and 63mm, ensuring compatibility with a wide range of cylinders. Each component is carefully crafted to meet precise specifications.
Featuring NBR piston and rod seals, the kit offers excellent resistance to wear and compression, contributing to longer-lasting performance. Additionally, the urethane bumper delivers dependable cushioning at the end of the stroke for smooth operation.
Designed to work seamlessly with MUB and MDUB series compact plate cylinders, this seal kit helps to restore cylinder force, speed, and sealing efficiency by effectively eliminating air leakage.
Serving as a cost-effective solution, the kit allows users to avoid the expense of replacing the entire cylinder. By extending the life of the actuator, it provides significant value and reliability.
Installation is quick and straightforward, requiring only standard tools. This makes it highly suitable for applications where space is limited, such as automated assembly lines, clamping mechanisms, and indexing systems.
To simplify inventory management, there is one unique kit number assigned to each bore size. Additionally, a separate grease pack (GR-S-010, 10g) is available to facilitate maintenance.
Technical Parameters:
| Bumper Material |
Urethane |
| Bore Sizes |
25mm, 32mm, 40mm, 50mm, 63mm |
| Series |
MUB / MDUB |
| Product Type |
Seal Kit / Repair Kit |
| Kit Contents |
Piston Seal, Rod Seal, Bumper |
| Seal Material |
NBR |
Applications:
Industrial Cylinder Maintenance Services
In the field of automated assembly, we specialize in the maintenance of plate cylinders used within precision positioning systems. Our services ensure high accuracy and optimal performance for these critical components.
For clamping and indexing mechanisms, we offer repair solutions focused on the cylinders involved in clamping and indexing systems. This helps maintain the reliability and efficiency of your machinery.
Material handling systems require robust maintenance as well. We provide seal replacement services for cylinders in compact handling equipment, enhancing their durability and preventing leakage issues.
Within packaging machinery, our maintenance expertise covers cylinders used in packaging and filling devices. Regular upkeep extends equipment life and ensures smooth operation.
In the electronic component manufacturing sector, we perform cylinder repairs for precision assembly equipment, supporting the high demands for accuracy and consistency in production processes.
Lastly, for general industrial pneumatic applications, we cater to any operation that necessitates reliable and compact cylinder sealing. Our comprehensive services guarantee dependable performance across various industries.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. For technical support, we provide detailed installation guides, maintenance manuals, and troubleshooting tips to ensure optimal operation and longevity of the cylinder.
Our technical support team is available to assist with product selection, installation procedures, and resolving any operational issues you may encounter. We recommend regular inspection and maintenance, including checking for air leaks, lubricating moving parts, and verifying alignment to enhance performance and prevent premature wear.
In addition to support services, we offer repair and refurbishment options to extend the service life of your pneumatic cylinders. Replacement parts are readily available to maintain the functionality of your equipment without the need for complete unit replacement.
For customized solutions, our engineering team can work with you to tailor piston pneumatic cylinders to meet specific application requirements, including modifications in size, stroke length, and mounting configurations.
We are committed to ensuring customer satisfaction through comprehensive support and service offerings that maximize the efficiency and durability of your pneumatic systems.
Packing and Shipping:
Product Packaging: Each Piston Pneumatic Cylinder is securely packed in a protective plastic wrap to prevent dust and moisture ingress. The wrapped cylinder is then placed in a custom-fitted foam insert to minimize movement during transit. This assembly is enclosed within a sturdy cardboard box labeled with the product details, handling instructions, and barcode for easy identification. For bulk orders, individual boxes are packed into larger cartons with sufficient cushioning materials to ensure safety.
Shipping: Our Piston Pneumatic Cylinders are shipped via reliable courier services with tracking options available for all shipments. We offer multiple shipping methods including standard, expedited, and freight services to accommodate different delivery needs. All packages are marked as fragile to ensure careful handling. International shipments comply with applicable export regulations and include all necessary documentation for smooth customs clearance.
