Product Description:

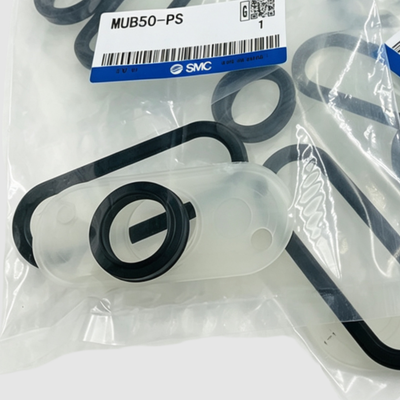

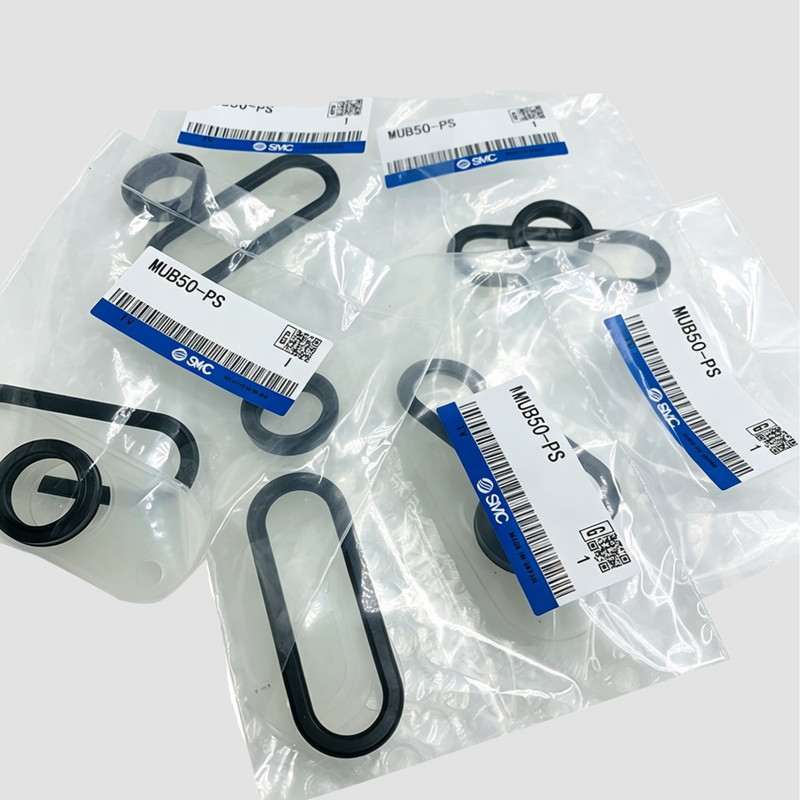

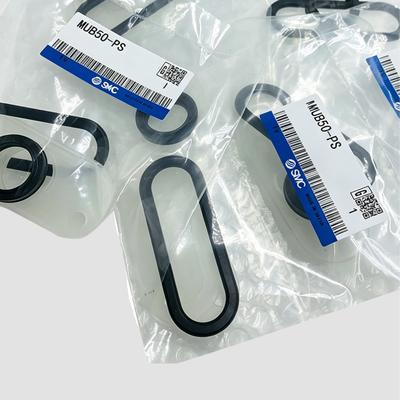

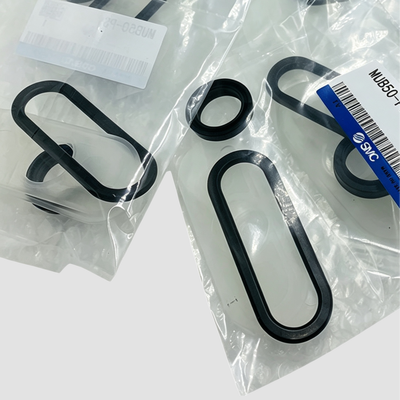

These plate cylinder seal kits are precisely engineered replacement sets specifically crafted for the maintenance and overhaul of MU series compact plate cylinders and pin clamp cylinders. They cater to a range of bore sizes, from 25mm to 63mm, ensuring suitability for various applications. Each kit is comprehensive, containing all the essential sealing components needed for a complete cylinder rebuild, including the piston seal, rod seal, and bumper.
The sealing elements within the kits are made from premium materials to guarantee durability and performance. The piston and rod seals are constructed from high-quality NBR (nitrile rubber), while the bumper is made from urethane. These materials provide excellent resistance against wear, compression set, and the common pneumatic media typically encountered in operation. Additionally, the MU series plate cylinders incorporate an oval-shaped piston design that naturally prevents rotation without the need for rods with flats, which enhances the lifespan of both the bearings and seals.
Utilizing these seal kits for regular replacement helps restore the cylinder's optimal performance, effectively eliminating air leaks. This maintenance approach significantly extends the service life of existing actuators, all at a fraction of the cost required for purchasing new cylinders. It is important to note that the seal kit does not come with a grease pack; this must be ordered separately using the part number GR-S-010, available in 10g packs.
Features:
This complete seal kit contains everything needed for a full cylinder rebuild, including a piston seal, rod seal, and bumper. It is designed to restore optimal performance by replacing worn components within the cylinder.
The kit is available in multiple bore sizes: 25mm, 32mm, 40mm, 50mm, and 63mm. This range ensures compatibility with various cylinder dimensions to meet diverse application requirements.
Featuring NBR piston and rod seals, the kit offers excellent resistance to wear and compression, enhancing durability and maintaining sealing integrity. Additionally, the urethane bumper delivers reliable cushioning at the end of the stroke, protecting the cylinder from impact damage.
It is compatible with the MUB and MDUB series of compact plate cylinders, making it an ideal choice for these models. By eliminating air leakage, the seal kit effectively restores the cylinder’s force, speed, and sealing performance.
This solution is a cost-effective alternative to replacing the entire cylinder, significantly extending the lifespan of the actuator. Installation is quick and straightforward, requiring only standard tools, which minimizes downtime.
The compact design makes the seal kit perfect for applications with limited space such as automated assembly lines, clamping, and indexing systems. Furthermore, having one kit number per bore size simplifies inventory management.
For added convenience, a grease pack (GR-S-010, 10g) is available separately to ensure proper lubrication during installation and operation.
Technical Parameters:
| Seal Material |
NBR |
| Series |
MUB / MDUB |
| Kit Contents |
Piston Seal, Rod Seal, Bumper |
| Bore Sizes |
25mm, 32mm, 40mm, 50mm, 63mm |
| Product Type |
Seal Kit / Repair Kit |
| Bumper Material |
Urethane |
Applications:
Automated Assembly
We provide maintenance services for plate cylinders used within precision positioning systems, ensuring optimal performance and longevity.
Clamping and Indexing Systems
Our expertise includes repairing cylinders that are part of clamping and indexing mechanisms, helping to maintain accuracy and efficiency in production processes.
Material Handling
We specialize in replacing seals for cylinders integrated into compact handling systems to prevent leaks and enhance operational reliability.
Packaging Machinery
Our maintenance services cover cylinders utilized in packaging and filling equipment, ensuring smooth and continuous operation.
Electronic Component Manufacturing
Cylinder repair in precision assembly equipment is part of our service offerings, supporting high-quality manufacturing standards in the electronics industry.
General Industrial Pneumatics
We cater to a wide range of applications that demand reliable and compact cylinder sealing, guaranteeing dependable performance in various industrial environments.
