Product Description:

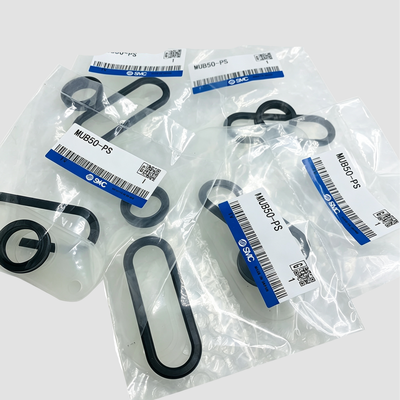

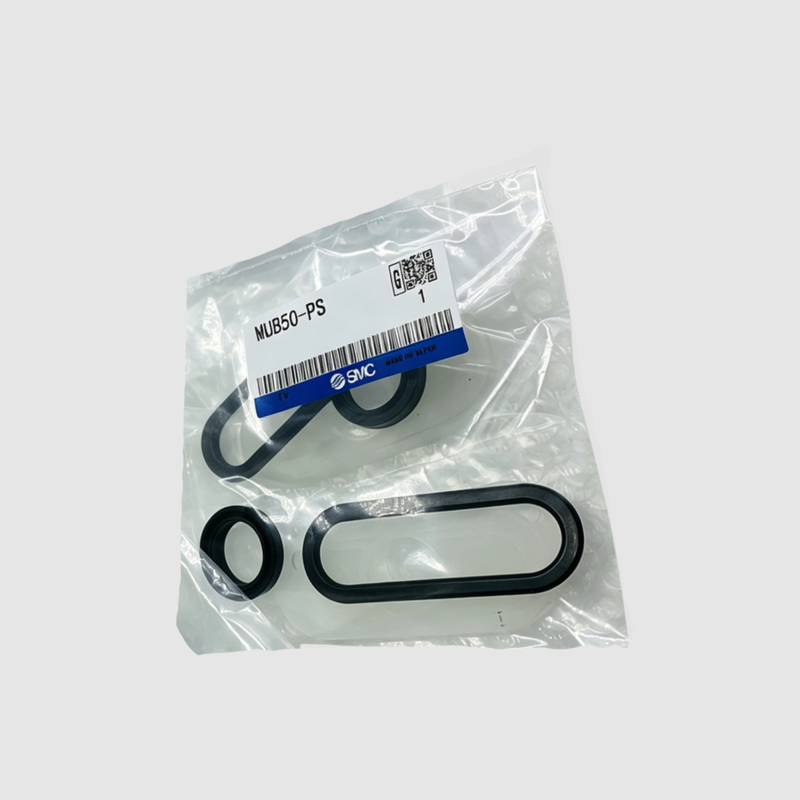

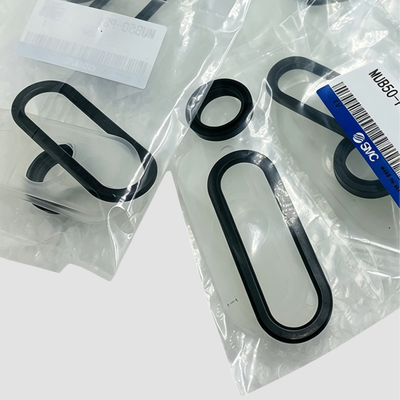

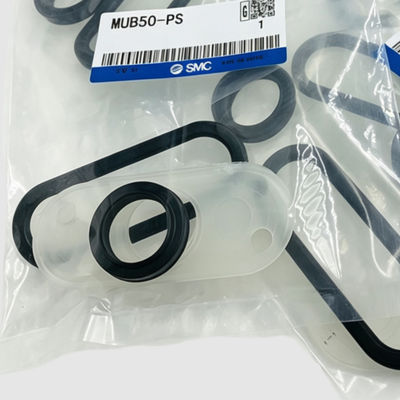

These plate cylinder seal kits are precision-engineered replacement sets specifically designed for the maintenance and overhaul of MU series compact plate cylinders and pin clamp cylinders. They are available in bore sizes ranging from 25mm to 63mm. Each kit includes all the essential sealing components needed for a complete cylinder rebuild: the piston seal, rod seal, and bumper.
The seals are crafted from high-quality materials to ensure durability and performance. The piston and rod seals are made from NBR (nitrile rubber), known for its excellent resistance to wear, compression set, and common pneumatic media. The bumper is produced using urethane, which also offers superior wear resistance. The MU series plate cylinders are distinguished by their oval piston shape, which provides an inherent non-rotating functionality without the need for a rod with flats. This design enhances both bearing and seal longevity.
By regularly replacing seals with these kits, users can restore the performance of their cylinders, eliminate air leaks, and extend the lifespan of existing actuators significantly, all at a fraction of the cost compared to full replacements. Please note that the seal kit does not come with a grease pack. The grease pack should be ordered separately, with the part number GR-S-010, which contains 10g of grease.
Features:
This complete seal kit contains everything needed for a comprehensive cylinder rebuild, including a piston seal, rod seal, and bumper. It ensures a thorough restoration of your cylinder's performance.
The kit is available for various bore sizes, specifically 25mm, 32mm, 40mm, 50mm, and 63mm, catering to a wide range of applications.
Featuring NBR piston and rod seals, the kit provides excellent resistance to wear and compression, enhancing durability and longevity. Additionally, the urethane bumper delivers dependable cushioning at the end of the cylinder stroke.
It is designed to be compatible with the MUB and MDUB series of compact plate cylinders, making it a versatile choice for these models.
By eliminating air leakage, this seal kit helps restore the cylinder’s force, speed, and sealing efficiency, improving overall actuator performance.
Serving as a cost-effective solution, the seal kit extends the actuator's life by avoiding the need to replace the entire cylinder. Installation is quick and straightforward using standard tools.
This kit is ideal for space-limited environments, such as automated assembly lines, clamping mechanisms, and indexing systems, where compact and reliable components are essential.
Each bore size is assigned a unique kit number, simplifying inventory management and ordering processes.
For additional convenience, a separate grease pack (GR-S-010, 10g) is available to facilitate proper maintenance.
Technical Parameters:
| Product Type |
Seal Kit / Repair Kit |
| Bore Sizes |
25mm, 32mm, 40mm, 50mm, 63mm |
| Kit Contents |
Piston Seal, Rod Seal, Bumper |
| Seal Material |
NBR |
| Bumper Material |
Urethane |
| Series |
MUB / MDUB |
Applications:
Automated Assembly
We specialize in the maintenance of plate cylinders used within precision positioning systems. Ensuring these components operate flawlessly is essential for maintaining high accuracy and efficiency in automated assembly processes.
Clamping and Indexing Systems
Our services include the repair of cylinders found in clamping and indexing mechanisms. These repairs help extend the lifespan and reliability of equipment critical to secure and accurate positioning.
Material Handling
We provide seal replacement services for cylinders utilized in compact handling systems. Proper sealing is vital to prevent leaks and ensure consistent performance in material handling operations.
Packaging Machinery
Maintenance of cylinders within packaging and filling equipment is another area of our expertise. Regular upkeep helps maintain smooth operation and prevents downtime in packaging processes.
Electronic Component Manufacturing
Our team handles cylinder repairs in precision assembly equipment used for manufacturing electronic components, contributing to the accuracy and quality required by this industry.
General Industrial Pneumatics
We cater to any application that demands reliable compact cylinder sealing. Our solutions ensure robust performance across a wide range of industrial pneumatic systems.
Support and Services:
Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in a wide range of industrial applications. For technical support, we provide comprehensive assistance including installation guidance, troubleshooting, maintenance tips, and performance optimization.
Our team of experts is available to help you select the right cylinder specifications for your application, ensure proper integration with your pneumatic system, and address any operational issues you may encounter.
We offer detailed product manuals, technical datasheets, and application notes to support your use of the Piston Pneumatic Cylinder.
Additionally, we provide repair and replacement services to minimize downtime and maintain productivity. Routine maintenance services are recommended to extend the life of the cylinder and ensure consistent operation.
For customized solutions, our engineering team can assist with modifications and special configurations to meet unique requirements.
We are committed to delivering high-quality technical support and services to ensure your complete satisfaction with our Piston Pneumatic Cylinder product.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure it arrives in perfect condition. Each cylinder is securely wrapped in protective foam and placed inside a sturdy cardboard box to prevent any damage during transit. The packaging is designed to protect the product from moisture, dust, and impacts.
For shipping, we use reliable courier services with tracking options to provide timely and safe delivery. Depending on the destination, shipments are made via air or ground transport, ensuring prompt arrival. All orders include detailed documentation and handling instructions to facilitate smooth customs clearance and installation.
