Product Description:

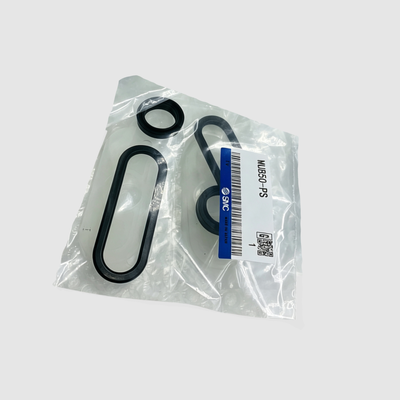

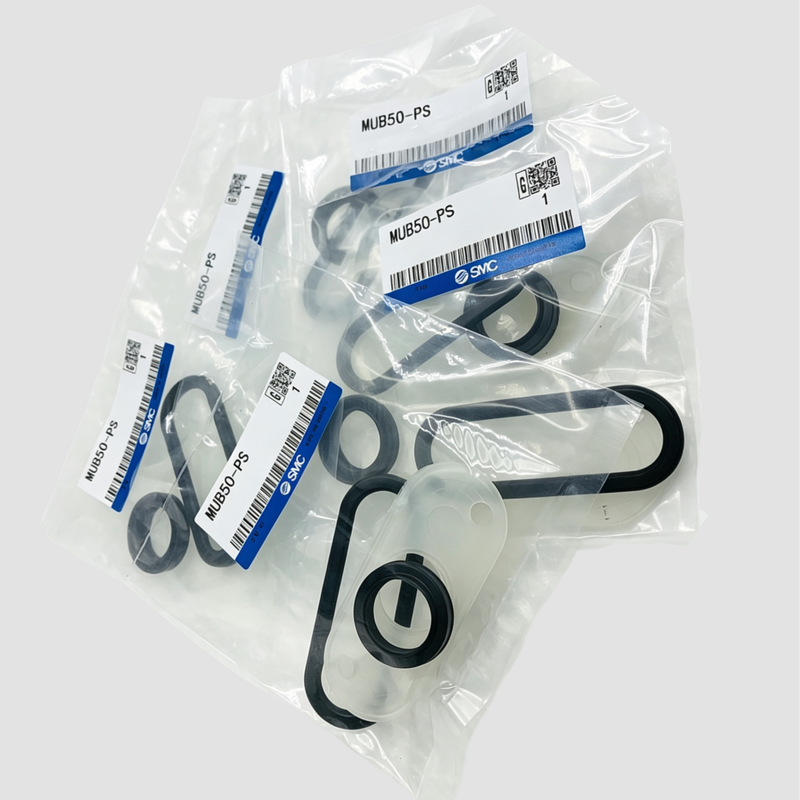

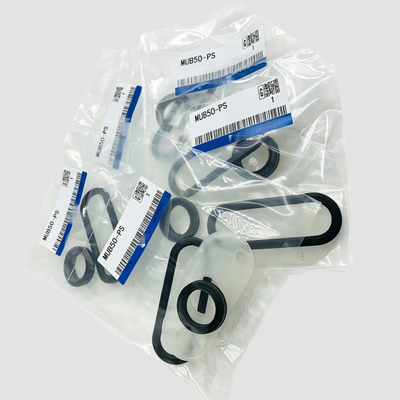

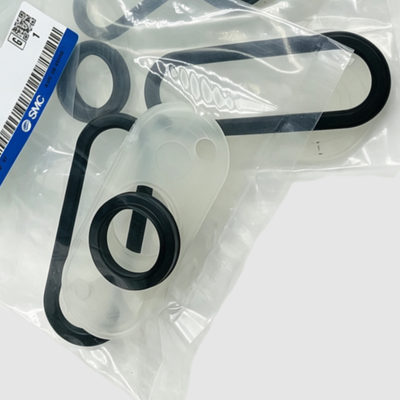

These plate cylinder seal kits are precisely engineered replacement sets specifically designed for the maintenance and overhaul of the MU series compact plate cylinders and pin clamp cylinders. They cater to bore sizes ranging from 25mm up to 63mm, and each kit includes all the essential sealing components required for a comprehensive cylinder rebuild, such as the piston seal, rod seal, and bumper.
The sealing components are made from premium materials to ensure durability and performance. The piston and rod seals utilize high-quality NBR (nitrile rubber), while the bumper is crafted from urethane. These materials provide excellent resistance against wear, compression set, and common pneumatic media, ensuring long-lasting reliability. The MU series plate cylinders feature a unique oval piston design that inherently prevents rotation without the need for rod flats, thereby enhancing both bearing and seal longevity.
Using these seal kits for regular replacement helps restore optimal cylinder performance by eliminating air leakage and significantly extending the service life of existing actuators. This maintenance approach is a cost-effective alternative compared to full cylinder replacement. Please note that the seal kit does not include a grease pack, which is recommended to be purchased separately. The grease pack part number is GR-S-010 and contains 10 grams.
Features:
This complete seal kit is designed to include all necessary components for a full cylinder rebuild. It contains the piston seal, rod seal, and bumper, providing everything needed to restore your cylinder to optimal performance.
The seal kits are available in multiple bore sizes to fit a range of applications, including 25mm, 32mm, 40mm, 50mm, and 63mm. This variety ensures compatibility with different cylinder dimensions.
High-quality NBR (Nitrile Butadiene Rubber) piston and rod seals are featured in the kit, offering outstanding resistance to wear and compression. This durability helps maintain the integrity and efficiency of the cylinder seals over time.
In addition, the urethane bumper included in the kit delivers dependable cushioning at the end of the piston stroke. This reduces impact stress and extends the lifespan of the cylinder components.
The kit is specifically compatible with the MUB and MDUB series of compact plate cylinders. Using this kit will help restore the cylinder's original force, speed, and sealing ability by effectively eliminating air leakage.
Opting for the seal kit is a cost-effective alternative to replacing the entire cylinder unit. It not only extends the operational life of the actuator but also reduces maintenance expenses.
Installation is straightforward and can be completed quickly with standard tools, minimizing downtime and simplifying maintenance procedures.
This seal kit is ideal for applications where space is limited, such as automated assembly lines, clamping mechanisms, and indexing systems, making it a versatile solution for compact environments.
Each bore size corresponds to a single kit number, which helps streamline inventory management and ordering processes.
Additionally, a grease pack (GR-S-010, 10g) is available separately to assist with lubrication during installation and maintenance.
Technical Parameters:
| Bumper Material |
Urethane |
| Kit Contents |
Piston Seal, Rod Seal, Bumper |
| Product Type |
Seal Kit / Repair Kit |
| Seal Material |
NBR |
| Bore Sizes |
25mm, 32mm, 40mm, 50mm, 63mm |
| Series |
MUB / MDUB |
Applications:
Automated Assembly
Maintenance of plate cylinders is crucial in precision positioning systems used in automated assembly. Ensuring these cylinders function optimally helps maintain accuracy and efficiency in the assembly process.
Clamping and Indexing Systems
Repair and servicing of cylinders in clamping and indexing mechanisms are essential for smooth and reliable operation. Proper upkeep guarantees consistent performance and extends the lifespan of these components.
Material Handling
Replacing seals in cylinders used within compact material handling systems is a key maintenance task. This helps prevent leaks and downtime, ensuring continuous and effective material transport.
Packaging Machinery
Regular maintenance of cylinders in packaging and filling equipment supports consistent production quality. Proper care reduces wear and enhances the reliability of packaging operations.
Electronic Component Manufacturing
Repairing cylinders involved in precision assembly equipment is vital to maintain high standards in electronic component manufacturing. Accurate and reliable cylinder function contributes to product quality.
General Industrial Pneumatics
Across various industrial applications, the need for dependable and compact cylinder sealing is universal. Comprehensive maintenance ensures cylinders meet the demands of any task requiring pneumatic actuation.
Support and Services:
Our Piston Pneumatic Cylinder product is supported by a dedicated technical team to ensure optimal performance and reliability. We provide comprehensive product documentation, including installation guides, operation manuals, and maintenance instructions to help you get the most out of your pneumatic cylinder.
Technical support is available to assist with troubleshooting, configuration, and application advice. Our experts can guide you through selecting the right cylinder specifications for your needs and provide recommendations for integration with your existing systems.
We also offer repair and maintenance services to extend the lifespan of your pneumatic cylinders. Regular service checks and parts replacement can be arranged to minimize downtime and maintain efficiency.
For custom applications, our engineering team can collaborate with you to design and manufacture cylinders tailored to your specific requirements, ensuring seamless compatibility and enhanced performance.
Our commitment is to provide reliable and timely support to keep your operations running smoothly with the highest level of customer satisfaction.
Packing and Shipping:
Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped in anti-static foam and placed inside a sturdy, custom-fitted cardboard box to prevent any movement or damage. Additionally, desiccant packets are included to protect against moisture.
For shipping, we use reliable carriers with tracking options to ensure timely and safe delivery. All packages are labeled clearly with handling instructions to avoid rough handling. Customers receive a tracking number promptly after dispatch to monitor their shipment until it arrives at their doorstep.
