Product Description:

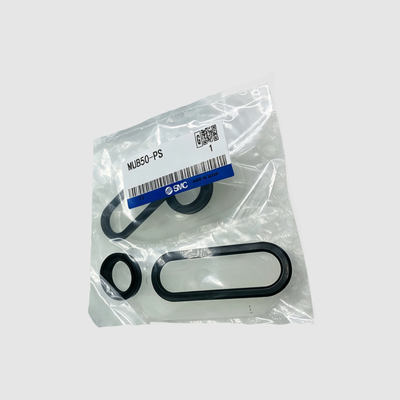

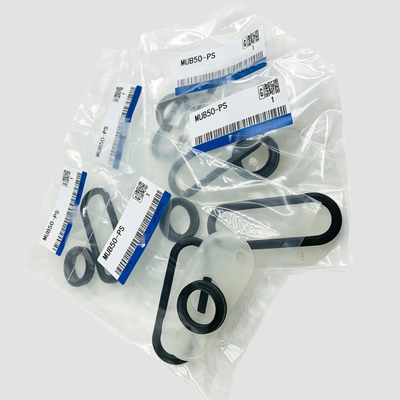

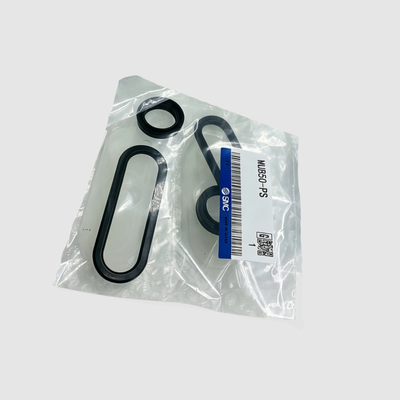

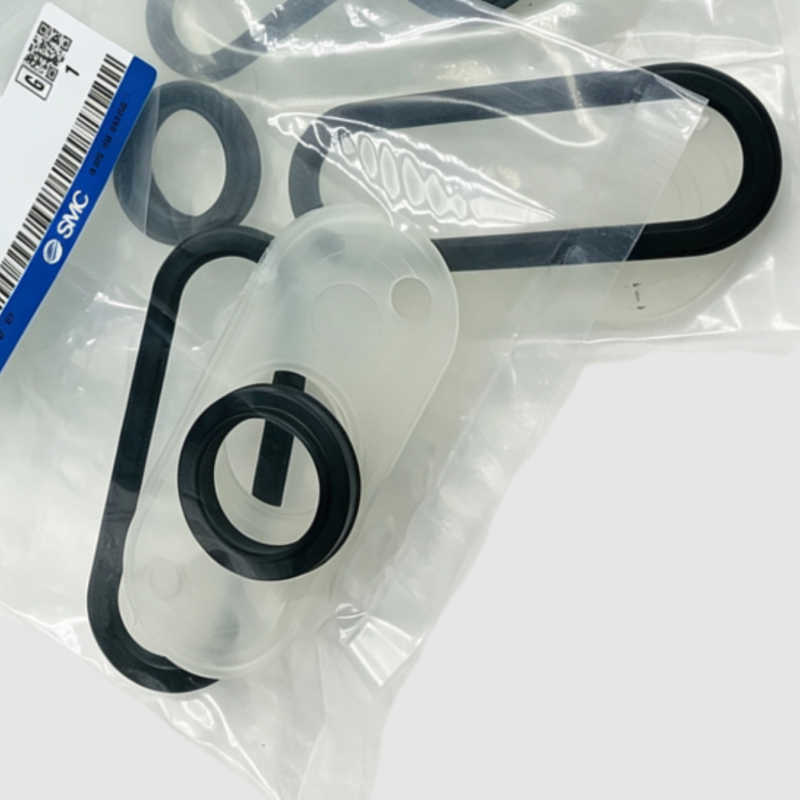

These plate cylinder seal kits are precisely engineered replacement sets intended for the maintenance and complete overhaul of MU series compact plate cylinders and pin clamp cylinders. Designed to accommodate bore sizes ranging from 25mm to 63mm, each kit includes all the necessary sealing components needed for a full cylinder rebuild, such as the piston seal, rod seal, and bumper.
The seals are crafted from premium materials: the piston and rod seals utilize high-quality NBR (nitrile rubber), while the bumper is made from durable urethane. This combination ensures excellent resistance against wear, compression set, and common pneumatic media. The MU series plate cylinders feature a uniquely oval-shaped piston that inherently prevents rotation without the need for rods with flats, resulting in enhanced bearing and seal longevity.
By regularly replacing seals with these kits, users can restore their cylinder's optimal performance, effectively eliminate air leaks, and significantly extend the service life of their existing actuators— all at a fraction of the cost compared to purchasing new cylinders. It is important to note that the seal kit does not include a grease pack, which must be purchased separately (grease pack part number: GR-S-010, 10g).
Features:
The complete seal kit includes essential components such as the piston seal, rod seal, and bumper, providing everything needed for a comprehensive cylinder rebuild.
This seal kit is available in various bore sizes, including 25mm, 32mm, 40mm, 50mm, and 63mm, ensuring compatibility with a wide range of applications.
Equipped with NBR piston and rod seals, the kit offers excellent resistance to wear and compression, enhancing the durability and performance of the cylinder.
The urethane bumper included in the kit delivers reliable cushioning at the end of each stroke, helping to protect the cylinder and maintain smooth operation.
Designed to work with MUB and MDUB series compact plate cylinders, this seal kit helps restore the cylinder's force, speed, and sealing performance by effectively eliminating air leakage.
As a cost-effective alternative to replacing the entire cylinder, the seal kit extends the life of your actuator while maintaining optimal function.
Installation is quick and straightforward, requiring only standard tools, which minimizes downtime and labor costs.
This seal kit is ideal for applications with limited space, such as automated assembly lines, clamping mechanisms, and indexing systems.
Each bore size corresponds to a unique kit number, simplifying inventory management and ensuring easy identification.
Additionally, a grease pack (GR-S-010, 10g) is available separately to support proper seal installation and maintenance.
Technical Parameters:
| Bumper Material |
Urethane |
| Product Type |
Seal Kit / Repair Kit |
| Series |
MUB / MDUB |
| Bore Sizes |
25mm, 32mm, 40mm, 50mm, 63mm |
| Kit Contents |
Piston Seal, Rod Seal, Bumper |
| Seal Material |
NBR |
