Product Description:

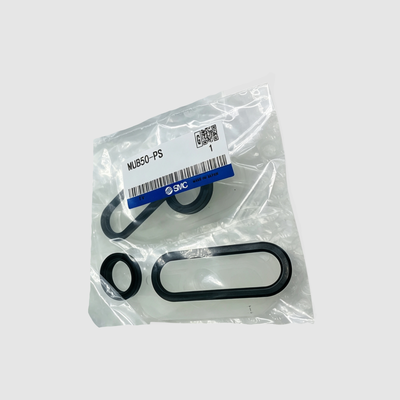

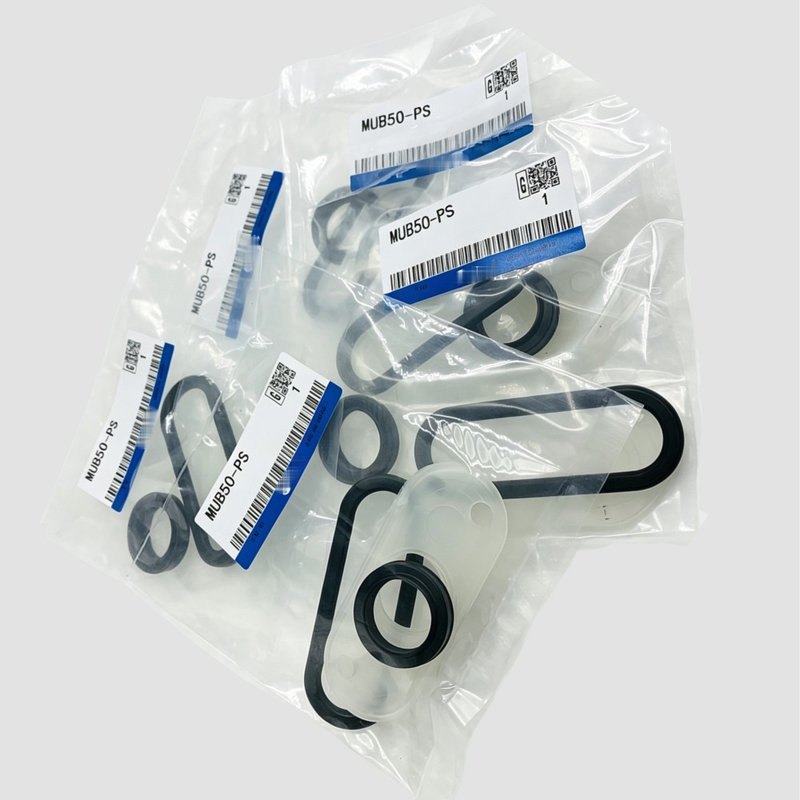

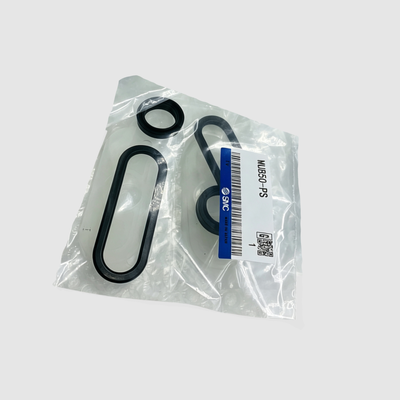

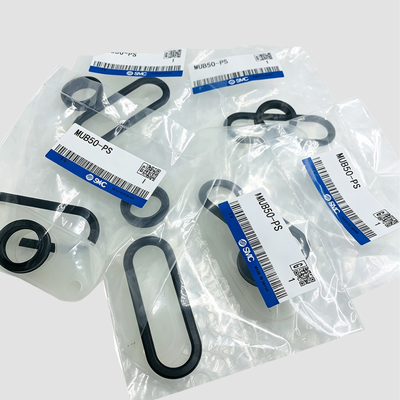

These plate cylinder seal kits are precisely engineered replacement sets intended for the maintenance and overhaul of MU series compact plate cylinders and pin clamp cylinders. They are available for bore sizes ranging from 25mm to 63mm. Each kit includes all the essential sealing components necessary for a comprehensive cylinder rebuild, such as the piston seal, rod seal, and bumper.
The seals are made from premium materials: NBR (nitrile rubber) is used for the piston and rod seals, while the bumper is constructed from durable urethane. This combination ensures excellent resistance to wear, compression set, and common pneumatic media. The MU series plate cylinders feature an oval-shaped piston design that inherently prevents rotation without needing a rod with flats, which enhances the longevity of both bearings and seals.
Regularly replacing seals with these kits helps to restore the cylinder’s original performance, prevents air leakage, and significantly extends the service life of your existing actuators, all at a much lower cost compared to purchasing new units.
Please note that the seal kit does not include a grease pack. If lubrication is required, the grease pack must be ordered separately. The recommended grease pack part number is GR-S-010, which contains 10 grams.
Features:
This complete seal kit includes all necessary components for a full cylinder rebuild, featuring a piston seal, rod seal, and bumper. It ensures comprehensive maintenance and restoration of your cylinder's performance.
Available in a range of bore sizes — 25mm, 32mm, 40mm, 50mm, and 63mm — the kit caters to various cylinder specifications. The seals are made from NBR material, known for its excellent wear resistance and ability to maintain compression.
The urethane bumper included in the kit offers dependable cushioning at the end of the stroke, protecting the cylinder from impact damage and enhancing durability. This design provides smooth operation and extends the life of your cylinder.
Fully compatible with the MUB and MDUB series compact plate cylinders, the seal kit helps restore the original cylinder force, speed, and sealing efficiency by effectively eliminating air leaks.
Serving as a cost-effective alternative to replacing the entire cylinder, this kit significantly extends the lifespan of your actuator. Installation is straightforward and can be completed quickly with standard tools.
Ideal for applications where space is limited, such as automated assembly lines, clamping systems, and indexing mechanisms, the kit supports efficient system operation without requiring additional room.
Each bore size is represented by a unique kit number, simplifying inventory management and ordering processes. Additionally, a separate grease pack (GR-S-010, 10g) is available to assist with proper maintenance.
Technical Parameters:
| Seal Material | NBR |
| Series | MUB / MDUB |
| Product Type | Seal Kit / Repair Kit |
| Bumper Material | Urethane |
| Kit Contents | Piston Seal, Rod Seal, Bumper |
| Bore Sizes | 25mm, 32mm, 40mm, 50mm, 63mm |
Applications:
Automated Assembly
Maintenance of plate cylinders used in precision positioning systems plays a critical role in ensuring smooth and accurate operation within automated assembly lines. Regular servicing helps maintain the precision and efficiency required for high-quality production.
Clamping and Indexing Systems
Repair services are essential for cylinders involved in clamping and indexing mechanisms. Proper upkeep guarantees that these systems function reliably, supporting consistent performance in manufacturing processes.
Material Handling
Replacing seals in cylinders used within compact material handling systems is vital to prevent leaks and maintain optimal performance. This maintenance activity extends the lifespan of the equipment and ensures continuous operation.
Packaging Machinery
Maintenance of cylinders in packaging and filling equipment is crucial for minimizing downtime and maintaining production speed. Regular inspection and repair help to keep these machines running efficiently.
Electronic Component Manufacturing
In precision assembly equipment used for electronic component manufacturing, cylinder repair is necessary to maintain accuracy and reliability. Ensuring the integrity of these components supports high-quality assembly outcomes.
General Industrial Pneumatics
For any industrial pneumatic application requiring dependable and compact cylinder sealing, proper maintenance and repair are indispensable. Reliable sealing is key to the functionality and safety of pneumatic systems across various industries.
Support and Services:
Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in a wide range of industrial applications. To ensure optimal operation, it is important to follow proper installation, maintenance, and troubleshooting procedures.
Installation: Before installing the cylinder, verify that all components are free from damage and contamination. Mount the cylinder securely using appropriate fittings, ensuring alignment to prevent side loads which can cause premature wear. Connect the pneumatic lines according to the specified ports and ensure that the air supply meets the required pressure and quality standards.
Maintenance: Regular maintenance is essential for the longevity and performance of the piston pneumatic cylinder. Periodically inspect the cylinder for signs of wear, leakage, or damage. Lubricate moving parts as recommended by the manufacturer to reduce friction and wear. Replace seals and other consumables as needed to maintain airtightness and smooth operation.
Troubleshooting: Common issues with pneumatic cylinders include air leakage, slow or erratic movement, and failure to hold position. Check for leaks in pneumatic connections and seals, verify air pressure levels, and inspect for obstructions or damage within the cylinder bore. Address any identified issues promptly to prevent further damage.
For detailed technical specifications, installation guides, and maintenance schedules, please refer to the product manual provided with your piston pneumatic cylinder.
We are committed to supporting our customers with high-quality products and expert technical assistance to ensure your operations run smoothly and efficiently.
Packing and Shipping:
Each Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. The cylinder is first wrapped in anti-static bubble wrap to prevent any surface damage and protect against moisture. It is then placed inside a sturdy, custom-fitted cardboard box designed to minimize movement and absorb shocks.
For added safety, foam inserts or padding materials are used within the box to secure the cylinder firmly in place. The packaging is sealed with high-quality tape and clearly labeled with handling instructions such as "Fragile" and "Handle with Care" to inform shipping personnel.
All orders are shipped via reliable carriers with tracking options available to ensure timely delivery. Depending on the destination, customers may choose from standard, expedited, or express shipping methods. We also provide international shipping with appropriate customs documentation included.
Upon receipt, customers are advised to inspect the packaging and product for any signs of damage before signing for delivery. In the unlikely event of damage during shipping, please contact our customer service team immediately for assistance with claims or replacements.
