MDUB63-PS Pneumatic Actuator Seal Replacement Service Set For SMC 63mm Bore Flat Multi Mount Cylinder Ideal For Packaging Lines Light Punching Machine And Automated Workstation Cylinder Repair

Product Description:

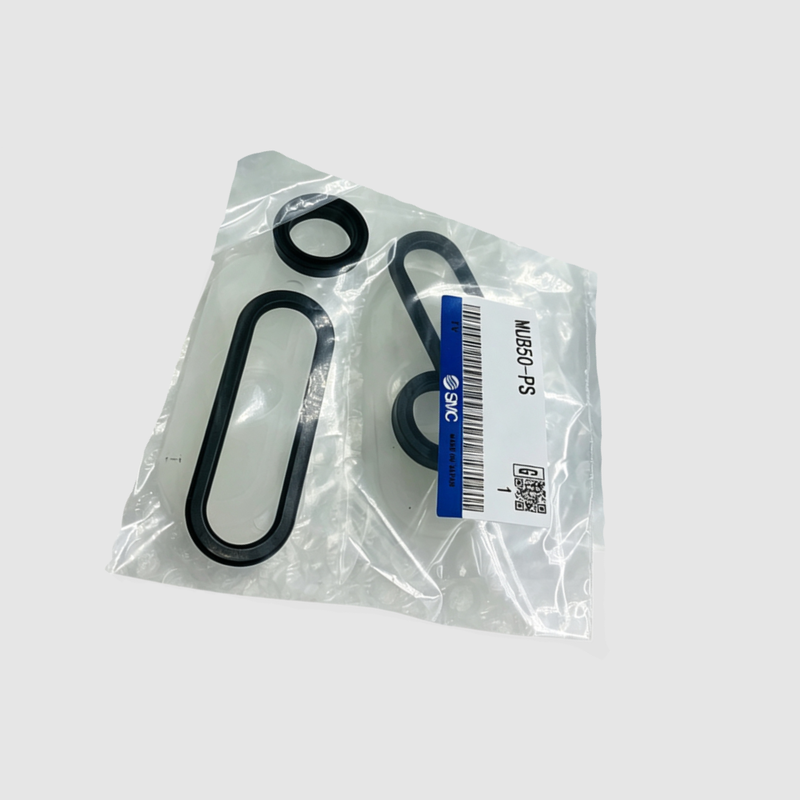

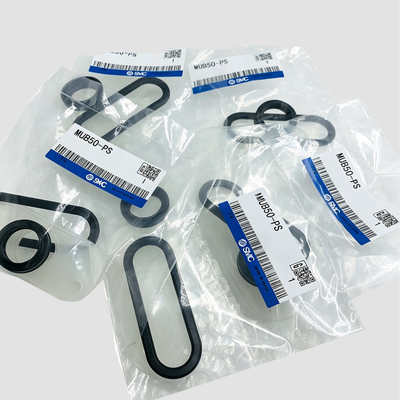

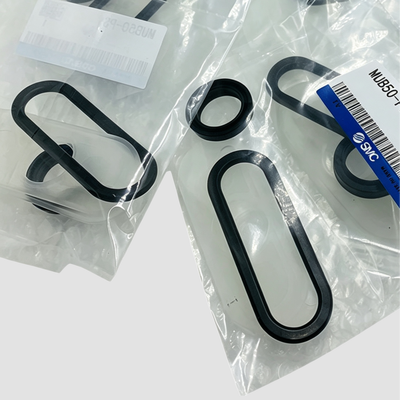

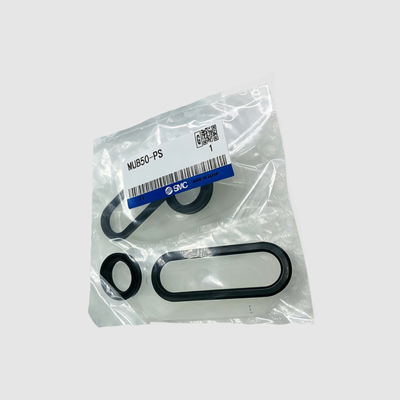

These plate cylinder seal kits are precisely engineered as replacement sets intended for the maintenance and refurbishment of MU series compact plate cylinders and pin clamp cylinders. They are available for bore sizes ranging from 25mm to 63mm. Each kit includes all the essential sealing components needed for a comprehensive cylinder rebuild, such as the piston seal, rod seal, and bumper.

The sealing elements are crafted from premium materials: NBR (nitrile rubber) is used for both the piston and rod seals, while the bumper is made from durable urethane. These materials provide excellent resistance to wear, compression set, and the effects of common pneumatic media. Additionally, the MU series plate cylinders have an oval-shaped piston that ensures a built-in non-rotating feature without the need for a rod with flats, which enhances both bearing and seal longevity.

Regular replacement of seals using these kits helps to restore optimal cylinder performance, prevent air leaks, and significantly extend the operational lifespan of existing actuators. This maintenance approach offers a cost-effective alternative to full cylinder replacements. Please note that the seal kit does not contain a grease pack; this must be purchased separately. The recommended grease pack part number is GR-S-010, available in a 10g size.

Features:

The complete seal kit includes all necessary components for a full cylinder rebuild, featuring a piston seal, rod seal, and a bumper. This ensures comprehensive maintenance and restoration of your cylinder’s performance.

Seal kits are available in multiple bore sizes, specifically 25mm, 32mm, 40mm, 50mm, and 63mm, catering to a wide range of applications and cylinder dimensions.

High-quality NBR piston and rod seals are used, providing excellent resistance to wear and compression. This durability helps maintain sealing integrity over extended operational periods.

The urethane bumper included in the kit offers dependable cushioning at the end of the cylinder stroke, protecting components from impact and contributing to smoother operation.

These seal kits are compatible with MUB and MDUB series compact plate cylinders, making them a versatile choice for maintaining your existing equipment.

By effectively eliminating air leakage, the seal kit restores the cylinder's force, speed, and sealing performance, ensuring reliable and efficient actuator function.

Opting for the seal kit is a cost-effective solution that extends the life of your actuator, providing an economical alternative to purchasing a completely new cylinder.

Installation is quick and straightforward, requiring only standard tools, which helps minimize downtime during maintenance.

The kit is ideal for applications with limited space, such as automated assembly lines, clamping mechanisms, and indexing systems, where compact and reliable components are essential.

Each bore size corresponds to a single kit number, simplifying inventory management and order processing for maintenance teams.

Additionally, a grease pack (GR-S-010, 10g) is available separately to ensure optimal lubrication during installation and operation.

Technical Parameters:

This piston pneumatic cylinder seal kit is an ideal norgren overhaul kit, norgren cylinder repair kit, and pneumatic cylinder repair kit designed for efficient maintenance and repair.

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed to deliver reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual for installation guidelines, maintenance instructions, and troubleshooting tips to ensure optimal operation.

We offer comprehensive services including installation assistance, routine maintenance, and repair support to maximize the lifespan and functionality of your pneumatic cylinder. Our technical team is equipped to provide detailed guidance on system integration and customization to meet your specific requirements.

Replacement parts and accessories are available to support your ongoing operational needs. Regular inspections and preventive maintenance are recommended to avoid downtime and maintain consistent performance.

For detailed technical documentation, updates, and FAQs, please visit the official product support section on our website.
