SMC Pneumatic Cylinder Service Kit CS1‑200A‑PS / CS2‑200A‑PS Precisely Sized Sealing Components Fix Rod And Piston Air Leakage For Steel Tube Cylinder Maintenance

Product Description:

These tie rod cylinder seal kits are meticulously engineered replacement sets intended for the maintenance and complete overhaul of CS1 series large bore pneumatic cylinders. They cater to bore sizes ranging from 125mm up to 300mm. Each kit is equipped with all the essential sealing components necessary for a thorough cylinder rebuild, including a wiper ring, cushion seal, rod seal, piston seal, valve seal, tube gasket, and retaining plate gasket.

Additionally, each seal kit comes with a specially measured grease pack tailored to the bore size to ensure optimal lubrication during installation. The grease pack quantities are 40 grams for 125-160mm bores, 50 grams for 180-200mm bores, and 60 grams for 250-300mm bores, facilitating smooth assembly and reliable sealing performance.

Manufactured from premium-grade NBR (nitrile rubber), these seals provide excellent resistance against wear, oil, and abrasion, guaranteeing dependable performance in pneumatic applications. The CS1 series pneumatic cylinders feature a square cover, tie-rod type construction, and available bore sizes from 125mm to 300mm. They come in configurations including double acting single rod and double rod types, making them versatile for use in standard, lube/non-lube, and air-hydro operations.

Routine replacement of seals using these kits helps restore the cylinder's performance, effectively prevents air leakage, and significantly extends the operational life of existing actuators. This maintenance is cost-effective compared to full cylinder replacement. It is important to note that certain components such as the piston gasket, guide gasket, and some other parts are non-replaceable and therefore are not included in the seal kit.

Features:

This comprehensive seal kit includes all necessary components for a complete cylinder overhaul. Inside each kit, you will find a wiper ring, cushion seal, rod seal, piston seal, valve seal, tube gasket, and retaining plate gasket, ensuring a thorough rebuild of your pneumatic cylinder.

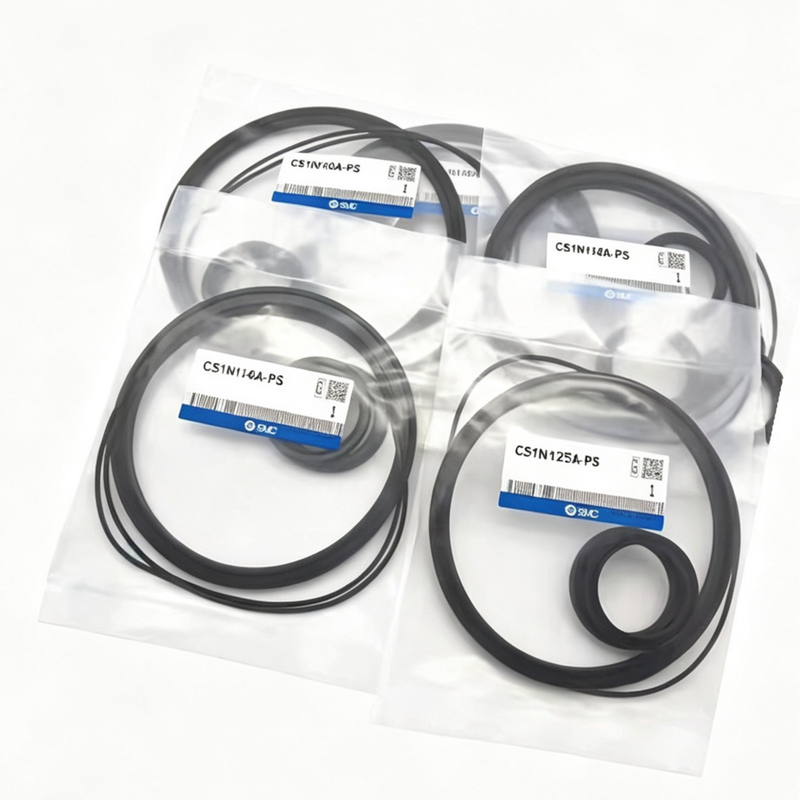

Our seal kits are designed to accommodate a variety of bore sizes, including 125mm, 140mm, 160mm, 180mm, 200mm, 250mm, and 300mm. This wide selection makes it easy to find the perfect fit for your specific cylinder requirements.

Each seal is crafted from high-quality nitrile rubber (NBR), providing exceptional resistance to oil and wear. These durable seals ensure reliable performance and long-lasting service in demanding applications.

The kits are specifically designed to fit CS1 and CDS1 series tie rod pneumatic cylinders featuring a square cover design. This ensures seamless integration and optimal functionality.

To facilitate proper lubrication during assembly, each kit comes with a grease pack. This helps maintain seal integrity and enhances the overall lifespan of the rebuilt cylinder.

By replacing worn or damaged seals, you can effectively eliminate air leaks, restoring your cylinder to its original force output and operating speed. This maintenance solution helps keep your equipment running smoothly.

Whether your pneumatic system operates with or without lubrication, these seal kits are compatible, offering versatility for various maintenance needs.

For air-hydro type cylinders with bore sizes of 125mm, 140mm, and 160mm, these kits provide reliable sealing solutions, ensuring efficient operation in hybrid systems.

Rebuilding your cylinders with these seal kits is a highly economical alternative to purchasing new actuators. This approach extends the service life of your equipment while reducing maintenance costs.

These seals perform reliably within a temperature range of -10°C to +70°C, making them suitable for a variety of industrial environments.

Each bore size corresponds to a unique kit number, simplifying stocking and inventory management for maintenance teams.

For individual lubrication needs, grease packs are also available for purchase separately in 10g (GR-S-010) and 20g (GR-S-020) sizes.
