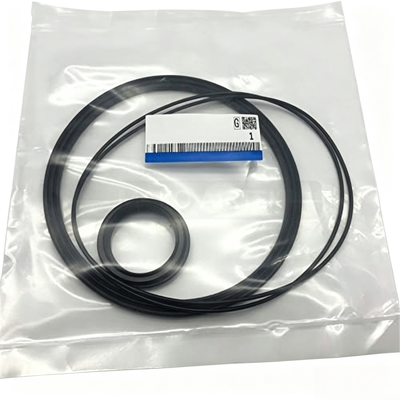

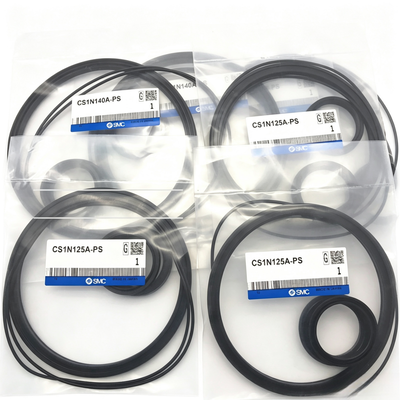

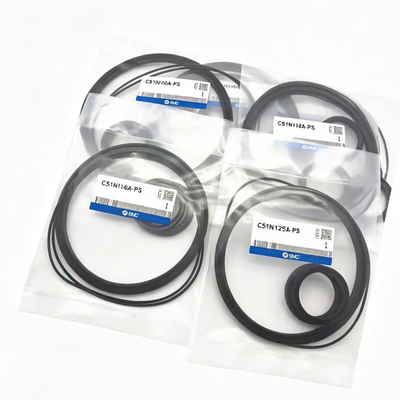

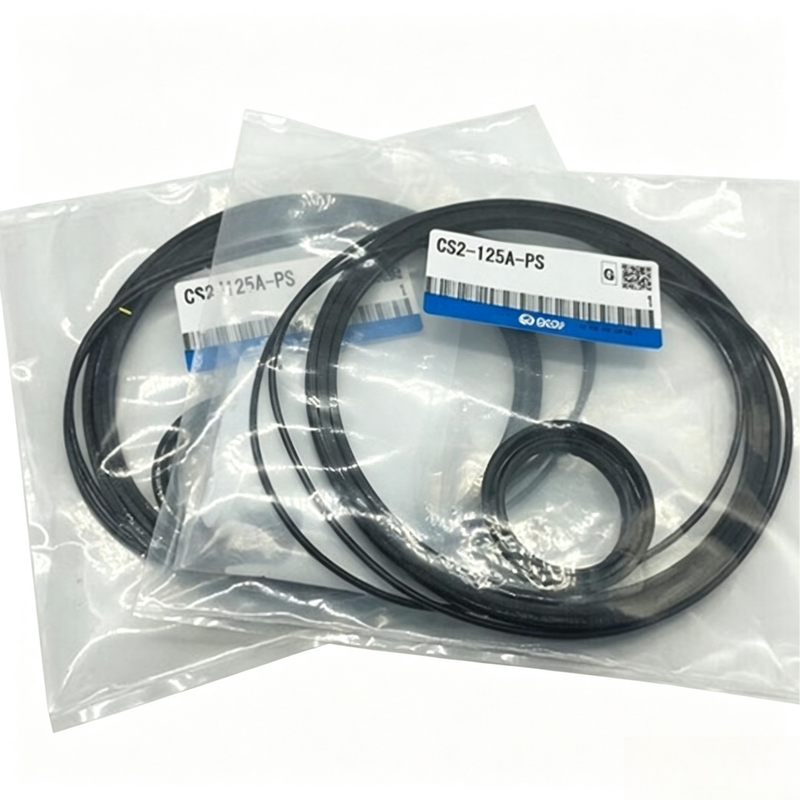

SMC CS1‑140A‑PS / CS2‑140A‑PS Overhaul Seal Kit Compatible With CS1 CS2 Large Bore Cylinder Wear Proof O Rings For Factory Automation Equipment Service

Product Description:

These tie rod cylinder seal kits are meticulously engineered replacement sets specifically designed for the maintenance and overhaul of CS1 series large bore pneumatic cylinders. They accommodate bore sizes ranging from 125mm up to 300mm. Each kit includes all the essential sealing components necessary for a comprehensive cylinder rebuild, such as a wiper ring, cushion seal, rod seal, piston seal, valve seal, tube gasket, and retaining plate gasket.

In addition to the sealing elements, every seal kit comes with a grease pack to ensure proper lubrication during installation. The grease quantity varies based on the bore size: 40g for 125-160mm, 50g for 180-200mm, and 60g for 250-300mm bore cylinders. This helps to guarantee smooth operation and enhanced durability of the seals.

The seals are crafted from premium quality NBR (nitrile rubber), which provides superior resistance against wear, oil, and abrasion, making them highly reliable for pneumatic system applications. The CS1 series cylinders feature a square cover and tie-rod style design, supporting bore sizes from 125mm to 300mm. These cylinders are available in both double-acting single rod and double rod variants, making them versatile for a range of usages including standard, lube/non-lube, and air-hydro operations.

Regular replacement of seals using these kits helps restore cylinder functionality, prevents air leakage, and significantly extends the lifespan of existing actuators, all at a fraction of the cost compared to purchasing new cylinders. It is important to note that certain components such as the piston gasket, guide gasket, and some other parts are non-replaceable and therefore are not included within the seal kits.

Features:

The Complete Seal Kit provides all the components necessary for a full cylinder rebuild. Each kit contains a wiper ring, cushion seal, rod seal, piston seal, valve seal, tube gasket, and retaining plate gasket to ensure thorough maintenance and optimal function of your pneumatic cylinder.

These seal kits are available for a variety of bore sizes including 125mm, 140mm, 160mm, 180mm, 200mm, 250mm, and 300mm. This wide selection allows for compatibility with numerous cylinder models.

The seals are made from nitrile rubber (NBR), which offers exceptional resistance to oil and wear. This material choice ensures durability and long-lasting performance in demanding applications.

Specifically engineered for CS1 and CDS1 series tie rod pneumatic cylinders featuring a square cover design, these kits guarantee a precise fit and seamless integration.

Each kit comes with a grease pack to facilitate proper lubrication during installation, helping to extend the life of the seals and improve cylinder operation.

By replacing worn out seals, the kit effectively eliminates air leakage, restoring the cylinder's original force and operational speed for reliable performance.

These seal kits are suitable for both lubricated and non-lubricated cylinder types, providing versatility for various maintenance needs.

The kits are also compatible with air-hydro type cylinders, specifically for the 125mm, 140mm, and 160mm bore sizes, broadening their applicability.

Utilizing this seal kit is a cost-effective way to maintain and extend the service life of your actuator, costing only a fraction of the price of purchasing a new cylinder.

The seals are designed to operate efficiently within a temperature range of -10°C to +70°C, suitable for many industrial environments.

Each bore size corresponds to a single kit number, simplifying stocking and inventory control for maintenance teams.

For individual lubrication requirements, separate grease packs are available in two sizes: GR-S-010 (10g) and GR-S-020 (20g).

Technical Parameters:

Applications:

Support and Services:

Our Piston Pneumatic Cylinder product is designed for reliable and efficient performance in various industrial applications. For technical support, please refer to the product manual included with your purchase, which provides detailed installation, operation, and maintenance instructions.

If you encounter any issues during installation or operation, ensure that all connections are secure and that the cylinder is compatible with your system specifications. Regular maintenance, such as checking for air leaks and lubricating moving parts, will help extend the life of your pneumatic cylinder.

We offer comprehensive services including troubleshooting guidance, replacement parts, and system optimization advice to help you achieve the best performance from your piston pneumatic cylinder. Our technical team is equipped to assist with custom configurations and application-specific requirements.

For detailed service options and support resources, please visit our website or consult the support section of the product documentation. We are committed to providing exceptional service to ensure your satisfaction and the optimal operation of your pneumatic cylinder.

Packing and Shipping:

Our Piston Pneumatic Cylinder is carefully packaged to ensure maximum protection during transit. Each cylinder is securely wrapped with anti-static foam and placed in a custom-fitted, sturdy cardboard box to prevent any damage from shocks or vibrations. The packaging materials are chosen to be eco-friendly and recyclable wherever possible.

For shipping, we use reliable courier services that provide tracking and insurance options. Orders are processed promptly to guarantee timely delivery. Depending on the destination, we offer various shipping methods including standard, expedited, and express shipping to meet your needs. All shipments include detailed product documentation and installation instructions.

We recommend inspecting the package immediately upon arrival and reporting any damages to the carrier and our customer service within 48 hours to facilitate a smooth resolution. Our commitment is to deliver your Piston Pneumatic Cylinder safely and efficiently, ensuring your complete satisfaction.
